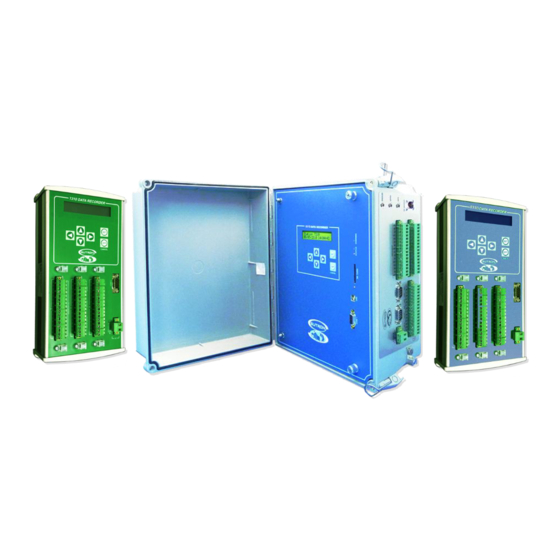

8310 & 7310 Dataloggers
Operations & Maintenance
Manual
Part No. 8800-1185 Rev. 2.8
April 16, 2014

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 8310 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Sutron 8310

Summary of Contents for Sutron 8310

  • Page 1 8310 & 7310 Dataloggers Operations & Maintenance Manual Part No. 8800-1185 Rev. 2.8 April 16, 2014...

  • Page 2: Table Of Contents

    Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Table of Contents SING ANUAL CHAPTER 1: INTRODUCTION 8310 & 7310 O VERVIEW 8310 F EATURES 7310 F EATURES ODEL UMBERS ANGE OF PPLICATIONS HYDROMET A NPUTS PECIFICALLY ESIGNED FOR...
  • Page 3 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 HANGING ALUES AND XECUTING UNCTIONS PC C 8310 ONTROL OF THE PC S TARTING THE OFTWARE 8310 M ELECTING OPTIONS AND CHANGING VALUES ERMINOLOGY EASUREMENTS NPUTS ROCESSING UTPUTS LARMS...

  • Page 4: Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (Beta) Pg

    Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 TATION TATION ATE AND TATION ETUP () > EASUREMENTS > ASIC () > OMMUNICATIONS > > ECORDS LAN S > ETTINGS > SERS > DVANCED ETTINGS EAD SETUP FROM FILE...
  • Page 5 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 TATION ETUP EASUREMENTS IMULATE TATION ETUP OMMUNICATIONS LAN S ETUP /COM DIRECT | RADIO | SSP TATION ETUP OMMUNICATIONS NABLED ASTER LARM ORMAL SSP S ETTINGS ARRIER ELAY SSP S...
  • Page 6 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 /COM GPRS TATION ETUP OMMUNICATIONS NABLED NTERVAL ORMAT LARM NTERVAL URATION ETUP ASSWORD AND ASSWORD ETUP IST AND ELECT UTPUTS ELECT UTPUTS ONTENT ELECT UTPUTS EQUENCE ELECT UTPUTS LARM...
  • Page 7 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 NSWER ANGUAGE HONE UMBERX EDIAL ELAY EDIALS XAMPLE /LAN TATION ETUP OMMUNICATIONS NABLED YPEX AMEX ASSWORDX ORTX ORMAL LARM /COM MODBUS TATION ETUP OMMUNICATIONS LAVE EVICE ARITY ROTOCOL RTSP...
  • Page 8 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 TATION ETUP ECORDS ECORD ELETE ECORD TATION ETUP ECORDS ECORD ETAILS ECORD NTERVAL AND EPARATOR ANGING EPARATOR IELDS TATION ETUP SERS SER NAME ASSWORD SER GROUP IMEOUT , SSP, TCP/IP,...
  • Page 9 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 SDI-12 C OMMAND IAGNOSTICS YSTEM TATUS ECENT ESSAGES 8310 V OMMUNICATIONS TATUS AITING COM1: N ST:--:--:-- L :--:--:-- L ST:--:--:-- LARM RADIO2: N ST:12:10:00 L :12:05:40 L ST:12:00:00 LARM...
  • Page 10 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 EASUREMENT ETUP HERMISTOR IRING EASUREMENT ETUP EMPERATURE ROBE IRING EASUREMENT ETUP AROMETRIC RESSURE ENSOR IRING EASUREMENT ETUP DDRESS EASUREMENTS ETTING EASUREMENT REFERENCES IRING EASUREMENT ETUP IPPING UCKET OTAL CCUMULATION...
  • Page 11 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 NTRODUCTION EASURED ALUE OGGED SD C ARDS SD C SING ARDS ADIO PTIONS NABLING XTERNAL ADIO UPPORT ONNECTING XTERNAL ODEM GOES D CHAPTER 10: BASIC ASIC NTRODUCTION TEPS TO...
  • Page 12 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 ETUP ROBLEMS LOS R ADIO OMMUNICATIONS ROBLEMS ROUBLESHOOTING UIDE SDI-12 I NTERFACE TANDARD ROUNDING ONNECTOR TYPE OMMUNICATIONS SETUP SENSORS SEFUL COMMANDS OWER ONSUMPTION PGRADING THE IRMWARE SD C ERMINAL...
  • Page 13 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 ORMAT GPRS LAN S ESSION ORMAT CUSTOMER SERVICE POLICY...

  • Page 14: Using This Manual

    There are twelve chapters in this manual. These twelve chapters introduce you to the 8310 and present the basics to get you started using the 8310. Chapters 1 through 3 should be read by anyone planning to use the 8310. Chapter 4 contains a detailed reference of all the 8310 menus and commands.

  • Page 15: Chapter 1: Introduction

    This chapter introduces you to the Sutron Model 8310 & 7310 family of data recorders and transmitters and presents the features and capabilities that make the 8310 & 7310 the ideal product to use for a remote environmental monitoring system.

  • Page 16: 8310 & 7310 Overview

    For even more durability, each 8310 is tested to operate over the -40 C to +60 C temperature extremes expected in remote environments. Full EMI and transient protection are built into each input.

  • Page 17: 7310 Features

    4/16/2014 7310 Features The 7310 runs the same software as the 8310, but has a subset of the features of the 8310. It includes all the features of the 8310 with these exceptions: Only one serial telemetry device, com 2...

  • Page 18: Wide Range Of Applications

    SD card -- setups can be stored on the SD Memory Cards. To copy a setup to the 8310 simply, plug the SD card into the memory slot and issue the copy setup command. It takes only a few seconds for the 8310 to copy the setup from the card to its memory.

  • Page 19: Sealed Enclosure

    Large Secure Memory The 8310 has built-in flash memory capable of storing the station setup and configuration data along with memory to “log” (or record) over 1,000,000 data points. This memory doesn’t use a battery and, as a result, it is always preserved even when power is lost or interrupted to the 8310.

  • Page 20: Chapter 2: Unpacking And Initialization

    Initialization This chapter provides information to help you unpack the 8310 and start using it. You will learn how to hook a battery to an 8310 and how to run a quick test to make sure it is operating properly.

  • Page 21: Unpacking

    Connecting the Main Battery The 8310 runs off 9 to 18VDC with a peak power requirement of 1 amp (not provided). Connect a suitable power source to the 8310 as shown below. When power is applied, the unit will automatically startup and if configured, begin operations.

  • Page 22: Quick Test

    You can also tell the 8310 is running by watching the Status LED. In normal operations, the green LED will flash periodically as the 8310 operates. If the green LED is not flashing or if the red LED is on, the 8310 may not be operating properly.

  • Page 23: Chapter 3: Getting To Know The 8310

    This chapter describes in detail the 8310 front panel (including connections, controls and displays) and the menus that you will use to set up and operate the 8310. Complete information is given on how to operate the 8310 from the front panel or a PC.

  • Page 24: 8310-N

    Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 8310-N 8310-O...

  • Page 25: 7310-O

    The Display The 2 line LCD backlit display is a window into the 8310 system. It is in this area that the 8310 displays a variety of messages which are used to set up and test the unit. The display is ON generally only after pressing a key in the keypad.

  • Page 26: Status And Charging Led

    The Status and Charging LED (light emitting diode) are located on the front panel of the 8310-N and on the left side of the 8310-O. The Status LED consists of two LED – one green and the other red. The green LED will flash periodically to indicate activity by the system. The red LED only lights when there are errors present that should be viewed and cleared by the user.
  • Page 27 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 A – Power Label Description POWER GND Battery Connection +12V 12V Battery Connection B – Analog Inputs Label Description AGND Analog Ground Input channel 1 (1-) Input channel 2 (1+) VREF 2.5V Reference voltage...

  • Page 28: Sd Card Socket

    SD Card Socket The SD card socket is located on the front panel of the 8310-N and the left side of the 8310-O. An LED next to the SD card indicates lights when the SD card is being read or written to.

  • Page 29: Usb/Com1 Serial I/O Port

    8310s can store either data or setups on industry standard SD memory cards, having a capacity up to 2GB. To transfer data from the 8310's internal memory to the SD Card, or to transfer a pre-programmed set-up from an SD Card to the 8310, insert the card into the SD Card slot and use the SD Card Operations menu.

  • Page 30: Ground Lug

    Ground Lug A ground lug is provided on each 8310 in order to connect the 8310 to an EARTH ground at the site. On the 8310-N, this ground lug is on the side of the enclosure. On the 8310-O, the ground lug is on the protection/termination board.

  • Page 31: The 8310 Menu Tree - Top Two Levels

    Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 The 8310 Menu Tree – Top Two Levels [Errors Present] Station name Date/Time Recording is ON | OFF | ON+TX Alarm Status: NORMAL | ALARM Sending Alarm Txs: device | DISABLED Mx.Ox...

  • Page 32: The 8310 Menu Tree - All Levels

    Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 The 8310 Menu Tree – All Levels [Errors Present] Station name Date/Time Recording is ON | OFF | ON+TX Alarm Status: NORMAL | ALARM Mx.Ox name value > view log …...
  • Page 33 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 … Add Measurement Delete Measurement Copy Measurement Move Measurement Station Setup > Basic Station Setup > Communications (n) > Comx: (state) DIRECT | Radio | SSP | RS485 Enabled...
  • Page 34 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 … PhoneNumber10 RedialDelay NumRedials DialInMsg DialOutMsg SSP Settings CarrierDelay ReplyDelay AckDelay NumRetries RetryDelay Station Setup > Communications (n) > Comx: (state) MODEM Enabled BaudRate MasterID AnswerMode RingToAnswer PhoneNumber1 …...
  • Page 35 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 MessagePort ServerPassword UseDHCP Select Outputs Station Setup > Logs > Data.log > details Size: Wrap log when full? Ignore bad data? Value for bad data: Header on export? Add note to log System.log >...
  • Page 36 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 COMx: (state) Tests and info … LAN (state) Power Users Config > Next task Next task time SelfTimed Status > Last Tx #Tx today Next Tx time Next Tx msg...
  • Page 37 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Send SDI-12 command System Status > Recent Messages 8310 vX.Y.Z Communications Basic Status i2c Statistics Serial Number Num Resets CPLD Version Basic Status: RUN Selftest Clear Cal Data Debug to System Log...

  • Page 38: Positioning Within The Menu Tree

    Time is a field (which holds the value of the time) as is Recording and many others. You set the 8310 by changing the values of the fields.

  • Page 39: Changing Values And Executing Functions

    If you wish to cancel your change of the Station Name, press instead of . This causes the 8310 to ignore your selection, and restore the original value for the Station Name. Setting the Date and Time The Date and Time are located on the main menu along with the Station Name.

  • Page 40: Pc Control Of The 8310

    PC Control of the 8310 When using a PC to setup the 8310, the user has a larger view into the menus as the system displays multiple menu items on the same screen with one item highlighted. Navigation within the menus can be done using the keyboard arrow keys.

  • Page 41: Starting The Pc Software

    “Flash Disk>,” type the command UI and press ENTER. If the 8310 still does not display the main menu, you must use the front panel of the 8310 to verify that COM1 is configured as DIRECT and that the baud rate is set to 115,200. To do this, go to Station Setup/Communications/COM1 and verify that the state is STARTED and DIRECT.

  • Page 42: Selecting Options And Changing Values

    8800-1125Rev. 2.7 (BETA) 4/16/2014 If you will remember, when using the front panel display to set up the 8310 you were required to push the directional arrows to move around the menu tree. When using a PC, you may also use the arrow keys or press the first letter in any item in order to move around the menu.

  • Page 43: Terminology

    When a measurement is set up in the 8310, it is given a name and a number. The measurement numbers are M1, M2, and so on and the name is generally something related to the value being measured –...

  • Page 44: More On Measurements

    Items are also provided for adding and deleting measurements. Each measurement in the 8310 has a number associated with it to help identify the measurement uniquely, e.g. “M2”. The “*” after the measurement number indicates that the system is currently making a measurement.

  • Page 45: Operating The 8310

    RIGHT to view log | ENTER to measure live Errors If the 8310 encounters a problem or error in the course of its operation, it will activate the “Errors present” item at the top of the main menu. If you should see this item, press RIGHT to see the errors.

  • Page 46: Sd Card

    Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 based on the setup. Recording ON+TX will be displayed if the setup contains some communications devices configured to automatically transmit data. Always check to make sure Recording is ON or ON+TX before leaving a site!

  • Page 47: Viewing Logs

    4/16/2014 Note that the hint suggests pressing RIGHT to view the log. You can get to the logged data from here as well as from the main menu and several other menus in the 8310. Viewing Logs With one of the outputs selected in the main menu (e.g. M2.O1) or Diagnostic/Outputs menu, pressing RIGHT will allow the viewing of the data in the log (as the hint suggests).

  • Page 48: Diagnostics/Inputs

    8310. Communications The 8310 has built-in 4 communications ports. The status of the ports can be viewed in the Diagnostics/Communications menu as shown below. Only those ports that have been configured will show up in the list.

  • Page 49: Setups

    DOWN: message stats Setups After the 8310 is powered up, it will read a setup into memory and then use it to configure devices, communications, measurements, logging and transmissions. The setup is stored on the 8310’s internal flash disk with the name 8310.ett. You can load setups into the 8310 either manually or via the SD card, Terminal Menus or some communication devices.

  • Page 50: The Setup List Command

    The setup LIST command types out the complete setup of the 8310 in a formatted, readable output. The command is issued via the command line interface. The LIST output closely matches the 8310 menus, making it simple to use as a reference when entering a setup.

  • Page 51: Chapter 4: Menu Tree Reference

    8800-1125Rev. 2.7 (BETA) 4/16/2014 Chapter 4: Menu Tree Reference This chapter describes in detail all the items that make up the 8310 setup. The chapter is not meant to be read from front to back but is intended as a reference.

  • Page 53: 8310 Menu Reference

    4/16/2014 8310 Menu Reference Each Menu item in the 8310 is documented in the following sections. First, all the items of the Main Menu are documented followed by each of the sub menus in alphabetical order. The items within each menu/sub-menu are listed in alphabetical order based on the front panel name.
  • Page 54 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014...

  • Page 55: Main Menu

    The main menu for the 8310 displays important operational information and is the starting point for all 8310 users. The terminal version of the menu is shown below. Note that this menu shows the station name, date and time, recording status, data for selected sensors, and provides navigation into the logs, setup, diagnostics, etc.

  • Page 56: Sending Alarm Txs

    Station Setup The Station Setup menu provides a way to perform most of the essential functions needed to set up an 8310. The station setup menu includes items for measurements, communications, LAN settings, etc. Station Setup for additional information.

  • Page 57: Alarm Status

    Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 menu also includes SDI tools. Diagnostics for additional information. Alarm Status The possible values for Alarm status are: NORMAL No alarm conditions exist or all alarm conditions have been cleared temporarily.

  • Page 58: Recording

    Recording Recording Status can be OFF, ON or ON&TX. When OFF, the 8310 will not perform any of its scheduled functions. Automatic Satellite transmissions, LOS radio alarm transmissions, and telephone alarm transmissions are disabled when recording is OFF. It may still be able to communicate with other systems, depending on the device;...

  • Page 59: Sd Card Operations

    SD Card Operations/Write Setup to Card Write Setup to Card is used to write a copy of the 8310 setup to the SD card. The SD Card can then be taken to another 8310 and cloned by using the Read Card Setup option (above).

  • Page 60: Sd Card Operations/Read Basic From Card

    Station Name/Date/Time Station Name The Station Name is used by the software to uniquely identify the 8310 to the user and to other systems in a network. The name appears optionally in the header of downloaded data files, and is used to identify the data source for data dumped to the SD Card, serial port, and in SSP communications.

  • Page 61: Station Setup

    The Date and Time can also be set via command line, SSP and BASIC. Station Setup The Station Setup menu provides a way to perform most of the essential functions needed to set up an 8310. A typical Station Setup menu is provided below: Station Setup Measurements (9) >...

  • Page 62: Users ()

    Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Users () > The number in parenthesis is the number of users defined in the system. Press RIGHT or ENTER to enter the user’s sub-menu. See Station Setup/Users for more information.

  • Page 63: Mx[*]: Name Status

    Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Mx[*]: name status > Each measurement is listed with its ID (e.g.M1), “*” if it is being measured, and information on the status of the measurement. Status can be one of the following values: Executing –...

  • Page 64: Measname

    Enable=NO, no measurements will be made. This allows you to create a super setup for the station and only enable those sensors that may be present. MeasType Description: The 8310 has a growing list of measurement types that provide to support special measurement and processing needs. Each MeasType may have its own configuration dependent values.
  • Page 65 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Instantaneous Takes a single measurement, produces a single output. Interval, Time Interval and Time together define when measurements should be taken. Interval is the time between measurements, and Time is an offset from actual time, both in format of HH:MM:SS.
  • Page 66 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Figure 1 Sampling and Averaging VectAverage The Vector Average is important to any sensor that has a circular discontinuity, such as a wind direction sensor with the crossover from 0 to 359 degrees. In these cases, simple averaging does not work -- the mean of 0 and 359 is 179.5 , which is clearly incorrect.
  • Page 67 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Unit vector, 90 Unit vector, 0 Resultant angle = = 45 MnDirUnit = 45 Mean Direction Wind – This is the wind direction (in degrees) weighted for wind speed. Here, the average of 10mph at 0 with 20 mph at 90 is 63.4 .
  • Page 68 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 YES/NO. When YES, allows user to enter threshold value for comparison against incoming sample (AccumEvent determines what happens as a result of the comparison). When NO, no threshold test is performed on incoming sample.
  • Page 69 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Hours sunshine accumulation: sample input every 10 seconds, accumulate time when input > threshold, log every 2 minutes, reset every day. This requires 2 measurements, one to do the accumulation with 24 hour reset and the other to log it every 2 minutes.
  • Page 70 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Interval, Time Define when the measurement task runs. (See details under Instantaneous) TempUnits Specify if the AirTemperature and DewPoint are to be expressed in Fahrenheit or Celsius. Input Type (AT) Specifies the input type and associated fields for making the temperature measurement.
  • Page 71 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Evapotranspiration Calculates daily potential evapotranspiration using the American Society of Civil Engineers standardized reference evapotranspiration equation (January 2005) using 5 (normally averaged) input values: 1. Temperature in degrees C or degrees F 2.
  • Page 72 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 the ET result won’t be correct. WindUnits Specify the units of the wind speed measurement input (“WS”). Choices are ft/sec, km/hr. knot, mph. or m/s. Be sure you configure the wind speed input to produce a result in the selected units, otherwise the ET result won’t be correct.
  • Page 73 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Inclinometer This measurement type supports Slope Indicator's (Durham Geo-Enterprises's) Vertical In-Place Inclinometers. This measurement takes three voltage inputs, AxisA,AxisB, and TempC. The measurement produces three outputs, AxisA temperature compensated tilt, AxisB temperature compensated tilt, and TempC in Celsius.
  • Page 74 The register to be written in the target device. When ValueType is float, int, or uint (i.e., two consecutive registers are to be written), TargetRegister defines the base register (lower) of the two. Note: in the 8310, modbus register nunbers always start at 1 (not 0). ValueType Specifies the type of value to write in the target device.
  • Page 75 This property is visible only when ExtendedWrite is “Yes”, and specifies the local base register starting the consecutive set of registers to write into the target device. Note: in the 8310, modbus register nunbers always start at 1 (not 0). NumRegisters This property is visible only when ExtendedWrite is “Yes”, and specifies the number of...
  • Page 76 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 message. To use the SendTime measurement type, you need to have a communications link between the current station and the station you want to synchronize. This link can be a direct link over RS232, TCP/IP, or over line-of-sight radio.
  • Page 77 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Interval, Time Define when the measurement task runs. (See details under Instantaneous) FreqInputUnits Specifies the units of the frequency (Freq) input. May be either Digits or Hz. TempCompensation When Yes, the TempC input is measured, and is used to compensate the calculation of Out.

  • Page 78: Inputtype

    Each input is identified by the measurement number and input number (such as M1.I1). The 8310 has a powerful set of built-in input types that allow measurement of most common hydrologic and meteorological sensors. You can also define your own custom input function by writing a basic program whose name starts with “INPUT_”.
  • Page 79 -0.1V to 5V range with respect to the 8310’s power supply ground. Differential measurements tend to be slightly more accurate than single ended since the measurement reference point can be precisely defined.
  • Page 80 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 after each channel is muxed in, in order to ensure the desired settling time wait is satisfied. Using FilterNotch The filter notch parameter provides a means to adjust the conversion time to reject noise that may be coupled onto the DC input signal.
  • Page 81 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Figure 6 Single ended 4/5 wire potentiometer Figure 7 Differential 5/6 wire bridge Resistance The Resistance input type is used for thermistors and other resistance devices where you want to know the actual resistance of the device (rather than a voltage derived from the excitation voltage).
  • Page 82 For channels 1 & 2 the 8310 includes built in, temperature stable, highly accurate, 100 ohm resistors that are automatically switched in during the measurement. Note, that most 4-20mA sensors require a second or more to warmup so be sure to set the settling time (or warmup) to the value recommended by the manufacturer.
  • Page 83 When providing your own load resistor, never use a value more than 100 ohms, and wire the sensor to SW-12 to conserve power. Figure 11 4-20ma using External Load Resistor SDI inputs utilize the SDI-12 interface on the 8310. The SDI InputType requires several properties to be configured: SDIAddress...
  • Page 84 40 revolutions/second for a 400 count/revolution encoder. InternalTemp This input type reads the internal temperature sensor of the 8310. This sensor is located on the microprocessor board and is accurate to +/-1 C. Note that because of heat generated by the electronics, this temperature may be higher than the environment around it.
  • Page 85 2^32 counts from the calibration point. Some instruments do not have a clean output signal and the 8310 may make a measurement and detect 2 or 3 counts where only one count was generated. When this happens, you can use FIlterValue to help eliminate the erroneous counts.
  • Page 86 Battery Battery is the main power connection of the 8310. The measurement of the battery input can be used to track the health of the main power. Note that it is common for the battery voltage to change throughout the day and night when using a solar panel to charge the battery.
  • Page 87 Differential Resistance measurement type. This measurement requires a special add-on board to aid in the precision measurement of the analog inputs by the 8310. Please contact Sutron customer service for more information on obtaining board.
  • Page 88 TargetRegister Specifies the base register number to read from the target device. Note: in the 8310, modbus register nunbers always start at 1 (not 0). ValueType Specifies the type of value to read from target device.
  • Page 89 ExtendedRead ExtendedRead makes it possible for the 8310 to read multiple consecutive registers from a target device efficiently. When ExtendedRead is “Yes”, the 8310 will read multiple consecutive registers in a single operation, and store the results in cache. Only...

  • Page 90: Mux

    For example, perhaps you have multiple vibrating wire sensors connected to a mux in a Dam Safety application. The 8310 supports muxes that are enabled by raising a digital “enable” line, and whose channels are selected through sequential 1 clock per channel pulses of a digital “clock” line.

  • Page 91: Switchedpwr

    Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 When multiple DIO modules are connected to the 8310, use this property to select which DIO module was used when connecting the mux Enable and Clock lines. EnableChannel The DIO channel to assert to enable the mux.
  • Page 92 The table must be generated on a PC (with Notepad, for example) and then uploaded to the 8310. The format of the data is X,Y pairs of data. Files should be created in comma separate format, such as the following example: 10.22, 11.55...

  • Page 93: Cal Slope/Caloffset

    These values are applied to the input value after the selected processing in order to account for field calibration of the value. The calibration process in the 8310 supports both single point and two point calibration. The single point calibration alters CalOffset while two point calibrations affect both CalSlope and CalOffset.

  • Page 94: Name

    Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 ► Processing None Display M1.O1: Log \Flash Disk\data.log LoggingInterval 00:15:00 RecordID <None> Sequence Format Add Alarm Delete Alarm AlarmDeadband AlarmLogging InAndOut IsSSPCurData WebDisplay ► MODBUS ► Iridium COM2: Iridium Settings ►...

  • Page 95: Recordid

    WebDisplay When Yes, the output is included in the default web page provided by the 8310 over IP port 80. MODBUS The output’s MODBUS menu contains the following settings, used to define the output as a MODBUS register.
  • Page 96 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 BaseRegister Specifies the MODBUS register number to associate with this output. The setting is called “base” register, since you may use two consecutive registers to represent the output as a float, or full- size integer.

  • Page 97: Station Setup/Measurements/Mx/Mx.ox/Telemetry Settings

    Individual Individual values logged for the output since the last transmission will be transmitted. DataInterval the time interval between readings from the 8310 log DataTime the time at which to begin extracting data from the log in order to build a message...

  • Page 98: Txalarmmode

    Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 NumVals No. of data items for each parameter taken from 8310 log and encoded in each self-timed transmission Sequence Sequence determines the order of this output in the transmission message.
  • Page 99 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 For each input, both the raw unprocessed value and the post-processed value will be displayed. You may change either by selecting it and pressing SET, and the outputs will automatically start recalculating.
  • Page 100 TXAlarmRate may be used to configure selftimed reporting of alarm data on a periodic basis that take place when the system is in alarm. For example, if you want to have a report from the 8310 every hour when the system is in alarm, you would set TXAlarmRate to 1 hour. Setting TX Alarm Rate to 00:00:00 will disable this feature.
  • Page 101 Reply Delay sets the Time that the 8310 will delay before it replies to a message. Its default value is 0, meaning no delay. A value of 10 would cause the 8310 to wait 1 second after receiving a message before transmitting the reply. ReplyDelay is useful, if the system sending a request, needs a second or two to get ready for the reply.
  • Page 102 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 timed transmission would occur every hour on the 15 minute mark, i.e., 00:15:00, 00:30:00, 00:45:00, 01:00:00, etc. BaudRate The baud rate to use when communicating with the ALERT modem. The default is 1200, which is the baud rate to be used when using the High Sierra ALERT transmitter.
  • Page 103 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Select Outputs/Threshold The threshold to use when evaluating a HiLimit, LowLimit, or HiROC transmit condition (see TxEvent, above). Select Outputs/Override A special threshold value that will cause a transmission even when the hold-off period has not yet expired.
  • Page 104 How to Send a Command via Iridium To send a command to the 8310 via Iridium, simply send an email message to data@sbd.iridium.com, with the modem’s IMEI number on the subject line, and a text file attachment with “.sbd” extension containing the command(s) to be processed. The email message body should be left empty.
  • Page 105 As of version 2.7, the 7310/8310 logger is programmed to handle an Iridium epoch change in May, 2014. Iridium will announce new epoch changes in coming years. When a new epoch date is announced, the logger must be told to store the new date.
  • Page 106 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Again, the irsenxt and irse commands must be received via Iridium short burst data (SBD) message to take effect. These commands won’t work if issued over the logger command line.
  • Page 107 ON – in this state, the ethernet port is always powered on, regardless of whether it is being used. AUTO – in this state, the ethernet port is powered only when the 8310 determines it needs the port powered to perform some function. For example, when configuring the 8310 as a MODBUS master, AUTO allows the ethernet port to be off until it’s time to perform MODBUS...
  • Page 108 Use DHCP – When Yes, the 8310 uses the DHCP service provider on your LAN to obtain an IP address at boot-time. Set this to No to specify a static IP (an IP that does not change with each boot), as well as other advanced configuration data like Subnet Mask, Default Gateway, and DNS and WINS servers.
  • Page 109 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 PwrOnAction Connect PrimaryIP IP address SecondaryIP None MessagePort CommandPort RedirectorPort ServerPassword CSDShoulderTap SMSTxMode None SMSTxList SMSAlarmsEnable SMSNotifyEnable SMSNotifyList DataPassword SetupPassword DataUserList SetupUserList ModemAPN ModemUserName ModemPassword ModemPin RadioBand Quad Mode (default)
  • Page 110 PwrOnDuration specify essentially a never-ending power on time, the modem will still be reset periodically. By powering on the GPRS modem the user is given the ability to communicate with the 8310 over a TELNET, TCP/IP, SSP/CL, and SMS session via the master station. As well as send self-...
  • Page 111 GPRS modem but had the phone number of the GPRS, he or she can call the number, or send a text with the command “STAP”. By calling the number, or sending the text, and the 8310 is powering the GPRS using PwrOnTime, PwrOnInterval, and PwrOnDuration the GPRS will create a SSP/CL connection to the master station even if the GPRS’s PwrOnAction = Listen.
  • Page 112 4/16/2014 SMSAlarmsEnable When SMSAlarmsEnable is “Yes” and SMSTxList has a phone number in it, the 8310 shall also send alarm messages via SMS. The SMS message is human readable, and includes the station name so the user does not need to know the station identified by the phone number. The time is also included to account for the delays in delivery.
  • Page 113 If the user wants to change the setup in the GPRS settings or gather status information about the 8310 from the GPRS modem he or she can use their phone to do it. Alpha shall process the following commands received via SMS:...
  • Page 114 SIM PIN is needed and hasn’t been entered. Entering the wrong PIN can cause the modem to become blocked, so be carefull especially when swapping SIMs. RadioBand The Sutron GPRS modem supports multiple bands. Typically in the US the “Quad Mode” can be...
  • Page 115 This allows many of the modem settings to be customized in the modem. RelayUseDigIO Power to Sutron’s GPRS modem is supplied and managed using PIN 9 of the RS232 port, but when using other modems it may be desirable to control power a relay. When a connection is made, DTR is always asserted to the device.
  • Page 116 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 NumVals No. of data items for each parameter taken from 8310 log and encoded in each self-timed transmission Last Only the last value measured will be transmitted. Exclude Do not transmit this output.
  • Page 117 The 8310 uses the local time offset and the UTC time received from Satlink to set the 8310’s clock. In addition, the offset is sent to Satlink (Satlink 2’s use this value to determine local time).
  • Page 118 This check box configures Satlink to append quality data to the end of the transmission. Select Outputs (SelfTimed Settings) Each of the outputs of the 8310 is displayed in a list along the user setting of All, Individual, Exclude as described below. To change the setting press SET/ENTER and select the desired value.
  • Page 119 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Individual Individual values logged for the output since the last transmission will be transmitted. DataInterval the time interval between readings from the 8310 log DataTime the time at which to begin extracting data...
  • Page 120 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 HH:MM:SS. NumAttempts The NumAttempts property defines how many transmissions Satlink will make when the unit first goes into alarm. This value is normally set to one. When set to a value other than one, Satlink will make this number of transmissions with each transmission separated by Burst Rate number of seconds.
  • Page 121 Language – language only needed for voice DialInMsg, DialOutMsg – only needed for voice. Station Setup/Communications/COMx Voice Sutron’s voice modem is capable of both data and voice communications. The settings for the voice modem are as follows: Voice COM4: Enabled...
  • Page 122 SSP alarm is sent, otherwise a simple text message is sent and a prompt is made asking for the alarm to be acknowledged. MasterID The MasterID is used to name the destination whenever the 8310 makes a transmission on this device. AnswerMode The Answer mode can be configured to answer in Voice, Data, or Voice &...
  • Page 123 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 The dial in and out messages are defined by a sequence (list) of commands set by the user. The commands generally are configured to speak the last measured value for selected outputs.
  • Page 124 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Language Switches to the specified language. This effects all speech phrases that may be spoken (ex: SpeakPhrase and SpeakData). Please note that any phrases specified in subsequent SpeakPhrase commands which don’t exist in the specified language will be updated to phrases...
  • Page 125 The following sections document the fields. Enabled Enabled determines whether or not the 8310 will send alarms via the LAN. The default setting is No, meaning that no alarms will be sent. With the setting of Yes, the user can specify up to 3...
  • Page 126 Master and Slave operations. “Master” operations are initiated by MBSensor input types and MBOut measurement types. “Slave” operations means the 8310 listens for commands to read and write local Modbus registers, taking action only when a command is received from a Modbus master.
  • Page 127 End MODBUS Menu Slave When Yes, the com port is used for Modbus slave operations. This means the 8310 listens for incoming master communications (register reads, writes, etc.), and processes them when received. When No, the com port is used Modbus master operations, like those initiated by the MBOut measurement type and the MBSensor input type.
  • Page 128 This menu is used to configure MODBUS SLAVE operation over TCP/IP. Note that “slave” operation means the 8310 listens for commands to read and write local Modbus registers, taking action only when a command is received from a Modbus “master”. Local registers are defined in measurement output settings menus.
  • Page 129 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Public Function SELFTIMED_STFormatter SELFTIMED_STFormatter = SELFTIMED_STFormatter + "Hello" End Function Satlink Random This item defines a Basic subroutine called when its time to format a Satlink random message. The basic program may alter the contents of the formatted message.
  • Page 130 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Logs (2) system.log ► data.log ► Add Log Delete Log End Logs Add Log When adding a log, the system prompts for the Location, Name, and Size properties, as well as the “Wrap data when full”...
  • Page 131 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 The minimum log size is 2048 bytes. The maximum log size is the lesser of 2 billion bytes, or the free space available on the storage medium minus a small safety buffer (32k for a storage card, 192k for Flash Disk).
  • Page 132 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 With a Log Record, you can choose which pieces if information to log (measurement name, units, quality, and value), change the order in which they appear, place a character between measurements (such as the commas, shown above), and even place a character between the name, quality, value, and units.
  • Page 133 Retrieval user tries to access something they need to have Setup privileges for, the 8310 will prompt them to log in as a setup user. Logging in to the 8310 also places an entry in the system log, making it possible to see who was logged in at any time.
  • Page 134 The default setting for FixedInternalPorts is “Yes”. Setting it to “No” can be useful when you typcially use the same 8310 to setup different configurations for other 8310s, yet to be deployed.
  • Page 135 Consult the guide to your terminal program on how to send and receive files using Y- MODEM. In general terms, you will select the menu item on the 8310 to prepare the logger for the file transfer, and then go to your terminal program to initiate the file transfer. If you haven’t initiated the file transfer within a minute, the 8310 will time-out and not accept the transfer.
  • Page 136 See additional information in Diagnostics/Outputs. I/O Modules (3) The number in parenthesis is the number of I/O modules installed in the 8310. Each 8310 has at least 3 I/O modules: the display, the analog I/O providing the analog inputs and the digital I/O providing the digital inputs.
  • Page 137 Chapter 12. Exit 8310 application This function exits/stops the 8310 application. This should only be done when directed to do so by Sutron Customer Service, typically as part of troubleshooting an issue. Exiting the application will cause the system to no longer measure, log, and/or transmit data. To restart the application you must access the 8310 command line (a “Flash Disk>”...
  • Page 138 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Diagnostics/Communications The Diagnostics/Communications menu will appear similar to the one below, listing only those communications devices that have been configured as installed into the system. Communications (3) COM1: (Standy-On) >...
  • Page 139 Satlink device will be on “air”, occupying the designated channel space). Send to Sutron This menu gives the ability to send a test message to Sutron using Satlink.Contact Sutron customer service for assistance in using this feature. Satlink Status...
  • Page 140 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Next ST tx time None Next ST 0 bytes None Next ST tx size 0 bytes Est ST bytes/month 0 bytes Last AL tx None Total AL tx Last messages rx ►...
  • Page 141 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Next pwr-off Time of the next power off Total bytes tx Total number of bytes transmitted so far Total bytes rx Total number of bytes received so far Total tx/rx errors Total number of errors that have occurred while transmitting or receiving.
  • Page 142 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Next Tx msg The next self-timed message Nex Tx size The number of bytes in the next self-timed transmission Est #Tx bytes/day Estimated number of bytes per day that will go to...
  • Page 143 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Send SMS message Press SET/ENTER to send an SMS message. The message will be sent in the background, allowing you to navigate to other menus. Return to this menu when you wish to check for the result.
  • Page 144 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Nex Tx size The number of bytes in the next self-timed transmission Est #Tx bytes/day Estimated number of bytes per day that will go to scheduled transmissions, computed based upon the current...
  • Page 145 MxIx: Raw Val Calibrate The 8310 calibrate function built into the 8310 can compute the slope and offset for you if you are able to place the sensor in known environments. The calibrate function is available from any menu displaying an input such as in Station Setup/Measurements or Diagnostic/Inputs. The calibration process is as follows: 1.
  • Page 146 End I/O Modules RIGHT shows details The number in parenthesis is the number of I/O modules installed in the 8310. Each 8310 has at least 3 I/O modules: the display, the analog I/O providing the analog inputs and the digital I/O providing the digital inputs.
  • Page 147 Each function is discussed below: Find SDI devices This function causes the 8310 to issue the SDI-12 identify (I) command to all valid SDI-12 addresses. The search proceeds in the following order: 0…9, A…Z, a…z, /"#$%&'()+,-./{|}~. The display shows each address being tested.
  • Page 148 This menu item shows recent messages from system.log 8310 Vx.x.x Vx.x.x is the overall version of the 8310 application. The sub menu item lists all the software modules and their versions. All modules except kernel, monitor and loader should have the same version.
  • Page 149 8310. The initial version of the CPLD is “8310, ver A”. If it is updated the version will become “8310, ver B”, “8310, ver C”, etc. If the unit reports that the CPLD is not for the 8310, then it has been incorrectly programmed.
  • Page 150 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Chapter 5: Quick Setup This chapter focuses on the 8310 setup and suggests steps to follow to create the setup of the 8310.
  • Page 151 4/16/2014 Review In the first three chapters of this manual, you learned how to power up an 8310 and use the front panel and PC menus. You were also introduced to the reference chapter of all the 8310 menu items. In the remaining chapters of this manual, you will learn more about its many applications in actual field operations.
  • Page 152 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Val). This gives you a chance to test the measurement of each input to make sure it is connected and configured properly. You can press SET to make a measurement of the input or RIGHT to start a calibration if the sensor is already wired.
  • Page 153 Mode is “Voice and Data”. In this mode, the 8310 will answer "Please press pound" and pause for a few seconds. If "#" is not pressed, the 8310 will turn on its modem signal and try to establish a data link. The other Answer Modes are available if you need them.
  • Page 154 If you want the 8310 to send alarms, set AlarmEnable=YES. Set the TxNormalRate and TxAlarmRate if you want the 8310 to make selftimed transmissions of data. Make sure you set the MASTERID to match the name of the master station.
  • Page 155 You can also view live data for some sensors while recording is OFF. When you set Recording ON the 8310 gets to work. It will begin to use the information you entered to measure, sample and log data. The 8310 will check for alarms if enabled and perform alarm actions that have been programmed.
  • Page 157 Chapter 6: Connecting Sensors This chapter describes how to connect sensors to the 8310. It discusses the different kind of sensors that the 8310 can measure (analog, frequency, counter, quadrature, SDI-12 and RS232) and provides details needed to connect and operate...
  • Page 158 Then create a complete setup sheet and wiring diagram that shows where each sensor wires is attached to the 8310. This will take the guesswork out of connecting the sensors in the field.
  • Page 159 Module Types Analog, 10 channels, 16 bit Digital, 8 channels, input or output In addition to the external input capability, the 8310 can monitor and log several of its own internal functions including: excitation voltage Analog Ground voltage...
  • Page 160 The 8310 counter circuits can be programmed to be either event counters totalizing the counts that are received or frequency counters. In either case, the 8310 expects to see a 0 to 5 volt signal from the sensor. Sensors compatible with the 8310 counter/frequency...
  • Page 161 Keep in mind the performance of the sensor you are connecting to make sure you do not set the 8310 to measure it more frequently than it can. If you do select a schedule that is too fast for the sensor, you could end up with data missing in the Log.
  • Page 162 Chassis Ground. There is a maximum of 100 ohms between the Chassis Ground and digital ground. Sensor Setup Examples The following examples show the details of the 8310 setup for some common sensors. Shaft Encoder (Quadrature) Wiring...
  • Page 163 Slope is typically 1. Wind Sensor (with amplifier Circuit) Wiring The following setup is for the Sutron model 5600-201 Wind Sensor. Note that the sensor must have the amplifier circuit – the model 5600-0200 without the amplifier cannot be used with the 8310.
  • Page 164 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Black Ground Prot Gnd (C9) Green Analog Signal Analog for Direction Input (any) White Analog Analog Reference for Input VREF Direction Brown Digital Signal for Digital Speed Input (any)
  • Page 165 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Air Temperature/Relative Humidity Wiring The following setup is for the Sutron model 5600-0315 Air Temperature and Relative Himidity Sensor. Sensor Function Connection Wires Green Power Prot +5V or Prot +12V...
  • Page 166 SwitchedPwr None Processing Slope-Offset Slope Offset Cal Slope Cal Offset Thermistor Wiring Measuring resistance with the 8310 requires an additional reference resistor. The wiring of a thermistor setup is shown above, with the reference resistor between VREF and the Analog...
  • Page 167 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Input. Be sure to use a reference resistor with a tight enough tolerance to achieve the accuracy in temperature you desire. Measurement Setup Converting the thermistor resistance to temperature is typically done with the Steinhart-Hart equation, shown below.
  • Page 168 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Fuel Temperature Probe A “fuel temperature” sensor is used to monitor the temperature of surrounding trees by measuring the temperature inside a standard wooden dowel. The Campbell Scientific CS205/107 Fuel Temperature probe is the example shown here.
  • Page 169 The result of a bridge measurement is Vo/Vx, that is, the voltage output (analog input to the 8310) divided by the excitation voltage (Vref). Therefore the first processing step utilized is “Invert” in order to obtain Vx/Vo. Additional processing is then added to the output. Adding “Slope-Offset”...
  • Page 170 Since it does its own processing, the user must give instructions to the ACCUBAR (through the 8310) on how often to take measurements and what units to deliver them in. Below, you will find the commands required for a very basic setup, but for a full explanation of SDI operations see the ACCUBAR manual.
  • Page 171 Now that the ACCUBAR is configured for making measurements with the correct units and averaging time, add a new measurement in Station Setup/Measurements, and complete the measurement setup there. Given the setup below, the 8310 will send the command 0M! to the ACCUBAR at every sampling time.
  • Page 172 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Convert this ratio to a load by following the Slope and Offset calculation example below. Field Value InputType Bridge Module Channel Analog Input port number where Analog Signal 1 is wired...
  • Page 173 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Tipping Bucket (Total Accumulation) Wiring A tipping bucket rain gauge should be connected with one lead to digital ground and the other to digital input 1, 2, 3, or 4. It does not matter which lead connects to ground and which connects to the input.
  • Page 174 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 ResetCount FilterValue 3 (see Counter measurement type in Chapter 4) SwitchedPwr None Processing Slope-Offset Slope Slope of sensor, inches or mm water per Offset Cal Slope Cal Offset Daily Setup...
  • Page 175 8800-1125Rev. 2.7 (BETA) 4/16/2014 Chapter 7: How To... This chapter gives specific examples of how to use the 8310. The examples are meant to match the common situations you will encounter. They are also useful to teach you features of the 8310.
  • Page 176 As long as your sensor is a linear sensor, slope and offset can be used to scale it. (If you have a non-linear sensor and want the 8310 to do the computation, you will need to use the BASIC capability of the 8310).
  • Page 177 Let Calibrate Compute the Slope and Offset for you The 8310 calibrate function built into the 8310 can compute the slope and offset for you. In order to use the calibration function, you will need to have an independent measurement for the input or a way to force the input to a known value.
  • Page 178 Understand Alarms and Alarm Transmissions The 8310 can be set up to detect alarms on sensor values and to make transmissions as a result of an alarm. This section describes alarm detection and notification in detail. Anyone using alarms should make sure they understand the concepts presented here.
  • Page 179 Store and forward and cross device repeating SSP messages The 8310 can store and forward SSP messages either back out the same port (“smart repeating” or out another port (“cross device repeating”. Smart repeating is used in LOS radio systems to send a message to a site which is on the fringe of reception or out of range by using a third site in the middle.
  • Page 180 This could be from one radio to another or even from a telephone modem to a radio. A radio in the first 8310 card slot would be using device AUX:, a radio in the second slot would use COM:, an external radio connected to the RS-232 port would use TERM:. The syntax for sending a message to site C reachable thru site B’s radio in the first slot would be: B_AUX:C (read this as...
  • Page 181 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 4:01005 Month of current Returns month in Sets month. Use date. range 1 – 12. range 1 – 12. 4:01006 Day of current month. Returns day in range Sets day. Use range 1 1 –...
  • Page 182 4/16/2014 Chapter 8: Installation This chapter describes the factors that must be considered in order to properly install the 8310. The topics covered include environmental protection, power budget, cabling, lightning protection, bench testing and field testing. Use this chapter as a guide as you prepare for your own...
  • Page 183 NEMA-4 or IP65 type enclosures available from Sutron and others. If the 8310 is installed inside another structure such as a gage house, then the 8310-N or O can be installed without an additional enclosure. The advantage to using an enclosure even for indoor installations is that the enclosure provides a way of organizing batteries, cables and protecting them from inadvertent handling.
  • Page 184 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014...
  • Page 185 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014...
  • Page 186 The 8310 uses different amounts of power depending on what it is doing. The only way to come up with the power budget is to determine how much time the 8310 spends in each of its tasks and how much power is used doing each task. The following list shows the power used by the 8310 in some typical tasks.
  • Page 187 Note that the internal charger in the 8310 has been designed to handle up to a 20W solar panel. If a larger panel is needed to handle the station load, then an external regulator should be utilized.
  • Page 188 There is a ground lug located on the lower left hand corner of the 8310 which can be used to connect to. When bringing the wire into the gage house or Nema Enclosure, try to keep bends in the wire to a minimum since lightning tends to follow a straight pathway.
  • Page 189 Fill out and use the 8310 setup sheet. As stated in Section 5, the setup sheet is the tool used to specify the details of the 8310 setup. The best place to create the setup sheet is on the bench with as many of the sensors connected to the 8310 as possible.
  • Page 190 Display Status and verify there are no error messages, tripped failsafe, or any other message which would lead you to believe that something may be wrong with the 8310. Also observe the messages which provide the Transmission (Random and Self-Timed) schedules and make sure the next Tx times are going to occur when you believe they should.
  • Page 191 Chapter 9: Retrieving Your Data This chapter describes the different ways you can use to retrieve data from an 8310. The different ways include SD Cards, PCs, radio communications, telephone communications and satellite communications. Review this chapter to make sure you know all the ways to retrieve data from the 8310.
  • Page 192 4/16/2014 Introduction There are many ways to retrieve data from the 8310. This chapter presents all the ways that we know of. You may be able to figure out a few of your own. There are two basic types of readings that the 8310 can communicate: last measured value and logged data.
  • Page 193 You should normally wire pin 4 of the 8310 to the Carrier Detect (CD) line of the RF modem being used. The RF modem must bring pin 4 high when carrier is detected. Incoming messages are treated as terminal input.
  • Page 194 4/16/2014 GOES Data When you have an 8310 with a GOES module, the data can be transmitted over GOES on a self- timed schedule, random/alarm schedule or both. You have complete control over what data is included in each type of transmission and how much data is sent. You also have partial control over the transmission format.
  • Page 195 Chapter 10: BASIC BASIC is a programming language built into the 8310. You can use it to add special equations and processing to sensor data, do different alarm detection and much more. BASIC makes the 8310 flexible to handle custom applications, yet easy to use.
  • Page 196 Up until this point in the user manual, you have learned about some of the simpler operating procedures behind the 8310. One of its more powerful yet more complicated functions remains to be covered. This chapter will attempt to explain, in some detail, the BASIC interpreter that has been added to the 8310.
  • Page 197 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 and event variables. Ability to run programs even while recording is turned off. Create custom input types Create custom processing steps Create custom measurements Steps to Using Basic Programs Create the Basic program on a PC using a text editor, and save it with a .bas extension.
  • Page 198 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 voltage measurement of AN1 in standard decimal format to the end of the message as defined by the setup. In addition you must inform the setup that you wish to use custom formatting.
  • Page 199 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 SetPort Port, 115200, 0, 8, 0, 1 ' 115200,N,8,1,h/w SetTimeout Port, 1.0 FlushInput Port NumBytes = WriteB(Port, POLL_CMD, Len(POLL_CMD)) NumBytes = ReadB(Port, Response, 100) If Err = 0 Then sr.Data = Response...
  • Page 200 You create BASIC programs on a PC using your favorite editor and then upload them to the 8310. The BASIC programs are checked when you toggle recording or using Diagnostics/Basic Status and error messages are generated to inform you of problems in the code. These...
  • Page 201 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Chapter 11: Maintenance and Service This chapter gives information needed to maintain and service an 8310. Its topics include general site maintenance instructions, 8310 assembly and disassembly, jumpers, initializations and resets.
  • Page 202 Visually check the environmental enclosure and look for signs of moisture entering in. In some cases the enclosures "sweat" which does not cause great problems with the 8310 since it has a protective box surrounding the boards and the boards themselves are conformally coated. If a leak is discovered in the enclosure, it should be sealed.
  • Page 203 8310 Errors and Status A very useful feature of the 8310 is that it displays errors at the top of the main menu. Refer to the section Errors for more details.
  • Page 204 4/16/2014 Disassembly/Reassembly 8310-O The following steps can be followed to disassemble an 8310-O. 1. Remove all cabling and grounding from the 8310-O. 2. Use Philips head screwdriver to remove the four screws at the corners of the end panel and remove end panel.
  • Page 205 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Figure 12 - Location of COM1-3 Configuration Jumpers Figure 13- Comport Configuration Jumper Settings 8310-N Protection/Termination Module Jumpers Jumper Position Description Even pins in above figure COM4 Pin 9 configuration - Default is RI against PCB J9 –...
  • Page 206 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Jumper Position Description J9 – AN2 V position V position for measuring voltages on AN1 (see figure below) or 4-20mA with 100 ohms switched in only during measurement. I position connects precision 100 ohm resistor from input to ground at all times.
  • Page 207 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Figure 15 - J11 and J12 - AN1 and AN2 input mode jumpers 8310-O Satellite Module Failsafe Reset NOAA-NESDIS requires that all GOES transmitters be equipped with fail-safe circuitry. The fail-safe circuitry is designed to prevent transmitters from jamming a channel.
  • Page 208 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 J3 Pin 9 use RI out Power in...
  • Page 209 8800-1125Rev. 2.7 (BETA) 4/16/2014 Chapter 12: Troubleshooting This chapter gives instructions on how to troubleshoot an 8310. You will want to review this chapter to learn better how the 8310 operates as well as service a site that may have a problem.
  • Page 210 Display will not light The display should light when power is first applied to the 8310 or when any key is pressed. If the display does not light as explained, the first suspects should a dead main battery.
  • Page 211 Improper wiring should also be considered (polarity reversed). If you are certain that signal is reaching the 8310 but the live readings are zero, then you may have a setup problem. Read the next section on diagnosing setup problems.
  • Page 212 The first number following RX (the 155 in the example) is the number of messages the 8310 received that were directed to its Station ID. If this number is 0, the 8310 has not received any messages with its ID. The second number (541) gives the total number of messages received.
  • Page 213 Depending on the device, this can be used to help verify proper wiring, power, and operation. Troubleshooting Guide The following table lists a variety of problems which may occur with an 8310 along with the...
  • Page 214 MxI1 and/or MxOx - go to sub-menu and set slope to correct value. Use 1.0 if sensor reads out in user units. Possible hardware problem - go to Diagnostics/Inputs sub-menu and see if data are reaching 8310 - if not, perform hardware diagnosis on wiring and sensor. Excessive power...
  • Page 215 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 PROBLEM PROBABLE CAUSE/CORRECTION Display is too dim To change the display contrast, press OFF/CANCEL down and then press RIGHT (increase contrast) or LEFT (decrease contrast). Averages are not Select Measurements menu and observe status information of the computed sampling.
  • Page 216 Check forward power of the transmitter at the antenna. Check not transmit back at the 8310 itself if there is no or low power at the antenna. Make sure the antenna cable is OK. Check the battery connection. Make sure it is made to the external battery input and not the solar panel input.
  • Page 217 As they are shipped, they are almost always set to address zero (0). If/when you are interfacing more than one sensor to the 8310, you must set each sensor to a unique address. This is normally done by setting dip switches on the sensor, or by issuing SDI-12commands from the front panel or terminal interface of the 8310.
  • Page 218 8310 automates for you during scheduled measurements. Power Consumption On the 8310, the SDI-12, +12V line is protected by a thermal fuse. If you short this line, the thermal fuse will interrupt the power to the line. Power will be restored when the short is removed.
  • Page 219 8310 & 7310 Dataloggers Upgrading the Firmware From time to time, Sutron makes available new versions of firmware, in order to introduce new features and fix bugs. These upgrades are typically made available as downloads on the sutron website (www.sutron.com/downloads/software.htm).
  • Page 220 2. Unzip the upgrade into a directory named “8310”, off the root of your SD card. 3. Insert the storage card into the 8310. 4. The 8310 will prompt to auto-download the latest data to the SD Card. Press Cancel at this prompt, and then press SET at the Upgrade Firmware menu.
  • Page 221 2. Connect to the 8310 using Hyperterminal (or other terminal program supporting ymodem). 3. Power up the 8310. Press ESC in response to the message “Press ESC now to Upgrade System”. 4. To upgrade the loader, press “M” to indicate you want to upgrade the micro monitor 5.
  • Page 222 8310 & 7310 Dataloggers Appendix A Specifications...
  • Page 223 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Specifications 8310 Electrical Power Required 10-16 VDC (20VDC max) reverse voltage protected Satlink Units: 10.4 to 15 VDC Power Consumption <3mA standby (8310-N or 8310-O) <40mA active typical with display off...
  • Page 224 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 SD card can also read/write setups Command-line interface for operation without custom programs Internal real-time clock w/battery backup. + 5 sec/month (typical), +10 sec/month (max) Optional GPS clock Flash memory log able to handle more than 1,000,000 readings, with additional logging to SD available Operates as a float charger for sealed 12V lead acid battery.
  • Page 225 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Excitation 2.5V (up to 50 mA) Protection Multistage input protection including spark gaps. 4-20 mA Precision load available for 2 analog channels. Loop source voltage provided by switched battery voltage...
  • Page 226 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Environmental Temperature -40 C to +60 C (LCD operates to -20 C) Humidity 0-95% Non-condensing Communications Interfaces 1 RS232 for user setup 1 RS232 for communications, serial sensor or other use...
  • Page 227 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Single Ended 0-5 V, 78 mV, (with respect to ground) Differential Range +2.5V, + 78 mV, ( + input with respect to – input) CMRR 120 dB typ Input Impedance >...
  • Page 228 8310, non-NEMA enclosure 8310-N-S 8310, NEMA with Satlink* 8310-N-S-G 8310, NEMA with Satlink* and GSM/GPRS Modem* 8310-N-S-I 8310, NEMA with Satlink* and Iridium SBD transceiver* 8310-N-S-P 8310, NEMA with Satlink* and Telephone modem (voice and data) *Antenna and cable ordered separately...
  • Page 229 8310 & 7310 Dataloggers Appendix B Command Line Interface...
  • Page 230 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 The following table describes the supported commands. The “Access Level” column specifies the user access levels that may issue the command. For example, if “Setup” is the only access level listed for a particular command, then only users having Setup access may issue the command.
  • Page 231 /YEAR will start the dump at Jan 1 of the current year. /HOUR will start the dump at the top of the current hour. HELP Displays the list of commands. Setup&Data INFO Shows information on the status of the 8310 Setup&Data...
  • Page 232 Setup has been assigned by a connected router via the DHCP protocol including the IP address assigned to the 8310. The /ALL option includes more detailed information including the physical address (ie MAC ID) and DHCP lease times. LANAUTO Turns Ethernet Power on when connected...
  • Page 233 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Command Description Access Level RD dir Remove a directory Setup REBOOT Reboots the 8310 Setup RECORDING [on|off] The RECORDING command will display the current Setup (when recording status. If “on” is specified then recording is turning turned on, likewise “off”...
  • Page 234 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Command Description Access Level SHOW [sensor-list] The SHOW command by itself will display the current Setup&Data [/SENSOR|/TAG/SETUP] value for every sensor and tag in the system in a [/CSV] [/YMODEM] [/G] tabular report.
  • Page 235 8800-1125Rev. 2.7 (BETA) 4/16/2014 Command Description Access Level SHUTDOWN Causes the 8310 app to exit so that it can be Setup updated. SMS cmd Issue an SMS command (SMS HELP will display list) Setup This command is only used for GPRS modem...
  • Page 236 /F selects a proprietary fast receive option which can speed up sending a file to the 8310 over a reliable link. It works by sending an ACK character before it has checked an incoming packet. The drawback to this, is that the protocol cannot recover from a bad packet;...
  • Page 237 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 not supported - you must specify the full name. You can also set setup properties from the comamand line, but be sure to enclose strings in double quotes. For instance to change M1's measurement interval to one minute you would enter: SET M1.INTERVAL "00:01:00"...
  • Page 238 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Appendix C Speech Phrases...
  • Page 239 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Speech Phrases 0.vox ...zero... 1.vox ...one... 10.vox ...ten... 100.vox ...one hundred... 11.vox ...eleven... 12.vox ...twelve... 13.vox ...thirteen... 14.vox ...fourteen... 15.vox ...fifteen... 16.vox ...sixteen... 17.vox ...seventeen... 18.vox ...eighteen... 19.vox ...nineteen...
  • Page 240 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 80.vox ...eighty... 800.vox ...800 hundred... 9.vox ...nine... 90.vox ...ninety... 900.vox ...900 hundred... a.vox ...a... Account.vox ...account... Ack.vox ...acknowledge... Air.vox ...air... airtemp.vox ...air temperature... Alarm.vox ...alarm... Alert.vox ...alert... ammonia.vox ...ammonia...
  • Page 241 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 cm.vox ...centimeters. coastal.vox ...coastal... Command.vox ...command... concentration.vox ...concentration... conductance.vox ...conductance... Continue.vox ...continue... Control.vox ...control... Cooler.vox ...cooler... Current.vox ...current... d.vox ...d... Daily.vox …daily… Dam.vox ...dam... Data.vox ...data... Degrees.vox ...degrees. DC.vox …degrees Celsius.
  • Page 242 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 False.vox ...false Fan.vox ...fan... Feedback.vox ...feedback... Feet.vox ...feet. FLD.vox For live data... Float.vox ...float... Flood.vox ...flood... Flow.vox …flow… For.vox ...for... Freq.vox ...frequency... g.vox ...g... Gage.vox ...gauge... Gallon.vox ...gallon Gate.vox ...gate...
  • Page 243 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Incorrect.vox ...incorrect. Inflow.vox …Inflow… Ing.vox ...?ing... (add "ing" suffix) inorganic.vox ...inorganic... Integral.vox ...integral... Internal.vox ...internal.. Intruder.vox ...intruder... Intrusion.vox ...intrusion... Is.vox ...Is... j.vox ...j... Joules.vox ...joules (pronounced jewels) k.vox ...k...
  • Page 244 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Minus.vox ...minus... mm.vox ...millimeters. monitor.vox ...monitor... Motor.vox ...Motor... n.vox ...n... nitrate.vox ...nitrate... nitrite.vox ...nitrite... nitrogen.vox ...nitrogen... No.vox ...No... Normal.vox ...Normal. Not.vox ...Not... Number.vox ...number... o.vox ...o... Oclock.vox ...o'clock. Of.vox ...of...
  • Page 245 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Please.vox Please... Plus.vox ...plus... Pneumatic.vox ...pneumatic... Point.vox ...point... Position.vox ...position... Pound.vox ...pound. PP.vox Please press... PPP.vox Please press pound. Precip.vox ...precipitation... Press.vox ...press... Pressure.vox ...pressure... Problem.vox ...problem... Proportional.vox ...proportional...
  • Page 246 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Satlink.vox …Satlink… saturation.vox ...saturation... Second.vox ...second Sensor.vox ...sensor... Sensors.vox ...sensors... SIA.vox ...sensors in alarm... Sil500.vox (1/2 second of silence) Siren.vox …siren… Slide.vox ...Slide... Sluicegt.vox ...Sluice gate... Snow.vox ...snow... Soil.vox ...soil moisture...
  • Page 247 ...wind direction... Wel.vox Welcome... Welcome.vox Hello, Welcome to the Sutron Xpert. Welcome7.vox Hello, Welcome to the Sutron 8310. (pronounce 8310, "Eighty" "Three" Ten") WelcomeS.vox Hello, Welcome to the Sutron Satlink. (pronounce satlink, "Sat" "link" no pause) WG.vox …wind gust… Wind.vox ...wind...
  • Page 248 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 x.vox ...x... y.vox ...y... z.vox ...z...
  • Page 249 4/16/2014 Appendix D Telemetry Formats This appendix contains descriptions for each of the telemetry formats supported by the 8310. Handar Format The Handar format is an ASCII, human readable format where sensors are separated by <CRLF>, sensor data is separated with a space, and missing data is reported as “M”.
  • Page 250 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 Barometric Pressure Peak Wind Direction Peak Wind Speed Fuel Moisture Solar Radiation Here’s an example NIFC telemetry report: 00.00 14.0 0486 Here’s an example NFDRS telemetry report: 00.00 14.0 0486 Note how there are no labels in the report.
  • Page 251 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 1 @ @ G t @ S x @ @ i @ G s @ S r @ @ i I Battery Voltage Temp #2 Precip #2 Stage #2...
  • Page 252 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 This 2 byte encoded 6 bit binary encoded number represents the Julian day of the year. The day tells when the most recent (first) sensor reading of this measurement was made.
  • Page 253 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 A 2 byte encoded number can range from -2048 to +2047 A 3 byte encoded number can range from -131072 to +131071 Binary encoded numbers are always sent most significant bytes first. The number itself is broken down into 6-bit digits, and each digit is placed in one byte of data.
  • Page 254 The names HG, PC, TA and VB used in the transmission are called SHEF Physical Element codes (PE codes) and are the names given to the outputs in the 8310. Be sure to change the output names if you want specific codes sent in the transmission. NESDIS has a recommended list of SHEF PE codes on its website at http://noaasis.noaa.gov/DCS/htmfiles/schefcodes.html...
  • Page 255 SSP Format “SSP” is a binary format following the specifications of the Sutron Standard Protocol, which is useful when transmitting to XConnect or Tempest master stations. If you are interested in knowing more about the low-level details of the protocol, please contact Sutron Customer Service.
  • Page 256 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014 GPRS and LAN Session Format The GPRS and LAN devices send self-timed and alarm transmissions in a special format that permit the server to also issue commands. This is to allow communication to a device which has a non-routable IP address.
  • Page 257 Sutron Corporation 8310 & 7310 Users Manual 8800-1125Rev. 2.7 (BETA) 4/16/2014...
  • Page 258 Please provide our Customer Service Representative with your email address when receiving the RMA number so that we can email you when your equipment is received at Sutron and again when it is shipped back to you. Expedited repairs can be completed within one (1) week for an additional expedite fee of $200.00.
  • Page 259 Sutron’s plant. Sutron’s obligation under this Warranty shall be limited to repair at the factory (22400 Davis Drive, Sterling, VA 20164) or, at Sutron’s option, replacement of the defective product. In no event shall Sutron be responsible for incidental or consequential damages, whether or not foreseeable or whether or not Sutron has knowledge of the possibility of such damages.

This manual is also suitable for:

7310

Table of Contents

Save PDF
