Page 1: User Manual

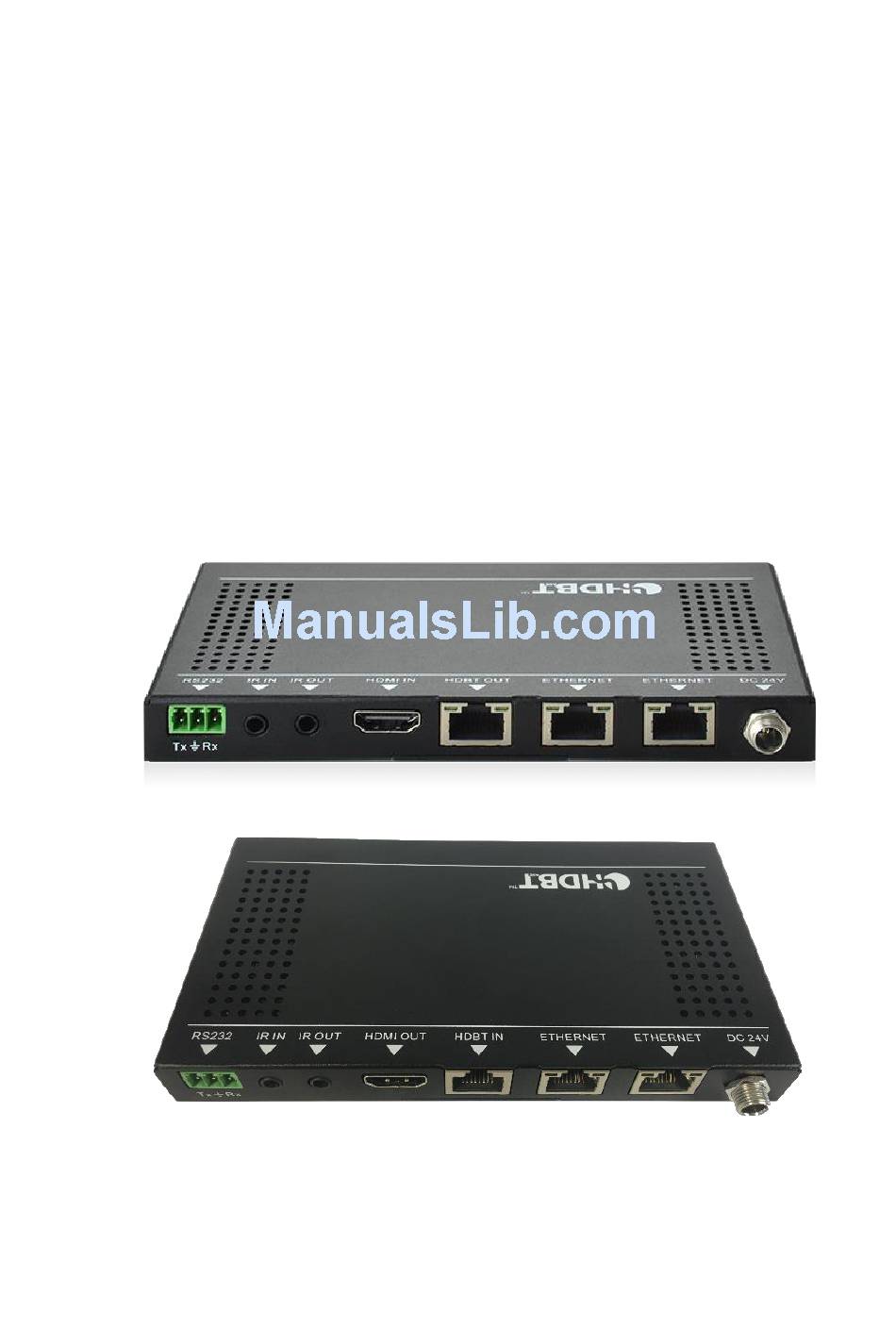

USER MANUAL EXT-UHBT100-SET HDBaseT Extender Set 100m Ultra-Thin design All Rights Reserved Version: EXT-UHBT100-SET_2016V1.2... -
Page 2: Fcc Statement
Preface Read this user manual carefully before using this product. Pictures shown in this manual is for reference only, different model and specifications are subject to real product. This manual is only for operation instruction only, not for any maintenance usage. The functions described in this version are updated till August 2016. -
Page 3: Safety Precautions
EXT-UHBT100-SET Ultra-Thin Extender Set SAFETY PRECAUTIONS To insure the best from the product, please read all instructions carefully before using the device. Save this manual for further reference. Unpack the equipment carefully and save the original box and packing material for possible future shipment ... -
Page 4: Table Of Contents
Introduction to EXTUHBT100-SET............5 1.2 Features ....................5 1.3 Package Contents ................5 2.Panel Description .................... 6 EXT-UHBT100-T ................... 6 EXT-UHBT100-R .................. 7 Twisted Pair Cable Description ............. 9 System Connection ..................10 Usage Precautions .................10 System Diagram ..................10 Connection Procedure ................11... -
Page 5: Introduction
1.1 Introduction to EXT-UHBT100-SET EXT-UHBT100-SET is an ultra-thin HDBaseT Extender set consist of transmitter (EXT-UHBT100-T) and receiver (EXT-UHBT100-R). It distributes HDMI signal via CAT5e/CAT6a cable at 100m/PoE, and enables IR and RS232 passthrough to control remote displays. It also supports 4 Ethernet interface for network. -
Page 6: Panel Description
Connect with 5V/12V IR Emitter to send infrared signal, work with far-end IR IN port ⑥ IR OUT ⑦ HDMI IN Connect with HDMI source Connect to the HDBT IN socket on the EXT-UHBT100-R via CAT5e/ CAT6a cable, ⑧ support unidirectional PoE. HDBT OUT ⑨ ETHERNET... - Page 7 EXT-UHBT100-SET Ultra Thin Extender Set ⑩ ETHERNET these 4 ports (both the Ethernet ports of EXT-UHBT100-T and EXT-UHBT100-R) should be used for internet access, and the others can be connected with computers. If they are well connected, the yellow LED indicators on the corresponding ports will keep blink and the green ones will keep on when working.
-
Page 8: Ext-Uhbt100-T
CAT6a cable. ⑨ ETHERNET Ethernet ports, when need to work in a LAN, one of these 4 ports (both the Ethernet ports of EXT-UHBT100-T and EXT-UHBT100-R) should be used for internet access, and the others can be connected ⑩ ETHERNET with computers. -
Page 9: Twisted Pair Cable Description
EXT-UHBT100-SET Ultra Thin Extender Set 2.3 Twisted Pair Cable Description TIA/EIA T568A TIA/EIA T568B Cable Cable color color green orange white white green orange orange green white white blue blue blue blue white white orange green brown brown white white brown brown 4--5... -
Page 10: System Connection
EXT-UHBT100-SET Ultra Thin Extender Set 3. System Connection 3.1 Usage Precautions System should be installed in a clean environment and has a prop temperature and humidity. All of the power switches, plugs, sockets and power cords should be insulated and safety. All devices should be connected before power on. -
Page 11: Connection Procedure
EXT-UHBT100-T. Step5. To set as a LAN, one of the four ETHERNET ports of EXT-UHBT100-T and EXT-UHBT100-R should be used for Internet access, and the others can be connected with computers. Step6. Connect the RS232 port of the computer and the RS232 port of EXT-UHBT100-T or EXT-UHBT100-R (any one is able to work as the RS232 signal can be transmitted bi-directionally) by using a RS232 cable. -
Page 12: Specification
EXT-UHBT100-SET Ultra Thin Extender Set 4. Specification EXT-UHBT100-T EXT-UHBT100-R INPUT Input Signal 1 x HDMI, 1 x IR in, 1 x IR in, 1 x HDBaseT, 1 x RS232 1 x RS232 Input Connector 1 x HDMI female 1 x 3.5mm mini jack 1 x 3.5mm mini jack... -
Page 13: Panel Drawing
EXT-UHBT100-SET Ultra Thin Extender Set 5. Panel Drawing EXT-UHBT100-T EXT-UHBT100-R... -
Page 14: Troubleshooting & Maintenance
EXT-UHBT100-SET Ultra Thin Extender Set 6. Troubleshooting & Maintenance Problems Causes Solutions Incorrect setting on the Check the display’s setting display Output images in display show with ghost Try another high quality A cable of bad quality connection cable Check with oscilloscope or multimeter if there is any No signal at the input / output signal at the input / output... -
Page 15: After-Sales Service
Any transport costs are borne by the users during the warranty. Product Limited Warranty: GeMNeXT warrants that its products will be free from defects in materials and workmanship for three years, which starts from the first day the product leaves warehouse (check the SN mark on the product). - Page 16 GeMNeXT rights owned by AVDIS B.V. Tel: +31 (0)85 2100 614 Email: info@gemnext.com Website: www.gemnext.com Ambachtstraat 3A 3732 CN De Bilt The Netherlands...
