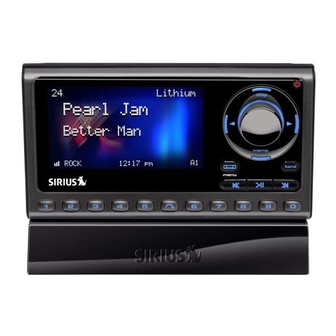

Sirius Satellite Radio Sportster SP5 User Manual

Sirius Satellite Radio Sportster SP5 User Manual

Plug-n-play radio
Hide thumbs Also See for Sportster SP5:

Advertisement

Quick Links

User Guide
User Guide
Sportster 5
Sportster 5
Satellite Radio

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sportster SP5 and is the answer not in the manual?

Questions and answers

Summary of Contents for Sirius Satellite Radio Sportster SP5

  • Page 1 User Guide User Guide Sportster 5 Sportster 5 Satellite Radio...
  • Page 3 Congratulations on the Purchase of your new SIRIUS Sportster SP5 Plug-n-Play Radio ® Your new SIRIUS Sportster™ SP5 Plug-n-Play Radio lets you enjoy SIRIUS Satellite Radio’s digital entertainment anywhere you’ve installed the SUPH1 SIRIUS Universal Plug and Play Home Kit, SUPV1 SIRIUS Universal Plug and Play Vehicle Kit, or the SUBX1 SIRIUS Plug and Play Universal Boombox (each sold separately).
  • Page 4: Table Of Contents

    CONTROLS ....... . . 50 SIRIUS Sportster SP5 Front Panel ......50 Remote Control Buttons .
  • Page 5 Direct Tuning ....... . . 61 Channel Presets ....... 61 Jump Button .
  • Page 6: Warning And Safety Information

    Warning and Safety Information FCC Information This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: This device may not cause harmful interference, and This device must accept any interference received, including interference that may cause undesired operation.
  • Page 7: Canadian Compliance

    Be sure the unit is installed as described in these installation instructions and the instruc- tions which accompany each accessory kit. SIRIUS Satellite Radio is not responsible for issues arising from installations which were not installed according to the instructions.
  • Page 8: Warnings

    • To avoid short circuits, do not open the unit, and never put or leave any metallic objects (coins, tools, etc.) inside the unit. • If the unit emits smoke or unusual odors, turn the power off immediately, and disconnect the unit from any power source.
  • Page 9 Cleaning and Maintenance If the radio or accessories become dirty, turn the power off and wipe them clean with a soft cloth. Do not use hard cloths, strong cleaning fluids, paint thinner, alcohol, or other volatile solvents to clean. These may cause damage to the radio. Cigarette Lighter Adapter The Vehicle Dock cannot be powered directly from a vehicle’s 12VDC power system.
  • Page 10: Copyrights & Trademarks

    Portions of the software on this radio are licensed under the eCos License. Distribution of eCos requires that the eCos source code be made available to SIRIUS Satellite Radio customers. The eCos License and eCos source code are available to the public at http://www.sirius.com/ ecoslicense.
  • Page 11: Package Contents

    Package Contents The following items are included with your SIRIUS Sportster SP5 radio: Sportster SP5 Radio Sportster SP5 Radio Remote Remote Control Control Vehicle Dock Vehicle Dock Package Contents...
  • Page 12 Suction Cup Mount Suction Cup Mount Vent Mount & Vent Mount & Cigarette Lighter Cigarette Lighter Extended Vent Hooks Extended Vent Hooks Adapter Adapter Antenna Antenna Mounting Screws Mounting Screws Alcohol Wipe Alcohol Wipe Magnetic Antenna Magnetic Antenna Cover/Tail Cover/Tail Package Contents...
  • Page 13 Cable Guides (3) Cable Guides (3) Unpack your SIRIUS Sportster SP5 carefully and make sure that everything shown is present. If anything is missing or damaged, or if your SIRIUS Sportster radio fails to operate, notify your dealer immediately. It is recommended that you retain the original carton and packing materials in case you need to ship your radio in the future.
  • Page 14: Installation

    Installation SIRIUS suggests that you have your Sportster SP5 professionally-installed in your vehicle. Professional installation provides an experienced technician to install this product in your vehicle, advice for selecting a suitable mounting location for the Vehicle Dock, installation of the antenna, and proper routing of all the necessary wires and cables.
  • Page 15 Figure 1 Depending upon the mounting location you select in your vehicle, the mount should be attached to the vehicle dock and installed as described in the following sections. Installation...
  • Page 16 Suction Cup Mount Method (A) The suction cup mount may be attached to your vehicle’s windshield. Before attaching the suction cup mount to your windshield, you should check your state and local laws for regulations regarding mounting this device on your windshield. To mount the vehicle dock using the suction cup mount, assemble the mount as follows: Attach the vehicle dock to the suction cup mount using the provided screws.
  • Page 17 Be sure the cam lever is up (as shown in Figure 3) and position the suction cup mount on the windshield or other location you have chosen. Press the cam lever all the way down towards the base of the mount until it locks to firmly adhere the suction cup. (To unlock the suction cup, lift the lever up.) Press Lever Down To...
  • Page 18 Vent Mount Method (B) To mount the vehicle dock using the vent mount method, install the vent mount as follows: If the vent louvers in your vehicle are recessed, you may need to use the longer vent hooks with the vent mount. Refer to Figure 4 and install the longer vent hooks into the vent mount.
  • Page 19 Refer to Figure 6 and attach the vent mount to a heating/air conditioning vent in your vehicle. Position the two tension springs A against a vent louver B. Then push the vent mount into the vent, far enough so that the hooks C drop down and hook the rear of the vent louver (see Figure 7).
  • Page 20 The angle of the vehicle dock may be changed by changing the position of foot D on the vent mount to a different adjustment hole. (See Figure 8.) ADJUSTMENT HOLES Figure 8 Installation...
  • Page 21: Installing The Magnetic Antenna

    Installing the Magnetic Antenna Caution Because adhesive is used in the installation of the Rubber Antenna Cover/Tail, we recommend that you install the antenna at or above room temperature (68° F). The adhesive on the Rubber Cover/Tail may not adhere properly to the vehicle roof at temperatures lower than this. Warmer temperatures will also make it easier to route of the antenna cable through the rubber molding around the windows and in other areas in the vehicle.
  • Page 22 Figure 9 shows the optimal mounting location for the antenna on several types of vehicles. These mounting positions should be observed when installing the antenna: Sedan/Coupe Pickup Truck SUV/Mini-Van Convertible Figure 9 • Sedan/Coupe/SUV/Mini-Van: Install the antenna at the rear center of the roof, near the rear window.
  • Page 23 Follow this procedure to mount the antenna: Select an appropriate mounting position for your type of vehicle that has an unobstructed area of 3 inches by 3 inches around the antenna. Attach the Rubber Cover/Tail to the antenna, as shown in Figure 10, and press the an- tenna cable into the rubber cover/tail.
  • Page 24 CABLE ROUTING After you have mounted the antenna you can route the antenna cable to the SIRIUS Vehicle Dock. Separate antenna cable routing procedures are provided for each type of vehicle: Sedan/Coupe, Pickup Truck, SUV/Mini-Van and Convertible. Note that additional breakout illustrations for each step of the antenna cable routing procedures can be found on the SIRIUS website at http://www.sirius.com.
  • Page 25 Follow these detailed cable installation instructions: Feed the cable from the antenna underneath the rubber molding around the rear window. Use a plastic putty knife or similar object to lift the rubber molding around the rear window and tuck the antenna cable underneath the molding. Route the antenna cable around and down the window to the lowest point.
  • Page 26 Pickup Truck Antenna Cable Routing Procedure Figure 12 shows how the antenna cable should be routed from the antenna to your SIRIUS radio in a pickup truck. NTENNA 1. Route Cable Under Rubber Molding Around Windshield 2. Continue Tucking Cable Under Molding To Bottom of Windshield 5.
  • Page 27 Bring the end of the cable out at the SIRIUS Vehicle Dock location. Leave yourself enough cable so you can easily connect it to the antenna connector on the Vehicle Dock. SUV/Mini-Van Antenna Cable Routing Procedure Figure 13 shows how the antenna cable should be routed from the antenna to your SIRIUS radio in an SUV or a Mini-Van.
  • Page 28 Route the cable through the SUV’s main cabin area under the interior trim, towards the front of the vehicle. Use a plastic putty knife to lift the plastic trim just enough to tuck the cable under underneath. Avoid side airbag locations on back pillars and above the doors. (Airbag locations are marked with “SRS”...
  • Page 29 Follow these detailed cable installation instructions: Bring the cable from the antenna into the trunk at the front edge of the trunk lid. Keep any bends in the cable loose. Tape or tie the cable along the inside of the trunk lid to the trunk lid hinge strut.
  • Page 30 Mount antenna the roof where it has a clear view of the sky in all directions. 3” Mount the antenna on the roof where it has at least 3 inches of clear space around it. Installation...
  • Page 31 Use the supplied Rubber Tail Cover to protect the antenna cable. Don’t mount the antenna inside vehicle, example, on the dashboard. Don’t mount the antenna on any of the vehicle’s front, back or side pillars. Installation...
  • Page 32 Don’t mount the antenna close to a roof rack. Adjust the rack so it’s further away from the antenna or move the antenna closer to the center of the roof. Don’t mount the antenna close to another antenna. Mount it at least 3 inches away.
  • Page 33 Don’t mount the antenna closer than 3 inches from the edge of the roof. Use the supplied rubber tail/ cover as a guide for judging proper length and correct positioning. After you’ve routed the cable to the SIRIUS Vehicle Dock, connect the antenna cable to the A connection on the right side of the Vehicle Dock.
  • Page 34: Connecting The Cigarette Lighter Adapter

    Connecting the Cigarette Lighter Adapter Connect the provided cigarette lighter adapter to the 5VDC connector on the back of the Vehicle Dock. (See Figure 16.) Vehicle Cigarette Lighter 5V DC Dock Adapter Connection (Left Side) Power Outlet 5VDC AUDIO Figure 16 Note: Do not power the Vehicle Dock directly from your vehicle’s 12VDC power system with- out using the Cigarette Lighter Adapter.
  • Page 35: Connecting Your Sirius Radio To Your Vehicle's Audio System

    Connecting Your SIRIUS Radio to Your Vehicle’s Audio System There are two ways to connect your SIRIUS Sportster SP5 to your vehicle’s audio system: Direct Connection or Wireless Connection. Which one will perform best in your vehicle depends on your vehicle’s audio system.
  • Page 36: Direct Fm Audio Connection

    Direct FM Audio Connection If your vehicle’s audio system does not have an Aux In/Line In connection, a SIRIUS FM Direct Adapter (sold separately) will provide the next best quality connection between your SIRIUS radio and your vehicle radio. You will listen to your SIRIUS radio through your car radio’s FM tuner, but the SIRIUS FM Direct Adapter connects your vehicle’s FM radio directly to your SIRIUS radio’s FM Out jack, eliminating the outside static and interference you sometimes experience when using a wireless FM connection.
  • Page 37: Cassette Adapter

    Cassette Adapter If your vehicle’s audio system has a cassette player you can purchase a cassette adapter from your local electronics retailer or from SIRIUS at http://shop.sirius.com. Plug the adapter’s connector into the A jack on the left side of the Vehicle Dock, and insert the adapter into UDIO your vehicle’s cassette player.
  • Page 38: Wireless Connection

    Vehicle Radio SIRIUS Sportster SP5 Match Frequencies Figure 21 1. Tune through your vehicle radio’s FM channels to fi nd an FM channel (between 88.1MHz and 107.9MHz) that is not broadcasting in your area. 2. Once you have located an FM channel that is not broadcasting in your area, save it as a preset on your vehicle radio.
  • Page 39: Wireless Audio Connection Using The Fm Extender Antenna

    TIP: If you regularly travel between cities with different active FM channels, you may need to find channels that are not broadcasting in each city. Your SIRIUS Sportster SP5 can store up to 5 preset FM transmit channels (see Figure 24, left), so you can easily switch to the best FM channel for each city.
  • Page 40 Because of the different kinds and locations of radio antennas found in different vehicles, SIRIUS suggests that the FM Extender Antenna be professionally installed in your vehicle. Professional installation provides an experienced technician to install the Extender Antenna, knowledge of your vehicle for locating its radio antenna, and routing the cable and connecting it to your SIRIUS radio.
  • Page 41 • On-Glass Type Radio Antenna: Wires on the window glass of the vehicle, usually near the top of the window. It may be located on the windshield glass, the rear window glass, or a rear side window in some SUV and mini-van type vehicles (and other vehicles).
  • Page 42 The FM Extender Antenna should be mounted inside the vehicle, as close as possible to the vehicle antenna. A test mounting should be done first using the included suction cup mounts to test the installation. Once you find a location that provides good results, you will remove the suction cups and permanently adhere the FM Extender Antenna using the supplied adhesive mounts.
  • Page 43 Mount FM Extender Antenna at Edge of Windshield Nearest to Vehicle Antenna. Vehicle Antenna Alternate Mounting Location on Adjacent A-Pillar. Figure 26 Mount FM Extender Antenna at Edge of Rear Windshield Nearest to Vehicle Antenna. Alternate Mounting Location on Adjacent Vehicle B-Pillar.
  • Page 44 b. Installation Instructions for Vehicles with Aerial-Type Roof-Mounted Antenna. For vehicles where the radio antenna is located on the front or rear of the roof of the vehicle, the FM Extender Antenna should be mounted horizontally on the front or rear glass below the vehicle antenna, or installed into the vehicle’s headliner, directly under the vehicle antenna.
  • Page 45 orientation. The wire between the two suction cups should be pulled taut and as straight as possible, and should not obstruct the driver’s view. (See Figures 29 & 30) • If you are installing the FM Extender Antenna into the headliner, remove the suction cups and tuck the wire into the headliner, stretched taut and straight, and centered directly above the vehicle’s antenna.
  • Page 46 d. Installation Instructions for Vehicles with Shark-Fin Type Roof-Mounted Antenna. For vehicles where the radio antenna is located on the rear of the roof of the vehicle, the FM Extender Antenna should be mounted horizontally on the glass below the vehicle’s antenna, or installed into the vehicle’s headliner, directly under the vehicle’s antenna.
  • Page 47 Vehicle Radio SIRIUS Sportster SP5 Match Frequencies Figure 33 a. Tune through your vehicle radio’s FM channels to find an FM channel (between 88.1MHz and 107.9MHz) that is not broadcasting in your area. If you’re not sure which FM channels are not broadcasting in your home or travel cities, you can also go to http://sirius.com/fmchannel and search for a suggested FM channel based...
  • Page 48 e. Turn the Knob to highlight FM ON/OFF and press the Knob to select it. Then turn the Knob to highlight ON and press the Knob to select it. See Figure 35. f. Turn the Knob to highlight Set FM Presets and press the Knob to select it.
  • Page 49: Subscribing To The Sirius Service

    Before you can listen to the SIRIUS service, you need to subscribe to the SIRIUS Satellite Radio service. To subscribe, do the following: Be sure that your SIRIUS Sportster SP5 is correctly installed, is properly docked in the Vehicle Dock, and that the antenna is oriented to receive the SIRIUS signal.
  • Page 50: Controls

    Controls SIRIUS Sportster SP5 Front Panel Figure 39 and the section following identify and describe the SIRIUS Sportster SP5’s buttons and controls. Figure 39 Color LCD Display Screen: Provides information about the SP5’s operation, the program that is playing and other programming that is available.
  • Page 51 IR Receiver: Receives IR signals from the included remote control. Display (D ) Button: Pressing and releasing this button displays the M screen. RESETS Repeated presses toggle between the M and S RESETS HANNEL RTIST lists, and the Default Display screen. Pressing and holding this button changes text ITLE size of artist names and song titles on the display screen.
  • Page 52: Remote Control Buttons

    Remote Control Buttons Figure 40 and the section following identify the remote control’s buttons. Figure 40 Power Button: Turns the SP5 ON and OFF. Select Button: Selects items highlighted in a list; hold-down to jump to the previously- received channel. When not in a menu or list, pressing the Select button selects the channel entered using the number buttons.
  • Page 53 Button: Pressing and releasing this button switches between the preset banks A, B, and C, which hold 10 presets each for a total of 30. Pressing and holding this button switches to the M category, which lets you see what artists and songs are RESETS playing on each of your stored presets.
  • Page 54: Vehicle Dock Reference Guide

    Vehicle Dock Reference Guide Figure 42 and the section following identify and describe the Vehicle Dock’s features and connectors. 5VDC FM OUT AUDIO Figure 42 DC5V Power Connector: Power connection for the supplied cigarette lighter adapter (see page 34). Audio Out (A ) Connector: Audio output for directly connecting to your vehicle’s UDIO audio system (see pages 35 &...
  • Page 55: Operation

    Operation Display Screen Information Your SIRIUS Sportster SP5’s display screen provides information about the operation of the radio, such as the currently tuned channel, song or show being played, artist name, time and other information. This screen is referred to as the Default screen in this manual.
  • Page 56: Navigating Menus And Lists

    Navigating Menus and Lists The menu and list structures in your SIRIUS Sportster SP5 are navigated by turning the Knob to scroll through a menu or list to highlight your choice, and then pressing the Knob to select the choice. When using the remote control, menus and lists are navigated by pressing the Channel UP/DOWN buttons, and then pressing the S button to select the choice.
  • Page 57 Pressing and releasing the D button enters the Channel List mode. Once the Channel List mode is active, repeatedly pressing and releasing the D button will cycle the display between these four screens (see Figure 45): • Combination List Screen: Displays a list of channel numbers and names along with the currently-playing song titles and artist names on each channel.
  • Page 58: Search Modes (Category, Channel, Artist, Song Title)

    Search Modes (Preset, Category, Channel, Artist, Song Title) You can search for and select music four ways on your Sportster SP5: by category, by channel, by artist, and by song title. Searching Categories If you want to browse different entertainment categories, push either Category button to activate the Category search mode, which will display a list of the currently-playing artists and currently-playing song titles on the different channels of the currently-active category.
  • Page 59 Pressing the D button while in the category search mode will cycle between the category’s channel names, the currently-playing artist names, and the currently- playing song titles to enable you to preview what is playing on other channels before making a selection. (See Figure 47.) When the channel/artist/song you want is highlighted, press the Select button.
  • Page 60 Searching Channels (Channel List Mode) It is possible to search for a different channel while listening to your current channel. Be sure that the display shows the Default display screen prior to the following steps: Press and hold the D button for two seconds to activate the channel list mode.
  • Page 61: Direct Tuning

    Direct Tuning Channels can be directly accessed by pressing and releasing the Knob and then using the 0 – 9 keys to enter the desired channel number (see Figure 49) Once the desired number has been entered, the channel will change and the display will revert to the Default screen for the selected channel.
  • Page 62 Recalling Channel Presets The 10 presets in the active bank (A, B, or C) can be selected by pressing the 0 through 9 buttons. Press the B button to activate the preset bank you want. The selected bank is shown in the lower right corner of the default display screen.
  • Page 63: Jump Button

    Jump Button Your SIRIUS Sportster SP5 features a special button called J . This button can be programmed to jump to a channel which is accessed frequently and temporarily such as traffic, weather, news, or sports. The J button lets you quickly tune to a specific channel and then tune back to the original channel by pressing the button again (see Figure 51).
  • Page 64: Memory (Memo) And Song Seek (S-Seek) Functions

    Memory (MEMO) and Song Seek (S-Seek) Functions Your Sportster SP5 lets you to capture and store information (artist, song, sports team, or traffic city) about the programming on the currently-tuned channel, up to a total of 50 items. The SP5 then continuously searches all the SIRIUS channels and alerts you when a match to a saved program is being played.
  • Page 65 Turn the Knob (on the remote, use the Channel UP/DOWN buttons) to highlight S TORE or S (when available) and press the Select button to save the current RTIST TORE selection to memory. If both the artist and song are available to save, you will be prompted again to save which- ever one you haven’t yet saved, song title or artist name.
  • Page 66 The next screen will ask which kind of alert you wish to have (see Figure 56). Figure 56 will provide an alert when the team you have chosen is playing a game. NITIAL PORTS LERT will provide an alert when the team you have chosen is playing a game, CORE PDATES and also when the scores are updated for the team.
  • Page 67 If all of the memory spaces are full when you press the M button, a M screen will EMORY be displayed for one second (see Figure 58). Figure 58 –C screen will then be displayed (see Figure 59). EPLACE ANCEL Figure 59 Turn the Knob (on the remote, use the Channel UP/DOWN buttons) to highlight whether to replace an existing alert or cancel saving the alert to memory, and press the Select button.
  • Page 68 Turn the Knob (on the remote, use the Channel UP/DOWN buttons) to highlight the alert that you would like to replace and press the Select button to store the new alert. If the new alert was successfully stored in memory, the A pop-up screen followed by the RTIST TORED...
  • Page 69 Activating the Song (S-Seek) Alert When S-Seek alerts are enabled, whenever the Sportster SP5 is on it automatically searches the channels to determine if a match exists with the program information stored in radio’s memory. If one or more matches are found, a S-S...
  • Page 70 Press the Select button to turn on S-Seek alerts. SPORTS ALERT Your SIRIUS Sportster SP5 can automatically identify when your favorite sports team is playing. When a game is found, a S is displayed listing the sports events which are currently...
  • Page 71: Instant Replay

    Instant Replay The SIRIUS Sportster SP5 is capable of storing the audio of the channel that you’re listening to for later playback (up to approximately 44 minutes, depending upon the channel to which you are tuned). As soon as you tune to a channel, the radio automatically begins storing the audio, enabling you to rewind at any time to replay the audio again.
  • Page 72 Pressing-and-holding the F button for one second advances the Instant ORWARD Replay playback forward in 10-second intervals, which increases to 15- and then 30-second intervals the longer the F button remains pressed. Playback begins immediately ORWARD when the button is released. When you reach the end of the stored audio you will hear a beep, the SP5 will exit the Instant Replay mode and resume playing the live broadcast.
  • Page 73 • Progress Bar. While playing from Instant Replay memory, status information is shown at the bottom of the SP5’s display screen (see Figure 67). Instant Replay Time Position Progress Bar Play Position Indicator End of Stored Audio Amount of Beginning of Live Broadcast Memory Filled Figure 67 As the Instant Replay memory fills, the Progress Bar fills from the right side, providing a visual...
  • Page 74 The Instant Replay Time Position indicates the exact amount of time the Play Position Indicator is behind the live broadcast, expressed as Hours:Minutes:Seconds, and displayed as a nega- tive number. For example, if –00:02:40 is displayed, this would indicate that the Play Position Indicator is 2 minutes and 40 seconds behind the live broadcast.
  • Page 75: Fm Transmitter Presets

    FM Transmitter Presets If you are using a wireless connection between your SIRUIS SP5 and your vehicle’s audio system (see page 38), you can easily select between the five different FM transmitter preset frequencies by pressing and holding the M button (or pressing the FM Transmitter button on the remote).
  • Page 76: Menu Options

    Menu Options Menu Options allows you to set and/or change the various features and settings of your SIRIUS Sportster SP5. To enter the menu options, press and release the M button. The M PTIONS screen will be displayed (see Figure 71).
  • Page 77: Sirius Id

    Sirius ID This displays your 12-digit SIRIUS ID (SID) number (see Figure 72). The SID is unique to each SIRIUS radio, and is required to activate your SIRIUS service. It is recommended that you write this number in the space provided near the end of this user guide. No adjustments are allowed in this mode.
  • Page 78: Fm Transmitter

    FM TRANSMITTER The FM T menu option allows you to enable or disable the SP5’s built-in FM RANSMITTER transmitter, and select up to 5 different FM transmitter frequencies. FM Presets Select the FM T menu option. The FM T screen will appear. See RANSMITTER RANSMITTER Figure 74, left.
  • Page 79: Jump Settings

    JUMP SETTINGS You can access the J menu from the M > S screens, or by ETTINGS PTIONS ETTINGS pressing and holding the J button for two seconds. There are two options available for jump button settings: T (see Figure 75, RAFFIC AND HANNEL left).
  • Page 80: Display Settings

    DISPLAY SETTINGS You can control the SP5’s Auto Dimmer feature, adjust the brightness and contrast of the SP5’s color LCD display screen, and can select from 15 different color options for the screen and the SP5’s buttons: Select the D menu option.
  • Page 81 : This lets you control the SP5’s auto dimmer feature. The auto dimmer will auto- UTOMATIC matically dim the SP5’s display in low-light conditions, and will automatically brighten the display when the ambient light is bright. 1. When the A screen appears (see Figure 78), the “L”...
  • Page 82 Color Options: You can select from 15 different color combinations for the SP5’s LCD screen background and text, and the front-panel button backlight color. Selecting C OLOR PTIONS tivates the C screen. Turning the Knob (on the remote, pressing the Channel UP/ OLOR PTIONS DOWN buttons) will cycle the SP5 through the following color combinations:...
  • Page 83: S-Seek Alert Settings

    S-SEEK ALERT SETTINGS This menu lets you turn S-Seek ON or OFF, turn the audible alert tone ON or OFF, turn the on-screen alerts ON or OFF and browse all of the S-Seek memory entries. In addition, you can clear all 50 S-Seek entries. Select the S-S menu option (see Figure 80).
  • Page 84: Audio Level

    AUDIO LEVEL You can adjust the audio output level of your Sportster SP5 to match the levels of the other source components in your audio system, and to fine-tune the audio level for best performance. This is important when using both the included Mobile Vehicle Dock or the optional Home Docking Station.
  • Page 85: Channel Preview Mode

    REVIEW Default Screen is active. Normally, when the Default Screen is active, rotating the Knob or pressing a Channel UP or DOWN button on the remote automatically tunes the Sportster SP5 to the next higher or lower channel. When C...
  • Page 86: Factory Default

    FACTORY DEFAULT The F option will restore all the original factory settings in your SIRIUS Sportster ACTORY EFAULT SP5. Note that factory default will not reset the lock code if you have changed it from the default lock code (see page 88). To perform a factory default reset: Select the Factory Default menu option.
  • Page 87: Parental Control

    PARENTAL CONTROL Your SIRIUS Sportster SP5 has the ability to lock channels you do not want others (such as children) to access without your permission. Locked channels will not appear when browsing channels with the Knob or Channel Select buttons. When the anyone tries to access a locked...
  • Page 88 Changing the Lock/Unlock Code The first time you access the L menu, you must enter the default lock code. The NLOCK default lock code is 0 0 0 0. You can keep this code or change it. To change the lock code: Select the P menu option.
  • Page 89: Sports Alerts

    (You may select multiple teams/cars within each sport or league.) Your SIRIUS Sportster SP5 will constantly scan the channels and will alert you when a team or car you stored in memory is playing a game or running a race, or when there is a score update for a team, depending upon which options you have chosen for each team or car.
  • Page 90 When you’re done entering car numbers, press the M button. The NASCAR screen will return (see Figure 89, left). Highlight and select A . The NASCAR A screen will appear (see LERT ETTINGS LERT ETTINGS Figure 89, right. Figure 89 Select the type of NASCAR alerts you want: : This option will alert you when the radio is powered on and any race featuring LERT...
  • Page 91: Nfl, Nba, Nhl, College Football, College Basketball

    NFL, NBA, NHL, COLLEGE FOOTBALL, COLLEGE BASKETBALL When you select one of the above leagues on the S screen, that league’s screen PORTS LERTS will appear (see Figure 91, left). Note that although the NFL is shown here, the screens for all the leagues contain the same options.
  • Page 92: Time-Based Features

    Time-Based Features Time-Based Features menu lets you access the C LOCK LARM ROGRAM LERT HUTDOWN and S functions. LEEP Press the M button and select T . The T screen will ASED EATURES ASED EATURES appear (see Figure 93). Figure 93 CLOCK The C screen (see Figure 94) allows you to setup the clock that appears on the Default...
  • Page 93: Alarm

    ALARM The A screen (see Figure 95) lets you to set your Sportster SP5 to turn ON at a LARM specific time. The last selected channel prior to shutdown will play when the SP5 powers on.
  • Page 94: Program Alert

    PROGRAM ALERT The P screen (see Figure 96) allows you to program the SP5 to switch to a ROGRAM LERT selected channel at a specific time. The SP5 must be powered ON for this feature to function. Figure 96 : You can set the Program Alert to activate every day, weekdays only, week- ROGRAM ends only, or on a specific day.
  • Page 95: Sleep Mode

    SLEEP MODE The S screen (see Figure 98) lets you program the SP5 to shut OFF after a selected LEEP period of time. Figure 98 ON/OFF: Activates and de-activates the Sleep Mode function. LEEP : Select the desired amount of time (15/30/45/60 minutes) before the SP5 shuts OFF. Signal Indicator When using the optional Home Docking Station or Boombox indoors, it is important to aim the antenna for maximum signal reception.
  • Page 96: Troubleshooting

    Troubleshooting Symptom Solution SIRIUS Sportster Blown fuse, or the power cable is not properly connected. does not power on Check for a bad fuse and check power cable connection SIRIUS Sportster The satellite antenna is not connected to the radio dock. displays: Antenna Not Check the satellite antenna connection to the dock.
  • Page 97: Optional Accessories

    Optional Accessories The following optional accessories are available for purchase from your SIRIUS retailer to maximize your SIRIUS experience: SUBX1 SIRIUS Plug and Play Universal Boombox The SUBX1 SIRIUS Plug and Play Universal Boombox is a portable docking station and audio system for use with the SIRIUS Sportster radio.
  • Page 98 SIRIUS FM Direct Adapter The FM Direct Adapter accessory redirects your vehicle’s FM antenna signal when listening to your SIRIUS radio using your vehicle’s AM/FM radio. When the SIRIUS radio is powered on the FM Direct Adapter automatically redirects the vehicle’s FM antenna signal away from the vehicle’s AM/FM radio, reducing any interference which might be present from FM radio station broadcasts.
  • Page 99: Specifications

    Specifications Satellite Frequencies ........2322.293/2330.207 MHz Terrestrial Frequencies .
  • Page 100: Warranty

    Warranty 12 Month Warranty SIRIUS Satellite Radio Inc. (the “Company”) warrants to the original retail purchaser of this product that should this product or any part thereof, under normal use and conditions, be proven defective in material or workmanship within 12 months from the date of original purchase, such defect(s) will be repaired or replaced with new or reconditioned product (at the Company’s option) without charge for...
  • Page 101: Sirius Id

    SIRIUS ID Write down the SIRIUS ID (SID) of your SIRIUS Sportster 5 in the space provided below. SID: _______________________________________ SIRIUS ID...
  • Page 102 SIRIUS Customer Service: 1-888-869-5590 customercare@sirius-radio.com SIRIUS Satellite Radio Inc. 1221 Avenue of the Americas New York, NY 10020 1-888-539-7474 http://www.sirius.com...
  • Page 104 Sirius Satellite Radio Inc. 1221 Avenue of the Americas New York, NY 10020 800.869.5590 Sportster 5 User Guide (070307a) 00.ABCD1.001...
