Summary of Contents for Winbest Master-200 Edition

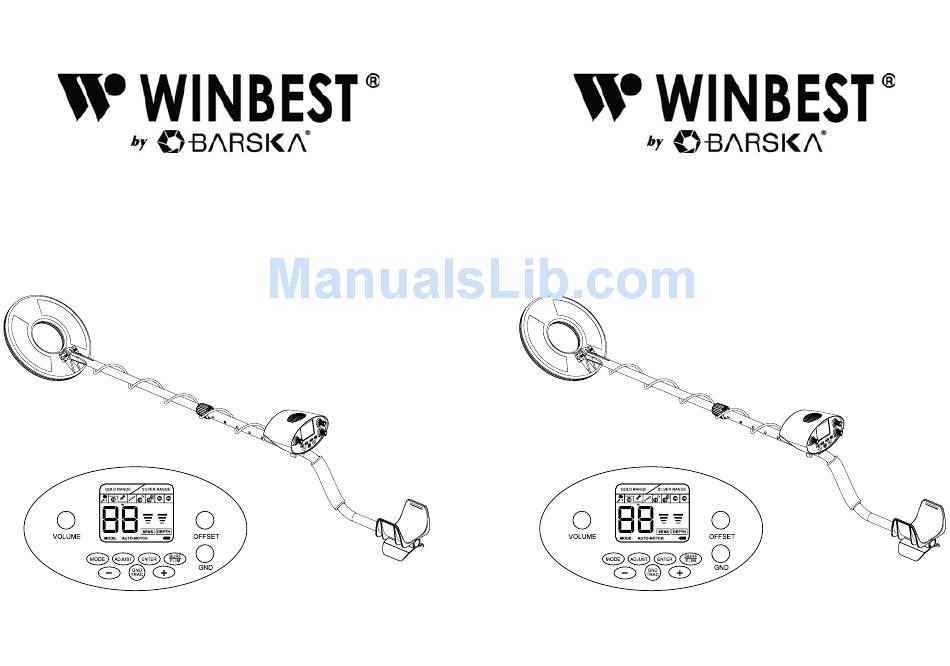

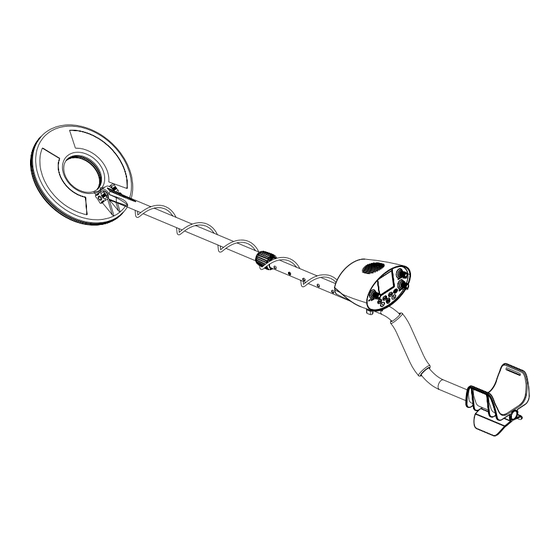

- Page 1 Master-200 Edition Master-200 Edition Metal Detector Metal Detector 8/15 BC436...
-
Page 2: Table Of Contents
Notes Before Use - This metal detector is a professional metal detector. As a sophisticated electronic CONTENTS device, the most difficult aspects in metal detecting have been preset. Terminology - If you are new to using metal detectors, it is recommended to set the sensitivity to a Preparation low level in the event of false signals. -
Page 3: Terminology
Terminology Pull-Tabs Discarded pull-tabs from beverage containers are the most bothersome trash items The following terms are used throughout the manual. for treasure hunters. They come in many different shapes and sizes. Pull-tabs can be eliminated from detection, but some other valuable objects can have a magnetic Elimination signature similar to pull-tabs, and will also be eliminated when discriminating out Reference to a metal being “eliminated”... -
Page 4: Batteries
3. Press the silver button on the upper end of the lower stem and slide the lower LCD Screen stem into the upper stem. Adjust the stem to a length that you feel comfortable when you stand upright with the detector in your hand, and the search coil is level with the ground with your arm relaxed at your side. -
Page 5: Basic Controls
Basic Controls TRAC several times to eliminate ordinary minerals and ores. The detector sounds a medium tone to all targets detected. DISC,NOTCH and AUTO-NOTCH Modes are motion modes: There are 3 tones to identify different metals in these modes. Detector can work in auto-ground balance. Sensitivity is adjustable, while GND BAL is not available in these modes. -
Page 6: Sensitivity Adjustment
and the probable target identification is indicated by the arrows at the top of the Multiple Targets display. SENS shows current sensitivity level. While DEPTH indicates the probable If you suspect the presence of a deeper target beneath a shallower target, reduce target depth. -
Page 7: Using The Detector
Will register at the far-left side (same as Iron), Large gold items will register in S-cap Gold Foil or Zinc area. For numeric display, gold will register in 0-50 area. Ferrous objects will register on the far-left side of the target scale. Objects in this Iron category could be worthless scrap, or more valuable iron relics. -
Page 8: Indoor Testing
NOTE: Depth value indication of same target in air is different from that of under 2. Take visual note of the place on the ground where the “beep” sounds. the ground. 3. Stop the coil directly over this spot on the ground. Indoor Testing 4. -
Page 9: Ground Balancing
disappears from detection at a given angle, chances are that you are detecting It is important to rotate the GND BAL knob in small increments in order to find the oxidized ferrous metals, rather than a silver or copper object. If the tone changes at first setting ( clockwise) at which the detector remains silent. -
Page 10: Trouble Shooting
Move the search coil slowly. Oxidized metal may cause the false signal. If the signal WINBEST® by BARSKA®, as manufacturer, warrants this new product to be free of is not repeatable when search coil swept over a target, the target usually is a trash.
