Summary of Contents for OWC USB-C Dock

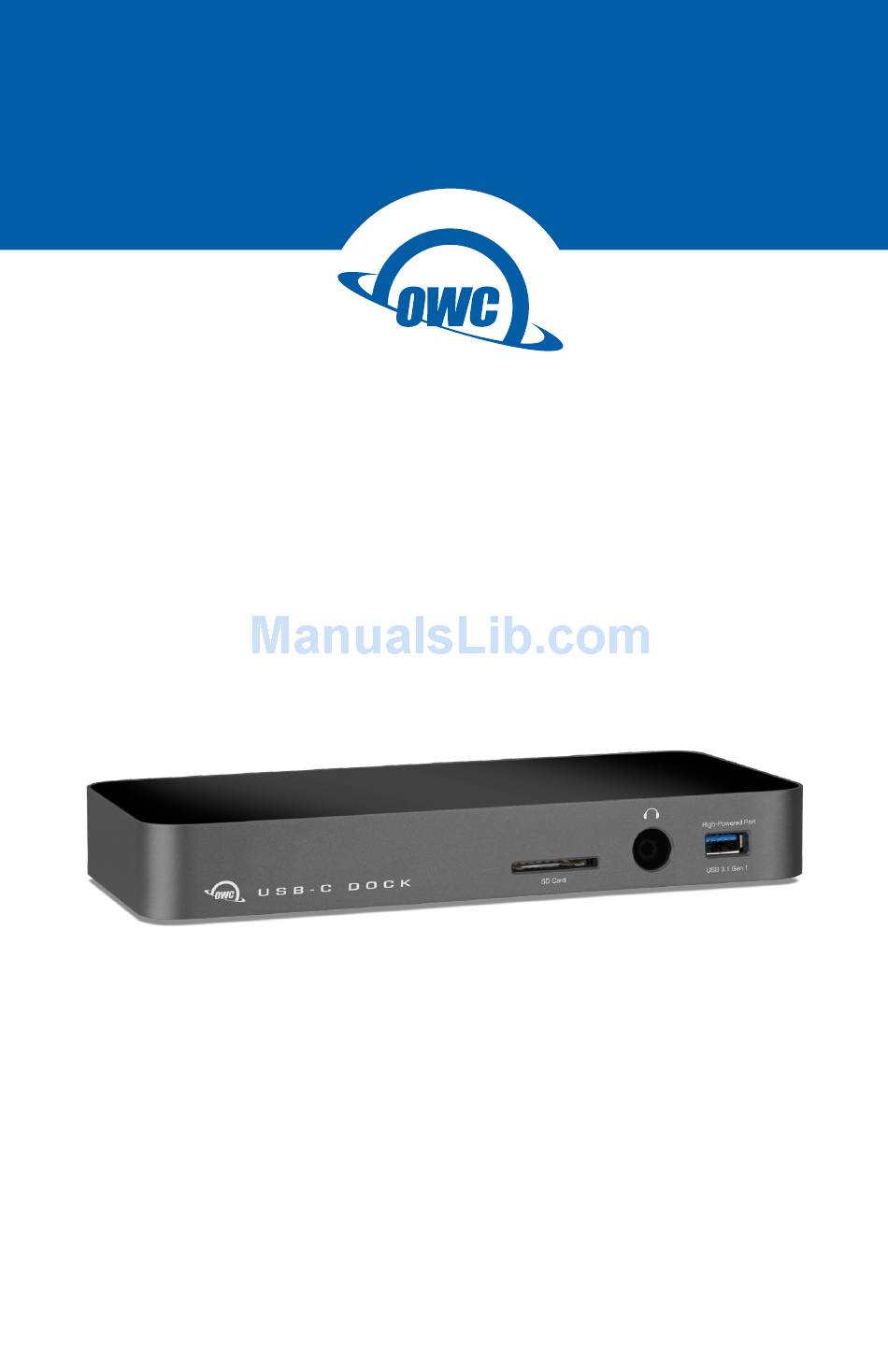

- Page 1 U S B - C D O C K USER GUIDE...
- Page 2 CONTENTS Introduction ....................1.1 Minimum System Requirements 1.2 Package Contents 1.3 About This Manual 1.4 Front View 1.5 Rear View Support Resources ................... 2.1 Connection 2.2 Usage Notes 2.3 Troubleshooting 2.4 Contacting Technical Support OWC USB-C Dock Table of Contents...
-
Page 3: Package Contents
The images and descriptions may vary slightly between this manual and the unit shipped. Functionality may change depending on the firmware version. The latest product details and warranty information can be found on the product web page. OWC’s Limited Warranty is not transferable and subject to limitations. OWC USB-C Dock Introduction... - Page 4 1.4 Front View There are two LEDs (not pictured) on the bottom of the OWC USB-C Dock, near the front of the device. Their functionality is described below. • Data LED (green) — will glow green when the dock has an active data connection to a computer through the USB Type-C cable.
- Page 5 4. USB 3.1 Gen 1 Type-C Computer Link — connect this port to your computer. 5. Mini DisplayPort — connect a Mini DisplayPort enabled display here. 6. DC IN — connect the included power supply here. OWC USB-C Dock Introduction...
- Page 6 SUPPORT RESOURCES 2.1 Connection 1. Connect the USB-C Dock to the power supply using the included cable. 2. Connect the Computer Link port to the USB Type-C port on your computer. 3. Connect your devices to the appropriate ports on the dock.
-
Page 7: Troubleshooting
• Does not support MST (multi-stream transport) 2.3 Troubleshooting Begin by verifying that the power supply is connected to the USB-C Dock and to a power source. If the power supply is connected to a power strip, make sure that the power switch on the strip is activated. - Page 8 OWC reserves the right to make changes or revisions in the product design or the product manual without reservation and without obligation to notify any person of such revisions and changes.
