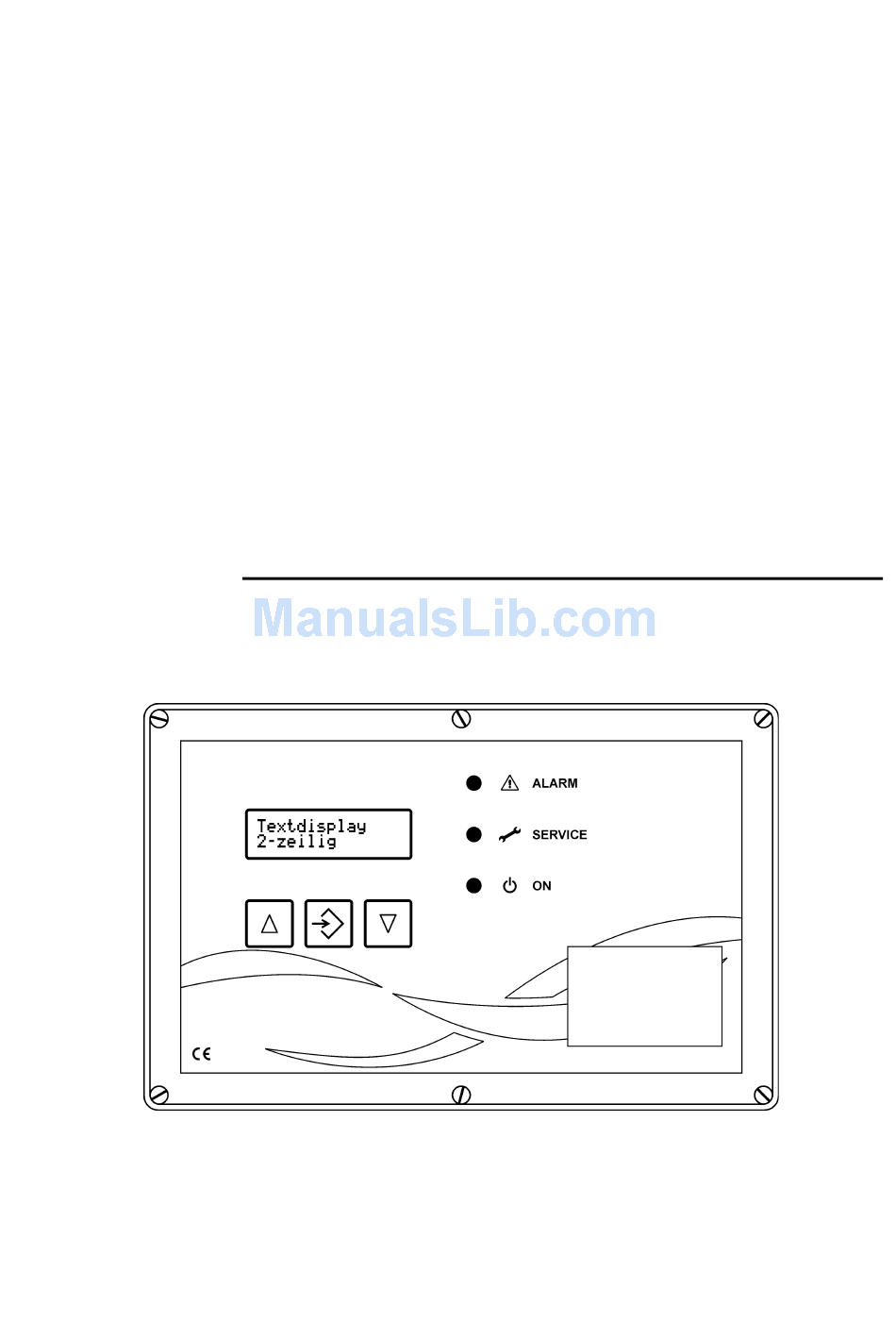

- Page 1 Operating and Installation Instructions Filter control system RM-216 C EasyLine...
-
Page 2: Table Of Contents
RM-216 C.10 Easy Line Documentation Table of Contents 1 Safety instructions ........................... 3 2 Equipment specification .......................... 3 3 Assembly ..............................4 4 “Step by step” installation ........................4 5 “Step by step” settings ..........................7 5.1 Function when shipped ......................... 7 5.2 Setting parameters ........................ -
Page 3: Safety Instructions
RM-216 C.10 Easy Line Documentation 1 Safety instructions The filter control system RM-216 C when connected to the mains poses an electrical hazard. Device failure, serious or even fatal injuries may occur as a result of improper installation of the connected equipment. -
Page 4: Assembly
RM-216 C.10 Easy Line Documentation 3 Assembly 4 “Step by step” installation Supply voltage connection A separate power supply unit is recommended for the operation of the filter controller with extra low voltage. The unit can be operated with a supply voltage of 24 V DC, if no expansion modules are connected and if the electric cables (minimum cross-section: 0.75 mm²) to the solenoid valves are shorter than 10 meters long. - Page 5 RM-216 C.10 Easy Line Documentation Solenoid valve connection Connection of expansion modules RM-LV8 / RM-LV16 Use shielded cable for all bus lines! The shielding must be connected unilaterally to the protective earthing (PE). Signal cables must not be laid parallel to power cables. ...
- Page 6 RM-216 C.10 Easy Line Documentation Other connections Connecting differential pressure measurement cables Use hoses with 4 mm inner and 6 mm outer diameters. Connect the connection marked with 3 lines (black screw cap) to the crude gas side and the other connection (blue screw cap) to the pure gas side of the filter.
-
Page 7: "Step By Step" Settings
RM-216 C.10 Easy Line Documentation 5 “Step by step” settings 5.1 Function when shipped The down time cleaning input E1, E2 (terminals 10, 11) is bridged at the factory. The cleaning starts when the differential pressure ∆p for the filter has reached the value ∆p-MAX (factory setting: 1300 Pa). The solenoid valves are triggered in sequence. - Page 8 RM-216 C.10 Easy Line Documentation RDN 10000029 13.05.2014...
-
Page 9: Parameter List
RM-216 C.10 Easy Line Documentation 5.3 Parameter list Text on the display Explanation Factory settings Setting range Delta-P Min 700 Pa 260 ... 4000 Pa ∆p-MIN Delta-P Max 1300 Pa 280 ... 4400 Pa ∆p-MAX Delta-P Alarm 2300 Pa 300 ... 5000 Pa ∆p-Alarm Pulse Time Pulse time... -
Page 10: Operating Modes
RM-216 C.10 Easy Line Documentation 6 Operating modes 6.1 Test mode In test mode, the most important functions in the control sequence are checked and shown on the text display. To start test mode, call up parameter no. P14 “Test mode” (see section 5.2 for more information) and select one of the following test modes: Test mode 1 (Valve test) Each connected valve is activated in sequence and shown in the text display. - Page 11 RM-216 C.10 Easy Line Documentation DTC mode 1 The down time cleaning is started via the contact connected on input E1 and E2. If the fan is switched off, the contact on E1, E2 must open. DTC mode 2 The down time cleaning is only started via the contact connected to input E1 and E2 if the differential pressure has exceeded the value ∆p DTC max during operation.
-
Page 12: Cleaning Via Start/Stop Input (External ∆P Switch)
RM-216 C.10 Easy Line Documentation DTC mode 3 The down time cleaning is started when the differential pressure falls below the value ∆p DTC min, after the value ∆p DTC max has first been exceeded. The signal on input E1, E2 is ignored. 6.4 Cleaning via start/stop input (external ∆p switch) If the cleaning is controlled via an external ∆p switch, the isolated contact on the ∆p switch must be connected to the start/stop input D1, D2 (terminals 12, 13). -
Page 13: Troubleshooting
RM-216 C.10 Easy Line Documentation 7 Troubleshooting Error Possible causes Recommended action The “ON” LED is not lit and input No mains voltage Check power feed E1, E2 is bridged. Device fuse is defective Replace fuse EMERGENCY STOP Check EMERGENCY STOP activated No valve activity No control system release... -
Page 14: Text Messages On The Display
RM-216 C.10 Easy Line Documentation 8 Text messages on the display Display Explanation Reset status, text version and differential pressure. Reset RM200VXX XXXX Pa The text message is displayed for approx. 1 second after the voltage is switched on. Controller is not enabled through inputs I1 and I2. Stand By XXXX Pa Controller is enabled through inputs I1 and I2. -
Page 15: Details On The Equipment Function
RM-216 C.10 Easy Line Documentation 9 Details on the equipment function Differential pressure controlled cleaning The cleaning is controlled by means of two ∆p switch points which can be set independently of one another. It starts when the value ∆p-MAX is reached. All connected solenoid valves are controlled using the preset values for the pulse time and the interval time, starting with the interval time. -
Page 16: Glossary
RM-216 C.10 Easy Line Documentation 10 Glossary Term Explanation Bulkhead connector Connections for fitting the differential pressure measurement hoses. Cleaning Cleaning the filter elements using compressed air pulses. Compressed air pulse Cleaning of the filter elements using compressed air pulses. cleaning Differential pressure Difference between the air pressures ∆p on the pure gas side (behind... - Page 17 RM-216 C.10 Easy Line Documentation Term Explanation Solenoid valve (also relay valve) electromagnetically operated valve for the pneumatic triggering of the filter membrane valves. The membrane valves in turn release the compressed air strokes for filter cleaning. Start/stop input Input on the RM-216 C for starting and stopping the cleaning via an external ∆p switch.
-
Page 18: Technical Specifications
RM-216 C.10 Easy Line Documentation 11 Technical specifications Application Data Supply voltages 230 V AC ±10% 110 V ... 120 V AC ±10% 26 V … 28 V DC* Signal inputs 24 V DC, operate ensuring isolation Signal output Relay outputs, max. 2 A, 250 V or 1 A, 30 V DC Control outputs for valves For valves with a rated voltage of 24 V DC,...
