Summary of Contents for Arjohuntleigh NDA 1200
-

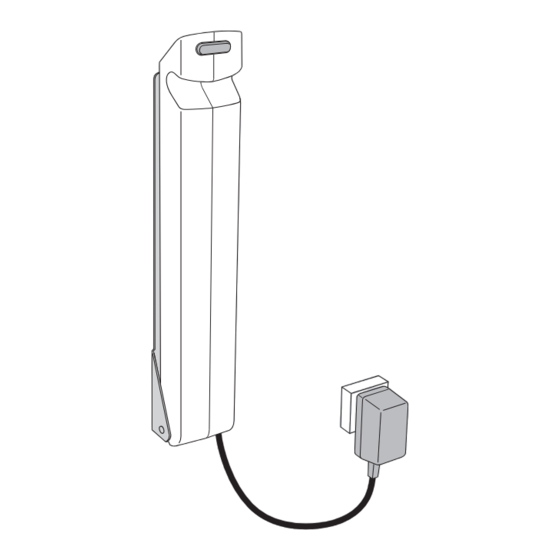

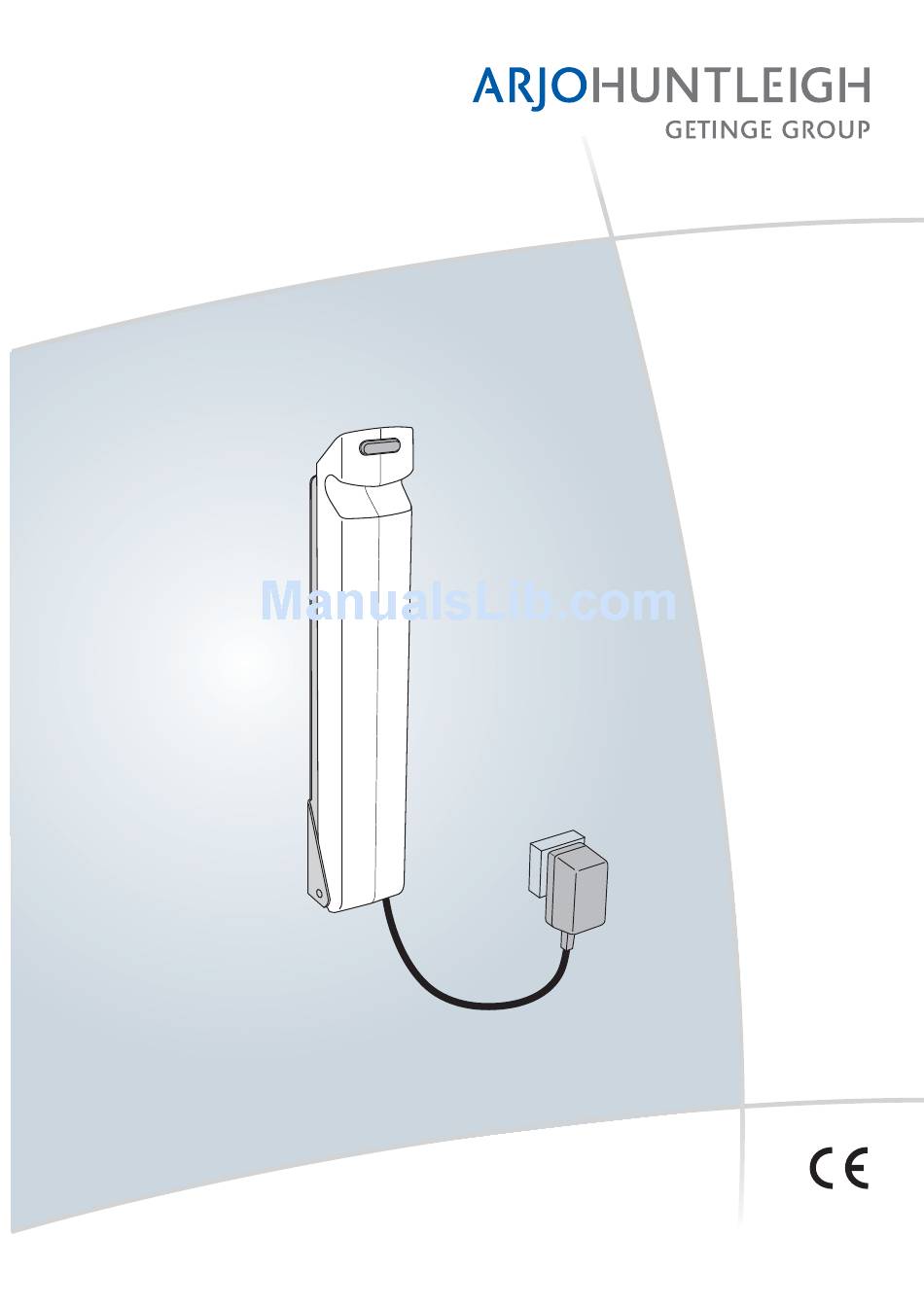

Page 1: Battery Charger
NDA 1200, 2200, 4200, 6200 Battery Charger INSTRUCTIONS FOR USE ...with people in mind 04.ND.02_2GB. September 2014... - Page 2 Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © Arjo Hospital Equipment AB 2012. As our policy is one of continuous improvement, we reserve the right to modify designs with- out prior notice.The content of this publication may not be copied either whole or in part...
-
Page 3: Table Of Contents
Installation of Charger..............8 Charging the Battery ..............9 Care and Preventive Maintenance........... 10 Troubleshooting ............... 12 Technical Specifications ............13 Labels on the Battery Charger ..........14 Electromagnetic Compatibility..........16 Parts and Accessories ............. 19 ArjoHuntleigh Addresses ..........Last page... -
Page 4: Foreword
ArjoHuntleigh equipment. and Preventive Maintenance. If you require further information, please con- Your ArjoHuntleigh Battery Charger is a part tact ArjoHuntleigh for comprehensive support of a series of quality products designed espe- and service programs to maximize the long- cially for hospitals, nursing homes and other term safety, reliability and value of the prod- health care use. -
Page 5: Intended Use
Instructions for Use (IFU). If there is anything you are not sure about, contact your ArjoHuntleigh rep- resentative. This charger is intended for charging Arjo- Huntleigh battery NDA 0100 only, in accord- ance with the instructions outlined in the Instructions for Use (IFU). -
Page 6: Safety Instructions
Safety Instructions Battery and charger safety practices: WARNING To avoid explosion or fire, never use WARNING the equipment in oxygen rich environ- ment, in presence of heat source or Do NOT cover the charger due to fire flammable anaesthetic gases. hazard. -
Page 7: Preparations
5 Charge the battery until the indicator LED support and service. The contact informa- on the charger turns from orange to green. tion (ArjoHuntleigh addresses) is listed at the end of this IFU. 6 Find a dry area with good ventilation for storing the Battery Charger. -
Page 8: Installation Of Charger
Installation of Charger Installation • Keep the Battery Charger away from main access areas. • The Battery Charger is designed for dry surroundings and may not be installed in bathrooms or any other wet areas (IP2X). • Mount the charger to a suitable wall with four screws and plug it in to a standard power (AC) outlet. -
Page 9: Charging The Battery
• To prolong life of batteries, charge at regu- lar intervals. • If the ArjoHuntleigh product is used fre- quently, its recommended to use two batter- ies, one in operation and one being charged. NOTE 4 Once the battery is charged the orange... -
Page 10: Care And Preventive Maintenance
Care and Preventive Maintenance The ArjoHuntleigh Battery Charger is subject to wear and tear, and the following actions must be per- formed when specified to ensure that the product remains within its original manufacturing specification. WARNING To avoid malfunction resulting in injury, make sure to conduct regular inspections and follow the recommended maintenance schedule. - Page 11 Visually check battery and charger: Visually check the condition of the Battery Charger, its cable and the battery. Withdraw and replace immediately if damaged...
-
Page 12: Troubleshooting
Troubleshooting PROBLEM ACTION 1 There is no electricity coming from the AC outlet. The LED does not light up. The charger is broken. The charger and/or power supply cord is bro- Order a new charger. NEVER open the charger ken. to repair it. -
Page 13: Technical Specifications
This requirement applies in the European Union. Do not dispose these products as unsorted municipal waste. You can return your device and accessories to ArjoHuntleigh or you can contact your local authorities for advice on disposal. -
Page 14: Labels On The Battery Charger
Labels on the Battery Charger On the labels you will find the following information: The article number of the Battery Charger NDA X200-XX NDA 1200-EU (Europe except GB) NDA 2200-GB (Great Britain) NDA 4200-US (USA, Canada and Japan) NDA 6200-AU (Australia) - Page 15 Example of data label on battery holder Example of data label US Identification label on the Battery Charger Example of label on package...
-
Page 16: Electromagnetic Compatibility
Guidance and manufacturer’s declaration – electromagnetic emissions The ArjoHuntleigh Battery Charger is intended for use in the electromagnetic environment specified below. The customer or the user of the ArjoHuntleigh Battery Charger should assure that it is used in such an environment. - Page 17 Guidance and manufacturer’s declaration – electromagnetic immunity The ArjoHuntleigh Battery Charger is intended for use in the electromagnetic environment specified below. The customer or the user of the ArjoHuntleigh Battery Charger should assure that it is used in such an environment.
- Page 18 Guidance and manufacturer’s declaration – electromagnetic immunity ArjoHuntleigh Battery Charger is intended for use in the electromagnetic environment specified below. The customer or the user of ArjoHuntleigh Battery Charger should assure that it is used in such an environment. Immunity test...
-
Page 19: Parts And Accessories
Parts and Accessories Battery Charger Extra battery NDAX000-XX NDA 0100... - Page 20 Intentionally left blank...
- Page 21 Intentionally left blank...
- Page 22 Intentionally left blank...
- Page 23 Free: +1 800 072 040 Fax: +33 (0) 3 20 28 13 14 POLSKA Fax: + 61 89337 9077 E-mail: info.france@arjohuntleigh.com ArjoHuntleigh Polska Sp. z o.o. BELGIQUE / BELGIË HONG KONG ul. Ks Piotra Wawrzyniaka 2 ArjoHuntleigh NV/SA ArjoHuntleigh (Hong Kong) Ltd...
- Page 24 GETINGE GROUP is a leading global provider of products and systems that contribute to quality enhancement and cost efficiency within healthcare and life sciences. We operate under the three brands of ArjoHuntleigh, GETINGE and MAQUET. ArjoHuntleigh focuses on patient mobility and wound management solutions. GETINGE provides solutions for infection control within healthcare and contamination prevention within life sciences.
