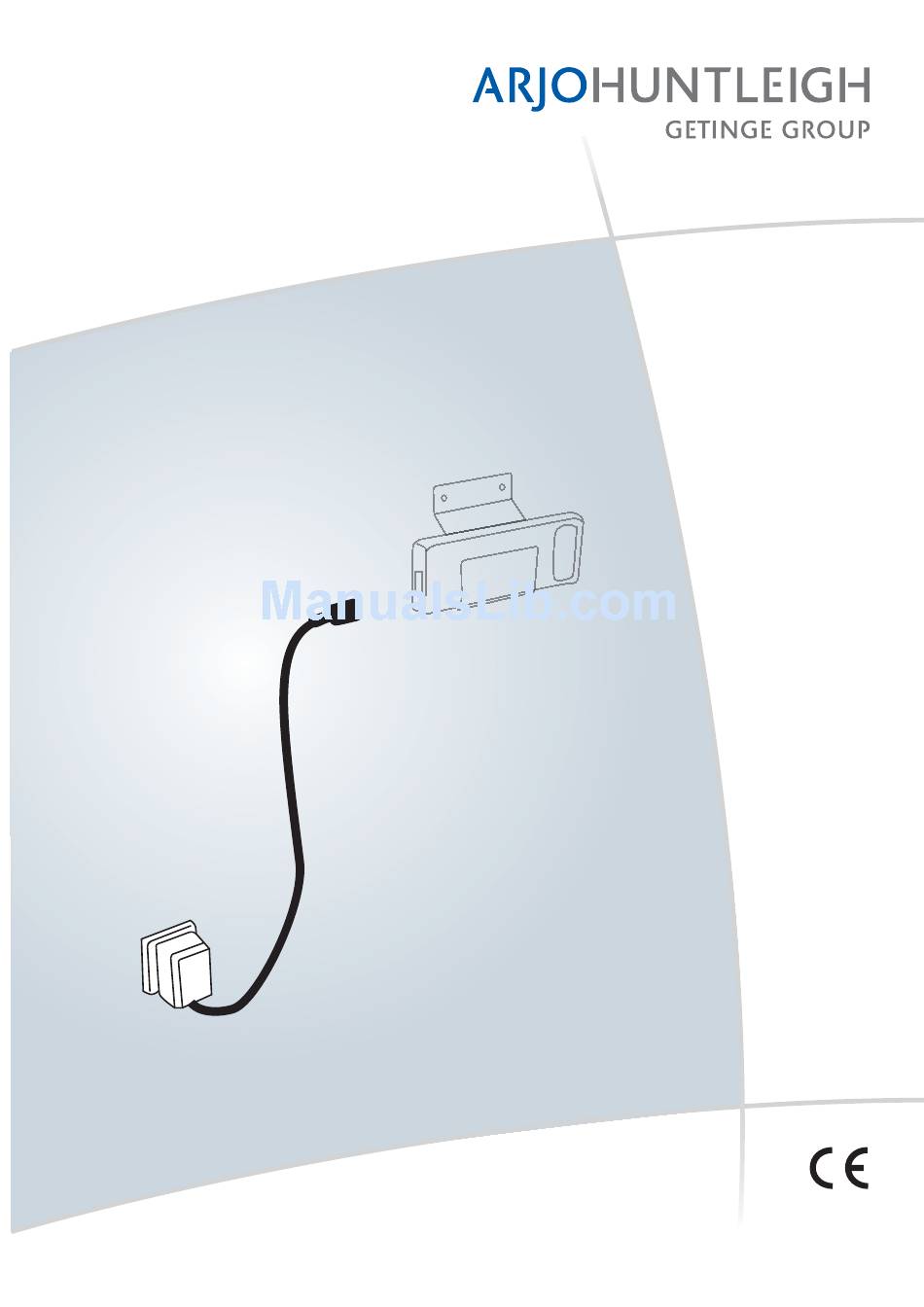

Page 1: Battery Charger
NEA 1000, 2000, 4000, 6000 Battery Charger INSTRUCTIONS FOR USE ...with people in mind 04.NE.00_4GB February 2015... - Page 2 Mandatory to read the Instructions for Use Design Policy and Copyright ® and ™ are trademarks belonging to the ArjoHuntleigh group of companies. © ArjoHuntleigh AB 2015. As our policy is one of continuous improvement, we reserve the right to modify designs without prior notice.The content of this publication may not be copied either whole or in...
-
Page 3: Table Of Contents
Installation of Charger ............... 7 Charging the Battery ..............8 Cleaning Instructions ..............9 Care and Preventive Maintenance ..........9 Troubleshooting ..............10 Technical Specifications ............11 Labels ..................13 Electromagnetic Compatibility ..........14 Parts and Accessories ............17 ArjoHuntleigh Addresses ..........Last Page... -
Page 4: Foreword
Unauthorized modifications on any ArjoHuntleigh equipment may affect its safety. ArjoHuntleigh will not Means: be held responsible for any accidents, incidents or lack The name and address of the manufacturer. -
Page 5: Intended Use
Instructions for Use (IFU). If there is anything you are not sure about, contact your ArjoHuntleigh representative. This charger is intended for charging ArjoHuntleigh battery NEA 0100 only, in accordance with the in- structions outlined in the Instructions for Use (IFU). -
Page 6: Safety Instructions
Safety Instructions WARNING WARNING To avoid electric shock, make sure that the Do NOT cover the charger due to fire equipment is connected to: hazard. • Continuously powered supply mains with WARNING protective earth. • Separate fuse and ground fault circuit To avoid fire, make sure the charger is interrupter (GFCI) installed and used in a well ventilated area. -
Page 7: Preparations
ArjoHuntleigh representative for support and service. The contact information 5 Charge the battery until the indicator LED turns (ArjoHuntleigh addresses) is listed at the end green. of this IFU. 6 Prepare an area that is dry, with good ventilation and out of direct sunlight for storage of the Battery Charger. -
Page 8: Charging The Battery
Grip the plug and don’t pull the cord. • The charger converts mains voltage to low DC voltage. • The charger must only be used for ArjoHuntleigh battery type NEA 0100. • The charger is ready for use as soon as it is plugged in. •... -
Page 9: Cleaning Instructions
Cleaning Instructions Accessories for Cleaning the ArjoHuntleigh Battery Charger • Dry cloths or dry disposable towels Always Follow these 2 Steps for Proper Cleaning 1 Disconnect the Battery Charger from the mains and unplug the battery. 2 Wipe the Battery Charger and its cable from visible residue using a dry cloth or a dry disposable towel. -
Page 10: Troubleshooting
WARNING To avoid injury and/or unsafe product, the maintenance activities must be carried out at the correct frequency by qualified personnel using correct tools, parts and knowledge of procedure. Qualified personnel must have documented training in maintenance of this device. QUALIFIED PERSONNEL Action/Check Every YEAR Check battery and Battery Charger... -
Page 11: Technical Specifications
Technical Specifications General The charger model (Type..) NEA1000–EU, NEA2000–GB, NEA4000–US, NEA6000–AU Mains Supply 100–240 V ~ 50–60 Hz Power consumption max: 25 VA Output voltage, charge current 33 Vdc Normal charge current 250 mA for 14 h, then 60 mA Protection class: IP2X product must be used in a dry environment. - Page 12 This requirement applies in the European Union. Do not dispose these products as unsorted municipal waste. You can return your device and accessories to ArjoHuntleigh or you can contact your local authorities for advice on disposal.
-
Page 13: Labels
Labels Label Explanation Classified by Underwrites Laboratories Inc. with respect to Data Label States technical performance and requirements. For example electrical shocks, fire and classified safety standard and input mechanical, hazards and other voltage. specified hazards only in accordance with the Approvals and Label on States the serial number, List of Standards. -
Page 14: Electromagnetic Compatibility
Electromagnetic Compatibility Medical electrical equipment needs special precautions regarding EMC (Electromagnetic compatibility) and needs to be used according to the EMC information below. Portable and mobile RF communications equipment can affect the Battery Charger. WARNING Stacking or placing other electrical equipment next to this device is not recommended, it can interfere with the equipment’s operation and safety. - Page 15 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The Battery Charger is intended for use in the electromagnetic environment specified below. The customer or the user of the Battery Charger should assure that it is used in such an environment. IEC 60601 Test Electromagnetic Immunity Test Compliance Level...
- Page 16 Guidance and Manufacturer’s Declaration – Electromagnetic Immunity The Battery Charger is intended for use in the electromagnetic environment specified below. The customer or the user of the Battery Charger should assure that it is used in such an environment. IEC 60601 Compliance Immunity test Electromagnetic environment –...
-
Page 17: Parts And Accessories
Parts and Accessories Battery Charger Extra battery Battery holder NEAX000-XX NEA 0100, 24 V 8350891-031... - Page 18 Intentionally left blank...
-
Page 19: Arjohuntleigh Addresses
Free: +1 800 072 040 Fax: +33 (0) 3 20 28 13 14 POLSKA Fax: + 61 89337 9077 E-mail: info.france@arjohuntleigh.com ArjoHuntleigh Polska Sp. z o.o. BELGIQUE / BELGIË HONG KONG ul. Ks Piotra Wawrzyniaka 2 ArjoHuntleigh NV/SA ArjoHuntleigh (Hong Kong) Ltd... - Page 20 GETINGE GROUP is a leading global provider of products and systems that contribute to quality enhancement and cost efficiency within healthcare and life sciences. We operate under the three brands of ArjoHuntleigh, GETINGE and MAQUET. ArjoHuntleigh focuses on patient mobility and wound management solutions. GETINGE provides solutions for infection control within healthcare and contamination prevention within life sciences.
