BW Clip is a portable, single-gas detector manufactured by
BW Technologies by Honeywell (BW). BW Clip continuously measures
the concentration of a specific gas in the ambient environment, and
activates an alarm when concentrations exceed alarm setpoints. It is your
responsibility to respond appropriately to the alarms.
BW Clip is a member of the GasAlert family of products. It is compatible
with IntelliDoX and MicroDock II automatic test and calibration stations,
as well as Fleet Manager II software version 4.0 or higher. For more
information, visit the product website at www.honeywellanalytics.com
Safety Information: Read First
1. Substitution of components may impair Intrinsic Safety.
2. Periodically test the response of the sensor by exposing the detector
to a target gas concentration that exceeds the low alarm setpoint.
Manually verify that the audible and visual alarms are activated.
3. Detectors in hibernation mode are not functional.
1. Activate the detector before the activation date on the package.
2. This product is a gas detector, not a measurement device.
3. Ensure that the sensor grill is free of dirt, debris, and is not obstructed.
4. Clean the exterior with a soft, damp cloth.
5. Bump test the detector in a normal atmosphere that is free of
hazardous gas.
6. For optimal performance, periodically zero the sensor in a normal
atmosphere (20.9% v/v O ) that is free of hazardous gas.
2
Informations de sécurité – À lire au préalable
AVERTISSEMENT
1. Le remplacement d'un composant de l'appareil peut compromettre la
sécurité intrinsèque du détecteur.
2. Testez périodiquement la réponse du capteur en exposant le détecteur
à une concentration de gaz supérieure au seuil d'alarme basse. Vérifiez
manuellement que les alarmes sonores et visuelles sont activées.
3. Détecteurs en mode veille prolongée ne sont pas fonctionnels.
MISE EN GARDE
1. Activez le détecteur avant la date d'activation sur l'emballage.
2. Ce produit est un détecteur de gaz, pas un dispositif de mesure.
3. Veillez à assurer que la grille du capteur est exempt de saleté, les
débris, et ne soit pas obstrué.
4. Nettoyez l'extérieur de l'appareil à l'aide d'un chiffon doux et humide.
5. Veillez à effectuer un test fonctionnel du capteur dans une atmosphère
normale qui est exempte de gaz dangereux
6. Pour des performances optimales, zéro périodiquement le capteur
dans une atmosphère normale (20,9% v/v O
dangereux.
BW Clip Factory Calibration Certificate
This instrument was factory inspected, tested and calibrated in accordance with the conditions and
requirements of our registered Quality System, Operating Standards and Sales Agreements.
SINGLE-GAS DETECTOR
) qui est exempte de gaz
2
Part Number 50115903-067 | OM-EN-PALO-A4 | BW Clip Operator Manual

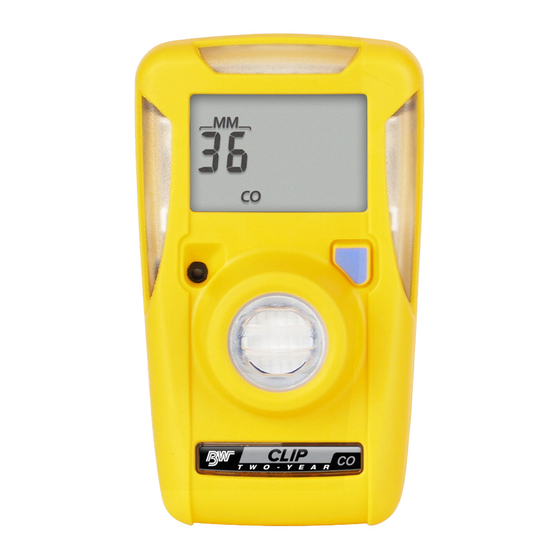

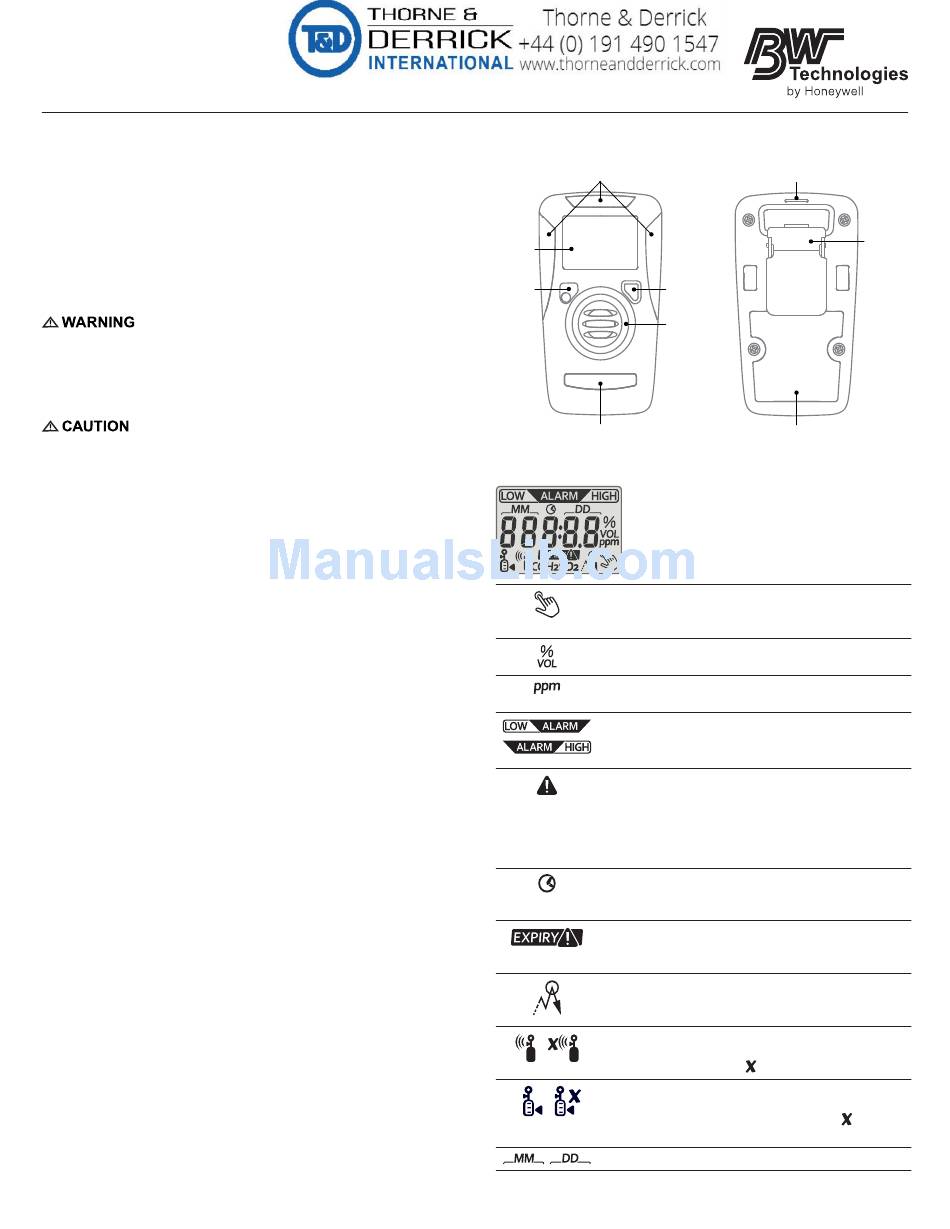

Getting Started
LED LED
visual alarms visual alarms
LCD LCD
Audible Audible
Pushbutton Pushbutton
alarm alarm
Sensor and Sensor and
sensor grill sensor grill
Bubble label Bubble label
with product name with product name
and gas type and gas type
LCD and Symbols
Pushbutton prompt. When this symbol is displayed,
press and hold the pushbutton until the symbol
disappears.
BW Clip O models only. Oxygen concentration is
2
measured as percent by volume.
BW Clip H S, CO and SO
2
concentration is measured in parts per million.
Low alarm and high alarm. These symbols are
displayed when a gas concentration that exceeds
alarm setpoints is detected.
Non-compliance warning. This symbol is displayed
when a diagnostic or compliance test fails; when the
operating life countdown reaches 24 hours or less;
and for up to 30 days after operating life expiry. It is
also displayed when certain notifications are enabled
through Fleet Manager II via an IntelliDoX station.
Real-time clock. This symbol is displayed when real-
time clock is enabled through Fleet Manager II via an
IntelliDoX station.
End of operating life warning. This symbol is displayed
when the operating life countdown reaches 24 hours
or less.
Peak reading. This symbol is displayed when a
maximum gas exposure event has occurred within the
past 24 hours.
Bump test reminder. If the detector is configured to
display a bump test reminder, this symbol is displayed
when a bump test is due.
BW Clip O models only. This symbol is displayed
2
when more than 24 hours have elapsed since the last
successful zero procedure was performed.
a failed test.
Operating life remaining in months (MM) or days (DD).
Infrared port
Alligator
clip
Product label
models only. Toxic gas
2
indicates a failed test.
indicates
