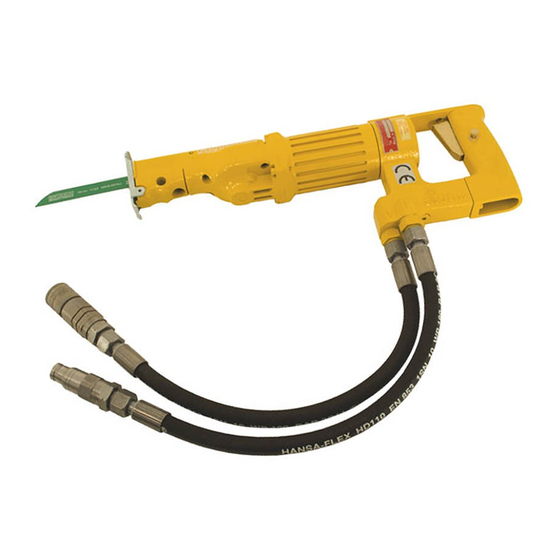

Hydraulic sabre saw
Hide thumbs

Advertisement

Quick Links

Download this manual

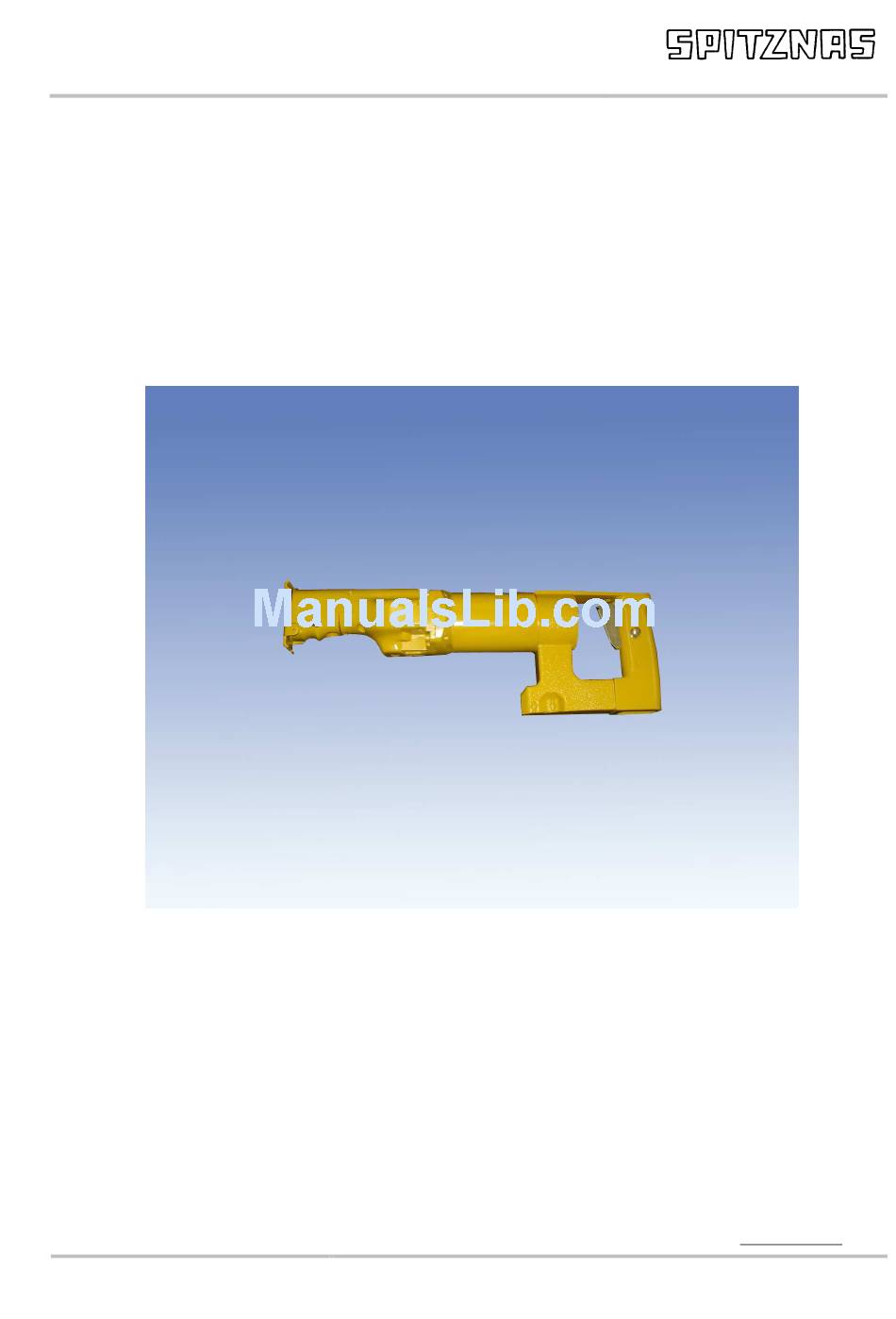

M a s c h i n e n f a b r i k G m b H
Hydraulic-
Sabre Saw
Type 5 1219 0010
Tech. Doc. No. 518
Illustration can differ from the original
Operation and
Maintenance Manual
Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605
29, www.spitznas.de
Translation of the original operation
512190010_BA_en_Version_02
Page 1 of 13
manual, compiled: 21.03.13

Advertisement

loading
Need help?

Need help?

Do you have a question about the 5 1219 0010 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Spitznas 5 1219 0010

Summary of Contents for Spitznas 5 1219 0010

  • Page 1 Type 5 1219 0010 Tech. Doc. No. 518 Illustration can differ from the original Operation and Maintenance Manual Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de Translation of the original operation 512190010_BA_en_Version_02 Page 1 of 13...

  • Page 2: Technical Specification

    < 2,5 m/s² Vibration at free speed 89,4 dB(A) Noise level at 1 m distance Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de Translation of the original operation 512190010_BA_en_Version_02 Page 2 of 13...

  • Page 3: Safety Instructions

    Maintain a proper footing and balance at all time. Never work with the machine while standing on a ladder or leaning against a scaffold. Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de Translation of the original operation...
  • Page 4 Only operate the tool after a thorough training or under supervision of a trainer. Never exceed the maximum operation pressure. Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de Translation of the original operation...
  • Page 5 Any use deviating from the intended use as described is considered to be improper use. We recommend strongly to refrain from modifications and / or inappropriate use. Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de...
  • Page 6 To prevent trapped or reversed pressure, fluid should not be returned through a blocking or reversing valve. Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de...
  • Page 7 Do not exceed 13.2 gpm / 50 lpm flow rate. Rapid failure of the tool's internal seals might result. Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de Translation of the original operation...
  • Page 8 It is important to press the support shoe firmly against the material to be cut in order to obtain a uniform and smooth cutting operation. Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de...
  • Page 9 2 and the socket wrench well, before wear becomes excessive. Fig. 3 Fig. 2 Do not lubricate the blade clamp. Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de Translation of the original operation 512190010_BA_en_Version_02 Page 9 of 13...
  • Page 10 Contaminated fluid causes rapid wear and/ or failure of internal parts. The proper quantity of grease is very important with regard to good lubrication and low heat generation. Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de Translation of the original operation...
  • Page 11 For the operation of the hydraulic motor we recommend high-class hydraulic oil, e. g. HLP 46, depending on the case of operation (temperature). Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de Translation of the original operation...

  • Page 12: Troubleshooting

    Other problems Contact authorized expert company Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de Translation of the original operation 512190010_BA_en_Version_02 Page 12 of 13 manual, compiled: 21.03.13...
  • Page 13 Name of the authorized person for documentation: Mr. Simon Witt Address of the authorized person for documentation: see manufacturer’s address 42555 Velbert, 21.03.2013 Spitznas Maschinenfabrik GmbH, Fellerstr.4, D-42555 Velbert, Tel: +49(0)2052 605 0, Fax: +49(0)2052 605 29, www.spitznas.de Translation of the original operation...
