OPERATING MANUAL
5 6031
Stainless Steel Pneumatic Band Saw
Manufactured by: SPITZNAS GmbH, POSTFACH 11 02 09, 42530 VELBERT, GERMANY
DISTRIBUTED CS UNITEC, INC.
BY:
22 Harbor Avenue
Norwalk, CT 06850
5 6047 0010
Stainless Steel Electric Band Saw
Toll Free: 800-700-5919
Tel: (203) 853-9522
Fax: (203) 853-9921
0010
Web: www.csunitec.com
Email: Info@csunitec.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Spitznas 5 6047 0010
Summary of Contents for Spitznas 5 6047 0010

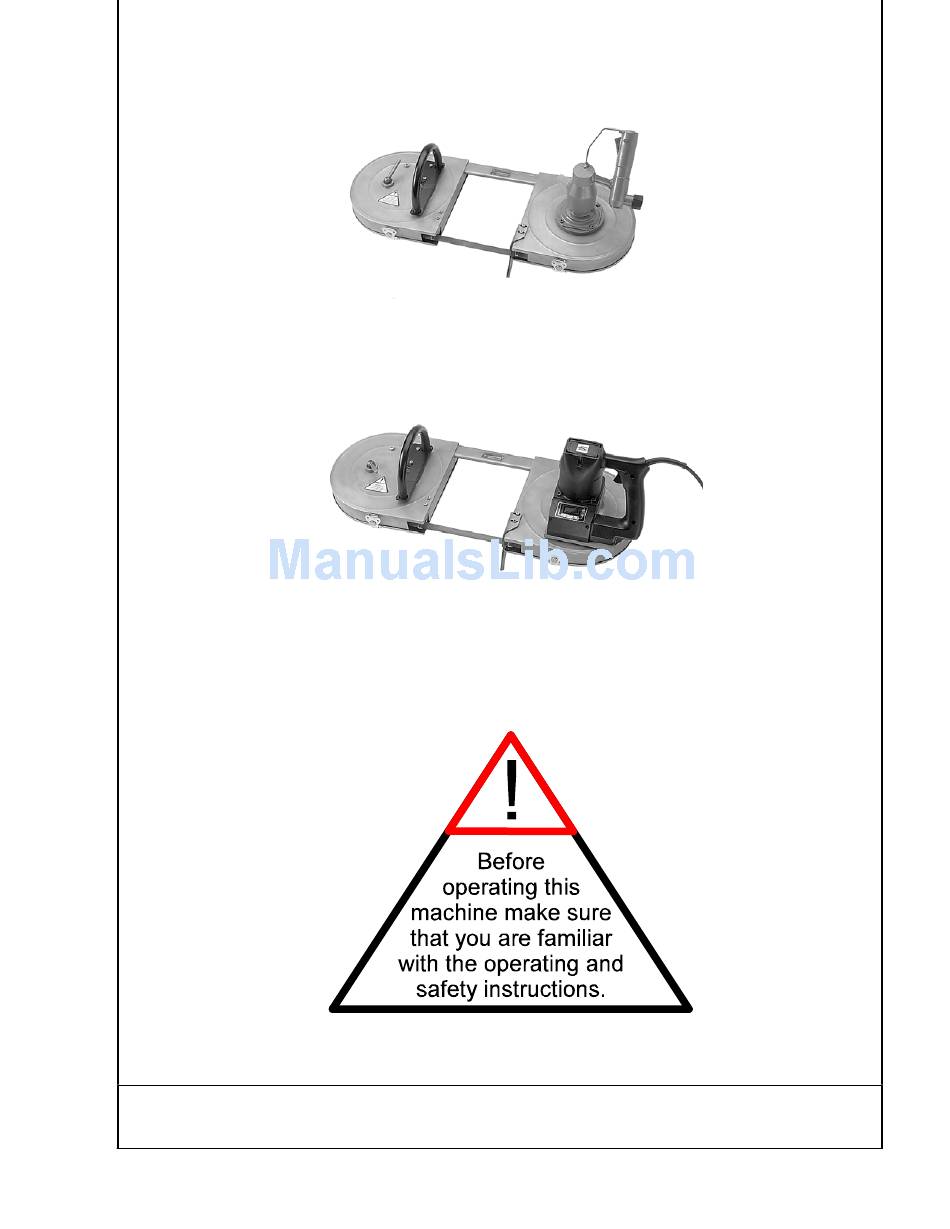

- Page 1 5 6031 0010 Stainless Steel Pneumatic Band Saw 5 6047 0010 Stainless Steel Electric Band Saw Manufactured by: SPITZNAS GmbH, POSTFACH 11 02 09, 42530 VELBERT, GERMANY DISTRIBUTED CS UNITEC, INC. Toll Free: 800-700-5919 Web: www.csunitec.com 22 Harbor Avenue Tel: (203) 853-9522 Email: Info@csunitec.com...
-
Page 2: Table Of Contents
Chapter 1: Safety Instructions Make sure that you are familiar with the Safety Instructions before operating the SPITZNAS Band Saw Chapter 2: Technical Data of the Pneumatic Band Saw and Electric Band Saw Chapter 3: Scope of Delivery and Accessories... -
Page 3: Safety Instructions
Safety Instructions WARNING! Risk of serious personal injury or death. Read and follow instructions for proper use of this product. Because of the harsh environment to which Band Saws are exposed, it is necessary that you carefully follow all instructions accompanying your saw and its cutting attachments. - Page 4 10. Be alert for pieces which might fall down. (Solid steel of 4“ dia. and 12“ length weighs about 40 lbs !) 11. Avoid sparks in hazardous environment - created by the saw band. 12. Use saw only with secured closed cover. 13.
-
Page 5: Technical Data
(at 60 PSI) (measured in a distance of 1m) 87,3 dB(A) (at 90 PSI) Electric Band Saw No. 5 6047 0010 Motor 120 VAC *, 50-60 HZ, 6 AMP Free Surface Speed Variable 100-265 Ft/Min * This motor is rated A.C. only. Do not use D.C. current otherwise serious... -
Page 6: Scope Of Delivery / Accessories
Scope of Delivery / Accessories S ta n d a rd E q u ip m e n t - E le c tric B a n d S a w D e s c riptio n P a rt N o . B a nd S a w H e a d 7 - 1 /4 "... -
Page 7: Use / Cutting Hints
Use and Cutting Hints Plan the cut. Know the material to be cut. If necessary, slow down surface speed of saw band by reducing the air pressure. Verify material to be cut is firmly held to prevent movement. Hold the saw with the work stop contacting the work and saw band teeth clear of the work. -
Page 8: Troubleshooting
Troubleshooting Problem: Motor runs properly but cut is not sufficient. Probable Cause Saw band is not sharp Replace saw band Teeth point to the wrong direction Remove saw band, change teeth direction, and install it again. Saw band is not tightened Tighten saw band Saw band type (Material, TPI) is wrong for cutting the material... -
Page 9: Changing Saw Bands / Instructions
Changing Saw Bands Observe the following safety instructions before changing saw bands. Electric Motor: 1. Disconnect plug from power outlet Pneumatic Motor: 1. Disconnect air hose Open air valve to decompress hose before disconnecting it 2. To remove saw band Turn adjustment handle (A) clockwise to release tension on the saw band. - Page 10 Selection of Saw Band Which saw band to use In general, select a saw band which will allow at least two teeth to be engaged in the material thickness. The thinner or the harder the material, the finer the saw band teeth. Ask your dealer for the right selection of saw bands.
-
Page 11: Operating Instructions And Maintenance
3) Remember safety instructions and cutting hints! ELECTRIC BAND SAW 1) Model 5 6047 0010 is designed for A.C. current only. Refer to the specification plate on your tool to proper voltage and current rating. CAUTION: Do not operate your tool on a current on which the voltage is not within correct limits. - Page 12 Maintenance Only proper maintenance can ensure constant performance, reduction in wear and thus, a decrease in operating costs and an increase in service life. AIR BAND SAW SERVICE LIFE and PERFORMANCE of the Air band saw are determined by a) Degree of air purity Blow the air hose clear before connecting it to the saw.
-
Page 13: Disassembly And Reassembly
SERVICE AND REPAIRS OF ELECTRIC BAND SAW All quality tools will eventually require servicing or replacement of parts due to wear from normal use. These operations, including brush inspection and replacement, should ONLY be performed by an AUTHORIZED CS UNITEC SERVICE STATION. We cannot guarantee repairs made or attempted by anyone other than these agencies. -
Page 14: Disassembly And Reassembly
Add sufficient grease to gearbox. Spare parts and Service Only ORIGINAL SPITZNAS SPARE PARTS have to be used. SPITZNAS takes out any liability for damages which have occured by use of not approved parts or accessories. Intended purpose Safe operation is only ensured, when the band saw will be used solely for that purpose defined in the Operating Instruktions.
