Summary of Contents for ROHS Currenza C2

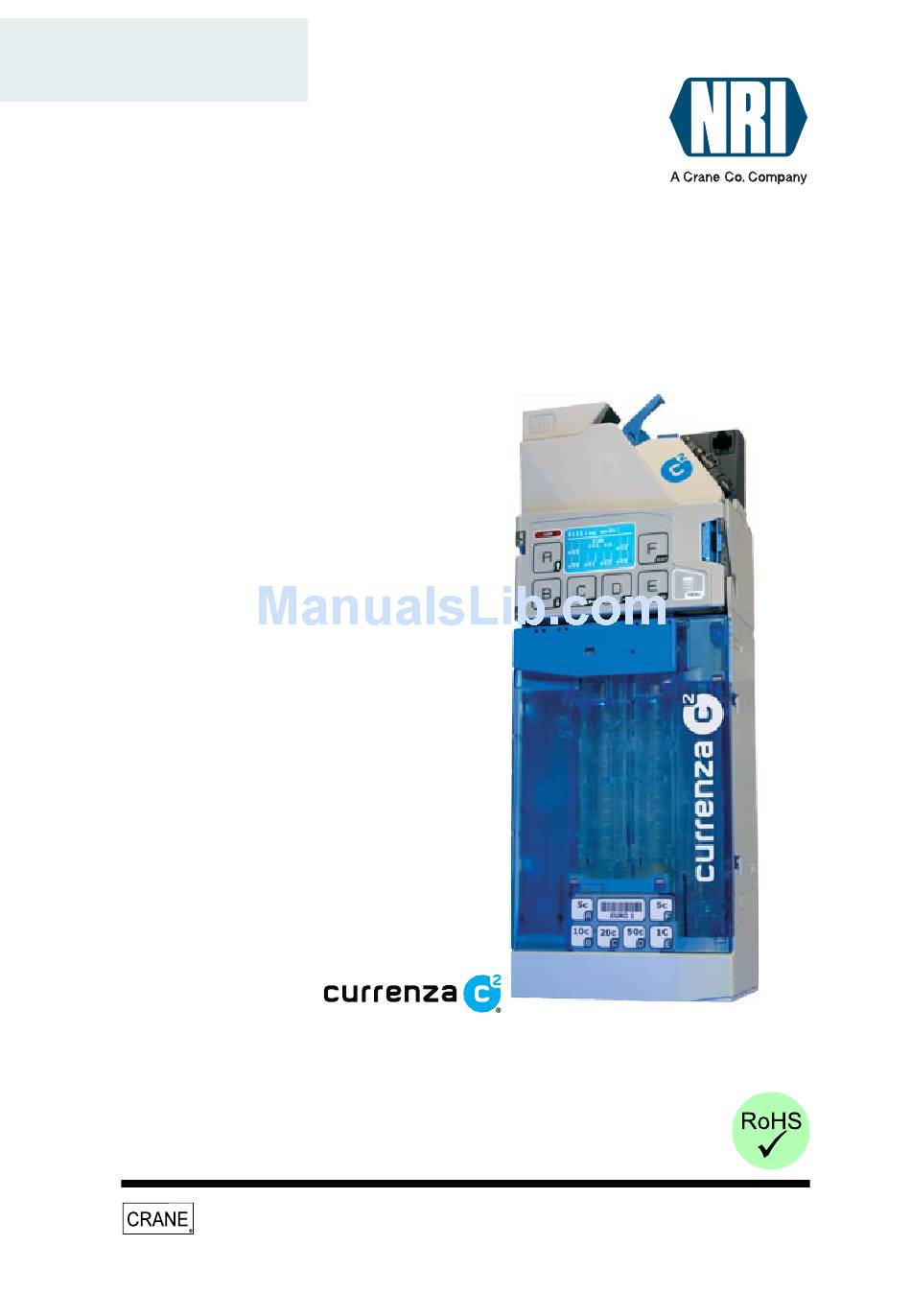

- Page 1 Technical Documentation Installation Guide Coin changer 04.08 Goe/Schn/G-JM Edition 1.1 KA.C National Rejectors, Inc. GmbH • Zum Fruchthof 6 • D-21614 Buxtehude Phone: +49 (0)4161-729-0 • Fax: +49 (0)4161-729-115 • e-mail: info@nri.de • www.nri24.com...
- Page 2 SAFETY INSTRUCTIONS Before operating the device for the first time, please read the safety instructions and the respective manuals for this product at least once to ensure you have understood the proper use of the device, the handling instructions and the requirements in respect of staff qualification for installation and maintenance, and the necessary protective measures.

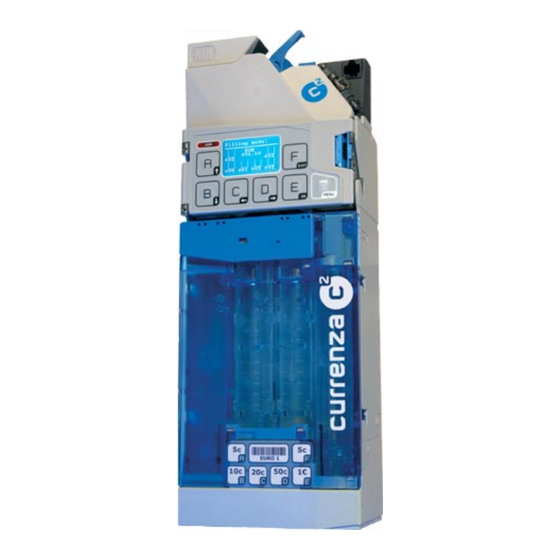

- Page 3 Overview of the device Fig. 1: Design It em D esig nat i o n I t em D esi g nat i o n Ret urn lever Coin insert funnel Int erf ace connect or Display (HI) Coin validat or IrDA int erf ace (HI) Keys (HI) Human Int erface (HI )
- Page 4 Control panels of the different models Blue version The human interface, the operating device for the user, consists of a keyboard with seven keys and a display. Fig. 2: Control panel for the Blue version Green version The control panel of the Green version consists of seven keys and three status/diagnosis LED.
- Page 5 White version The White version has no control elements on the control panel. The user interface is made available via the separate setting module HENRI or via the respective vending machine (provided this function is supported). Fig. 4: Control panel of White version Orange version Apart from the additional IrDA communication interface the Orange version is identical with the White version.
- Page 6 START-UP To avoid damage of any kind during the start-up process, please carefully check all points specified below: – suitable connection cable for the respective interface – mains voltage in conformity with the specification on the label Proceed as follows to install the coin changer in the vending machine: Pull the mains plug of the vending machine.
- Page 7 Lift up the latch and then swivel out the coin validator, see figure below. Ensure that the coin validator is properly connected with the coin changer by the ribbon cable. Fasten the housing of the coin changer in the vending machine with screws.
- Page 8 FIRST STEPS Since the individual functions of the changer are programmed by the manufacturer according to customer-specific requirements, you only have to fill the six change tubes of the tube cassette with the appropriate coin types when starting up the device for the first time.. Filling the change tubes for the first time...
- Page 9 – Activation of automatic tube counter programming during filling to this float level/tube – Deactivation of automatic tube counter correction according to the filling level sensors Fig. 6: MENU key ( Blue version) / -key ( Green version) Press the MENU key ( -key).
- Page 10 Instructions for filling via menu or -key If the cash-box is not empty, it must be emptied. Coins directed to the cash- box are not counted. It is not necessary to empty the cash-box, if the changer has been set so that only coins to be sorted into tubes are accepted when the tubes are being filled.
- Page 11 ERROR MESSAGES / DIAGNOSTICS Blue version All error messages are output via display in the form of self-explaining plaintext messages, see figure below. Error communication with VMC Fig. 7: Example of an error message in the display Green version Error messages can only be output via the vending machine (if the function is supported), the c setting module (option) or the three LED.
- Page 12 C o l o r ( LE D ) S t a t us M e a ni ng p r o b lems t hat can b e so lved r ed p er manent lig ht o nly b y a t echnician p r o b lems t hat can easily b e yello w f lashing...
