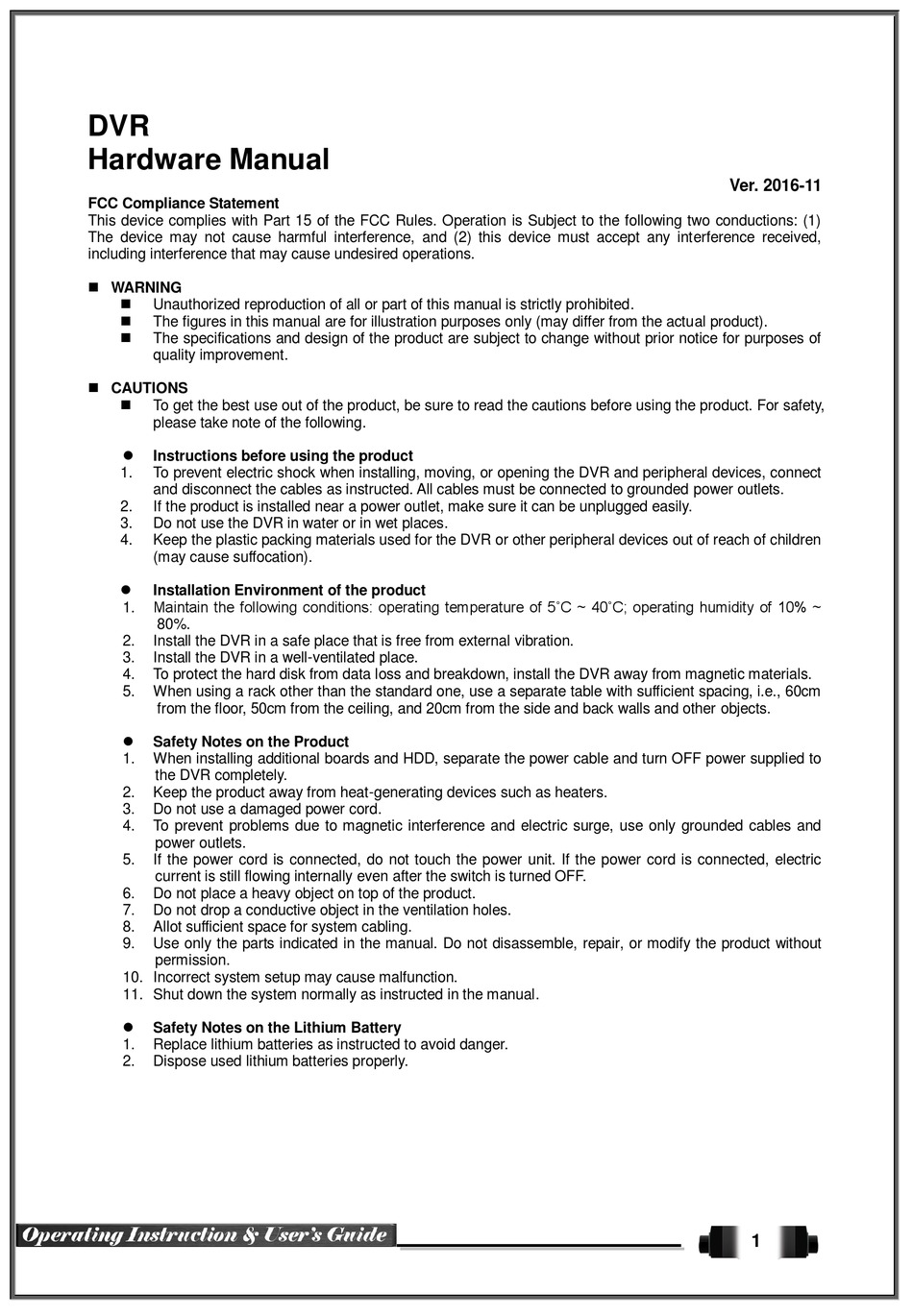

DVR
Hardware Manual
FCC Compliance Statement
This device complies with Part 15 of the FCC Rules. Operation is Subject to the following two conductions: (1)
The device may not cause harmful interference, and (2) this device must accept any interference received,
including interference that may cause undesired operations.
 WARNING
Unauthorized reproduction of all or part of this manual is strictly prohibited.
The figures in this manual are for illustration purposes only (may differ from the actual product).
The specifications and design of the product are subject to change without prior notice for purposes of
quality improvement.
 CAUTIONS
To get the best use out of the product, be sure to read the cautions before using the product. For safety,
please take note of the following.
Instructions before using the product
1.
To prevent electric shock when installing, moving, or opening the DVR and peripheral devices, connect
and disconnect the cables as instructed. All cables must be connected to grounded power outlets.
2.
If the product is installed near a power outlet, make sure it can be unplugged easily.
3.
Do not use the DVR in water or in wet places.
4.
Keep the plastic packing materials used for the DVR or other peripheral devices out of reach of children
(may cause suffocation).
Installation Environment of the product
Maintain the following conditions: operating temperature of 5˚C ~ 40˚C; operating humidity of 10% ~
1.
80%.
2.
Install the DVR in a safe place that is free from external vibration.
3.
Install the DVR in a well-ventilated place.
4.
To protect the hard disk from data loss and breakdown, install the DVR away from magnetic materials.
5.
When using a rack other than the standard one, use a separate table with sufficient spacing, i.e., 60cm
from the floor, 50cm from the ceiling, and 20cm from the side and back walls and other objects.
Safety Notes on the Product
1.
When installing additional boards and HDD, separate the power cable and turn OFF power supplied to
the DVR completely.
2.
Keep the product away from heat-generating devices such as heaters.
3.
Do not use a damaged power cord.
4.
To prevent problems due to magnetic interference and electric surge, use only grounded cables and
power outlets.
5.
If the power cord is connected, do not touch the power unit. If the power cord is connected, electric
current is still flowing internally even after the switch is turned OFF.
6.
Do not place a heavy object on top of the product.
7.
Do not drop a conductive object in the ventilation holes.
8.
Allot sufficient space for system cabling.
9.
Use only the parts indicated in the manual. Do not disassemble, repair, or modify the product without
permission.
10. Incorrect system setup may cause malfunction.
11. Shut down the system normally as instructed in the manual.
Safety Notes on the Lithium Battery
1.
Replace lithium batteries as instructed to avoid danger.
2.
Dispose used lithium batteries properly.
Ver. 2016-11
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Kute EH6-504 and is the answer not in the manual?

Questions and answers

Summary of Contents for Rifatron Kute EH6-504

  • Page 1 Hardware Manual Ver. 2016-11 FCC Compliance Statement This device complies with Part 15 of the FCC Rules. Operation is Subject to the following two conductions: (1) The device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations.
  • Page 2 【Warning and Caution are indicated as follows.】 Possible injury or product damage. Risk of minor injury or product damage. Cautions for the usage of the product. Information for the usage of the product.
  • Page 3: Table Of Contents

    Table of contents Chapter 1. Introduction ............... 4 1-1 Definition of maunal terms......................4 1-2 Major Features ............................4 1-2-1 Kute Major Features ................. 4 1-2-2 Kute Components ..................5 1-2-3 Kute EX-SDI Major Features ..............6 1-2-4 Kute EX-SDI Components ................. 7 1-2-5...
  • Page 4: Chapter 1. Introduction

    Chapter 1. Introduction 1-1Definition of maunal terms Kute DVR with 1 HDD Bay (Max 4TB supported) Lite DVR with 2 HDD Bays (Max 8TB per HDD supported) Blue DVR with 3 HDD Bays (Max 6TB per HDD supported) Deluxe DVR with 6 HDD Bays (Max 8TB per HDD supported) With PoE Built in PoE (4PoE, 8PoE, 16PoE) Non PoE...
  • Page 5: 1-2-2Kute Components

    Pre/Post-Alarm 5sec / 5sec~5min Alarm E-mail, Event Popup, Buzzer, Alarm Action Remote CMS, Front LED HD-MI FHD, XGA FHD, XGA Display SDTV(720x480/576) 6/4/1/SEQ- LIVE, 8/4/1/SEQ- LIVE, 4/1/SEQ- LIVE, Mode 6/4/1 –P.B. 8/4/1 –P.B. 4/1 –P.B. RS485 - Terminal Block External Interface ATM / POS Internal Device /...
  • Page 6: 1-2-3Kute Ex-Sdi Major Features

    1-2-3Kute EX-SDI Major Features EX-SDI (EX-SDI, HD-SDI, 960H) Specifications Embedded Linux Control Mouse, Remote controller, Network System Hexaplex Realtime monitoring, Recording, Playback, Backup, Network, Setup Upgrade USB2.0 Memory(FAT 32) Network System NTSC / PAL - Config switch Video Video Input 8 BNC 4 BNC Video Output...
  • Page 7: 1-2-4Kute Ex-Sdi Components

    VMS, RMS Windows Smartphone (3G/4G) Android, iPhone, iPad Mac Viewer Apple Mac OS Power Supply 12V/2A General Consumption 24 Watts Dimension 260 x 45 x 240 mm 1-2-4Kute EX-SDI Components After unpacking the product, check whether following accessories are included. - Mouse - Quick Setup Guide - CD (VMS, User manual)
  • Page 8: 1-2-5Lite Major Features

    1-2-5Lite Major Features 5brid DVR Line Up (TVI, AVI, CVI, 960H, IPC) Channels 16CH Embedded Linux Control Mouse, Remote controller, Network System Hexaplex Realtime monitoring, Recording, Playback, Backup, Network, Setup Upgrade USB2.0 Memory(FAT 32) Network Video Input 16 BNC, 8 IPC 8 BNC, 4 IPC 4 BNC, 2 IPC Video...
  • Page 9: 1-2-6Lite Components

    DDNS, DHCP, UPNP VMS, RMS Windows Features Smartphone (3G/4G) Android, iPhone, iPad Mac Viewer Apple Mac OS Power Supply 12V/5A 12V/3.3A 12V/3.3A General Consumption 60 Watts 40 Watts 40 Watts Dimension 340 x 60 x 300 mm 1-2-6Lite Components After unpacking the product, check whether following accessories are included. - Mouse - Quick Setup Guide - CD (VMS, User manual)
  • Page 10: 1-2-7Lite Ex-Sdi Major Features

    1-2-7Lite EX-SDI Major Features EX-SDI Line Up (EX-SDI, HD-SDI, 960H) Channels 16CH Embedded Linux Control Mouse, Remote controller, Network System Hexaplex Realtime monitoring, Recording, Playback, Backup, Network, Setup Upgrade USB2.0 Memory(FAT 32) Network Video Input 16 BNC 8 BNC 4 BNC Video 1 HD-MI, 1 VGA, 1 BNC, 1 HD-MI, 1 VGA, 1 BNC,...
  • Page 11: 1-2-8Lite Ex-Sdi Components

    Mac Viewer Apple Mac OS Power Supply 12V/5A 12V/3.3A 12V/3.3A General Consumption 60 Watts 40 Watts 40 Watts Dimension 340 x 60 x 300 mm 1-2-8Lite EX-SDI Components After unpacking the product, check whether following accessories are included. - Mouse - Quick Setup Guide - CD (VMS, User manual) - Power Adaptor/Code (4/8CH: 12V 3.3A, 16CH: 12V 5A)
  • Page 12: 1-2-9Blue Major Features

    1-2-9Blue Major Features 5brid DVR Line Up (TVI, AVI, CVI, 960H, IPC) Channels 16CH Embedded Linux Control Mouse, Remote controller, Network System Hexaplex Realtime monitoring, Recording, Playback, Backup, Network, Setup Upgrade USB2.0 Memory(FAT 32) Network Video Input 16 BNC, 8 IPC 8 BNC, 4 IPC 4 BNC, 2 IPC Video...
  • Page 13: 1-2-10Blue Components

    Mac Viewer Apple Mac OS Power Supply 12V/5A General Consumption 60 Watts Dimension 430 x 86 x 270 mm 1-2-10Blue Components After unpacking the product, check whether following accessories are included. - Mouse - Quick Setup Guide - CD (VMS, User manual) - Power Adaptor (12V 5A) - RACK Mount Handles - Screws for HDD installation...
  • Page 14: 1-2-11Deluxe Major Features

    1-2-11Deluxe Major Features 5brid DVR Line Up (TVI, AVI, CVI, 960H, IPC) Channels 16CH Embedded Linux Control Mouse, Remote controller, Network System Hexaplex Realtime monitoring, Recording, Playback, Backup, Network, Setup Upgrade USB2.0 Memory(FAT 32) Network Video Input 16 BNC, 8 IPC Video Video Output 1 HD-MI, 1 VGA, 2 BNC(TVI,CVBS)
  • Page 15: 1-2-12Deluxe Components

    Power Supply AC 100 ~ 250V, 50/60Hz General Consumption 80 Watts Dimension 440 x 88 x 430 mm 1-2-12Deluxe Components After unpacking the product, check whether following accessories are included. - Mouse - Quick Setup Guide - CD (VMS, User manual) - Power Code - RACK Mount Handles - Screws for HDD installation...
  • Page 16: Chapter 2. Installation And Connection

    Chapter 2. Installation and Connection 2-1 Names and Features of Each Parts 2-1-1 Installation and Connection Kute [Figure 1 Kute 4/8CH 1-1-1Kute Installation and Connection] Name Features Device can be Type connected CCTV camera CAMERA IN Video camera connection Speaker AUDIO OUT Audio outpput (Line-out) AUDIO IN...
  • Page 17: 2-1-2 Kute Ex-Sdi Installation And Connection

     Config Switch Setting Switch 1 Switch 2  Terminal Block [Figure 2 Kute Series Terminal Block] This is Termnial block located at the rear side to connect PTZ (RS-485) camera. Kute series supports one PTZ control. ① PTZ Camera connection TRX+/TRX- calbes from PTZ cameras can be input to the Termnial block No.
  • Page 18 [Figure 4 Kute EX-SDI 8CH Installation and Connection] Name Features Device can be Type connected CCTV Monitor CCTV monitor connection BNC or RCA CCTV Camera CAMERA IN Video camera connection AUDIO IN Audio input Speaker AUDIO OUT Audio output (Line-out) VGA Monitor VGA-OUT VGA monitor or LCD monitor connection...
  • Page 19  Config Switch Setting Switch 1 Switch 2  Terminal Block [Figure 5 Kute Series TB1 Description] [Figure 6 Kute Series TB2 Description] This is Terminal Block loatced at the rear to control PTZ, Sensor and Relay features. ① PTZ Camera connection TRX+/TRX- calbes from PTZ cameras can be input to the TRX+ and TRX-.
  • Page 20: 2-1-3 Lite Installation And Connection

    2-1-3 Installation and Connection Lite [Figure 7 Lite 4/8CH 1-1-1Installation and Connection] [Figure 8 Lite 16CH 1-1-1Installation and Connection] Name Features Device can be Type connected Speaker AUDIO OUT Audio output (Line-out) AUDIO IN Audio input (4CH) CCTV Camera CAMERA IN Video camera connection e-SATA External SATA...
  • Page 21  Config Switch Setting RESOLUTION Switch 1 Switch 2 DOWN DOWN SXGA DOWN DOWN  Terminal Block [Figure 9 Lite Series Terminal Block Description] This is Terminal Block loatced at the rear to control PTZ, Sensor, Relay and POS features ①...
  • Page 22 Sensor connection Sensors can be input to the Terminal Block S1 ~S4. It can be connected regardless of channel numbers. Relay connection Relay can be input to the Terminal Block R1. Relay can be connected to the Alarm action devices like Siren or Light bar. POS connection POS (RS-232c) can be input the Terminal Block No.
  • Page 23: 2-1-4 Lite Ex-Sdi Installation And Connection

    2-1-4 EX-SDI Installation and Connection Lite [Figure 10 Lite EX-SDI 4CH Installation and Connection] [Figure 11 Lite EX-SDI 8CH Installation and Connection] [Figure 12 Lite EX-SDI 16CH Installation and Connection]...
  • Page 24 Name Features Device can be Type conneted Speaker AUDIO OUT Audio output (Line-out) AUDIO IN Audio input (4CH) CCTV Camera CAMERA IN Video camera connection e-SATA External SATA e-SATA e-SATA CCTV Monitor CCTV monitor connection HD-MI Monitor HD-MI HD-MI output HD-MI VGA Monitor VGA-OUT...
  • Page 25 PTZ might be not working perfectly if there is no connection for GND ② Sensor / Relay / POS Sensor and Relay type NC(Normal Close): Normal close and Event open NO(Normal Open): Normal open and Event close Sensor connection Sensors can be input to the Terminal Block S1 ~S4. It can be connected regardless of channel numbers.
  • Page 26: 2-1-5 Blue Installation And Connection

    2-1-5 Installation and Connection Blue To be updated soon.
  • Page 27: 2-1-6 Deluxe Installation And Connection

    2-1-6 Installation and Connection Deluxe Installation and Connection [Figure 14 Deluxe 16CH Name Features Device can be Type conneted Speaker AUDIO OUT Audio output (Line-out) AUDIO IN Audio input (16CH) CCTV Camera CAMERA IN Video camera e-SATA External SATA e-SATA e-SATA TVI Input Device HD SPOT...
  • Page 28  Config Switch Setting RESOLUTION Switch 1 Switch 2 DOWN DOWN SXGA DOWN DOWN  Terminal Block [Figure 15 Deluxe Series TB1 Terminal Block Description] [Figure 16 Deluxe Series TB2 Terminal Block Description] This is Terminal Block loatced at the rear to control PTZ, Sensor, Relay and POS features. ①...
  • Page 29 Sensor connection Sensors can be input to the Terminal Block S1 ~S6. It can be connected regardless of channel numbers. Relay connection Relay can be input to the Terminal Block R1~R4. Relay can be connected to the Alarm action devices like Siren or Light bar. POS connection POS (RS-232c) can be input the Terminal Block No.
  • Page 30: Chapter 3. Operation And Setup

    Chapter 3. Operation and Setup DVR can be controlled easily by Front panel, Remote controller, Mouse. 3-1Kute series front panel Name Function POWER LED System power LED RECORD LED HDD status LED ALARM LED Event or Motion LED IR Sensor Remote controller receiving sensor USB mouse, USB memory stick...
  • Page 31: 3-2Lite Series Front Panel

    3-2Lite series front panel Name Function POWER Power on/off Moves from one category to antoher or changes the MOVE & DISPLAY & Select display mode Exit the current menu or selects the upper menu MENU Various modes PLAY Backward Playback/Rewind (in the Playback Mode) Frame by Frame Playback frame by frame PAUSE...
  • Page 32: 3-3Blue Series Front Panel

    3-3Blue series front panel Name Function POWER LED System power LED POWER Power on/off USB mouse, USB memory stick Moves from one category to antoher or changes the display MOVE & DISPLAY mode MENU Various modes Exit the current menu or selects the upper menu NUMBER Channel Selection or Number Input Forward Play / Fast Forward &...
  • Page 33: 3-4Deluxe Series Front Panel

    3-4Deluxe series front panel Name Function LED DISPLAY HDD and System Power and Status Indication LED POWER Turn the system power ON or OFF Connection port to the USB mouse and USB memory stick JOG SHUTTLE Speed in Playback Mode / Play Direction / Frame Play MENU Various Modes Exit the current menu or move to the upper menu...
  • Page 34: 3-5Remote Controller

    3-5Remote controller 3-5-1 Remote controller A-Type ① Basic control button POWER System power on/off Recording all channels or stop RECORD recording NUMBER Input numbers or channels Selection DVR ID ② System operation and setup button MENU Recording, Schedule, System setup Exit the current menu or Move to the upper menu.
  • Page 35 ③ Search Button (playback mode) Play / Fast Forward Frame by Frame Pause Reverse Frame by Frame Reverse Play / Fast Reverse ④ Other buttons (Monitoring mode) PLAY LOCK INFO RELAY ※ Setting up the remote controller ID Example) in order to control DVR with ID#1, please set as same as below. Press ID button ...
  • Page 36: 3-5-2Remote Controller B-Type

    3-5-2Remote controller B-type ① Basic Control Button POWER Not Supported MODE Not Supported FULL 1ch mode QUAD 4ch mode 9 SPLIT 9ch mode 16ch mode 16 SPLIT (if you press more, it will be extend like 24ch mode…so on) SEQ. Sequnce Mode ON/OFF ②...
  • Page 37: 3-7Jog/Shuttle

    3-7Jog/Shuttle It is useful to control playback. Front image Side image Speed and direction control Frame control ※ Play Direction Control This is available in the playback mode. Turning the jog right/left plays forward/reverse frame by frame. ※ Speed and Direction Control This is available in the playback mode.
  • Page 38: Chapter 4. Dvr Hdd Installation

    Chapter 4. DVR HDD Installation 4-1 Kute series HDD installation ※ Step 1 1) open the top case 1) Normal termination of the system and fully unplugged power code are required before conducting HDD installation. 2) Touch a grounded metal substance or ground yourself before installing HDD in order to reduce static electricity.
  • Page 39: 4-2Lite Series Hdd Installation

    4-2Lite series HDD installation ※ Step 1 1) 1) Open the top case by using screw driver. 1) Normal termination of the system and fully unplugged power code are required before conducting HDD installation. 2) Touch a grounded metal substance or ground yourself before installing HDD in order to reduce static electricity.
  • Page 40: 4-3Blue Series Hdd Installation

    4-3Blue series HDD installation ※ Step 1 2) 1) Open the top case by using screw driver. 1) Normal termination of the system and fully unplugged power code are required before conducting HDD installation. 2) Touch a grounded metal substance or ground yourself before installing HDD in order to reduce static electricity.
  • Page 41: 4-4Deluxe Series Hdd Installation

    4-4Deluxe series HDD installation ※ Step 1 1) Using a screw driver, unscrew and take off the top case of the product. 1) Normal termination of the system and fully unplugged power code are required before conducting HDD installation. 2) After installing HDD, Do not connect to power supply with the top case opened.
  • Page 42 ※ Step 3 4) Align screw holes and screw and fix HDD onto the bottom HDD bay①. 5) Align screw holes and screw and fix HDD onto the top HDD bay② 6) By reversing Step 2, combine both top② and bottom① HDD bay with the body.
  • Page 43: Appendix

    MIKAMI MIKAMI MIKAMI ORIENTAL ORX-1000 ORX-1000 PANASONIC WVCS854 WVCS854 PELCO – D PELCO PELCO PELCO - P PHILIPS PHILIPS PHILIPS PROLINE PROLINE PROLINE_UK RIFATRON RIFATRON-1 RIFATRON SPD-1600 SAMSUNG TECHWIN SAMSUNG SCC641 SUNJIN SUNJIN SUNJIN VICON VICON VICON YOKO YOKO YOKO...
