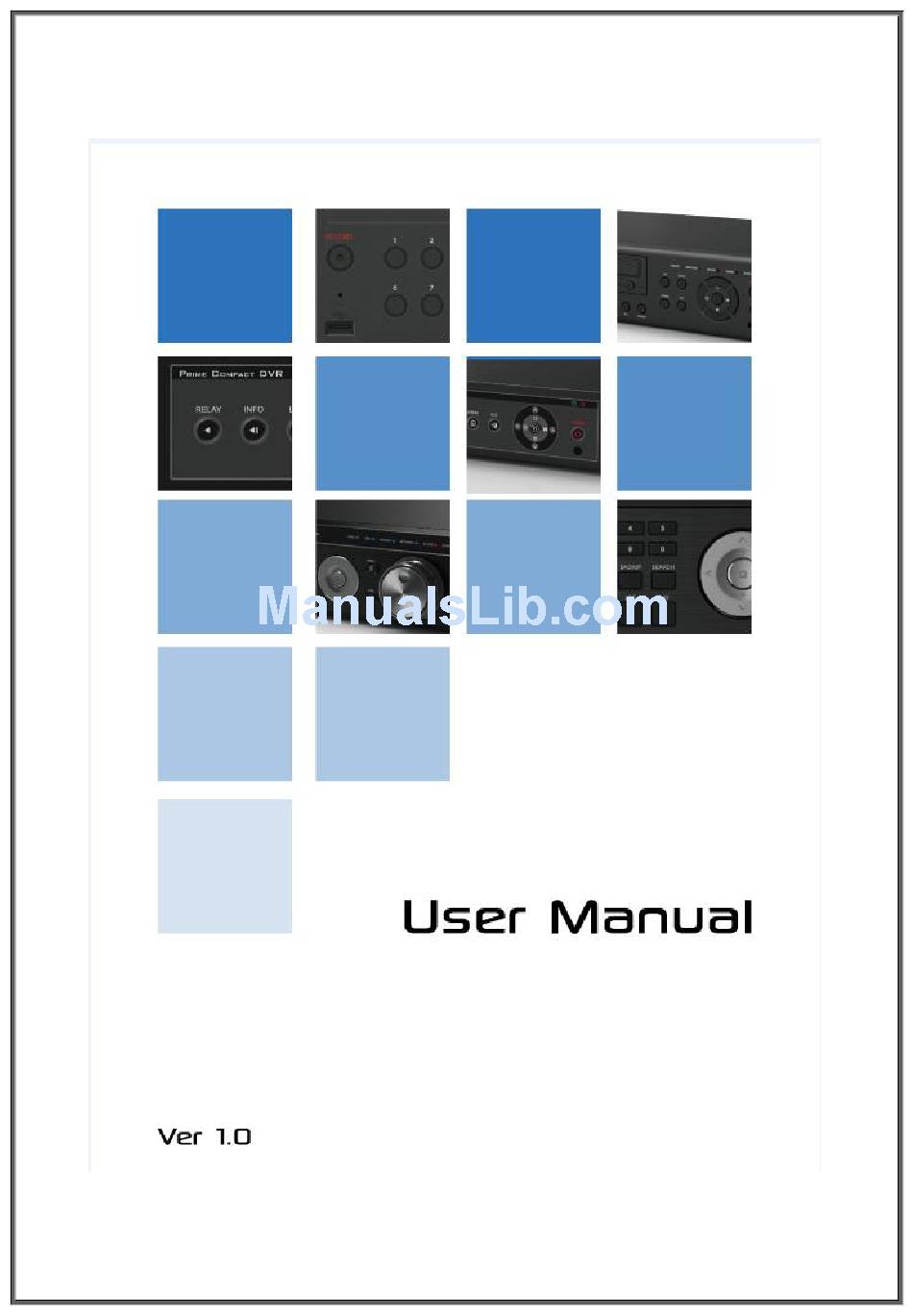

Rifatron EH1-04 User Manual

Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EH1-04 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Rifatron EH1-04

  • Page 2 FCC Compliance Statement Model Name: EH1-04 This device complies with Part 15 of the FCC Rules. Operation is Subject to the following two conductions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operations.
  • Page 3  Safety Notes on the Lithium Battery 1 Replace lithium batteries as instructed to avoid danger. 2 Dispose used lithium batteries properly. 【Warning and Caution are indicated as follows.】 Possible injury or product damage. Risk of minor injury or product damage. Cautions for the usage of the product.
  • Page 4: Table Of Contents

    1-2 Components ..................8 1-3 Product Introduction ................8 Chapter 2. Installation and connection ........10 2-1 EH1-04 Names and Features of Each Part ..........10 2-1-1 EH1-04 Rear Panel ................. 10 2-2 Installation and Connection ..............11 2-2-1 Basic Connection ................... 11 2-3...
  • Page 5 5-7-4 Event ....................28 5-7-5 Multi-Channel Search ................28 5-7-6 List All ....................29 5-8 POS Search ..................29 5-8-1 POS Search Mode .................. 29 5-8-2 Year/Month/Day/Text/Time Selection ............29 5-8-3 Search / Playback ................... 29 5-9 Playback ................... 30 5-9-1...
  • Page 6 6-6 Network ..................... 47 6-6-1 Ethernet ....................48 6-6-2 DDNS ....................48 6-6-3 Port..................... 48 6-6-4 E-mail ....................49 6-6-5 Bandwidth .................... 50 6-7 System ....................50 6-7-1 DVR Name ................... 51 6-7-2 User Registration..................51 6-7-3 Upgrade ....................51 6-7-4...
  • Page 7 [Figure 5-35. Playback Menu] ..................31 [Figure 5-36. Smart Search Area Designation] ..............32 [Figure 5-37. Smart Search Motion Detection Window]............32 [Figure 5-39. Display Mode] .................... 33 [Figure 5-40. Log View] ....................33 [Figure 5-41 . Move to the log list of the certain time zone in Log View] ........34 [Figure 5-42.
  • Page 8: Chapter 1. Introduction

    Chapter 1. Introduction 1-1 EH1-04 Major Features EH1-04 Model Name Embedded Linux - Built in flash memory Access Front button, Mouse, Remote Controller, Network, Key controller System Live monitoring, Recording, Playback, Hexaplex Backup, Network, Setup Upgrade USB2.0 Memory stick, Network...
  • Page 9: 1-2 Components

    Model Name EH1-04 Pre/Post-Alarm 5sec / 5sec~5min Alarm E-mail, Channel Popup, Buzzer, Relay, Alarm Action PTZ Preset, Spot, Remote RMS, Front LED ★ Full HD, XGA HDMI Full HD, XGA Display SDTV(720x480/576) Mode 4/1/SEQ - LIVE, 4/1 - P.B ★ RS485 - Terminal Block...
  • Page 10 960H real-time recording 1Ch audio recording Various video output port (HDMI, VGA, BNC) Various video output mode (Full HD, XGA, SDTV) 1Ch POS/ATM interface Pre-alarm recording Auto e-mailing notification max. 5 users Privacy zone mask Covert channel Digital single/multi-zoom Smart search Text detection/search Multi-time/day, Index (event) search/playback Still image capture Full HD resolution...
  • Page 11: Chapter 2. Installation And Connection

    Chapter 2. Installation and connection 2-1 EH1-04 Names and Features of Each Part 2-1-1 EH1-04 Rear Panel Name Feature CAMERA IN Video Camera Connection AUDIO OUT Audio Output Connection(Line Only Output) AUDIO IN Audio Input Connection CVBS Output VGA-OUT VGA Monitor or LCD Monitor Connection...
  • Page 12: 2-2Installation And Connection

    VGA Monitor / LCD Monitor Rear Panel VGA-OUT HDMI Monitor Rear Panel HDMI  CONFIG SWITCH Setup Switch 1 Switch 2 2-3 Connection of Other Devices 960H Series has different features as described below. Be cautious. Item EH1-04 Audio Sensor Relay...
  • Page 13 SH1-04 supports 4ea audio inputs, SH1-08 supports 8ea audio inputs & SH1-16 supports 16ea audio inputs. 2) Terminal Block [Figure 2-2. EH1-04 Terminal Block and Description] The terminal blocks in the rear of the product are for the connection of PTZ / Sensor / Relay / POS Connection.
  • Page 14: Chapter 3. Operation And Setup Tools

    Chapter 3. Operation and Setup Tools 960H Series can be controlled easily by using the front panel buttons, front panel, remote controller, jogshuttle and mouse. 3-1 EH1-04 Front Panel Button Name Function POWER LED Power LED On/Off RECORD LED Green LED turned on upon HDD operation...
  • Page 15: 3-2 Eh1-04 Remote Controller

    3-2 EH1-04 Remote Controller Turn the system power POWER ON or OFF. MODE FULL 1CH Mode QUAD 4CH Mode 9 SPLIT 9CH Mode 16 SPLIT 16CH Mode SEQ. Sequence Mode ON/OFF B) System Operation and Setup Button MENU Data, Schedule, System Set up Exit the current menu or Move to the upper menu.
  • Page 16: Chapter 4. Dvr Operation Setup

    Chapter 4. DVR Operation Setup 4-1Lite Series Storage Installation 1) 1) Open the top case by using screw driver. 1) Normal termination of the system and fully unplugged power code are required before conducting HDD installation. 2) Touch a grounded metal substance or ground yourself before installing HDD in order to reduce static electricity.
  • Page 17: 4-3 Storage Setup

    4-3 Storage Setup ① Select {Menu}  {Setup}  {Storage} and configure HDD. For more detail about HDD and external devices, check [6-5 Storage]. 4-4 Recording Setup ① Select {Menu}  {Setup}  {Recording}  {Recording} ② Setup [Recording Resolution]/[Recording Quality]/[Continuous Speed]/ [Event Speed]/[Audio]/[Text]. The initial recording setup is [Recording Resolution: 960H] [Recording Quality: High] [Continuous Speed: Off].
  • Page 18: 4-6 Camera / Tv Setup

    4-6 Camera / TV Setup ① Select {Menu}  {Setup}  {Camera}  {Adjust}. ② Set up for [Brightness/Contrast/Color/Hue/Camera Adjustment/TV OUT Adjustment] are available. 4-7 Display Setting and Other Setup ① Select and set up {Menu}  {Miscellaneous}  {Display Setting}. 4-8...
  • Page 19: Chapter 5. System Operation

    Chapter 5. System Operation 5-1 Real Time Monitoring Mode and Icon After booting is finished, Audio/Recording Status/Channel Title/Connection Status/Time/HDD Status are displayed as shown below. [Figure 5-3. Recording Status Window] ※ Recording Event / Recording Mode Icon ※ Motion Detection Recording Sensor Recording Recording Event...
  • Page 20: 5-2 System Login

    ※ Control Bar ※ ① Full Screen ② 4 Channel Screen ③ ZOOM function ④ Auto Sequence Mode ⑤ Date / Time ⑥ HDD Status ⑦ Playback 5-2 System Login 5-2-1 User Account and Authorization System users are divided into local administrators and general users and the local administrator can use all functions.
  • Page 21: 5-2-2 Login

    5-2-2 Login For security purpose, user must log in first to use {Monitoring Menu}. [Figure 5-4. Login Window] ① On the real-time monitoring window, select {Menu}  {Login}. ② Enter the password or select cancel. 5-2-3 Logout After logging out, the user cannot use {Menu}. ①...
  • Page 22: 5-3-2Menu In Monitoring Mode

    ※ The user can view an image on full screen by double-clicking a desired channel in the 4/9/16 Sub- Screen mode. Double-click any part of the screen to return to the previous mode. ※ Auto Sequence Auto Sequence is to rotate images at an interval of the certain time in 1/4/9 Basic Division. Auto Sequence is not available in the Basic 16 Division mode.
  • Page 23: 5-3-3 Zoom

    5-3-3 Zoom Zoom is to zoom in or out the 1 channel division image in the real time monitoring mode. ① Move to {Menu}  {Zoom} or press the zoom icon from the control bar in the real time monitoring mode. ②...
  • Page 24: 5-3-4 Screen Control By Using Ptz

    ※ Duration can be selected at 5/10/15/20/5-60(User setting) seconds. ※ Tour consists of Tour 1/ Tour 2 and each tour can be set with 8 Preset. ※ EH1-04 Model supports 26 protocols for PTZ control. For supported protocols, refer to APPENDIX.
  • Page 25: [Figure 5-20. Ptz Control]

    ② To control PTZ camera, select {PTZ Control} in Menu or press {PTZ} in the remote controller. [Figure 5-8. PTZ Control] [Figure 5-9. PTZ Control Mini/Full] In the PTZ mode, there are two function; Full and Mini. Tour has [Tour1] and [Tour2]. Home Position Time is 1/5/10/User setting(1-60)minutes.
  • Page 26: 5-4 System Information And Screen Setup Change

    5-4 System Information and Screen Setup Change 5-4-1 System Information [Figure 5-10. Product Information Window] 5-4-2 Screen Brightness/Contrast/Color/Saturation/Sharpen/Camera Adjustment Select {Adjust}, then it becomes the 1 channel mode and a window pops up as shown below. [Figure 5-11. Screen Setup Window] Moving the camera, down, right, or left excessively may cause black or gray areas to appear on the screen.
  • Page 27: 5-4-3 Display Setting

    5-4-3 Display Setting Camera Title On/Off, Control Bar On/Off, Button Sound On/Off, Border Line Draw/Width/Color, Sequence Duration 1-10seconds. After selecting Display Setting, it becomes the 1 channel mode and a menu pops up as shown below. [Figure 5-12. Display Setting Window] 5-4-4...
  • Page 28: 5-5 Control

    ① Move to the Audio tab and select the channel to be activated or Mute. EH1-04 support 1 channel audio. ② Move to the TEXT tab and select. EH1-04 model support 1 channel text input. 5-6 Search 5-6-1 Search Mode Move to {Menu} ...
  • Page 29: 5-7 Calendar Search

    5-7 Calendar Search 5-7-1 Search Mode {Menu}  {Search}  {Calendar Search} and then a searching On the real-time monitoring screen, select window pops up as shown below. [Figure 5-17. Search Window] 5-7-2 Year/Month/Day Selection Select the desired [Year/Month/Day]. The color of the icon at the top-left of square in the calendar indicates the recording status.
  • Page 30: 5-7-6List All

    ③ Move the time line to a specific time point by using the arrow keys or the numeric buttons and pre ss the Search button. ④ Selecting the time leads to the recorded video display of each channel in the minute bar graph. ⑤...
  • Page 31: 5-9 Playback

    Select {Menu}  {Search}  {The Last Played Time}.  Playback in the Log View After selecting {Menu}  {Miscellaneous}  {Log Viewer}, select or double-click the time line listed to play. ※ EH1-04 provide a variety of the playback.  Smart Search  POS Search ...
  • Page 32: 5-9-2 Smart Search

    Button Name Features Channel Mode Change Switch the channel mode. Zoom Mode Switch to the Zoom mode. Press one time - Playback forward (ⅹ1) Press two times - Fast forward (ⅹ2) Press three times - Fast forward (ⅹ4) Press four times - Fast forward (ⅹ8) Forward Play / Fast Forward Press five times - Fast forward (ⅹ16) Press six times - Fast forward (ⅹ32)
  • Page 33: 5-9-3 Pos Search

    ① Move to the Smart Search and select the desired channel. ② After shifting to the 1 channel mode, select areas to be smart searched. [Figure 5-23. Smart Search Area Designation] ③ The 14 * 15 pixel mosaic mode appears. In the beginning, all pixels are selected. Designate an a rea by left-click and drag the pixel mosaic pointer(deep yellow).
  • Page 34: 5-9-8 Screen Mode

    Snapshot Capture and save the current displaying screen. 5-9-8 Screen Mode Screen division is available in the Playback mode as same in the Monitoring Mode. [1 / 4 / 9 / 16 Mode] can be selected. ① Select the screen division mode by using the mouse or arrow keys in the front panel and remo te controller.
  • Page 35: 5-10-2 System Log Viewer

    5-10-2 System Log Viewer ① In the real-time monitoring mode, {Menu}  {Miscellaneous}  {Log Viewer}, then, Log List Windo w pops up. ② On the activated calendar window, select the desired date (year/month/day) by using the arrow key s and the Select button. ③...
  • Page 36: 5-11-3 Recording Status View

    5-11-3 Recording Status View (1) Recording Status by Color ※ Recording Event / Recording Mode Icon ※ Motion Detection Recording Recording Event Text Recording Video Recording Recording Audio Recording Mode Text Recording 5-12 Backup In order to backup the data, make sure to check that either internal or external storage devices (CD, DVD or HDD) supports USB 2.0 is connected.
  • Page 37: 5-12-5 Common Backup Procedure

    5-12-5 Common Backup Procedure [Figure 5-28. Backup Window] ① [Figure 5-34] shows the initial backup window menus. ② A list of the devices that can be selected is outputted with simple information of the currently selec ted devices ③ Selecting a device by pressing the Select button causes the free space and total capacity for the s elected device to be displayed.
  • Page 38: 5-13 Setup Backup

    5-13 Setup Backup The Setup Backup is to back all setup values of the current menu up. This function enables the user to copy the setups and apply them into other devices. [Figure 5-29. Backup and Sub-menu Setup Backup] ① For the Setup Backup, a device for backup must be connected. ②...
  • Page 39: 5-15 Capture

    .Log files are created at a folder shown below. 565645348945_20100303.log .log file is the text file. 5-15 Capture The Capture function lets the user create a JPG file in the real-time monitoring, playback, search, or log mode and back up the image data. ①...
  • Page 40: Chapter 6. Setup

    Chapter 6. Setup 6-1 Time ※ Function Description 1. Time Synchronization 1) Synchronization with the NTP server The time is synchronized once every hour with the NTP Server. A. Automatic Setup The nearest server from the user’s zone will be selected for connection. If the connection fails, the next nearest server will be chosen.
  • Page 41: 6-1-1 Time Sync

    6-1-1 Time Sync ① Select Time Sever / Sever Type / Sever URL. The time server is not used. NTP is used to set the time for the time DVR. {NTP} setup is available when {Time Sync} is set as NTP. The user can enter the IP only when the server type is DVR.
  • Page 42: 6-1-4 Auto Reboot

    6-1-4 Auto Reboot Auto Reboot is for system stability, rebooting itself regularly. [Figure 6-33. Setup / Auto Reboot Menu] 6-2 Camera [Figure 6-34. Setup Camera Menu] 6-2-1 Camera ① Connection Used to set whether to connect or disconnect each camera channel. ※...
  • Page 43: 6-2-2 Ptz

    ④ Adjust Adjust Brightness/Contrast/Color/Saturation/Sharpen/Camera. 6-2-2 PTZ Setup the protocol and baud rate of the PTZ Camera. 6-2-3 POS Setup the protocol and baud rate of the POS device. 6-2-4 Event Source Select {Menu}  {Setup}  {Camera}  {Event Source}. (1) Motion Area The user can setup the motion detection area.
  • Page 44: 6-3 Recording

    6-3 Recording The Main setup is to configure the environment of record and system and major functions. In the real-time monitoring, move to {Menu}  {Setup}  {Recording} [Figure 6-36. Setup / Recording] 6-3-1 Schedule Selection (Schedule1 ~ Schedule4) ① Each channel can be scheduled in 4 different schedules. This schedule can be set as the recording schedule and each time can be 4 different schedules.
  • Page 45: 6-3-4 Alarm

    (2)Recording Quality Used to set the quality of the recorded video. Select among five levels {Lowest} / {Low} / {Middle} / {High} / {Highest}. ※ The higher picture quality, the bigger file size. (3) Frame Rate If the user configures Normal Speed and Event Speed at the same time, the continuous recording follows Normal Speed frame rate and the event recording follows Event Speed frame rate.
  • Page 46: 6-4-1 Schedule Setup

    6-4-1 Schedule Setup Select one schedule among Schedule1, Schedule2, Schedule3 and Schedule4. (1) Selection Tip ① Select the day and time to be set by using the arrow keys. ② Select after moving the cursor onto Time(0-23) or Day(Sun. – Holiday) then the user can configure the whole line at once.
  • Page 47: 6-5-3 Local Storage Management

    6-5-3 Local Storage Management (1) Local Storage Management Function Local Storage refers to the internal hard disk and storages connected to the system via USB. Local Storage is classified and managed as {Recording}, {Backup}, {New}, {iSCSI} and functions are described below. ①...
  • Page 48: 6-6Network

    (3) Instruction when adding the local storage device ① Open the system body and install a new disk (connect the data cable and the power cable) ② Connect power to the system and boot the system. ③ Select {Menu}  {Setup}  {Storage} by using the arrow keys and the Select button. ④...
  • Page 49: 6-6-1 Ethernet

    6-6-1 Ethernet (1) DHCP This is to use a dynamic IP in the Local Area Network environment. (2) Static This is to use a fixed IP in the Local Area Network environment. ① Select {Ethernet} in {Menu}  {Setup}  {Network}. ②...
  • Page 50: 6-6-4 E-Mail

    6-6-4 E-mail ① Move to {Menu}  {Setup}  {Network}  {E-mail}. To use the e-mail function, DNS or sub DNS in {Menu}  {Setup}  {Network}  {Ethernet} need to be configured. [Figure 6-41. Setup Network Ethernet Window] This is to set automatic E-mail transmission service when an event occurs. To use the e-mail function, {E-mail} in {Menu} ...
  • Page 51: 6-6-5 Bandwidth

    6-6-5 Bandwidth Move to {Menu}  {Setup}  {Network}  {Bandwidth}. This sets up the limit of the bandwidth to be used when bringing the live image, adjust resolution/quality and transmitting the data by using the network. Image Resolution CIF / D1 / 960H Adjust quality of the image, as the value increases, the Image Quality compression rate gets higher and image quality gets low.
  • Page 52: 6-7-1 Dvr Name

    6-7-1 DVR Name . The initial value is the Mac address. (It supports up to 20 letters for the system name.) 6-7-2User Registration ※ Add, edit, or delete the users who will operate the system and give authorities to users as shown below. System Access Authorization Network Live View the real-time images upon network access.
  • Page 53: 6-7-4 Factory Setupt

    ② Read the information and select {Yes} to start the upgrade gradually. Select {No} to return to the {System} mode. ③ After the upgrade is completed, the system reboots. ④ Move to {Menu} {Miscellaneous} {DVR Information}  {3. Software Version} to check the version.
  • Page 54: 6-7-8 Language

    The user can enter the time directly. User Setting ※ The time can be set to 1 ~ 60 minutes. ③ Selecting the User Setting causes the input window to appear. ④ Enter the time by using the numeric buttons or the arrow keys and the Select button. 6-7-8...
  • Page 55: Appendix

    MIKAMI ORIENTAL ORX-1000 ORX-1000 PANASONIC WVCS854 WVCS854 PELCO – D PELCO PELCO PELCO - P PHILIPS PHILIPS PHILIPS PROLINE PROLINE PROLINE_UK RIFATRON RIFATRON-1 RIFATRON SPD-1600 SAMSUNG TECHWIN SAMSUNG SCC641 SUNJIN SUNJIN SUNJIN VICON VICON VICON VISION_HI_TECH VISION_HI_TECH VISION_HI_TECH YOKO YOKO...
