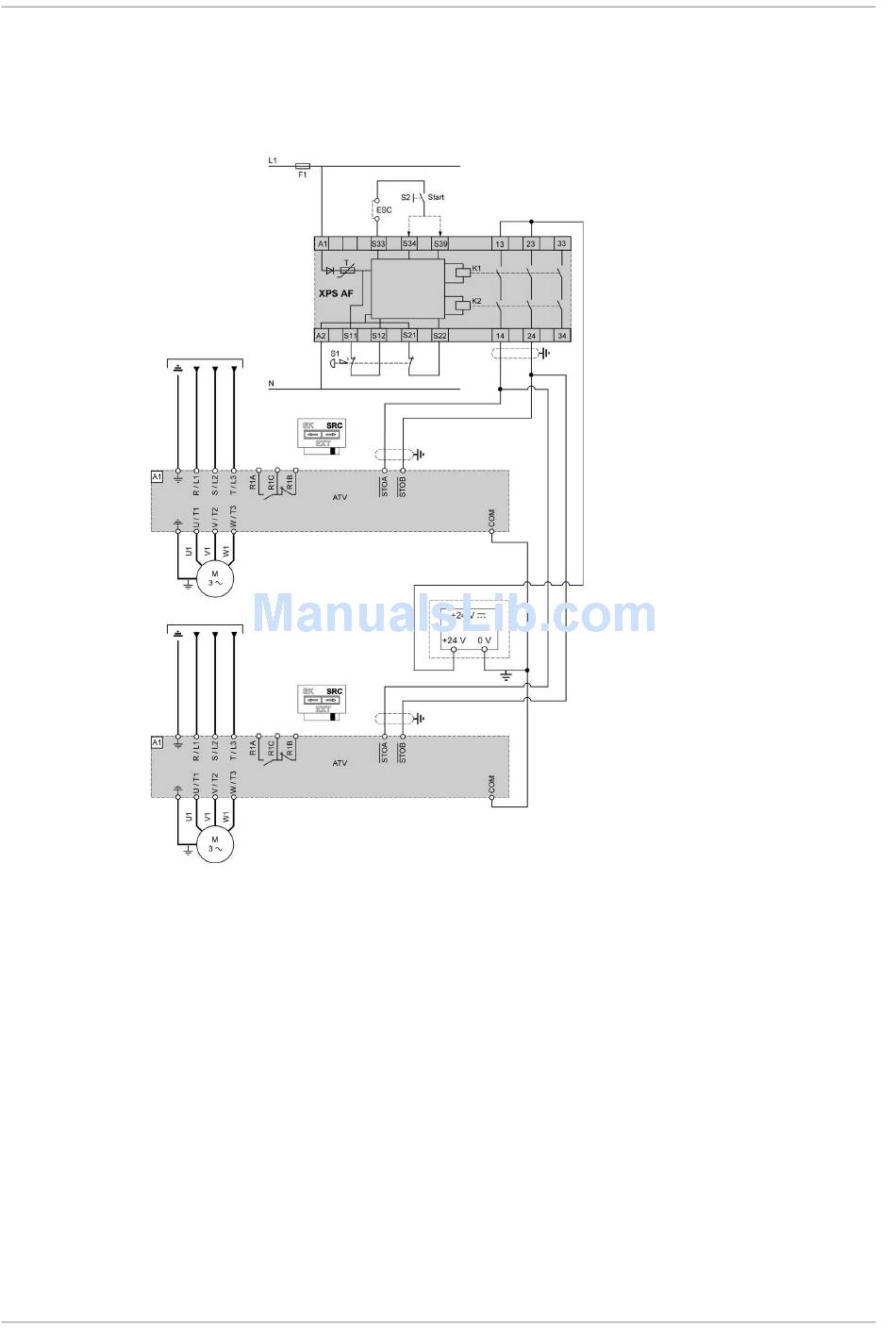

Multidrive with Safety Module Type Preventa XPS-AF Connection Diagram
This connection diagram applies for a multidrive configuration with the safety module type Preventa XPS-
AF according to ISO 13849-1 category 3 PLe, IEC 62061 and 60204-1 stop category 0.
NOTE: The +24VDC power supply must meet the requirements of IEC 61131-2 (PELV standard power
supply unit).
