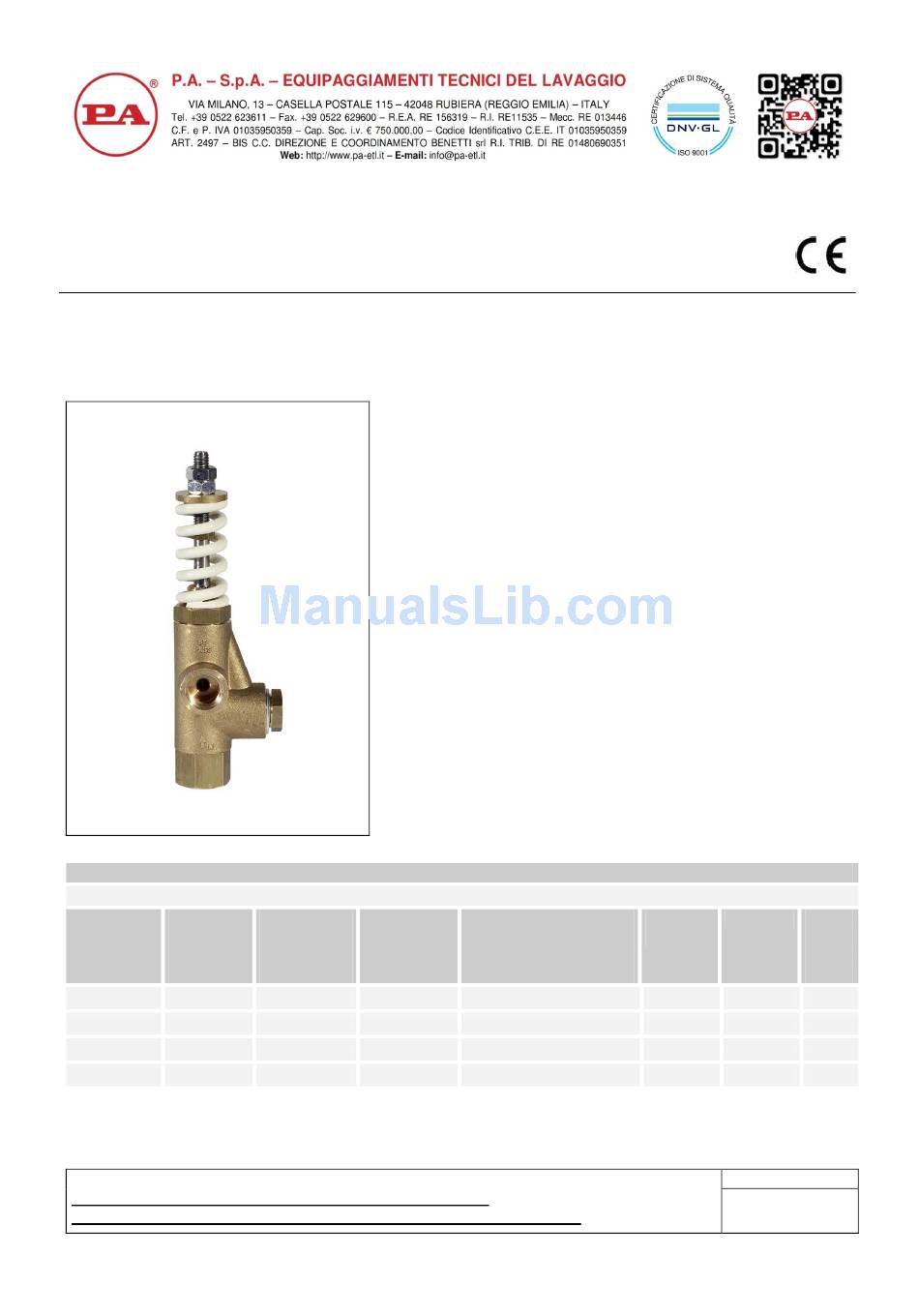

P.A. VRP200 Technical Manual

VRP200
–
Safety and pressure regulating valve
Compensated pressure regulating valve with double connection for inlet port.
Regulates the bypass of the fluid with a minimum variation of the pressure.
Suitable to be utilized as a safety valve.
DN 10
Max.flow rate 30 l/min (1)
Part number Rated
pressure
bar - MPa
60.0220.00 100 - 10
60.0220.60 220 - 22
60.0220.05
100 - 10
60.0220.65 220 - 22
(1) Max flow rate: 15 l/min if fed by the lower fitting.
(2) The valve has been designed for a continuous use at a water temperature of 60°C. It can resist for short periods at a maximum
temperature of 90°C.
(3 Pressure increase = is the increase of pressure needed into the valve for discharging the max. flow when utilized at rated pressure
Instruction manual, maintenance, installation, spare parts.
For a correct utilization, follow the directions of this manual
Re-print them on the use and maintenance booklet of the machine.

60.0220.00

60.0220.60

60.0220.05

60.0220.65
- Sturdy construction in Sst and brass.
- Piston return operated by strong springs for steady working
- Multiple connections for quick installation.
- Pressure set up differentiated by choosing between two
springs.
- Reliable intervention discharging all the flow.
- Prompt and effective damping action against pressure spikes.
AS A PRESSURE REGULATING VALVE
- High balancing to guarantee slight variations of the rated
pressure when the flow varies in bypass.
- Usable with a multiple number of lances.
TECHNICAL SPECIFICATIONS
Permissible Minimum
pressure adjustable
pressure
bar - MPa bar - MPa
120 - 12 10 - 1
250 - 25 22 – 2.2
120 - 12 10 - 1
250 - 25 22 – 2.2
VRP200 G3/8 F
VRP200 G3/8 F
VRP200 3/8NPT F
VRP200 3/8NPT F
and setting without faltering.
AS A SAFETY VALVE
- Max. temperature 90°C (2)
(3) Pressure increase
as a VS – as a VRP
bar - MPa - bar - MPa
28 – 2.8 - 17 – 1.7
33 – 3.3 - 18 – 1.8
28 – 2.8 - 17 – 1.7
33 - 3.3 - 18 – 1.8
Last Update: 30/01/17
E 205
Technical manual:
Inlet Bypass Weight
g
G3/8 F G3/8 F 570
G3/8 F G3/8 F 605
3/8NPT F 3/8NPT F 570
3/8NPT F 3/8NPT F 605
n. 12.9205.00
