Summary of Contents for S4S VC 2a

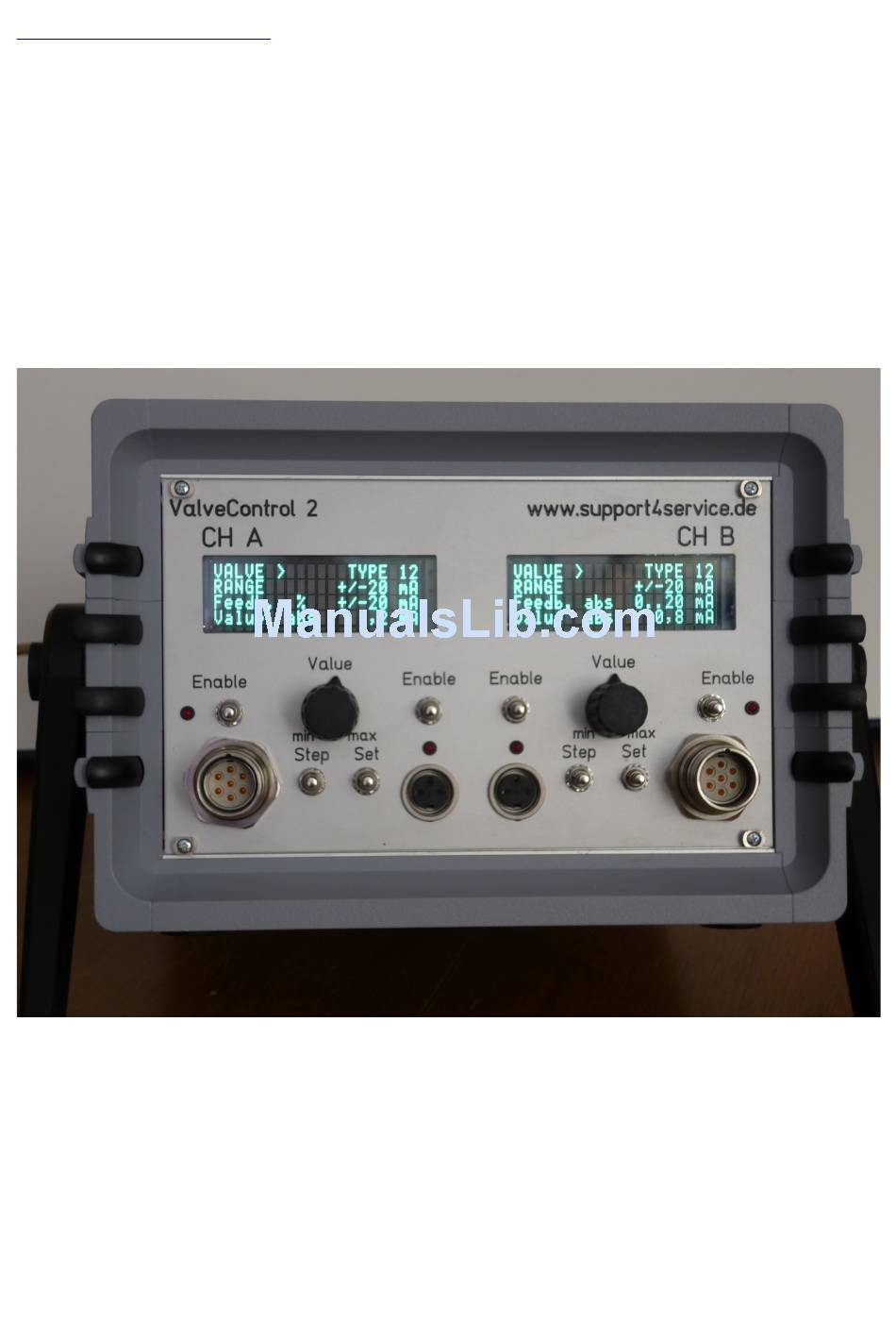

- Page 1 Valve Control 2a (VC2a), Rev. 1.3 Page 1 / 13 Valve Control VC 2a Operating manual Release June 2017...
-
Page 2: Table Of Contents
www.support4service.de Valve Control 2a (VC2a), Rev. 1.3 Page 2 / 13 Table of contents 1. Hazard note 2. Performance characteristics 3. Operating elements and Display 4. Brief instruction 5. Pin assignment of the 6-pin connector 6. Pin assignment of the 3-pin connector 7. -
Page 3: Hazard Note
www.support4service.de Valve Control 2a (VC2a), Rev. 1.3 Page 3 / 13 1. Hazard note Faulty setting may lead to irreparable damage of the valves connected. Please note, that releasing the push button „Enable“ in fact shuts off the output, but does not reset the preset set point. Thereby, with activating the push button „Enable“... -
Page 4: Performance Characteristics
Supply voltage The valve tester Valve Control VC 2a is supplied with 115 / 230 V b. Output voltages For energizing of valves through the 6-pole output socket, the VC 2a provides the voltages - +24V for maximal 4 A and - +/- 15 V for maximal 2 A. -
Page 5: Operating Elements And Display
The set point for the analog output is adjusted by the potentiometer „Value“. The last by „Enable“ activated set point is stored and ready for use at the next power on of the VC 2a . The potentiometer takes effect over the complete mechanical rotation angle according to... - Page 6 www.support4service.de Valve Control 2a (VC2a), Rev. 1.3 Page 6 / 13 The push button „Step“ selects the parameter to change. The selected parameter is marked with „>“. The value of the parameter is changed by the push button „Set“. Parameter Value - Valve Circuit logic 01 –...
-
Page 7: Brief Instruction
www.support4service.de Valve Control 2a (VC2a), Rev. 1.3 Page 7 / 13 4. Brief instruction 1. Make sure, that the unit ist powered off. (Main switch at the back side) 2. Connect the to power (Supply voltage 230 or 115 V main plug the unit on at the back side. - Page 8 www.support4service.de Valve Control 2a (VC2a), Rev. 1.3 Page 8 / 13 5. Pin assignment of the 6-pole output socket The 6-pole output socket has the following configuration: 1. +24 V power supply (maximal 4 A) 2. depending on the circuit logic 3.
-
Page 9: Supported Valves
www.support4service.de Valve Control 2a (VC2a), Rev. 1.3 Page 9 / 13 7. Supported valves Manufacturer: Rexroth Valve VC2a Type Volt Range Feedback Valvetype Adaptor note 3DRE(M) xxx / xxx G24 K4 24 V 0-1,6 A 3DREE 16P/ xxx G24 K31 V 24 V 0-10 V 3DRE(M)E xxx / xxx G24 K31 A1... - Page 10 www.support4service.de Valve Control 2a (VC2a), Rev. 1.3 Page 10 / 13 Manufacturer: MOOG Valve VC2a Type Volt Range Feedback Valvetype Adaptor note D633- D634xxxxx VSM2 24 V ± 10 V 4-20 mA D633- D634xxxxx VSX2 24 V ± 10 mA 4-20 mA D630 Series 24 V...
- Page 11 www.support4service.de Valve Control 2a (VC2a), Rev. 1.3 Page 11 / 13 Manufacturer: PARKER Valve VC2a Type Volt Range Feedback Valvetype Adaptor Note D*1FE**C**E0* 24 V ± 20 mA ± 10 V D*1FE**C**B7* 24 V ± 10 V ± 10 V D*1FE**C**E7* 24 V ±...
- Page 12 www.support4service.de Valve Control 2a (VC2a), Rev. 1.3 Page 12 / 13 The latest version of supported valves is available as download from our website at http://www.support4service.de/downloads.html...
- Page 13 www.support4service.de Valve Control 2a (VC2a), Rev. 1.3 Page 13 / 13 Ingenieurbüro Klein & Schruff GbR Ewaldstraße 20a D – 58089 Hagen Telefon: +49 2331 – 306 20 64 FAX: +49 2331 – 306 23 27 Cell phone: +49 172 – 873 40 26 www.iks-gbr.de www.support4service.de...
