Instruction Manual
Features
- 8000 Memories
- Built-in PRINTER
- Up to10 Lane Buttons
- PC Upload Function
- 12/ 24Hr User-selectable Clock
- 4-Digit Bib Number
- 4-Digit Place Counter
- 2-Digit Lap Counter
- Auto Print Out
- Print Final Result Function
- Pre-Entry of Bib Numbers in Track Races
- Single and Multi Start Times for Road Races
- Maximum 99 Waves
- Race Recall Function
- Memory Clear Function
- Printing Pause Function
- Key Operation Sound
- DC operated, AC adaptor enclosed
Battery installation
In the E75 Lane Timer two types of batteries are used-- 4 pieces of 1.5V AA size alkaline battery and
1 piece of CR2032 Lithium battery. The AA batteries supply the power for both printer and CPU. The
3V CR2032 battery is for back up purpose. Printing is not available when only the CR2032 battery is
installed. To replace batteries remove the battery lid as shown in Fig.1. Replace the AA batteries
according to the polarities shown on the case.
To replace the CR2032, unscrew the positive metal contact and replace the battery into the position
shown in Fig. 1 with positive side face up. Re-screw the metal contact.
- Always replace at the same time with all 4 pieces of new AA size high capacity alkaline batteries.
You do not need to reset the Timer if the clock keeps running after changing of batteries.
If all batteries are dead and the clock is out of order, you need to press the reset key Fig. 1 to reset
the Timer after battery replacement. During reset or power up, all display segments will be turned
on for 2 seconds. The timer will then switch to clock mode automatically. Slide back the battery lid
to complete the battery replacement procedure.
- Remove all the AA batteries if the Lane Timer will not be used for a long time to avoid battery
leakage that may damage the timer.
DT 800 LANE TIMER
OPERATING INSTRUSTIONS
MEMORY LOW
1
UPLOAD
PRINTER
Advertisement
Related Manuals for Digi DT 800
Summary of Contents for Digi DT 800
- Page 1 DT 800 LANE TIMER OPERATING INSTRUSTIONS Features MEMORY LOW UPLOAD PRINTER - 8000 Memories - Built-in PRINTER - Up to10 Lane Buttons - PC Upload Function - 12/ 24Hr User-selectable Clock - 4-Digit Bib Number - 4-Digit Place Counter - 2-Digit Lap Counter...

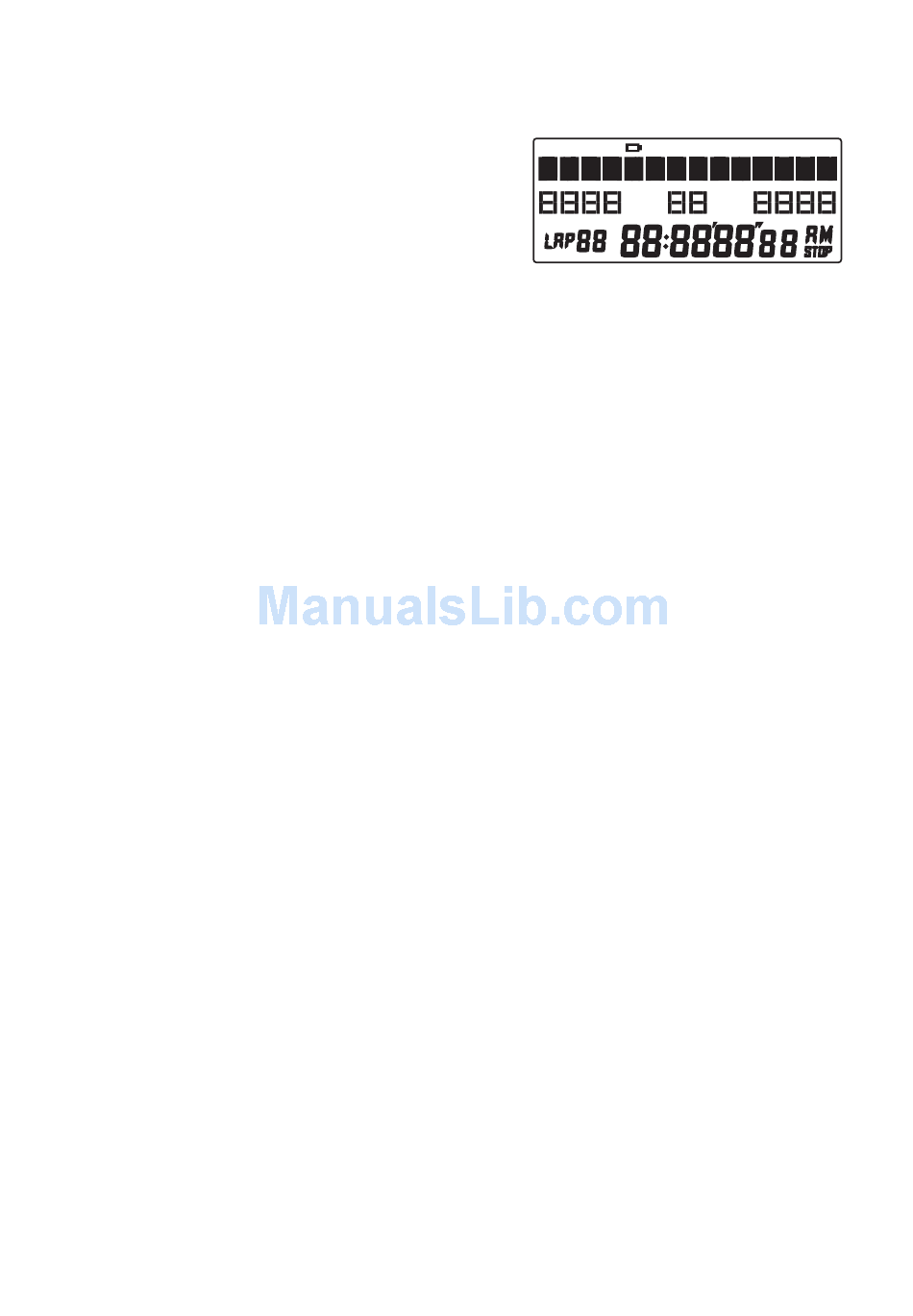

- Page 2 CR2032 POSITIVE METAL CONTACT RESET KEY Fig. 1 Clock Mode and Display Contrast Press MODE key to switch to clock mode as shown in Fig. 2. The display contrast can be adjusted for your best viewing by pressing <= or => keys. Fig.
- Page 3 The numbers on the top of the Linkgate unit represent the lane number on the track. Insert lane buttons into their respective positions, as shown in Fig. 5. The connections should look like Fig. 6. Fig. 5 Fig. 6 Although the display is always on powered by the Lithium back-up battery, it is advisable to insert AA batteries or use the AC adaptor when timing events.
- Page 4 Race number Fig. 11 Bib number The timer allows entering the athletes’ bib numbers before starting a track race. Press [EDIT] key at Fig. 11 will go to bib number entering mode, as shown in Fig.12. Key-in the corresponding bib number for the lane, and press [ENTER ] to enter the bib number for the next lane.
- Page 5 Single Road Race When Road races is selected by pressing [2], the display will be as shown in Fig.15. Enter desired wave number (maximum 99 waves) and press [ENTER] to confirm. Display will change to as shown in Fig.16. Press [1] to select Single or [2] to select Multi road races. Same as track race press [1] for button test, or press 2 to skip.
- Page 6 Press [START/LAP] or any lane button to start. After all waves have been started, press any lane button will record the time for that corresponding lane or press [START/LAP] to record the time for lane number 1 Fig. 21. For bib number entry, please refer to Bib Number paragraph. Pre-entry of Bib Numbers is not available in this mode.
- Page 7 Only replace the CR2032 with the 4 pieces AA Batteries installed or with the AC adaptor plugged. This can retain the timer’s memories and settings. Delete Races Select the race (as in Fig. 22), press and hold [STOP/RESET] for 1 second, the display will show ’...
- Page 8 Do not pull paper out from the printer, this will cause damage to the printer. For replacing the paper roll before it is used up, tear the paper off and press the PAPER FEED SWITCH until the remaining paper is out completely. Do not touch the surface of the paper as it may cause poor printing.
- Page 9 Fig. 33 Ac power supply Plug the power jack of the adaptor into the DC 9v terminal at the right side of the Lane Timer to use AC power. Please note that the power supply from the AA batteries will be cut automatically as soon as the power jack is plugged into the terminal.
- Page 10 Fig. 35 6. The program will install MulitLane in C:\digisportinstruments-Mulit lane, click ‘OK’ to accept Fig. 36. When the installation is complete, click the ‘Restart’ button to reboot the computer and let the changes to take effect Fig. 37. A shortcut icon ‘Mulitlane’ will be created on the computer desktop. Fig.
- Page 11 Fig. 38 4. From the program pull down meun, click ‘SETTING’ and select ‘PORT’. A list of COM port numbers will be displayed Fig. 39. Select th port to which the ‘com port upload socket’ 0 is inserted, and click ‘OK’...
- Page 12 For Download memorized race record switch the timer to recall mode or switch to race mode for real time Download. D) Program Function 1. Download memorized race records from the Lane timer: At the main screen of the Multilane program Fig. 42, click ‘File’ from the pull down menu and then select ‘Download’.
- Page 13 Fig. 44 4.Saving files: When saving files to computer, default file name format will be suggested by Lane timer, e.g. file name TRACK-0001, will be suggested for track race and 0001 is the number of the record. The user can change the file name if needed Fig. 45. Fig.
- Page 14 Fig. 46 6. Exporting files: The Multilane program allows the user to export files in the text format. Select ‘EXPORT’ then click ‘TEXT’ from the ‘FILE’ pull down menu Fig. 47. The ‘SAVE AS WINDOWS’ will be displayed; user can save the file to another file name and path in your computer. Because the exported file is in text format, it can be opened by Windows note pad, Microsoft WORD or EXCEL program for further processing.
