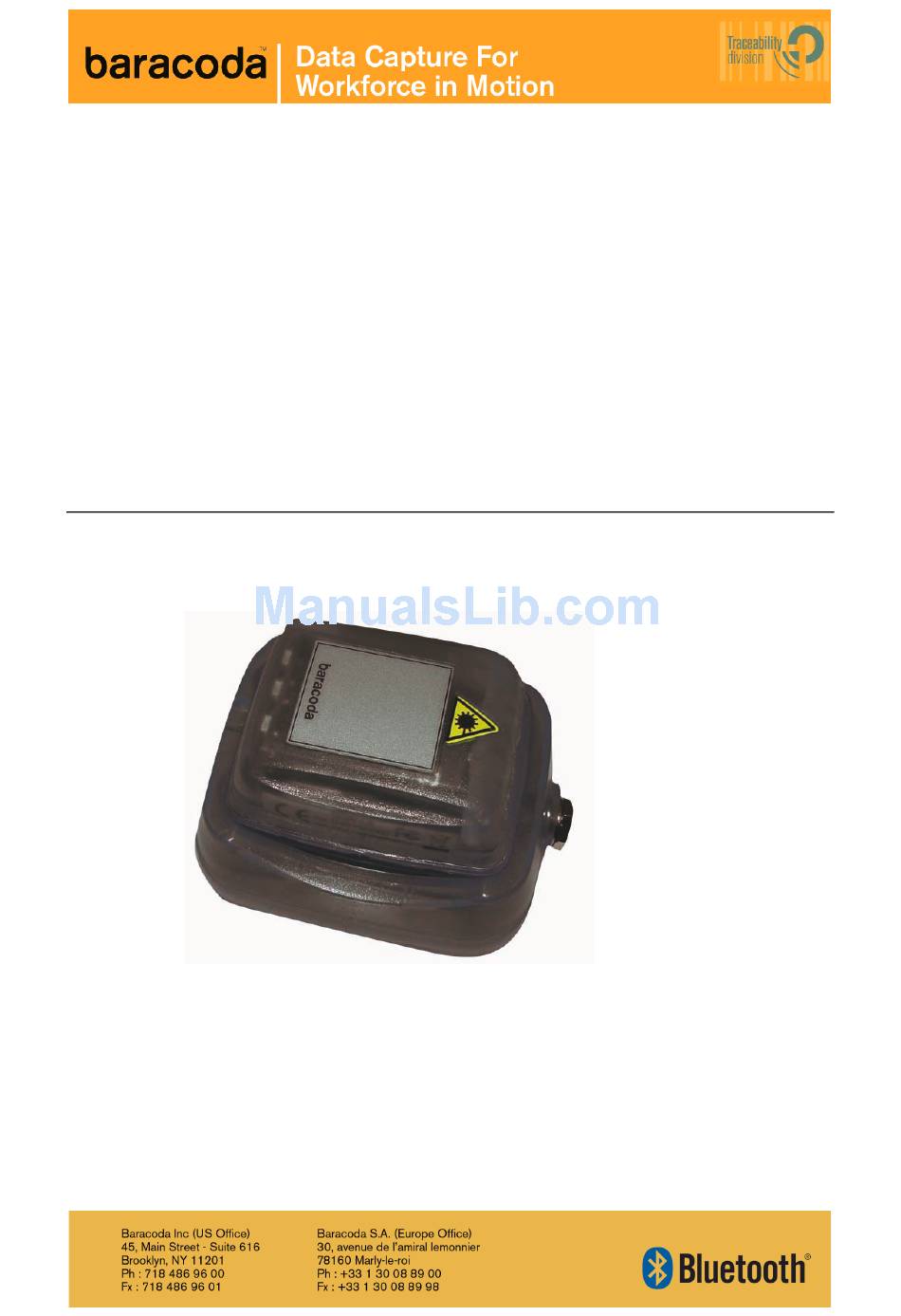

  • Page 1 Scanwear User Guide ©Baracoda™ - September 07...

  • Page 2: Table Of Contents

    Baracoda ScanWear – User Guide SUMMA RY SUMM AR Y REVIS IO N HIST O RY INT R OD UC TIO N CR ADD LE A ND LA NYA RD 1.1. RA DDLE 1.2. AN YAR D BATT ERY SWIT CHIN G O N TH E R EAD ER QUIC K ST ART UP G UIDE 4.1.

  • Page 3: Revision Histo Ry

    Baracoda ScanWear – User Guide Revision Histo ry Changes to the original manual are listed below Document Date Description 4 Sep. 07 Initial release September 07...

  • Page 4: Intro Duction

    Intro duction The Scanwear is easy to use. Just press the trigger in order to switch on the scanner and simply press it again or move it to scan a barcode. The colours of the LED indicate the status of the device. Beep and LED indicate the status of the scanner as Good Read, Connected, etc…...

  • Page 5: Craddle And L Anyar D

    When the scanner is fully charged, the LED is green (solid). A full recharge (from completely drained batteries) takes approximately 3 hours. When the original batteries wear out, please contact your Baracoda reseller for replacements. Switchin g on the reader Remember to fully charge the battery before first use.

  • Page 6: Quick Start Up Guide

    Baracoda ScanWear – User Guide Quick Start up guide 4.1. How to read barco des In order to switch on the scanner, please press the trigger. Position the scanner so the light beam fully overlaps and crosses the bar code. The scanner will emit a beep when the scan is successful.

  • Page 7: Simple Read

    Baracoda ScanWear – User Guide 4.2. Usage mode Real Time mode, Barcodes are transmitted in real time to the remote host (devices/terminals) using Bluetooth wireless technology (with acknowledgment from the host to the scanner) or, if the scanner is not connected, will memorise the data and later automatically upload it to a remote device/terminal (or Scanner can be set to operate only when connected to the host).

  • Page 8: Statu S Display Summ Ary

    Baracoda ScanWear – User Guide Statu s Display Summ ary The ScanWear has three (3) LEDs where all functions are described below. Status leds Operating Mode Status Description Green Blink In Charge Green Full Charge completed Battery Blink Battery low...

  • Page 9: The Differ Ent W Ays To Connect Scanner To A Host

    If you have the RS232 Plug&Scan Dongle, your application will have to retrieve the information from the serial port, download Kemul Software on Baracoda Website http://www.baracoda.com/ Please note that the scanner are set by the Baracoda Plug&Scan USB in “no data loss mode” ON by default.

  • Page 10: For Developers : Baracoda Sdk

    BaracodaManager uses libraries that provide an abstraction layer allowing developers to integrate Baracoda products into their own application very rapidly. Moreover, these libraries will deal with all the low- level routines, timeouts, connection and configuration management.

  • Page 11: Configuring Your Sc Anner

    7.3. No data lo ss mode Baracoda has developed a proprietary communication protocol in order to enhance the security of the Bluetooth transmission. Every barcode sent to the host must be acknowledged by the host (until then, the scanner will transmit it again and again).

  • Page 12: Baracoda Header

    Barcode Symbology_Prefix General_Suffix 7.5. 1. Baraco da H e ade r It is a proprietary data encapsulation. It is necessary to activate the Baracoda header in 2 cases: • to use the Baracoda keyboard emulation (Kemul) and Terminal • to use the “No data loss” mode.

  • Page 13: Safety / R Egulat Ory

    Modification statement: The FCC requires the user to be notified that any changes or modifications made to this device that are not expressly approved by Baracoda Wireless Technology, may void the user’s authority to operate the equipment. Class B digital devices regulatory notice: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules.
  • Page 14 Baracoda ScanWear – User Guide Limited Warranty Manufacturer warrants that the product will be free of defects in material and workmanship for one (1) year from the date of shipment. Manufacturer will, at its option, either repair, replace or refund the purchase price paid by buyer for the defective products.
