  • Page 1: User Guide

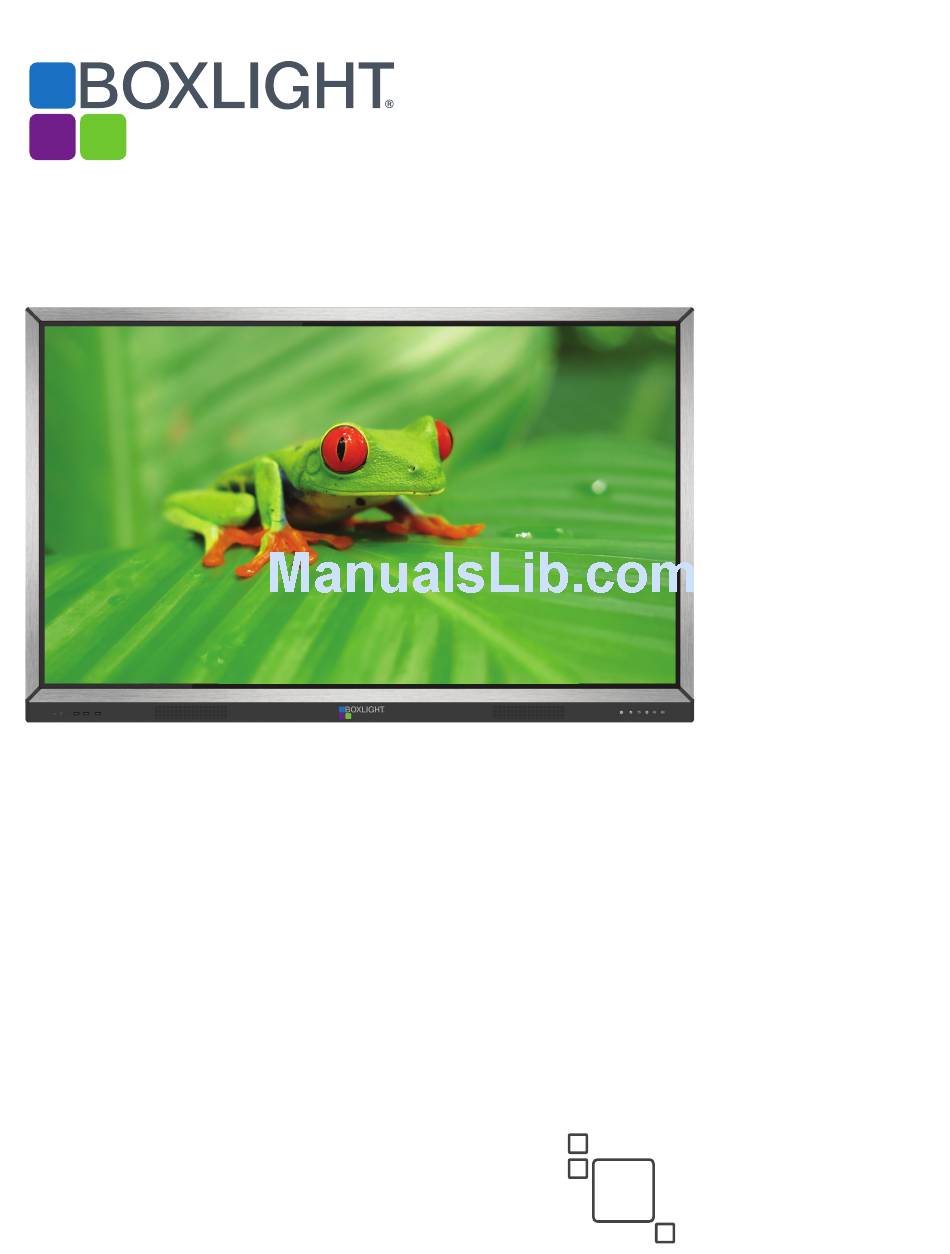

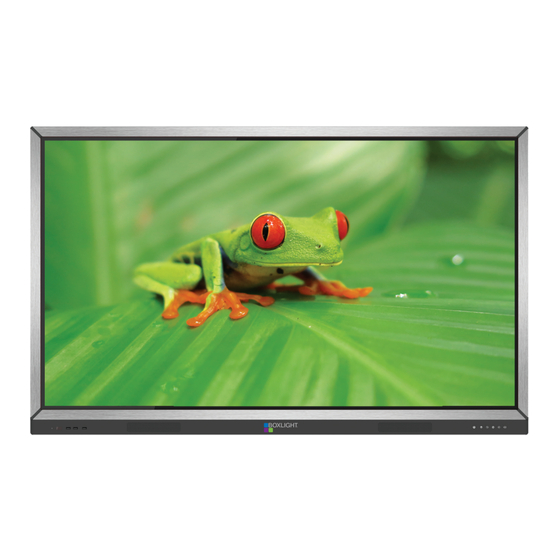

    ProColor Series1 Edition User Guide ProColor 652U, 702U, 752U, & 862U BOXLIGHT.COM...

  • Page 2: Table Of Contents

    Contents General Safety Warning & Statements Control Panel Connector Panel Remote Control Setup Settings Simple Troubleshooting Maintenance Android Introduction Sidebar Note File Finder Camera/Visualizer Settings Cloud Drive Screen Lock | USER GUIDE ProColor 652U, 702U, 752U 862U...

  • Page 3: Safety Warning & Statements

    There are vents on back cover, please do not use any liquid or spray directly during cleaning. Power Switch Status Signs “I” means power on, “O” means power off. Notes for Maintenance This machine can only be maintained by certified engineer. USER GUIDE ProColor 652U, 702U, 752U 862U |...

  • Page 4: Control Panel

    Volume down button: lowers volume Volume up button: raises volume USB interface to Android & PC system InfraRed receive port for remote control. Do not block or obstruct. Remote control signal receiver | USER GUIDE ProColor 652U, 702U, 752U 862U...

  • Page 5: Connector Panel

    Digital audio output - “RCA” connector COAX OUT Control interface RS-232 AUDIO OUT Output to an external amplifier and speaker RJ-45 connector AC SWITCH Master power switch AC IN AC power input HDMI = High-definition multimedia interface USER GUIDE ProColor 652U, 702U, 752U 862U |...

  • Page 6: Remote Control

    3. Remote Control 1) Remote control button instruction | USER GUIDE ProColor 652U, 702U, 752U 862U...
  • Page 7 CH.+ \ CH-. VOL+ \ VOL- Volume raise/lower F1-F12 Built-in computer F1 - F12 function keys NOTE: If there is no built-in computer all related function keys will have no operating function. USER GUIDE ProColor 652U, 702U, 752U 862U |...
  • Page 8 30 degrees left and right from the remote control receiver. Always dispose of batteries in an environmentally friendly manner. Only use the specified battery type. Using another type can damage the remote control and may cause the battery to burst. | USER GUIDE ProColor 652U, 702U, 752U 862U...

  • Page 9: Setup

    The best image and sound quality will be through digital connection using HDMI or DisplayPort Use only one cable HDMI or DP Computer 1.B. External Computer Analog Audio/Video plus Touch Connection USB Cable Computer USER GUIDE ProColor 652U, 702U, 752U 862U |...
  • Page 10 2. Audio and Video Equipment 1) Analog Accessory Connection Set-top Camera Video Game Video recorder Satellite TV receiver AV Cable 2) HDMI Accessory Connection HDMI Cable DVD Disc Player | USER GUIDE ProColor 652U, 702U, 752U 862U...
  • Page 11 BOXLIGHT.COM 3. Digital Audio Connection Coaxial Cable Power amplifier/stereo equipment 4. Video Output Connection Projector HDMI IN Audio Cable HDMI Cable USER GUIDE ProColor 652U, 702U, 752U 862U |...
  • Page 12 5. LAN Connection Network Cable 6. RS232 Connection RS232 Serial Port Cable Computer Control of the display via RS-232 requires third-party software on the computer. | USER GUIDE ProColor 652U, 702U, 752U 862U...

  • Page 13: Settings

    Press the return key on remote control, or touch outside the menu to exit the menu. Touch and drag to adjust volume or brightness or use the remote control Note: The icon for the internal PC will only appear the internal PC is installed. USER GUIDE ProColor 652U, 702U, 752U 862U |...
  • Page 14 Press Enter on remote control or touch to enter the selected mode. Press Back on remote control, or the screen outside the menu to exit menu. | USER GUIDE ProColor 652U, 702U, 752U 862U...
  • Page 15 Press Enter/Back to exit adjustment. Or, the “Auto” icon to adjust automatically. Press Back on remote control, or touch the screen outside the menu area to exit. USER GUIDE ProColor 652U, 702U, 752U 862U |...

  • Page 16: Simple Troubleshooting

    2. Verify the computer is producing audio on both channels. sound 3. Verify the input cable is connected correctly HDMI output without 1. Verify the input cable is connected correctly and the computer is producing audio. sound | USER GUIDE ProColor 652U, 702U, 752U 862U...

  • Page 17: Maintenance

    Use a dry, soft, lint-free cloth to wipe front frame. If this is not sufficient use a mild cleaner. Vacation Setup If the display will not be used for an extended period of time it is recommended it be powered down and unplugged. USER GUIDE ProColor 652U, 702U, 752U 862U |...
  • Page 18 Android Android The Android feature in Boxlight’s ProColor Interactive Flat Panel Displays adds significant functionality. When delivered it includes a browser, annotation tools, a file viewer/finder, and the ability to save to cloud storage services. Please note: the Android system and its apps are rapidly evolving. Between the date of this writing and the end of 2017 new apps may be added or existing ones removed.

  • Page 19: Sidebar

    Note which enables write, erase, select objects, etc. See section 3 “Note” for more details. Annotation tools Click to pop out the annotation tools which allow writing and drawing on the screen. The Annotation Tools USER GUIDE ProColor 652U, 702U, 752U 862U |...
  • Page 20 - Drag in the black area to move the spotlight. - Click to open the scale and alpha adjustment window shown below. Scale adjusts the size of the spotlight. Alpha adjusts the transparency of the masked area. | USER GUIDE ProColor 652U, 702U, 752U 862U...
  • Page 21 Click “RESET” to return to 0:00:00. Countdown Small Tools Stopwatch Small Tool Click open the Stopwatch Small Tool. Functions include start, pause, continue the stop watch, and reset. Figure 2-7-3-1 Stop watch USER GUIDE ProColor 652U, 702U, 752U 862U |...

  • Page 22: Note

    Note. The Note App Note Menu Click to open the Note menu which provides the ability to choose the background, create/open/import/save/export files, and save to cloud storage services. Start menu | USER GUIDE ProColor 652U, 702U, 752U 862U...
  • Page 23 Export - Click to export the current Note to IMG, PDF, SVG, or IWB format. Export Cloud Storage - Click to export and upload the current Note file to Google Drive or Microsoft OneDrive. USER GUIDE ProColor 652U, 702U, 752U 862U |...
  • Page 24 (7) Brightness disabled. Click to activate the automatic brightness adjustment, which is disabled by default. Exit Click to return to the main interface. If the current document is not saved, the Save window will appear. Enter a file name to save the current document or just close the Save window. Selection Click to select objects. Selected objects can be moved, deleted, etc. | USER GUIDE ProColor 652U, 702U, 752U 862U...
  • Page 25 Color picker - Click to open the color picker. Drag the round color picker to the desired. Color disk - Users can change the color of the color circle by changing the color of the color disk. USER GUIDE ProColor 652U, 702U, 752U 862U |...
  • Page 26 Go to previous page Click to go to the previous page View all Click load a thumbnail of all pages. Go to next page Click to go to the next page. | USER GUIDE ProColor 652U, 702U, 752U 862U...

  • Page 27: File Finder

    File browsing Browsing by category Users can browse resources stored in the system according to category, including document, whiteboard writing (pages saved by the whiteboard and quick screenshot), video, picture, and audio. USER GUIDE ProColor 652U, 702U, 752U 862U |...
  • Page 28 – click as many as desired. Selection Interface OS User Manual Select all. Click to select all resources in the current directory. Select All interface Cancel selection Click to cancel all selections. | USER GUIDE ProColor 652U, 702U, 752U 862U...
  • Page 29 Sort menu Click the to open the Sort menu which allows sorting according to the name, type, size, and date/time. The default sort is by name. USER GUIDE ProColor 652U, 702U, 752U 862U |...
  • Page 30 Tile - Click to display the resources as icons List - Click to display the resources in the form of detailed list. OS User Manual Exit Click to exit file browsing, and return to the homepage. Camera/Visualizer Once a camera has been connected to the USB port click the button to start the Visualizer App. The Visualizer App functions include: display full screen, take photo, annotation, and settings. | USER GUIDE ProColor 652U, 702U, 752U 862U...

  • Page 31: Camera/Visualizer

    Click to exit file browsing, and return to the homepage. BOXLIGHT.COM Camera/Visualizer Once a camera has been connected to the USB port click the button to start the Visualizer App. The Visualizer App functions include: display full screen, take photo, annotation, and settings. Visualizer USER GUIDE ProColor 652U, 702U, 752U 862U |...

  • Page 32: Settings

    Startup and shutdown: Set Startup channel Password - Set the password of ScreenLock Input Setting: Path renaming. Other Settings: Setting the Slide Toolbar and FloatBar; setting the single finger and multi-finger of Note writing. | USER GUIDE ProColor 652U, 702U, 752U 862U...
  • Page 33 General Settings PC: Selects the PC input. Android: Selects the Android input. HDMI: Selects the HDMI input. VGA: Selects the VGA input. AV: Selects the AV input. DVI: Selects the DVI input. USER GUIDE ProColor 652U, 702U, 752U 862U |...

  • Page 34: Cloud Drive

    Fig 11-1 Set password If you have set the password, then the screen will be locked. You need to enter the password to unlock. Entering the Password Fig 11-2 Input the password | USER GUIDE ProColor 652U, 702U, 752U 862U...
  • Page 35 BOXLIGHT.COM USER GUIDE ProColor 652U, 702U, 752U 862U |...
  • Page 36 BOXLIGHT.COM...
