COSCO

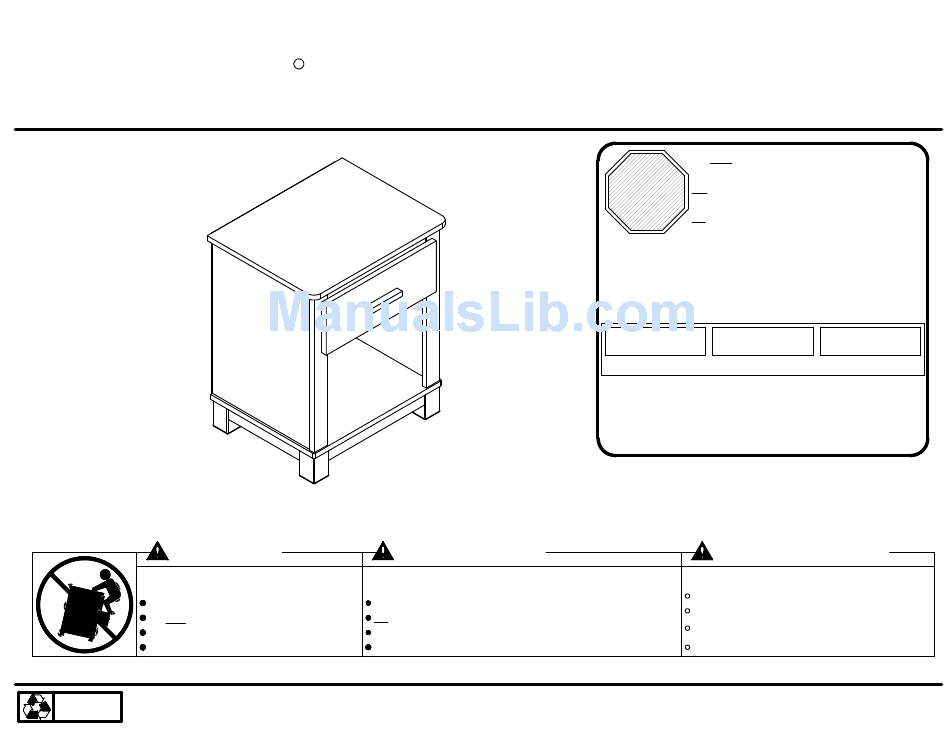

-KEEP FOR REFERENCE-
WARNING
Unit can tip over causing severe injury
or death.
Anchor unit to stud or wall.
DO NOT allow children to climb on unit.
Put heavy items on lower shelves or drawers.
Read and follow all assembly instructions.
Please Recycle
Recicle Por Favor
Réutilisez SVP
R
-GUARDAR PARA REFERENCIA-
ADVERTENCIA
Este mueble puede caerse por encima
causando daño serio o la muerte
Anolar el mueble a un espárrago muro.
NO dejar que los niños suben por encima del mueble.
Poner los articulos mas pesados en los tableros o cajones inferiores.
Leer y sequir todos de los instucciones para el montaje.
5923216COM
ALTO
STOP
ARRÊT
If a part is missing or damaged, please visit our website or call our toll-free customer
service line. We will gladly ship your replacement parts FREE of charge.
Si las partes están perdidas o dañadas Por favor visite nuestra página de Internet o
llame a nuestra línea de teléfono gratis de Servicio al Cliente. Nosotros le enviaremos
sus repuestos sin cargo adicional, serán totalmente gratis.
Si une pièce est manquante ou endommagée, veuillez visiter notre site web ou appelez
sans frais notre Service à la clientèle. Nous expédierons avec plaisir vos pièces de
rechange GRATUITEMENT.
Need Parts or
Assistance?
WWW.COSCOKIDSFURNITURE.COM/PARTS
or call toll free:
o llame a nuestra línea gratis:
ou appelez sans frais:
For prompt, reliable service; please have your assembly manual ready.
Para servicio mas rapido y reliable por favor tenga esta manual listo.
Pour un service rapide et fiable, s'il vous plaît ayez votre livret d'assembage en
main.
DO NOT RETURN PRODUCT TO THE STORE
Individual stores do not stock parts.
NO REGRESAS ESTA PRODUCTO A LA TIENDA
Las tiendas no tiene partes.
NE RETOURNEZ PAS LE PRODUIT AU MAGASIN
Les magasins individuels ne gardent pas de pièces.
Nesacitas partes o
Besoin de Pièces ou
Asistancia?
d'assistance?
1-800-489-3351
-GARDEZ POUR RÉFÉRENCE-
AVERTISSEMENT
L'unité peut basculer et causer des
blessures graves ou la mort.
Fixez l'unité au mur ou à un montant.
Ne laissez PAS les enfants grimper sur le meuble
Déposez les pièces lourdes sur les tablettes ou tiroirs
du bas.
Lire et suivre toutes les instructions d'assemblage.
B345923216COM 0
