NPM Quick Installation Guide

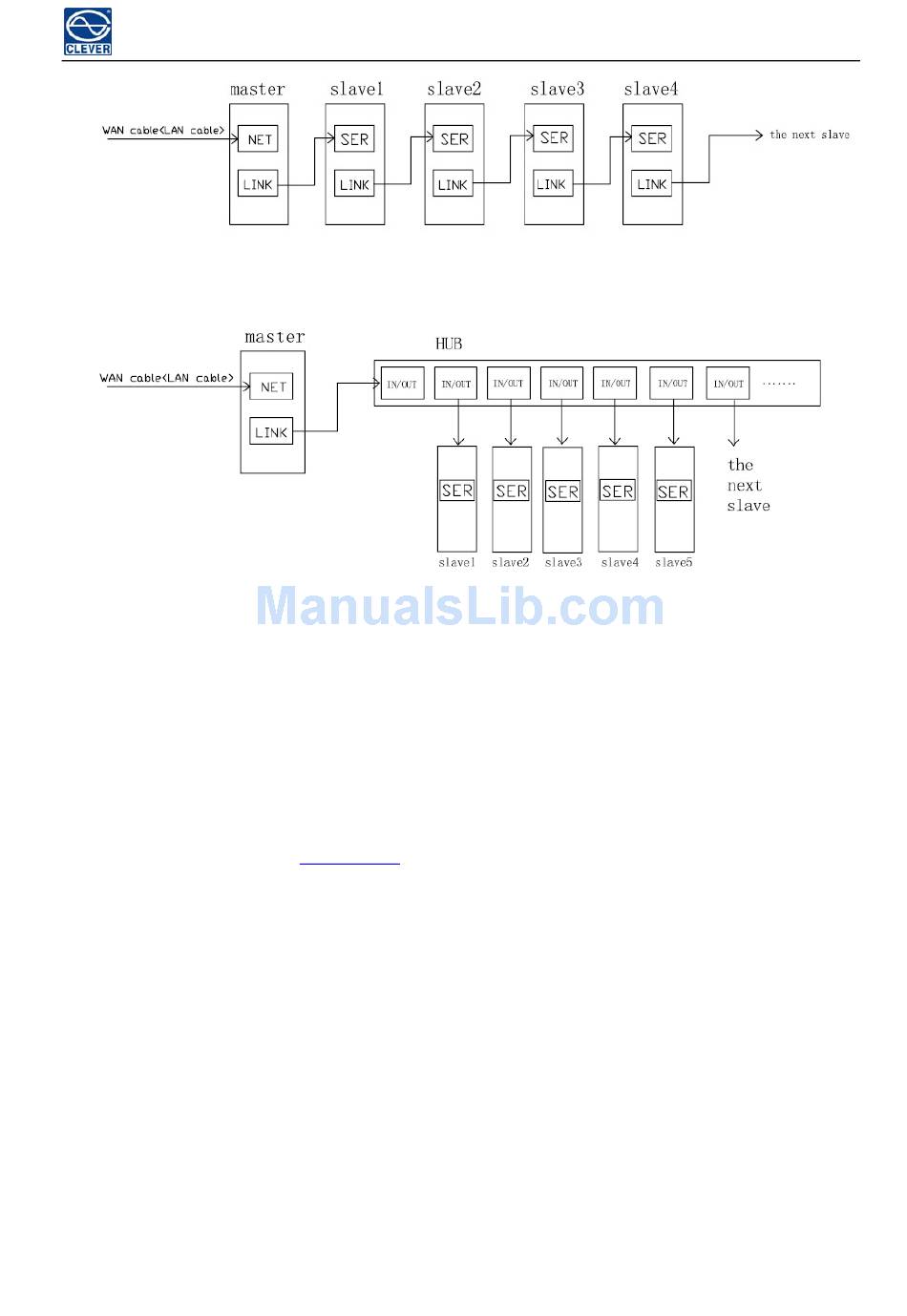

Figure 1 Hand by hand
Figure 2 Through CLEVER HUB
Ⅱ. Software Configuration & User login
Opening IE browser (support IE 6.0, 7.0 and 8.0 versions; other browsers except IE are not available
currently). Default IP address is
192.168.1.163
and default Login Name is "clever", Password is "clever" .
Please note that the login name and password are all Lower-case letter. Please see details as following:
1. Connect the PC and the device directly;
2. Revise the PC network configuration to access NPM firstly; making sure the changed PC IP address and
the default device IP address are in the same network segment. For instance: set the PC IP address to be
192.168.1.X (X can be 0 to 255 except 163); the Sub-net Mask 255.255.255.0; the default gateway
192.168.1.1; As shown in the following :
