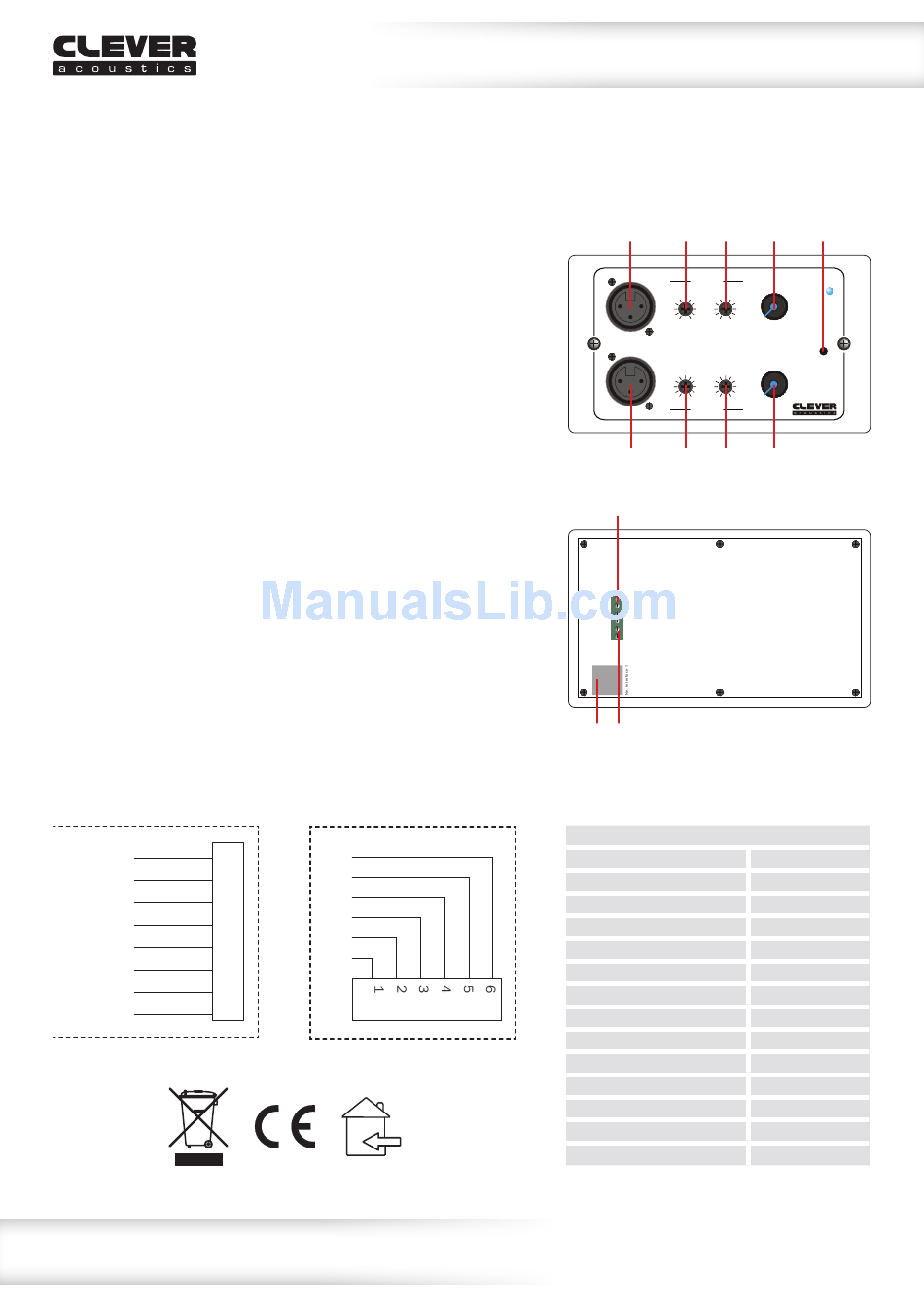

ZM8 Matrix Controller DW Wall Plate
The ZM8 DW Wall Plate is a remote control panel that works together with the ZM8 console
to allow remote microphone sources and control of bass and treble.
01 - MIC1 input - This is the microphone input for MIC1 via the XLR
type connector.
02 - MIC1 treble control - This adjusts the tone control of the MIC1 input.
Clockwise adjustment will increase the treble from low to high.
03 - MIC1 bass control - This adjusts the tone control of the MIC1 input.
Clockwise adjustment will increase the bass from low to high.
04 - MIC1 master volume control - This is for the adjustment of the volume
of the MIC1 input. Clockwise adjustment will increase the volume from
low to high.
05 - Music mute button - This button is used to override the local input
microphone over the background music system when it is enabled.
06 - MIC1 input - This is the microphone input for MIC1 via the XLR
type connector.
07 - MIC1 treble control - This adjusts the tone control of the MIC1 input.
Clockwise adjustment will increase the treble from low to high.
08 - MIC1 bass control - This adjusts the tone control of the MIC1 input.
Clockwise adjustment will increase the bass from low to high.
09 - MIC1 master volume control - This is for the adjustment of the volume
of the MIC1 input. Clockwise adjustment will increase the volume from
low to high.
10 - DC 24V input - DC 24V input required to power the wall plate when the
cable length is greater than 50m (see 'b' below).
11 - RJ45 communications port - The RJ45 communication port is used to
communicate between the wall plate and the Matrix. It will also be used
to used to power the wall plate when the distance is less than or equal
to 50m (see 'a' below).
12 - AUX output - (see 'b' below).
a.
485-B
1
2
485-A
RED
3
4
GND
5
24V1
6
24V1
7
Audio
8
Audio
www.cleveracoustics.co.uk
Product overview & operating instructions
b.
+24V
GND
GND
Audio -
Audio +
GND
1
2
MIC1
HF
2
1
3
-
+
HF
2
1
3
-
+
MIC2
6
7
10
24V
GND
GND
Av-
Av+
GND
11 12
Specifications
Serial communication speed
Communication port
Communication protocol
Serial communication distance
MIC input sensitivity
Audio output
Frequency response
S/N ratio
THD
Power consumption
Power supply
Dimensions (H x W x D)
Weight
Order code
ZM8 DW Wall Plate User Manual
3
4
5
ON
5
4
6
LF
7
3
8
2
1
9
-
+
0
10
MUSIC
MUTE
5
LF
4
6
7
3
2
8
1
9
0
10
-
+
8
9
4800bps
RJ45
RS485
1km maximum
5mV/600Ω
0dB/600Ω
50Hz-18kHz (±1dB)
>65dB
<0.1% @ 1kHz
5W
DC 24V
86 x 146 x 48mm
150g
CRAM19C
