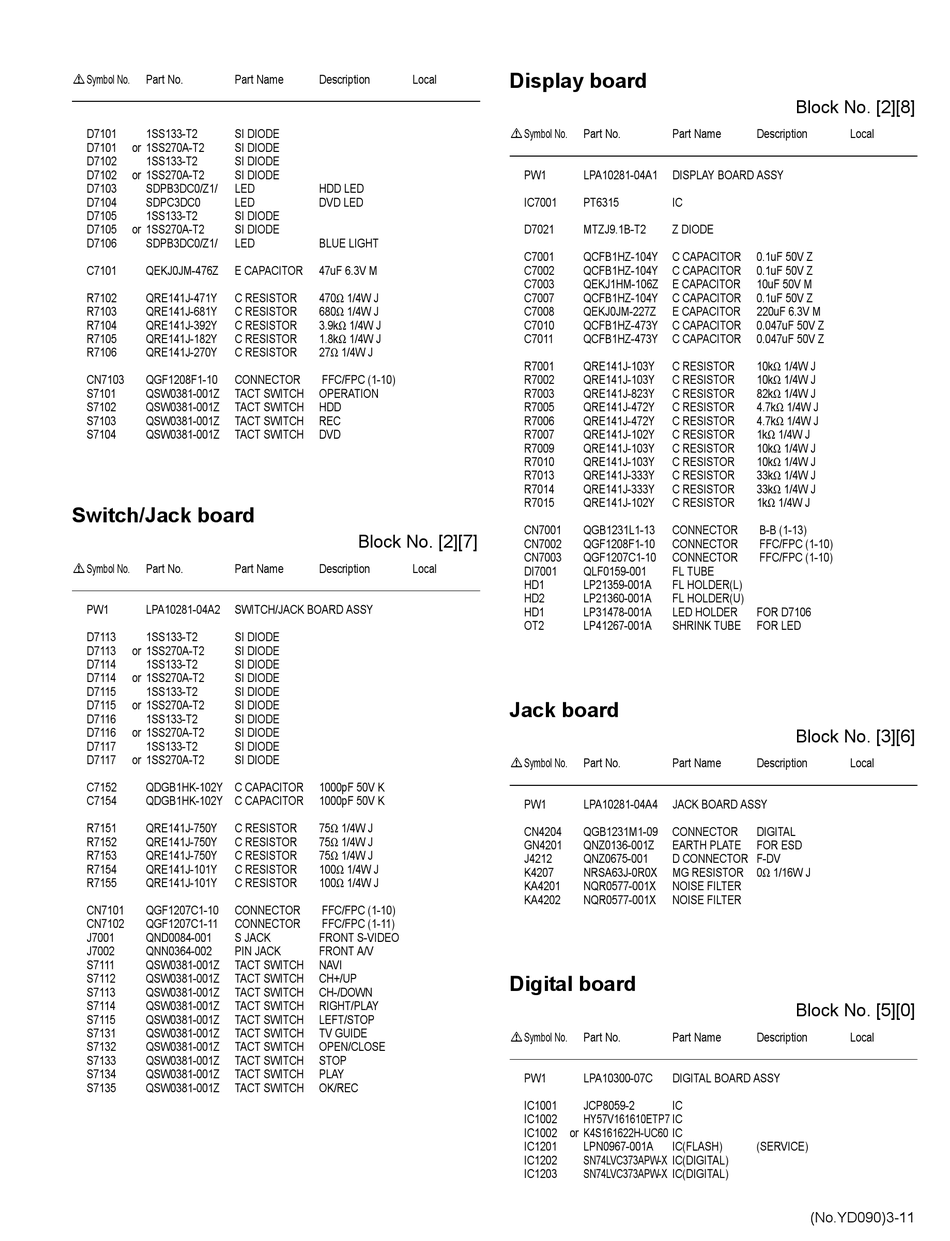

JVC DR-MH300SAA Service Manual page 51

 Symbol No. Part No. Part Name
D7101 1SS133-T2 SI DIODE
D7101 or 1SS270A-T2 SI DIODE
D7102 1SS133-T2 SI DIODE
D7102 or 1SS270A-T2 SI DIODE
D7103 SDPB3DC0/Z1/ LED
D7104 SDPC3DC0 LED
D7105 1SS133-T2 SI DIODE
D7105 or 1SS270A-T2 SI DIODE
D7106 SDPB3DC0/Z1/ LED
C7101 QEKJ0JM-476Z E CAPACITOR
R7102 QRE141J-471Y C RESISTOR
R7103 QRE141J-681Y C RESISTOR
R7104 QRE141J-392Y C RESISTOR
R7105 QRE141J-182Y C RESISTOR
R7106 QRE141J-270Y C RESISTOR
CN7103 QGF1208F1-10 CONNECTOR
S7101 QSW0381-001Z TACT SWITCH
S7102 QSW0381-001Z TACT SWITCH
S7103 QSW0381-001Z TACT SWITCH
S7104 QSW0381-001Z TACT SWITCH
Switch/Jack board
 Symbol No. Part No. Part Name
PW1 LPA10281-04A2 SWITCH/JACK BOARD ASSY
D7113 1SS133-T2 SI DIODE
D7113 or 1SS270A-T2 SI DIODE
D7114 1SS133-T2 SI DIODE
D7114 or 1SS270A-T2 SI DIODE
D7115 1SS133-T2 SI DIODE
D7115 or 1SS270A-T2 SI DIODE
D7116 1SS133-T2 SI DIODE
D7116 or 1SS270A-T2 SI DIODE
D7117 1SS133-T2 SI DIODE
D7117 or 1SS270A-T2 SI DIODE
C7152 QDGB1HK-102Y C CAPACITOR
C7154 QDGB1HK-102Y C CAPACITOR
R7151 QRE141J-750Y C RESISTOR
R7152 QRE141J-750Y C RESISTOR
R7153 QRE141J-750Y C RESISTOR
R7154 QRE141J-101Y C RESISTOR
R7155 QRE141J-101Y C RESISTOR
CN7101 QGF1207C1-10 CONNECTOR
CN7102 QGF1207C1-11 CONNECTOR
J7001 QND0084-001 S JACK
J7002 QNN0364-002 PIN JACK
S7111 QSW0381-001Z TACT SWITCH
S7112 QSW0381-001Z TACT SWITCH
S7113 QSW0381-001Z TACT SWITCH
S7114 QSW0381-001Z TACT SWITCH
S7115 QSW0381-001Z TACT SWITCH
S7131 QSW0381-001Z TACT SWITCH
S7132 QSW0381-001Z TACT SWITCH
S7133 QSW0381-001Z TACT SWITCH
S7134 QSW0381-001Z TACT SWITCH
S7135 QSW0381-001Z TACT SWITCH
Description Local
HDD LED
DVD LED
BLUE LIGHT
47uF 6.3V M
470Ω 1/4W J
680Ω 1/4W J
3.9kΩ 1/4W J
1.8kΩ 1/4W J
27Ω 1/4W J
FFC/FPC (1-10)
OPERATION
HDD
REC
DVD
Block No. [2][7]
Description Local
1000pF 50V K
1000pF 50V K
75Ω 1/4W J
75Ω 1/4W J
75Ω 1/4W J
100Ω 1/4W J
100Ω 1/4W J
FFC/FPC (1-10)
FFC/FPC (1-11)
FRONT S-VIDEO
FRONT A/V
NAVI
CH+/UP
CH-/DOWN
RIGHT/PLAY
LEFT/STOP
TV GUIDE
OPEN/CLOSE
STOP
PLAY
OK/REC
Display board
 Symbol No. Part No. Part Name
PW1 LPA10281-04A1 DISPLAY BOARD ASSY
IC7001 PT6315 IC
D7021 MTZJ9.1B-T2 Z DIODE
C7001 QCFB1HZ-104Y C CAPACITOR
C7002 QCFB1HZ-104Y C CAPACITOR
C7003 QEKJ1HM-106Z E CAPACITOR
C7007 QCFB1HZ-104Y C CAPACITOR
C7008 QEKJ0JM-227Z E CAPACITOR
C7010 QCFB1HZ-473Y C CAPACITOR
C7011 QCFB1HZ-473Y C CAPACITOR
R7001 QRE141J-103Y C RESISTOR
R7002 QRE141J-103Y C RESISTOR
R7003 QRE141J-823Y C RESISTOR
R7005 QRE141J-472Y C RESISTOR
R7006 QRE141J-472Y C RESISTOR
R7007 QRE141J-102Y C RESISTOR
R7009 QRE141J-103Y C RESISTOR
R7010 QRE141J-103Y C RESISTOR
R7013 QRE141J-333Y C RESISTOR
R7014 QRE141J-333Y C RESISTOR
R7015 QRE141J-102Y C RESISTOR
CN7001 QGB1231L1-13 CONNECTOR
CN7002 QGF1208F1-10 CONNECTOR
CN7003 QGF1207C1-10 CONNECTOR
DI7001 QLF0159-001 FL TUBE
HD1 LP21359-001A FL HOLDER(L)
HD2 LP21360-001A FL HOLDER(U)
HD1 LP31478-001A LED HOLDER
OT2 LP41267-001A SHRINK TUBE
Jack board
 Symbol No. Part No. Part Name
PW1 LPA10281-04A4 JACK BOARD ASSY
CN4204 QGB1231M1-09 CONNECTOR
GN4201 QNZ0136-001Z EARTH PLATE
J4212 QNZ0675-001 D CONNECTOR F-DV
K4207 NRSA63J-0R0X MG RESISTOR
KA4201 NQR0577-001X NOISE FILTER
KA4202 NQR0577-001X NOISE FILTER
Digital board
 Symbol No. Part No. Part Name
PW1 LPA10300-07C DIGITAL BOARD ASSY
IC1001 JCP8059-2 IC
IC1002 HY57V161610ETP7 IC
IC1002 or K4S161622H-UC60 IC
IC1201 LPN0967-001A IC(FLASH)
IC1202 SN74LVC373APW-X IC(DIGITAL)
IC1203 SN74LVC373APW-X IC(DIGITAL)
Block No. [2][8]
Description Local
0.1uF 50V Z
0.1uF 50V Z
10uF 50V M
0.1uF 50V Z
220uF 6.3V M
0.047uF 50V Z
0.047uF 50V Z
10kΩ 1/4W J
10kΩ 1/4W J
82kΩ 1/4W J
4.7kΩ 1/4W J
4.7kΩ 1/4W J
1kΩ 1/4W J
10kΩ 1/4W J
10kΩ 1/4W J
33kΩ 1/4W J
33kΩ 1/4W J
1kΩ 1/4W J
B-B (1-13)
FFC/FPC (1-10)
FFC/FPC (1-10)
FOR D7106
FOR LED
Block No. [3][6]
Description Local
DIGITAL
FOR ESD
0Ω 1/16W J
Block No. [5][0]
Description Local
(SERVICE)
(No.YD090)3-11
