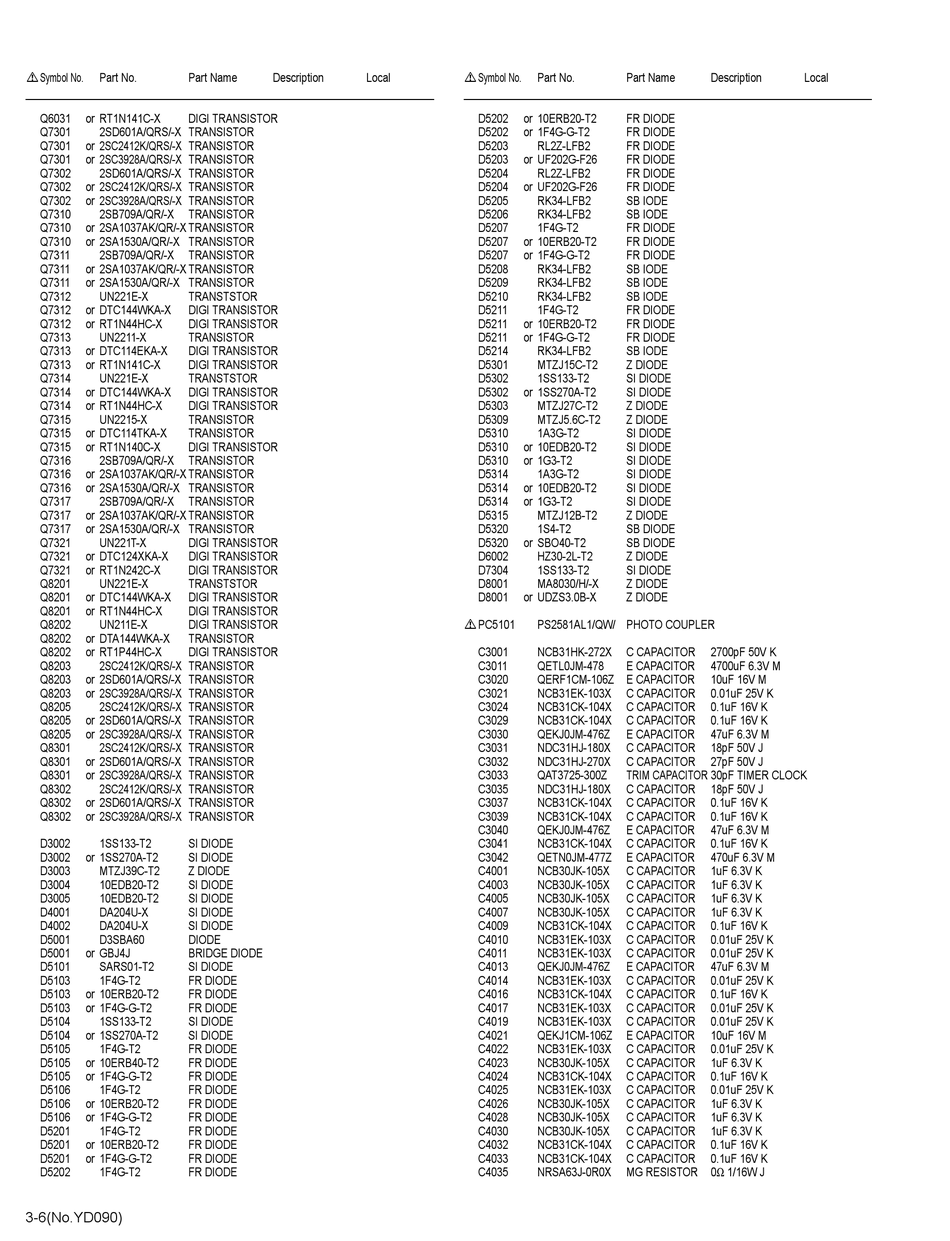

JVC DR-MH300SAA Service Manual page 46

 Symbol No. Part No. Part Name
Q6031 or RT1N141C-X DIGI TRANSISTOR
Q7301 2SD601A/QRS/-X TRANSISTOR
Q7301 or 2SC2412K/QRS/-X TRANSISTOR
Q7301 or 2SC3928A/QRS/-X TRANSISTOR
Q7302 2SD601A/QRS/-X TRANSISTOR
Q7302 or 2SC2412K/QRS/-X TRANSISTOR
Q7302 or 2SC3928A/QRS/-X TRANSISTOR
Q7310 2SB709A/QR/-X TRANSISTOR
Q7310 or 2SA1037AK/QR/-X TRANSISTOR
Q7310 or 2SA1530A/QR/-X TRANSISTOR
Q7311 2SB709A/QR/-X TRANSISTOR
Q7311 or 2SA1037AK/QR/-X TRANSISTOR
Q7311 or 2SA1530A/QR/-X TRANSISTOR
Q7312 UN221E-X TRANSTSTOR
Q7312 or DTC144WKA-X DIGI TRANSISTOR
Q7312 or RT1N44HC-X DIGI TRANSISTOR
Q7313 UN2211-X TRANSISTOR
Q7313 or DTC114EKA-X DIGI TRANSISTOR
Q7313 or RT1N141C-X DIGI TRANSISTOR
Q7314 UN221E-X TRANSTSTOR
Q7314 or DTC144WKA-X DIGI TRANSISTOR
Q7314 or RT1N44HC-X DIGI TRANSISTOR
Q7315 UN2215-X TRANSISTOR
Q7315 or DTC114TKA-X TRANSISTOR
Q7315 or RT1N140C-X DIGI TRANSISTOR
Q7316 2SB709A/QR/-X TRANSISTOR
Q7316 or 2SA1037AK/QR/-X TRANSISTOR
Q7316 or 2SA1530A/QR/-X TRANSISTOR
Q7317 2SB709A/QR/-X TRANSISTOR
Q7317 or 2SA1037AK/QR/-X TRANSISTOR
Q7317 or 2SA1530A/QR/-X TRANSISTOR
Q7321 UN221T-X DIGI TRANSISTOR
Q7321 or DTC124XKA-X DIGI TRANSISTOR
Q7321 or RT1N242C-X DIGI TRANSISTOR
Q8201 UN221E-X TRANSTSTOR
Q8201 or DTC144WKA-X DIGI TRANSISTOR
Q8201 or RT1N44HC-X DIGI TRANSISTOR
Q8202 UN211E-X DIGI TRANSISTOR
Q8202 or DTA144WKA-X TRANSISTOR
Q8202 or RT1P44HC-X DIGI TRANSISTOR
Q8203 2SC2412K/QRS/-X TRANSISTOR
Q8203 or 2SD601A/QRS/-X TRANSISTOR
Q8203 or 2SC3928A/QRS/-X TRANSISTOR
Q8205 2SC2412K/QRS/-X TRANSISTOR
Q8205 or 2SD601A/QRS/-X TRANSISTOR
Q8205 or 2SC3928A/QRS/-X TRANSISTOR
Q8301 2SC2412K/QRS/-X TRANSISTOR
Q8301 or 2SD601A/QRS/-X TRANSISTOR
Q8301 or 2SC3928A/QRS/-X TRANSISTOR
Q8302 2SC2412K/QRS/-X TRANSISTOR
Q8302 or 2SD601A/QRS/-X TRANSISTOR
Q8302 or 2SC3928A/QRS/-X TRANSISTOR
D3002 1SS133-T2 SI DIODE
D3002 or 1SS270A-T2 SI DIODE
D3003 MTZJ39C-T2 Z DIODE
D3004 10EDB20-T2 SI DIODE
D3005 10EDB20-T2 SI DIODE
D4001 DA204U-X SI DIODE
D4002 DA204U-X SI DIODE
D5001 D3SBA60 DIODE
D5001 or GBJ4J BRIDGE DIODE
D5101 SARS01-T2 SI DIODE
D5103 1F4G-T2 FR DIODE
D5103 or 10ERB20-T2 FR DIODE
D5103 or 1F4G-G-T2 FR DIODE
D5104 1SS133-T2 SI DIODE
D5104 or 1SS270A-T2 SI DIODE
D5105 1F4G-T2 FR DIODE
D5105 or 10ERB40-T2 FR DIODE
D5105 or 1F4G-G-T2 FR DIODE
D5106 1F4G-T2 FR DIODE
D5106 or 10ERB20-T2 FR DIODE
D5106 or 1F4G-G-T2 FR DIODE
D5201 1F4G-T2 FR DIODE
D5201 or 10ERB20-T2 FR DIODE
D5201 or 1F4G-G-T2 FR DIODE
D5202 1F4G-T2 FR DIODE
3-6(No.YD090)
Description Local  Symbol No. Part No. Part Name
D5202 or 10ERB20-T2 FR DIODE
D5202 or 1F4G-G-T2 FR DIODE
D5203 RL2Z-LFB2 FR DIODE
D5203 or UF202G-F26 FR DIODE
D5204 RL2Z-LFB2 FR DIODE
D5204 or UF202G-F26 FR DIODE
D5205 RK34-LFB2 SB IODE
D5206 RK34-LFB2 SB IODE
D5207 1F4G-T2 FR DIODE
D5207 or 10ERB20-T2 FR DIODE
D5207 or 1F4G-G-T2 FR DIODE
D5208 RK34-LFB2 SB IODE
D5209 RK34-LFB2 SB IODE
D5210 RK34-LFB2 SB IODE
D5211 1F4G-T2 FR DIODE
D5211 or 10ERB20-T2 FR DIODE
D5211 or 1F4G-G-T2 FR DIODE
D5214 RK34-LFB2 SB IODE
D5301 MTZJ15C-T2 Z DIODE
D5302 1SS133-T2 SI DIODE
D5302 or 1SS270A-T2 SI DIODE
D5303 MTZJ27C-T2 Z DIODE
D5309 MTZJ5.6C-T2 Z DIODE
D5310 1A3G-T2 SI DIODE
D5310 or 10EDB20-T2 SI DIODE
D5310 or 1G3-T2 SI DIODE
D5314 1A3G-T2 SI DIODE
D5314 or 10EDB20-T2 SI DIODE
D5314 or 1G3-T2 SI DIODE
D5315 MTZJ12B-T2 Z DIODE
D5320 1S4-T2 SB DIODE
D5320 or SBO40-T2 SB DIODE
D6002 HZ30-2L-T2 Z DIODE
D7304 1SS133-T2 SI DIODE
D8001 MA8030/H/-X Z DIODE
D8001 or UDZS3.0B-X Z DIODE
 PC5101 PS2581AL1/QW/ PHOTO COUPLER
C3001 NCB31HK-272X C CAPACITOR
C3011 QETL0JM-478 E CAPACITOR
C3020 QERF1CM-106Z E CAPACITOR
C3021 NCB31EK-103X C CAPACITOR
C3024 NCB31CK-104X C CAPACITOR
C3029 NCB31CK-104X C CAPACITOR
C3030 QEKJ0JM-476Z E CAPACITOR
C3031 NDC31HJ-180X C CAPACITOR
C3032 NDC31HJ-270X C CAPACITOR
C3033 QAT3725-300Z TRIM CAPACITOR 30pF TIMER CLOCK
C3035 NDC31HJ-180X C CAPACITOR
C3037 NCB31CK-104X C CAPACITOR
C3039 NCB31CK-104X C CAPACITOR
C3040 QEKJ0JM-476Z E CAPACITOR
C3041 NCB31CK-104X C CAPACITOR
C3042 QETN0JM-477Z E CAPACITOR
C4001 NCB30JK-105X C CAPACITOR
C4003 NCB30JK-105X C CAPACITOR
C4005 NCB30JK-105X C CAPACITOR
C4007 NCB30JK-105X C CAPACITOR
C4009 NCB31CK-104X C CAPACITOR
C4010 NCB31EK-103X C CAPACITOR
C4011 NCB31EK-103X C CAPACITOR
C4013 QEKJ0JM-476Z E CAPACITOR
C4014 NCB31EK-103X C CAPACITOR
C4016 NCB31CK-104X C CAPACITOR
C4017 NCB31EK-103X C CAPACITOR
C4019 NCB31EK-103X C CAPACITOR
C4021 QEKJ1CM-106Z E CAPACITOR
C4022 NCB31EK-103X C CAPACITOR
C4023 NCB30JK-105X C CAPACITOR
C4024 NCB31CK-104X C CAPACITOR
C4025 NCB31EK-103X C CAPACITOR
C4026 NCB30JK-105X C CAPACITOR
C4028 NCB30JK-105X C CAPACITOR
C4030 NCB30JK-105X C CAPACITOR
C4032 NCB31CK-104X C CAPACITOR
C4033 NCB31CK-104X C CAPACITOR
C4035 NRSA63J-0R0X MG RESISTOR
