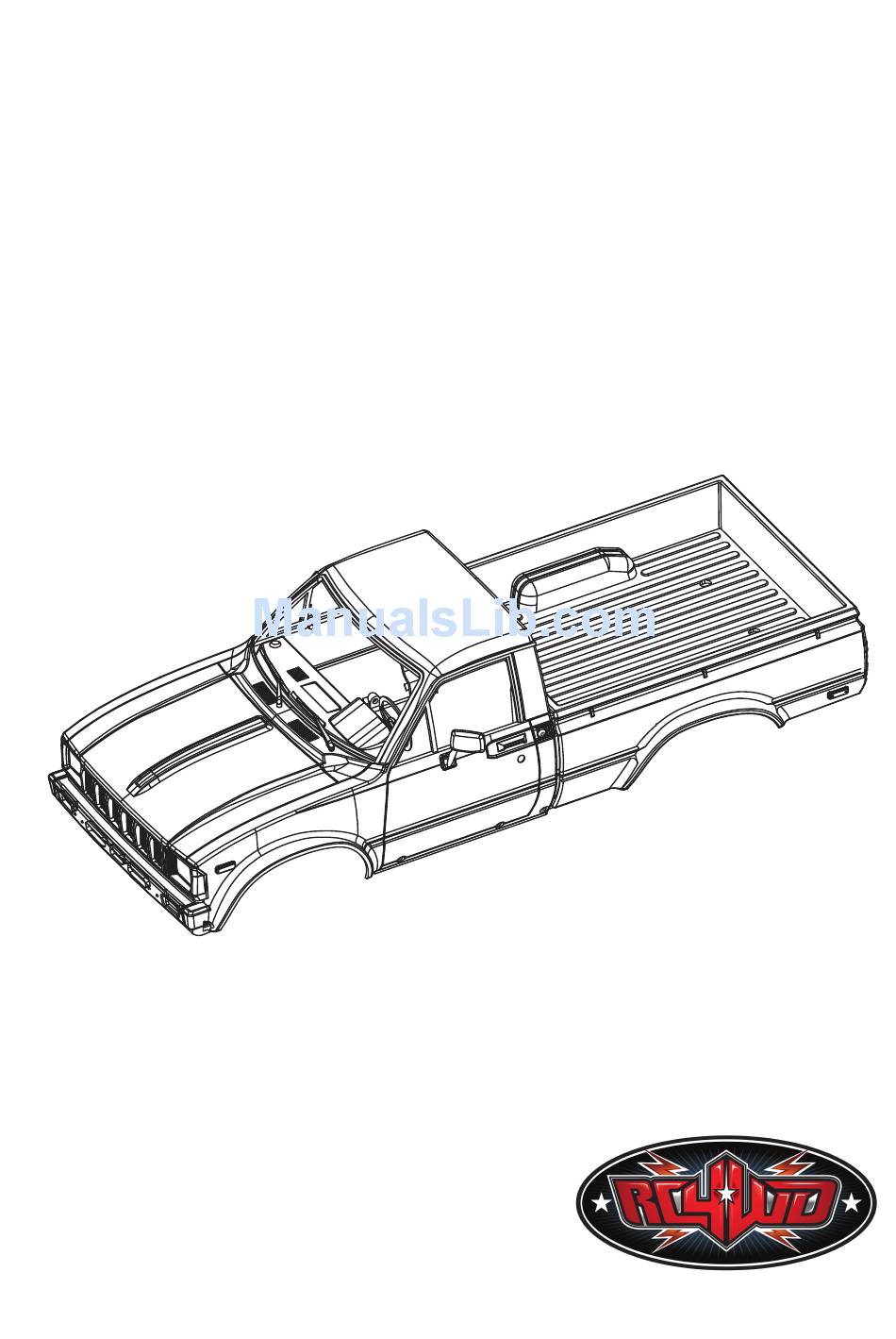

- Page 1 Mojave II 1/10 SCALE TRUCK BODY...
- Page 2 It is recommended that that body parts are painted with acrylic paint after removing the parts from the parts trees but before assembly. Test fit parts before applying glue and use glue sparingly. It is best to use Non -whiting CA glue Mojave II Body...
- Page 3 This warranty lasts as long as the original purchaser owns the product. In the event of a defect under this warranty, RC4WD will, at our discretion, replace the product, provided our inspection indicates that an original defect exists. RC4WD reserves the right to replace any product which is no longer available with a product of comparable value and function.
- Page 4 All hardware should be taken from Bag B ●1 Socket Head Cap Self Tapping Screws M2x6mm ●2 ●3 Glue required Instant glue/plastic cement Mojave II Body...
- Page 5 ●4 Socket Head Cap Self Tapping Screws M2x5mm ●5 Button Head Cap Self Tapping Screws M3x6mm Mojave II Body...
- Page 6 ●6 Socket Head Cap Self Tapping Screws M2x5mm ●7 Button Head Cap Self Tapping Screws M3x6mm Mojave II Body...
- Page 7 ●8 Glue required Instant glue/plastic cement Glue M1.6x5mm SHCS ●9 Glue required Instant glue/plastic cement Mojave II Body...
- Page 8 ●10 Glue required Instant glue/plastic cement ●11 Glue required Instant glue/plastic cement Glue Mojave II Body...
- Page 9 ●12 Button Head Cap Self Tapping Screws M3x6mm Mojave II Body...
- Page 10 ●13 M3x10mm BHCS M3 Locknut ●14 Install rear light cover Mojave II Body...
- Page 11 M2x8mm Tapping Screw ●15 Glue required Instant glue/plastic cement Glue Mojave II Body...
- Page 12 ●16 glue required Instant glue/plastic cement M1.6x5mm SHCS Glue ●17 The windshield needs trimming before installation Mojave II Body...
- Page 13 ●18 Truck window installation ●19 The installation of dashboard sticker Mojave II Body...
- Page 14 ●20 Install the steering wheel and the mount glue required ●21 Windows and instrument panel installation Mojave II Body Mojave...
- Page 15 22 Glue required Glue Mojave II Body Mojave...
- Page 16 ●24 M3x10mm BHCS Locknut ●25 Glue required Instant glue/plastic cement Mojave II Body...
- Page 17 Mojave II Body...

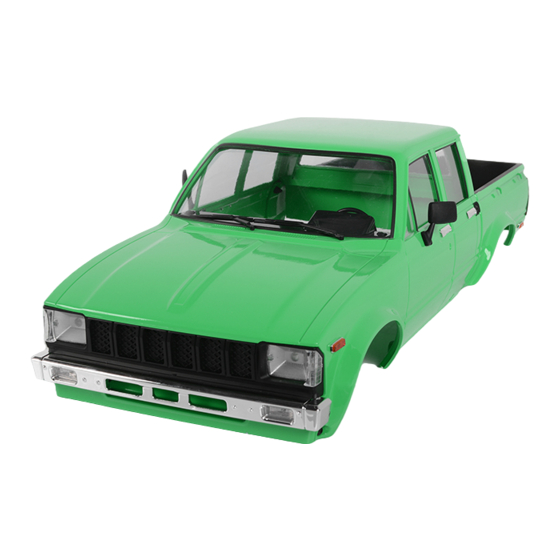

- Page 18 Mojave II Included parts RC4WD Mojave II Body Set for Trail Finder 2 (Primer Gray) (Z-B0084) RC4WD Mojave II Front Cab (Primer Gray) (Z-B0070) RC4WD Mojave II Rear Bed (Primer Gray) (Z-B0072) RC4WD Mojave II Cab Back Panels and Grill Parts Tree (Primer Gray)(Z-B0074)
