GreenWorks 32042a Owner's Manual

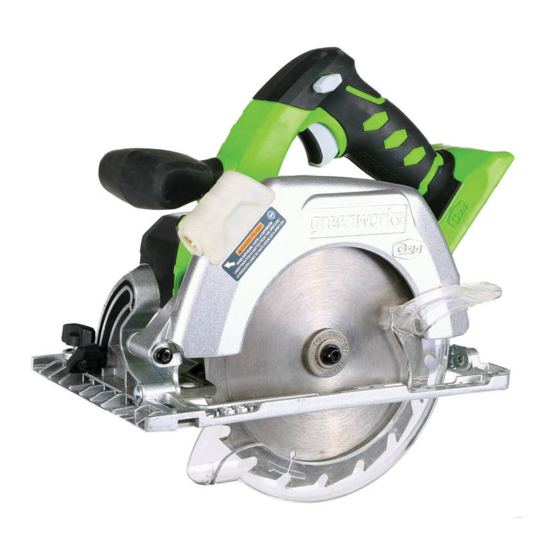

24v lithium-ion 6-1/2 in circular saw
Hide thumbs
Table of Contents

Advertisement

Available languages

Available languages

Quick Links

24V Lithium-Ion 6-1/2 in CIRCULAR SAW
32042a
BATTERY AND
CHARGER SOLD
SEPARATELY
OWNER'S MANUAL
TOLL-FREE HELPLINE: 1-888-90WORKS
(888.909.6757)
www.GreenWorksTools.com
Read all safety rules and instructions carefully before operating this tools.

Advertisement

Chapters

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 32042a and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for GreenWorks 32042a

Summary of Contents for GreenWorks 32042a

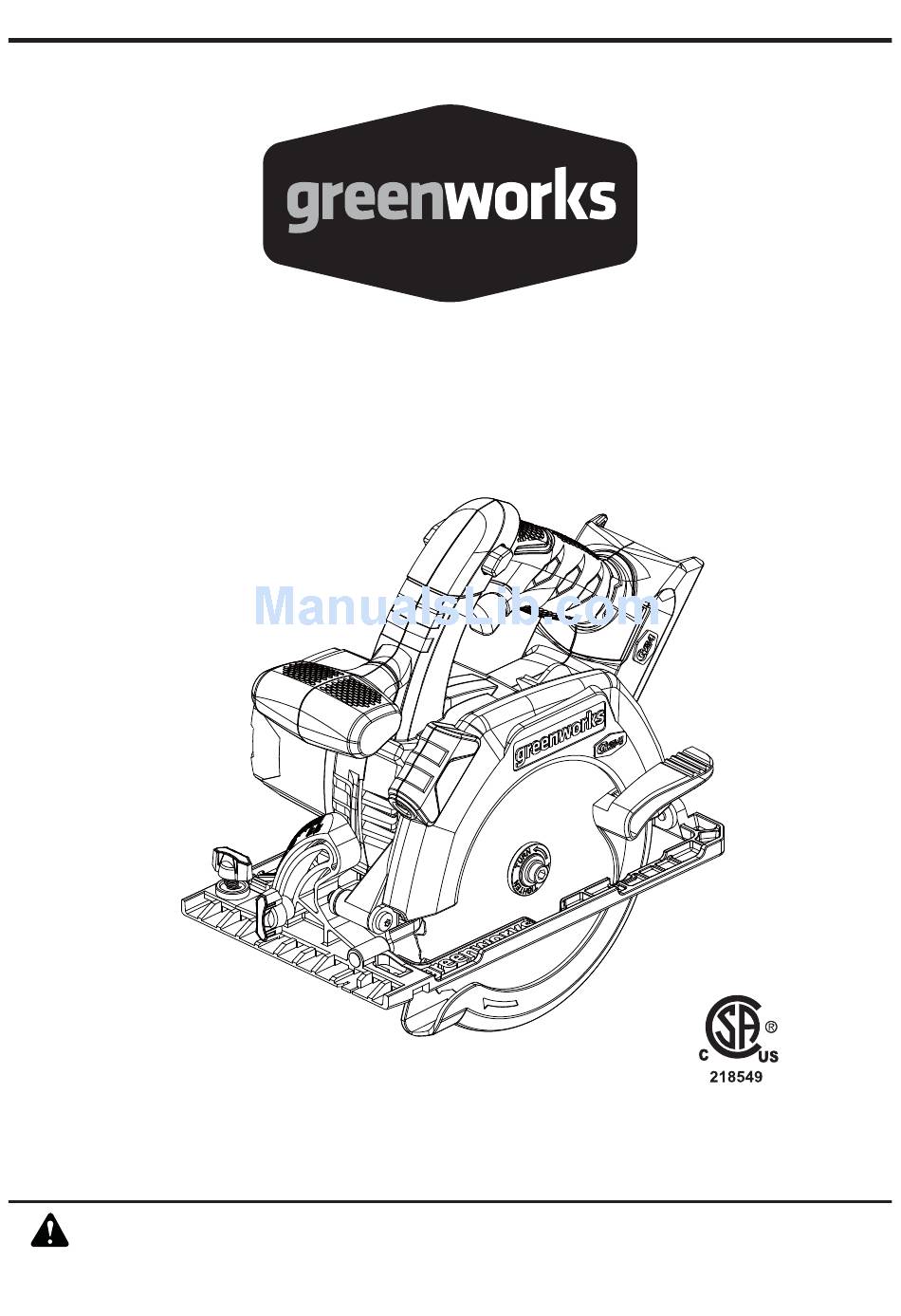

  • Page 1 24V Lithium-Ion 6-1/2 in CIRCULAR SAW 32042a BATTERY AND CHARGER SOLD SEPARATELY OWNER’S MANUAL TOLL-FREE HELPLINE: 1-888-90WORKS (888.909.6757) www.GreenWorksTools.com Read all safety rules and instructions carefully before operating this tools.
