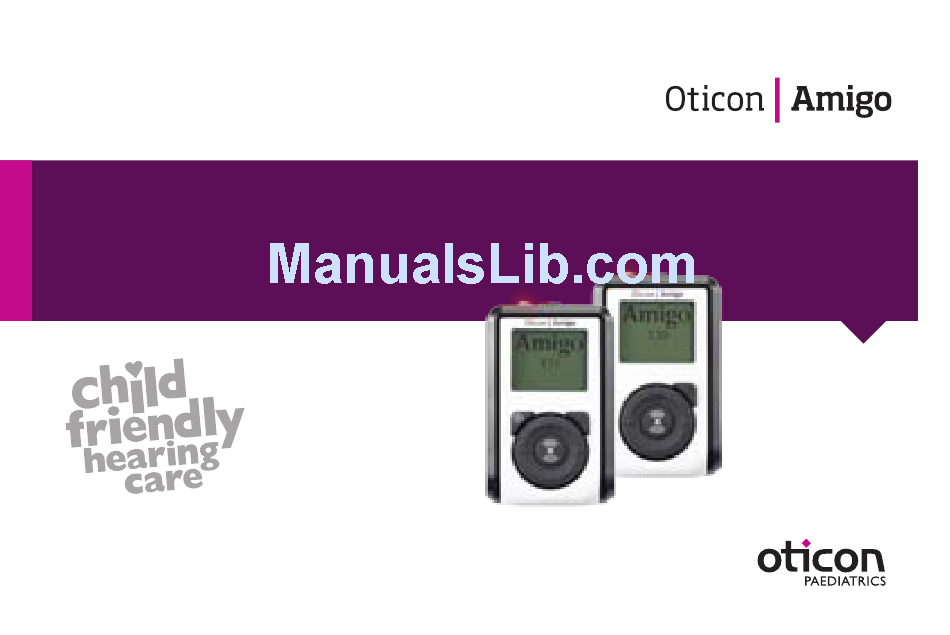

- Page 1 InstructIons for use t30/t31...
- Page 2 Congratulations on your decision to take the next step in improving classroom FM. With the Amigo T30 and T31 FM transmitters, you will experience all the benefits that comes with a product family that is designed to meet the needs that arises through everyday use.
-
Page 3: Table Of Contents
contents Typical package content T30 and T31 special functions Overview of the T30/T31 LED / Display legend Preparing your Amigo system Microphone options Charging the battery Cleaning of the T30/T31 Selecting language and country (first time only) Appendix A: Troubleshooting The Amigo Receivers Appendix B: Manufacturer’s warranty Changing the pin orientation... -
Page 4: Typical Package Content
Please familiarise yourself with the entire contents of this booklet before using your Amigo T30/T31. The booklet contains various statements, safety instructions and Aux cables Monitoring earphones Omni microphone important information about the use and handling of the Amigo T30/T31... -
Page 5: Overview Of The
overview of the t30/t31 preparing your amigo system LED status indicator Inserting battery ON/OFF/Mute Remove the battery lid on the back of the transmitter and 2.5 mm microphone jack insert the rechargeable battery – remember to position the battery according to the markings (+/ -) on the label. Then replace the battery lid. -
Page 6: Charging The Battery
• Special “silver-banded” rechargeable batteries (Only available through your hearing care professional, these are the only batteries The Amigo T30/T31 uses one AA rechargeable NiMH that can be recharged inside the transmitter.) battery, which must be charged for 14 hours before being used for the first time. -
Page 7: Selecting Language And Country (First Time Only)
selecting language and country (first time only) the amigo receivers Turn the transmitter on by pressing and holding the On/Off button for two seconds. LED status indicator Press ▲ or ▼ to select language, and confirm by pressing the SYNC button. 3-position mode switch To select your country, use the ▲... -
Page 8: Changing The Pin Orientation
Hearing instrument Note: To ensure optimal antenna performance, the Amigo R1/R2 must be positioned connector with the LED facing either to the front or to the back. Oticon Safari with the dedicated, Amigo R12 receiver. Channel seek/Off Note: Visit www.Amigofm.com for a comprehensive list of the hearing instruments that... -
Page 9: Choosing And Changing Channels
choosing and changing channels synchronising amigo receivers To change the transmitting channel on the Amigo transmitter, press and hold either Connect the receiver to a hearing instrument, and turn it on. Check that the receiver the ▲ button or the ▼ button for two seconds to select one of the predefined lists of switch is set to one of the two ON modes. -
Page 10: Synchronising Other Manufacturers' Receivers
synchronising other manufacturers’ receivers When the receiver’s LED is on, it confirms that: • The hearing instrument battery is ok The T30/T31 are compatible with most other manufacturers’ receivers. However, Amigo • The receiver is on receivers can only be synchronised wirelessly by Amigo transmitters. •... -
Page 11: About Channels
about channels using the tt-function (t31 only) Your Amigo system is a radio device, and like any other radio, it communicates on specific Enable the TT-function on the T31 by pressing the button. channels. Your transmitter and receiver must be on the same channel to work together. The screen will then show the primary channel being used Within a close proximity, never operate two transmitters on the same channel –... -
Page 12: Connecting External Audio Sources (Tv, Mp3 Etc.)
connecting external audio sources (tV, mp3 etc.) To change the primary channel press ▲ or ▼. To change the team teaching channel press followed by either ▲ or ▼ to move up or down the channel list. To go back to the primary channel press . -
Page 13: T30 And T31 Special Functions
t30 and t31 special functions Feature How to Feature How to Mute the transmitter One quick press on the On/Off button One-touch Team Teaching (T31 only) Press the TT button. This will provide mutes the transmitter. access to the primary and team teaching channels. -
Page 14: Led / Display Legend
LeD / Display legend The LED on the T30/T31 indicates the following: Feature How to Display meaning Flip display 180° Press the “C” button and the ▲ button. Steady red On and You can reverse the rotation by pressing transmitting both buttons again. -
Page 15: Microphone Options
The T30/T31 is moisture repellent, making it very easy to clean with a damp cloth. and attach the microphone either to your clothes Oticon recommends cleaning on a regular basis. or to the lavaliere cord. The lavalier cord allows you to wear the microphone around your neck. -
Page 16: Appendix A: Troubleshooting
appendix a: troubleshooting The receivers cannot be synchronised Synchronisation takes place wirelessly, problem solution so if the receiver fails to confirm (with The battery will not charge Check that it is positioned correctly. three blinks of the LED), try to move Make sure that it is the “silver-sleeved”... -
Page 17: Appendix B: Manufacturer's Warranty
B: manufacturer’s warranty What is not covered by this warranty? This one-year limited warranty does not cover: The manufacturer, Oticon, issues a one-year limited warranty to the original consumer • Malfunctions resulting from abuse, neglect or accident. of this product. - Page 18 Your point of purchase may have Receiver left: issued a warranty that goes beyond the clauses of this limited warranty. Please consult your point of purchase for further information. Receiver right: Oticon A/S Kongebakken 9 DK-2765 Smørum Denmark...
-
Page 19: Warnings
(feedback) if the battery is low, or if it is subjected to loud sound while the microphone is off but the receiver is still on. Users should be aware that these sounds should not be confused with warning Hereby Oticon declares that this Amigo is in compliance with the essential requirements sounds – e.g. car horns in traffic. - Page 20 The Amigo T30/T31 contains an FM radio transmitter operating on a country specific tuning range in Battery use: • Always use NiMH rechargeable batteries or alkaline batteries. the frequency band 169 MHz - 217 MHz, with emission power below 10mW. Furthermore a short range •...
- Page 21 It takes a truly dedicated approach to help children with hearing problems achieve their full potential. That’s why we deliver the solutions and services that professionals and caregivers need to provide children the opportunities they deserve. This is what child-friendly hearing care is all about.
