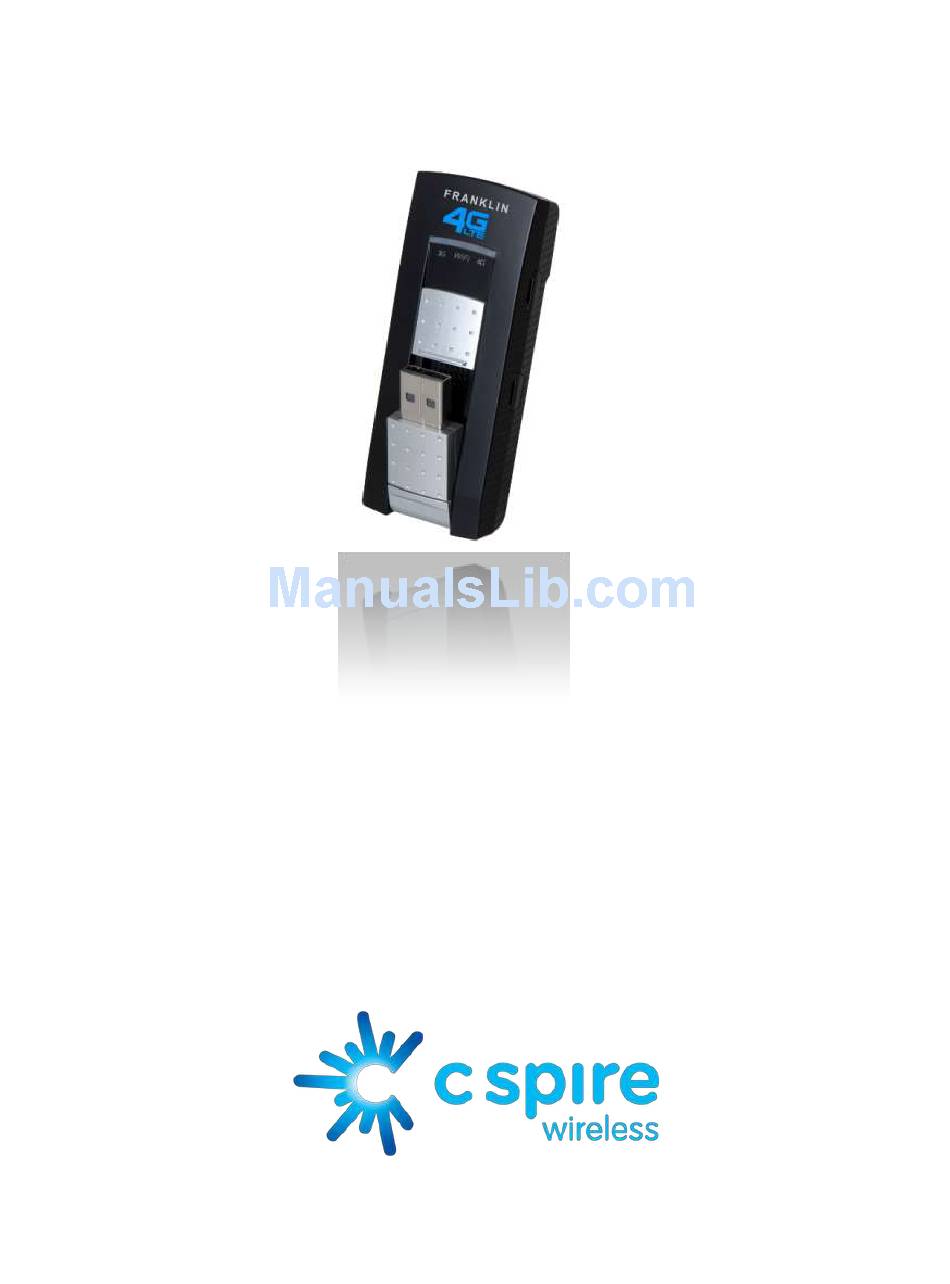

- Page 1 C Spire Wireless 4G LTE Smart USB Modem U772 User Guide...
-
Page 2: Table Of Contents
Insert USIM Card ........................2 Set Up Your Device (Window XP users only) ................. 2 Activate Your Device ......................4 C Spire Account Information and Help ..................4 C Spire Account Passwords ....................4 Manage Your Account......................5 Your Device; USB modem and Wi-Fi hotspot ................. 5 Use as an USB Modem ....................... - Page 3 The Wi-Fi Menu ........................14 Wi-Fi Profile ........................14 Connected Devices ......................15 The Settings Menu ........................17 Connection Options ......................17 Advanced Settings ......................18 General Settings ........................19 Manual Configuration ......................20 Updates ..........................21 LAN Setting ........................22 The Help Menu ........................24 About ..........................24 User Guide .........................25 Regulatory Information ......................26 Appendix 1: LED Operation.......................29 Appendix 2: Glossary ........................31...
-
Page 4: Get Started
With the 4G LTE Smart USB Modem, you can access C Spire Wireless 4G LTE network for faster uploads, downloads from your computer. Built-in Wi-Fi tethering function allows you to share up to 100Mbps LTE connection with other Wi-Fi equipped devices such as laptops, tablets, smart phones, and more. -
Page 5: Insert Usim Card
Insert USIM Card Please ensure that the C Spire USIM card has been inserted prior to use. 1. To open the USIM cover located on the back, press down firmly(1), and drag down(20 as indicated in the image below. 2. Insert the USIM card as shown in the picture. - Page 6 Note: If you have inserted the device properly, Windows will inform you that it has found new hardware. Wait until Windows completes the “Found New Hardware” task. It is normal to hear a short beep each time you insert or remove the device. It is an audible notification that your computer recognizes the new hardware.
-
Page 7: Activate Your Device
Just insert C Spire SIM card into the SIM slot on the back side of the U772 device. ● If you received your device in the mail and it is for a new service account or a new line of service, it is designed to activate automatically. -
Page 8: Manage Your Account
If you are the account owner, you will create an account user name and password when you sign on to cspire.com. (Click My Account to get started.) Manage Your Account Manage your C Spire account from your computer or any phone. Online: cspire.com ● Access your account information. -
Page 9: Use As A Wi-Fi Hotspot
Note: When the U772 is directly connected to the USB port of your PC, it turns off Wi-Fi hotspot function automatically. The U772 works as a USB modem to your PC only. Depending on network availability the 3G LED light will flash green or the 4G LED light will flash blue when a connection is made. -
Page 10: Your Device's Browser Interface
Your Device’s Browser Interface This section contains information on your device’s browser interface. The Browser Interface Opening the Browser Interface The Landing Page Connecting to the Network Device and network menu The check usage menu The Wi-Fi menu The setting menu The help menu The Browser Interface The Web browser interface is a Web-based connection manager for your device. - Page 11 The main menu appears down across the top of the browser interface and allows for ease of Web browser interface navigation. Information regarding your current network connection can be seen in the Network Connection Box displayed down the left side of the main page. This box displays both 3G and 4G service signals which are available.
-
Page 12: Connecting To The Network
Automatic connection mode and preferred service mode can be set from “Setting” menu in the main menu bar (see page ##). ● Service Type: Displays service type your modem currently acquires. ● Signal strength bar: Displays your current signal strength. Supports 0- 6 levels of signal strength. -
Page 13: The Device & Network Menu
The Device & Network Menu The Device & Network menu allows you to view information about your device and network status. General Device and Network Information General Device ● Device Name – name of the device ● Device Description – description of the device... -
Page 14: General Network
● Manufacturer – manufacturer of the device ● Modem Model – model name of the device ● Hardware Version – hardware version ● CM Version – current CM version General Network ● IP Address – the current Internet Protocol address of the device ●... -
Page 15: Device And Network Information
● Phone Number (Mobile Data Number (MDN)) – the public ID for your specific wireless service ● MSID (IMSI_S) – internal ID C Spire uses to identify your account ● Home Carrier Name – name of the network operator ● Home Carrier ID – ID of the network operator ●... - Page 16 To reset usage data, click the reset button. If “Yes” button is clicked, usage data will be reset to 0 and date will be set to the current date.
-
Page 17: The Wi-Fi Menu
The Wi-Fi Menu The Wi-Fi menu allows you to review and change your device Wi-Fi tethering configuration. Please ensure that you have your device connected to external AC USB adapter. When your device is connected to the USB port on your PC, Wi-Fi won’t turn on. In order to see Wi-Fi menu, you have to login Admin with the password first. -
Page 18: Connected Devices
6. Click Save Connected Devices When you open the “Connected Devices” you can see the devices currently connected to U772 through Wi-Fi connection. The Connected device section has the following ; ... - Page 19 Date/Time – The date/time the device was detected by the network. MAC Address – The Media Access Controller or physical address of the device IP Address – The IP address assigned to the device by U772 Click Refresh button to renew the connected device list.
-
Page 20: The Settings Menu
The Settings Menu The Settings menu allows you to set your Connection Options and your Advanced Settings. In order to see Advanced Settings, you have to login Admin with the password first. Default password is “admin”. You can change Admin password from the Setting menu. -
Page 21: Advanced Settings
Enable Auto Connection 1. Select or clear the Enable Auto Connection check box. 2. Click Save. Note: If you click Connect, Enable Auto Connection will be cleared automatically regardless of whether Enable Auto Connection was selected before rebooting the device. Change Your Connection Options 1. -
Page 22: General Settings
General Settings Selecting the General Settings tab displays the following options: LED Control LED Control allows you to turn the LED on or off. To turn the LED on or off: 1. Select or clear the Disable LED check box. 2. -
Page 23: Manual Configuration
Advanced Settings Password The Advanced Settings Password allows you to change the password. To change your password: 1. Enter the original password in the Original Password field. 2. Enter your new password in the New Password field. 3. Re-enter your new password in the Confirm New Password field. 4. -
Page 24: Updates
Manual Configuration consists of three submenus (LTE Configuration / 3G Configuration). LTE Configuration The LTE Configuration box allows you to change the 4G LTE profile. To modify the LTE profile: 1. Select proper profile in the list. 2. Click Save button. Note: Changing profile can result in LTE connection malfunction. -
Page 25: Lan Setting
Needs C Spire’s input how to host new software, and URL info. Check System Upgrade The Check System Upgrade tab reflects your current software version and allows you to upgrade the Web browser interface as needed. To get the latest Web browser interface: 1. - Page 26 ● IP Address – IP Address that your PC is assigned by your device ● Subnet Mask – Subnet Mask that your PC is assigned by your device ● Enable DHCP Server – Enable it to automatically assign IP address to other Wi-Fi client devices.
-
Page 27: The Help Menu
The Help Menu The Help menu allows you to view system information and the online user guide. About When you open the About, it displays the following device information: ● System Name – the current system name ● CM Version – the current Web browser interface version... -
Page 28: User Guide
User Guide When you open User Guide, it downloads the user guide on the host system. -
Page 29: Regulatory Information
Regulatory Information WARRANTY Manufacture’s Limited One-Year Warranty: Franklin Wireless (the company) warrants to the original retail purchaser of this device, that should product or any part thereof, during normal consumer usage conditions, be defective in material or workmanship that results in product failure within the first twelve (12) month period from the date of purchase, such defects will be repaired or replaced (with new or refurbished) product at the Company’s discretion, without charge for parts and labor directly related to the defect(s). -
Page 30: Sar Information
FCC ID: RB2-U772. Additional information on Specific Absorption Rates (SAR) can be found on the Cellular Telecommunications Industry Association (CTIA) web-site at http://www.wow-com.com. * In the United States and Canada, the SAR limit for mobile modems used by the public is 1.6 watts/kg (W/kg) averaged over one gram of tissue. -
Page 31: Fcc Compliance Information
(2) This device must accept any interference received, including interference that may cause undesired operation. RF Exposure Statement FCC ID: RB2-U772 Warning: Exposure to Radio Frequency Radiation The radiated output power of this device is far below the FCC radio frequency exposure limits. -
Page 32: Appendix 1: Led Operation
Appendix 1: LED Operation Your device has LED lights that indicate the following details. USB Modem LED Colors LED Color (Left) LED Color (Right) Wi-Fi LED Color (Center) powered by LED Status 3G Mode 3G Enabled 4G Disabled Shutdown Mode 3G in service and Stand by Ready to Connect Power ON Boot and Reset... -
Page 34: Appendix 2: Glossary
Appendix 2: Glossary 1X: Internet at lower speed than EV-DO. Technical max speed is 153kbps. 3G: Third generation, referring to the 3 generation wireless cellular technology. 4G: Fourth Generation, referring to the 4th generation of wireless celluar technology. ... - Page 35 LAN: Local Area Network. A type of network that lets a group of computers, all in close proximity (such as inside an office building), communicate with one another. It does not use common carrier circuits though it can have gateways or bridges to other public or private networks.
- Page 36 WPA/WPA2: Wi-Fi Protected Access. A security protocol for wireless 802.11 networks from the Wi-Fi Alliance.
