Summary of Contents for RBH Sound UNC100
-

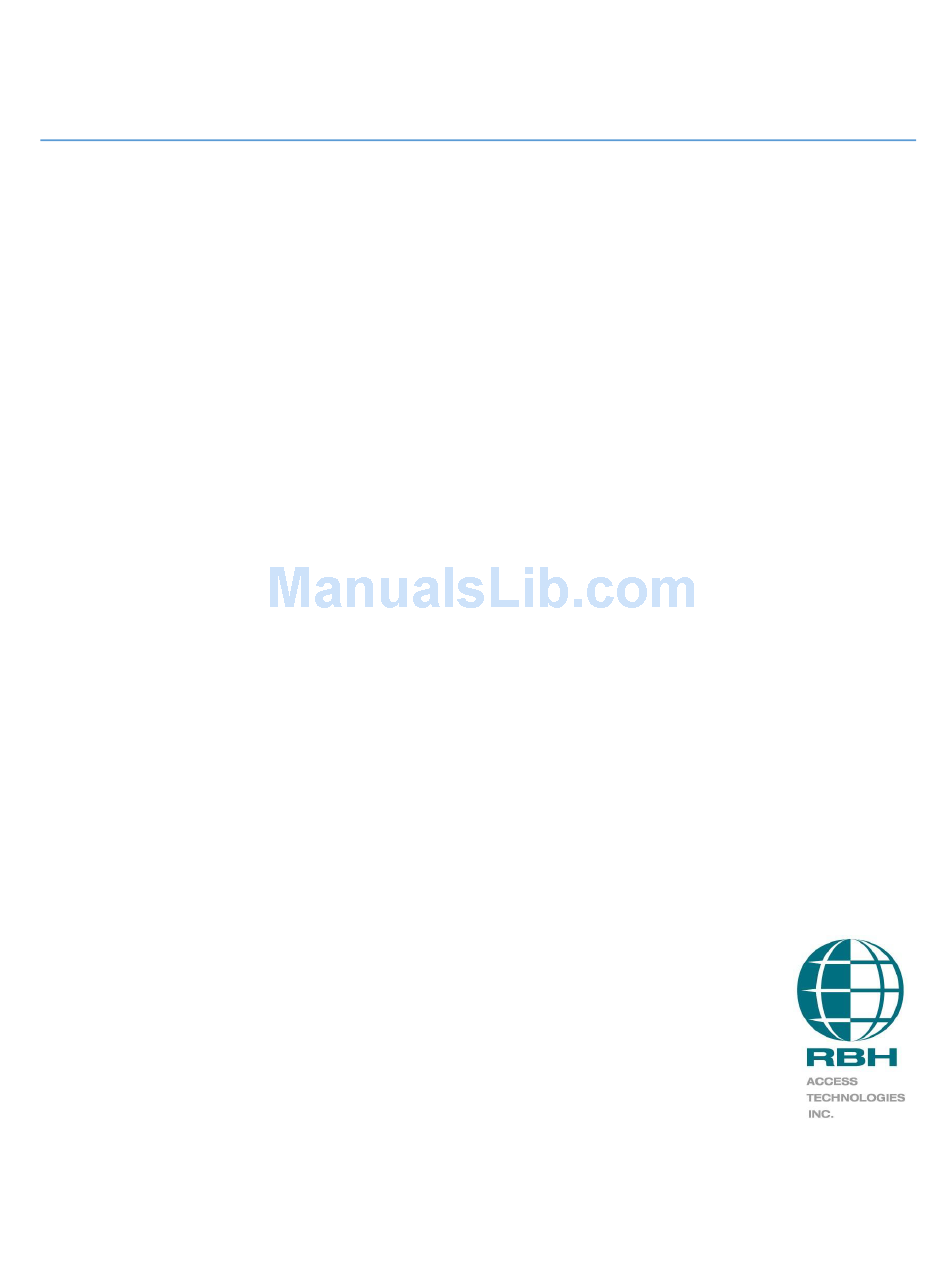

Page 1: New Generation
UNC100 Integra Manual New Generation Building Security July 30, 2014 – V1.2... -
Page 2: Copyright Notice
Technologies Inc. to notify any person or organization of such revision or changes. RBH ACCESS TECHNOLOGIES INC. 2 Automatic Road, Suite 108 Brampton, Ontario CANADA L6S 6K8 UNC100 Axiom Hardware Manual V1.2 RBH Access Technologies Inc. Page 2 of 20... -
Page 3: Revision History
12V to 12v – 14v Changing battery charger spec Editing of text: 07/30/14 -Changed graphic -Removed relevant information -Confirmed correct specifications Added ULC text. 08/06/14 Reconfigured order of pages. UNC100 Integra Hardware Manual V1.2 RBH Access Technologies Inc. Page 3 of 20... -
Page 4: Table Of Contents
DIP Switch Settings ............................8 Controller Addressing ............................ 9 RS485 (HOST) Port Baud Rate Selection ...................... 10 Host Connection............................11 PC to UNC100 Connection – RS485 Wiring ....................11 UNC100 TCP/IP Connection ......................... 12 Reader Interface ............................14 Reader Connection ............................14 Outputs ................................ - Page 5 Door Held Open Alarm ......................... 19 Keypad / Reader Combination ......................19 Access Granted ............................ 19 Access Denied ............................19 UNC100 Specification........................... 20 Cable Specification ............................20 UNC100 Integra Hardware Manual V1.2 RBH Access Technologies Inc. Page 5 of 20...
-

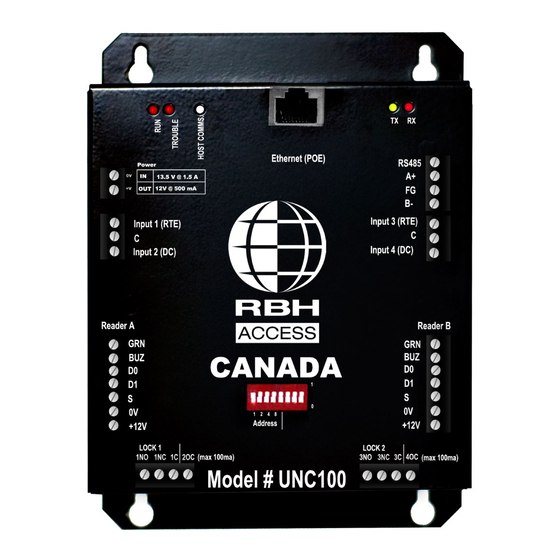

Page 6: Panel Graphics
Panel Graphics UNC100 Axiom Hardware Manual V1.2 RBH Access Technologies Inc. Page 6 of 20... -
Page 7: Introduction
Introduction The UNC100 has been designed as a two door access control panel with a built in local area network interface, that can also provide a single door in/out access point. The network interface also utilizes a POE (power over Ethernet) converter. -
Page 8: Power Input / Output
When not using POE, the jumper should be set to “IN”. The UNC100 controller requires 13.8VDC to be supplied from an external source. (Note: Although the unit can run on 12VDC, you will need 13.8VDC to be able to charge backup batteries. -
Page 9: Controller Addressing
Use DIP switches 1, 2, 3, and 4 to select the controller address. The address is binary coded and the switch settings for all fifteen possible addresses are given below. Controller Addressing Switch 1 Switch 2 Switch 3 Switch 4 Address Clear Memory UNC100 Integra Hardware Manual V1.2 RBH Access Technologies Inc. Page 9 of 20... -
Page 10: Rs485 (Host) Port Baud Rate Selection
Integra™ software. The default baud rate is 9600. Controller Baud Rate Selection DIP Switch 6 DIP Switch 7 Baud Rate 9600 38400 57600 115200 UNC100 Axiom Hardware Manual V1.1 RBH Access Technologies Inc. Page 10 of 20... -
Page 11: Host Connection
The controller is connected to either a serial port on the PC or through the local Ethernet via a static IP address. The means of communication is configured in the Integra™ software under the network’s properties under the Comms tab. PC to UNC100 Connection – RS485 Wiring Cable Specification Twisted pair, shielded, 18 to 22 AWG... -
Page 12: Unc100 Tcp/Ip Connection
IP address of the unit you can either use IP Locator [a utility program provided by RBH] or Telnet. PC to UNC100 Connection - LAN For ULC-S319-05 III compliance, all wiring into the panel’s cabinet must enter through metal conduit. - Page 13 Integra™ Network URC2000 panels may also be used in place of IRC-2000 panels. *** When UNC100 panels are used in conjunction with IRC2000 and URC2000 panels the last panel in the line must be terminated. UNC100 Axiom Hardware Manual V1.1 RBH Access Technologies Inc.
-
Page 14: Reader Interface
For ULC-S319-05 III compliance, all wiring into the panel’s cabinet must enter through metal conduit. Also be sure to mount the panel in a protected area. Reader wire colours may vary for different reader manufactures. Please verify your wiring. UNC100 Axiom Hardware Manual V1.1 RBH Access Technologies Inc. Page 14 of 20... -
Page 15: Outputs
Connect the diode cathode (end with band) to the positive terminal and the other end to the negative terminal. The diode must be placed at the device being switched and not at the controller. UNC100 Axiom Hardware Manual V1.1 RBH Access Technologies Inc. Page 15 of 20... -
Page 16: Output Operation
For ULC-S319-05 III compliance, all wiring into the panel’s cabinet must enter through metal conduit. Also be sure to mount the panel in a protected area. UNC100 Axiom Hardware Manual V1.1 RBH Access Technologies Inc. Page 16 of 20... -
Page 17: Supervised Inputs
Supervised Inputs The UNC100 has 4 fully supervised inputs. Each input is individually programmable from the PC Each input has four states: Restore, Alarm, Trouble, and Illegal. Trouble is reported if a short or break is detected on a supervised circuit and illegal is reported if the measured loop resistance lies between valid states. -
Page 18: Input Applications
Number Default Application General Purpose RTE (Request to Exit) Reader A DC (Door Contact) Reader A RTE (Request to Exit) Reader B DC (Door Contact) Reader B UNC100 Axiom Hardware Manual V1.1 RBH Access Technologies Inc. Page 18 of 20... -
Page 19: Request To Exit (Rte)
The Buzzer emits two short beeps and the red LED flashes twice. For ULC-S319-05 III compliance, all wiring into the panel’s cabinet must enter through metal conduit. Also be sure to mount the panel in a protected area. UNC100 Axiom Hardware Manual V1.1 RBH Access Technologies Inc. Page 19 of 20... -
Page 20: Unc100 Specification
20 to 22 AWG, 6 or 8-conductor, 500 feet (150 meters) stranded, shielded (not twisted) Input / Output Port Circuit Loop 2-conductor, 20 to 22 AWG 1000 feet (300 meters) UNC100 Axiom Hardware Manual V1.1 RBH Access Technologies Inc. Page 20 of 20...
