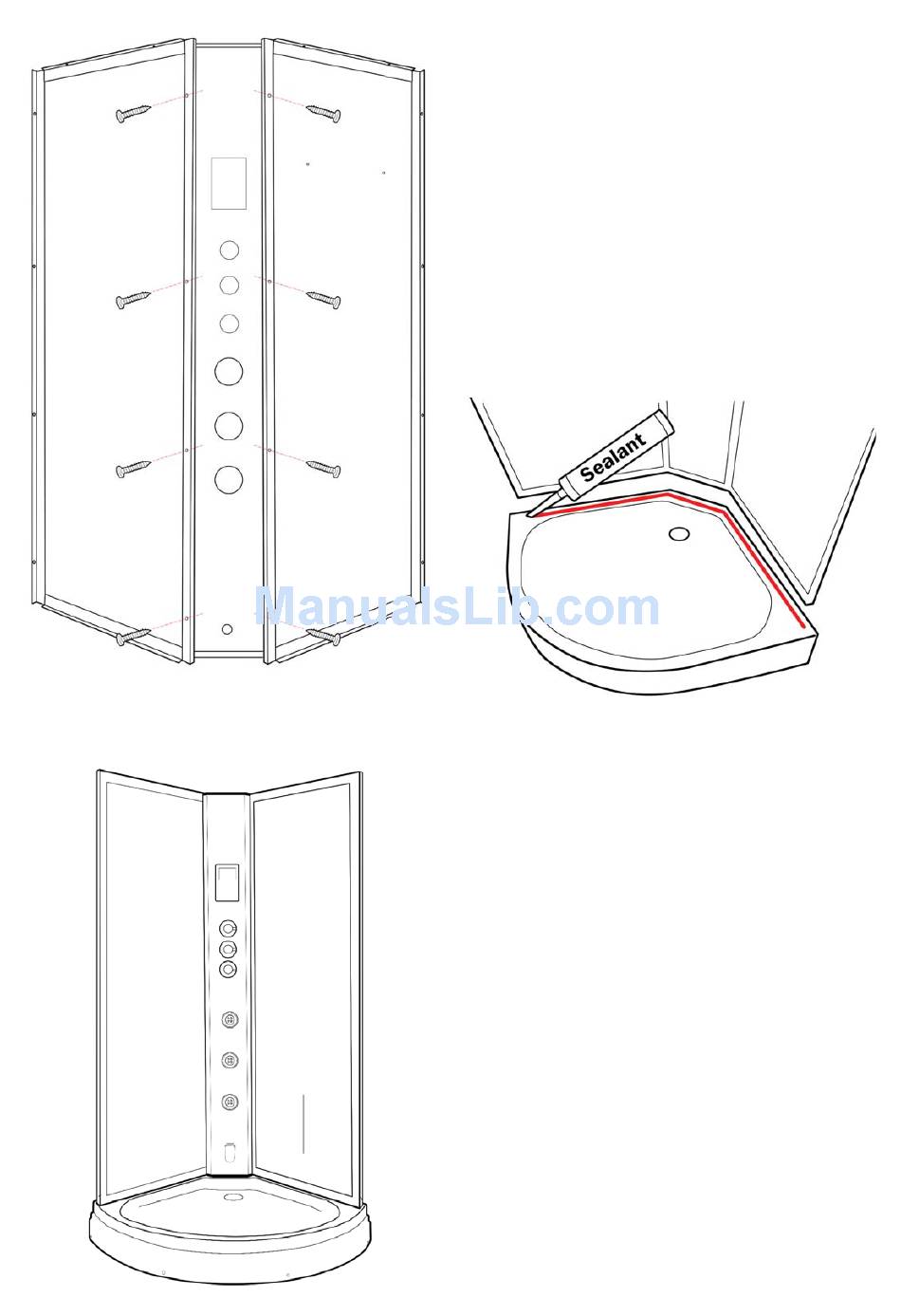

(Above) 8 x Short Screws used to join rear glass
panels to tower panel. (viewed from rear)
TIP: Only fi t each screw loosely at fi rst to allow
enough movement to locate every screw hole.
Once all screws are located in place, then tighten
each screw up fully.
Carefully lift the three joined sections onto the tray
into position.
A bead of sealant along the tray where the panels
will sit will provide a watertight barrier.
Remember to remove any excess sealant once the
panels have been seated into position.
DO NOT SCREW THE PANELS TO THE TRAY JUST
YET.
