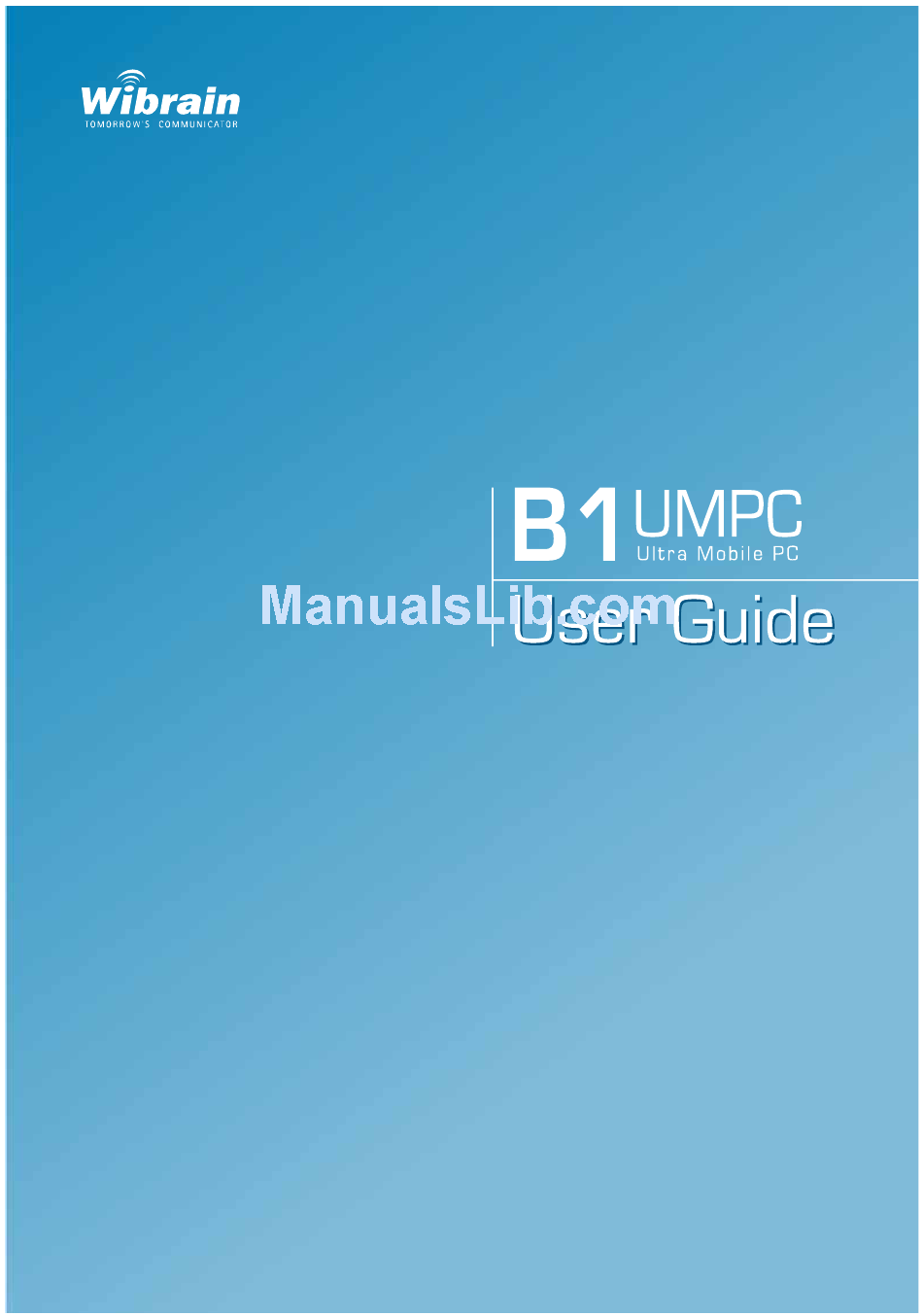

Wibrain B1UMPC User Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the B1UMPC and is the answer not in the manual?

Questions and answers

Related Manuals for Wibrain B1UMPC

Summary of Contents for Wibrain B1UMPC

  • Page 2: Table Of Contents

    Chapter 1 >> Getting Started Before You Get Started Safety Precautions Proper Posture During Product Use Important Safety Information Replacement Parts and Accessories Regulatory Compliance Statements Approval of Windows XP Overview...

  • Page 3: Before You Get Started

    Using the Index of the User Guide, you can easily find any information you are looking for. Using the glossary of the User Guide, you can easily find meanings for technical terms. If any problem occurs, refer to the FAQ included in the User Guide or refer to the website (www.wibrain.com). NOTE Some devices and software referred in the User Guide may not be provided and/or changed by upgrade.
  • Page 4 The information in this document is subject to change without notice due to improving the performance of the product. Wibrain shall not be liable for any data loss. Please take care to avoid losing any important data and backup your data to prevent any such data loss.

  • Page 5: Safety Precautions

    Safety Precautions For your security and to prevent damage, please read the following safety instructions carefully. Warning Failing to follow instructions marked with this symbol may cause personal injury and even fatality. Installation Related - Do not install the product in places exposed to humidity such as a bathroom. There is a danger of electric shock.
  • Page 6 Usage Related - Disconnect all cables connected to the product before cleaning it. There is a danger of electric shock or damage to the product. - Do not connect a phone line connected to a digital phone to the modem. There is a danger of a electric shock, fire or damage to the product.
  • Page 7 - Do not throw or disassemble the battery and do not put it into water. This may cause an injury, fire or explosion. - Use only a battery authorized by Wibrain, Inc. Failing to do so may cause an explosion.
  • Page 8 - Never disassemble or repair the product by yourself. There is a danger of electric shock or file. - To connect a device that is not manufactured or authorized by Wibrain, enquire at your service center before connecting the device.
  • Page 9 Cautions on Preventing Data Loss (Hard Disk Management) To prevent data loss due to damage to the hard disk drive, please backup your data frequently. - Take care not to damage the data on a hard disk drive. A hard disk drive is so sensitive to external impact that an external impact may cause loss of data on the surface of the disk.

  • Page 10: Proper Posture During Product Use

    Proper Posture During Product Use Maintaining a proper posture during product use is very important to prevent physical harm. The following instructions are about maintaining a proper posture during product use developed through human engineering. Please read and follow them carefully when using the product. Otherwise, the probability of (RSI: Repetitive Strain Injury) from repeated operations may increase and serious physical harm may be caused.
  • Page 11 Illumination ■ Do not use the product in dark locations. The illumination level for product use must be as bright so for reading a book. ■ Indirect illumination is recommended. Use a curtain to prevent reflection on the LCD screen. Operation Condition ■...

  • Page 12: Important Safety Information

    Important Safety Information. Important Safety Information Safety instructions Safety instructions Your system is designed and tested to meet the latest standards for safety of information technology equipment. Your system is designed and tested to meet the latest standards for safety of information technology equipment. However, to ensure safe use of this product, it is important that the safety instructions marked on the product However, to ensure safe use of this product, it is important that the safety instructions marked on the product and in the documentation are followed.

  • Page 13: Replacement Parts And Accessories

    Do not put rechargeable batteries or products powered by non-removable rechargeable batteries in the garbage. Contact Wibrain for information on how to dispose of batteries that you cannot use or recharge any longer. Follow all local regulations when disposing of old batteries.

  • Page 14: Regulatory Compliance Statements

    Regulatory Compliance Statements Wireless Guidance Wireless Guidance Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the Low power, Radio LAN type devices (radio frequency (RF) wireless communication devices), operating in the 2.4GHz Band, may be present (embedded) in your notebook system. The following section is a general overview 2.4GHz Band, may be present (embedded) in your system.

  • Page 15: Approval Of Windows Xp

    After installing or recovering of the Windows XP, you will see “Let’s activate Windows”. Check “Yes, let’s activate Windows over the Internet now”. b. Follow the instruction or visit Wibrain web-site (www.wibrain.com) and refer to FAQ. NOTE If the label of Windows XP gets damaged you may be in difficulty for getting the approval.

  • Page 16: Overview

    Overview In the Giftbox Device & Battery Windows CD Quick Start Soft Pouch Styles Pen Hand Strap USB Gender VGA Cable Adapter + Power Cable Optional Accessories External Battery Intelligent Pouch Earphones Desktop Cradle Car Cradle(for navigation) NOTE You can purchase optional accessories the shop where you bought the device. Do not remove labels or stickers on each item for the better repair service.
  • Page 17 Front View A / B Keyboard : Using the keyboards, users can enter letters or numbers directly. Avoid dropping water on the keypad. LCD : Displays the screen. Buttons : You can configure this button to launch a frequently used program Touch Pad (Synaptic) Back View WEBCAM : Using the front side camera.
  • Page 18 Hand Strap Hole : You can attach the hand strap at this hole for holding the device in safe. Battery : A lithium-Ion rechargeable battery supplies power for the product. Stylus Pen Slot : You can keep the stylus pen in this slot. The Stylus pen helps that you can enter programs on the touch screen.
  • Page 19 LED Status LED Icon Explanation Hold Caps Lock (Function) LED On LED Off blinking WiFi Power Power / Blue Hold / Blue WiFi / Blue Hold On Power On WiFi On Power Off Hold Off WiFi Off Windows Standby HDD / Green Caps / Blue Power / Red HDD Read...
  • Page 20 Chapter 2 >> Using the Product Turning the Product On and Off Entering Text...
  • Page 21 Turning the Product On and Off Turning On 1. Attach the battery or connect the AC adapter. 2. Push the power button. Turning Off 1. Click the “Start” button on the taskbar. 2. Click the “Turn off” button in the middle of the window. The product will be turned off. NOTE If the product does not shutdown properly due to a system error, push and hold the power switch for more than 4 seconds to turn it off by force.
  • Page 22 Entering Text : You can input characters using the Keyboards. Before You Get Started For long periods of use, use a normal keyboard or a USB keyboard for your convenience. Also connecting external monitor would be helpful for long time use. The Desk top cradle would be more convenient for connecting several USB devices and using ODD.
  • Page 23 Using Hotkeys Input Input with Fn key Input Function Remark Page Up Resolution Setting By pressing this button the Page Down (1024x600/ 800x600 / 800x480) menu would be changed. LCD Back Light Setting There’re 8 steps of brightness. Arrow Key ( ) + Brighter Arrow Key ( ) LCD Back Light Setting...
  • Page 24 Using Touch Pad It operates just like what a computer mouse does. Before You Get Started Use your fingers on it. The sharp objects may scratch or damage the touch pad surface. It may delay the booting time that you operate the pad while the device is in the middle of booting. Scroll Area : Touch Pad : It’s like a mouse wheel, you...
  • Page 25 Using Touch Screen Before You Get Started It is recommended to use a stylus pen. Sharp objects may scratch or damage the LCD surface. 1. Setting the touch screen “ Go to Program -> TDTOUCH -> TDTOUCH”.
  • Page 26 In the calibrate tab of the Techdine Touchware area, click the “Calibrate” button. Tap the crosshair(+) displayed on the screen with the stylus pen whenever it appears on the screen. If you have pressed all the crosshairs, the calibration finishing window pops up. Tap the OK button to apply the calibration result for the pointing position correction.
  • Page 27 Using WEBCAM : It shows how to use Webcam. How to Use Webcam Vimicro Camera Tunner is a program that enables users to enjoy taking pictures, video recording, capturing still cuts and video conferencing. Basic Usage The WEBCAM is for enjoying the video chatting. The resolution of default setting is 320x240 pixels and it supports upto 640x480 pixels.
  • Page 28 Icon Usage Preview : You can check a screen what the camera is showing. Capture : You can take a photo under the resolution you have set up. Record : You can record a video file under the resolution you have set up. Open Folder : You can open files that you have saved.
  • Page 29 Using the B1 Utility Program What the “Mfmgr”program is It’s executed automatically when the system is started. The setting will be saved and applied automatically. The features of “Mfmgr” program How to use “Mfmgr” program Double click the icon on the system tray. You can find a window pop up as below.
  • Page 30 Chapter 3 >> Using the Network Wireless Network Using Bluetooth Using Wired Network BIOS Setup Introducing Programs Battery Product Specifications...

  • Page 31: Wireless Network

    Wireless Network A wireless network (Wireless LAN) environment is a network environment that enables communicating between multiple products at home or a small-size office through wireless LAN devices. Before You Get Started The descriptions below are for models with a Wireless LAN card or device. To check the installed wireless LAN card, click Start ->...
  • Page 32 When the Network Connection window pops up, click View Wireless Networks. Select an AP to connect to and click Connect. It there is a configured network key for the AP to connect to, the Enter Network Key window appears. Enter the network key in the window and then click the Connect button. NOTE Ask your network administrator for the network key, if necessary.

  • Page 33: Using Bluetooth

    Using Bluetooth Bluetooth is wireless communications technology that allows access to nearby devices such as another computer, cell phone, printer, keyboard, mouse, ect. without a cable connection. Using Bluetooth, you can exchange files, connect to the Internet, and construct a private network. Before You Get Started The Bluetooth supporting function is only available between devices (a computer, cell phone, PDA, printer, etc.) and the connection may be restricted according to the profile of the corresponding device...
  • Page 34 BlueSoleil (Standard) Edition Quick Installation Guide Start up BlueSoleil Double click the BlueSoleil icon on the Windows Desktop. You can find the mail page of BlueSoleil as below. lick the red ball in the middle of the main page in order to start searching the Bluetooth devices nearby the product.
  • Page 35 At this time the Bluetooth device should be the pairing available status. Double click the device icon to browse its service. Note:In some cases, you need to make the trusted relationship between BlueSoleil and the remote device by inputting the same passkey on both sides. On BlueSoleil side, the following window will pop up, you can enter the passkey here.
  • Page 36 Cancelation : Right-click on the device icons and click the cancelation. Notice for Windows XP Expected outcome: 2-1. Installed Files & Directories (by default): Go to “Start -> Program -> IVT BlueSoleil -> BlueSoleil” BlueSoleil execution and support files. Go to “My Documents -> Bluetooth” Support directory. This is the directory for Object Push and Synchronization.

  • Page 37: Using Wired Network

    Using Wired Network A wired network is a network environment used for a company network or broadband internet connection at home. Connect a LAN cable to the LAN port of the Desktop Cradle (Optional Item). Go to Start -> Control Panel -> Network and Internet Connection -> Network Connection Right-click on the Local Area Connection and select Properties.

  • Page 38: Bios Setup

    BIOS Setup The BIOS Setup enables you to configure your product hardware according to your needs. Use the BIOS setup to define a boot password, change the booting priority, or add a new device. Since incorrect settings may cause your system to malfunction or crash, take care when configuring the BIOS. The functions of the BIOS setup are subject to change for product function enhancement purposes.
  • Page 39 Menu Description Main Used to change the basic system and environment settings. Advanced Used to configure advanced functions on your product around devices and chipsets. Security Used to configure security functions, including passwords. Used to set the boot priority and other boot options. Boot Used to finish the setup.
  • Page 40 3. Enter the password with the keypad and press the Enter button. Reenter the password and press the Enter button. You can use up to 7 alphanumeric characters for a password but you cannot use special characters. 4. When a message confirming the password configuration appears in the [Setup Notice] window, press <Enter>.

  • Page 41: Introducing Programs

    Introducing Programs Using the software supplied with the device, you can easily use functions and troubleshoot problems. Try to use the software after learning about the basic use of the software. For detailed information, refer to the help section of the corresponding software. Every software program may not be provided or the version may differ depending on your product model.

  • Page 42: Battery

    Battery Please refer to the following instructions when running the product on battery power without connecting the AC power. A Lithium-Ion battery is supplied with this product. Read carefully and follow the precautions printed on the battery before using the battery. Precautions Use only chargers specified in the User Guide.
  • Page 44 Chapter 4 >> FAQ, Troubleshooting & Support FAQ and Troubleshooting Warranty...
  • Page 45 Then install the battery pack to the product again. If the issue persists after performing the above, it means the installed battery pack is not compatible. Remove the battery pack and contact an authorized Wibrain Repair center. The battery cannot be charged.
  • Page 46 How to install the different Windows version. B1 has been optimized Windows XP. If you install the different Windows version, we cannot guarantee the proper operation. I could find a Window label that has been torn. If you can see the product key properly, there’s no problem. The original label is designed as it is for the protection purpose.
  • Page 47 CTK Co., Ltd. EMC: CTK Co., Ltd. The CE Marking on the products and/or their packaging signifies that WIBRAIN,INC. hold the reference technical file available to the European Union authorities. Place and date of issue: 306 JEI Platz, 459-11 Gasan-dong, Geumcheon-gu, Seoul, Korea /...
