Important
This platform supports dual-display and triple-display function.
Extend mode
(Extend the desktop to the second
and third monitor)
Clone mode
(Monitors have the same screen)

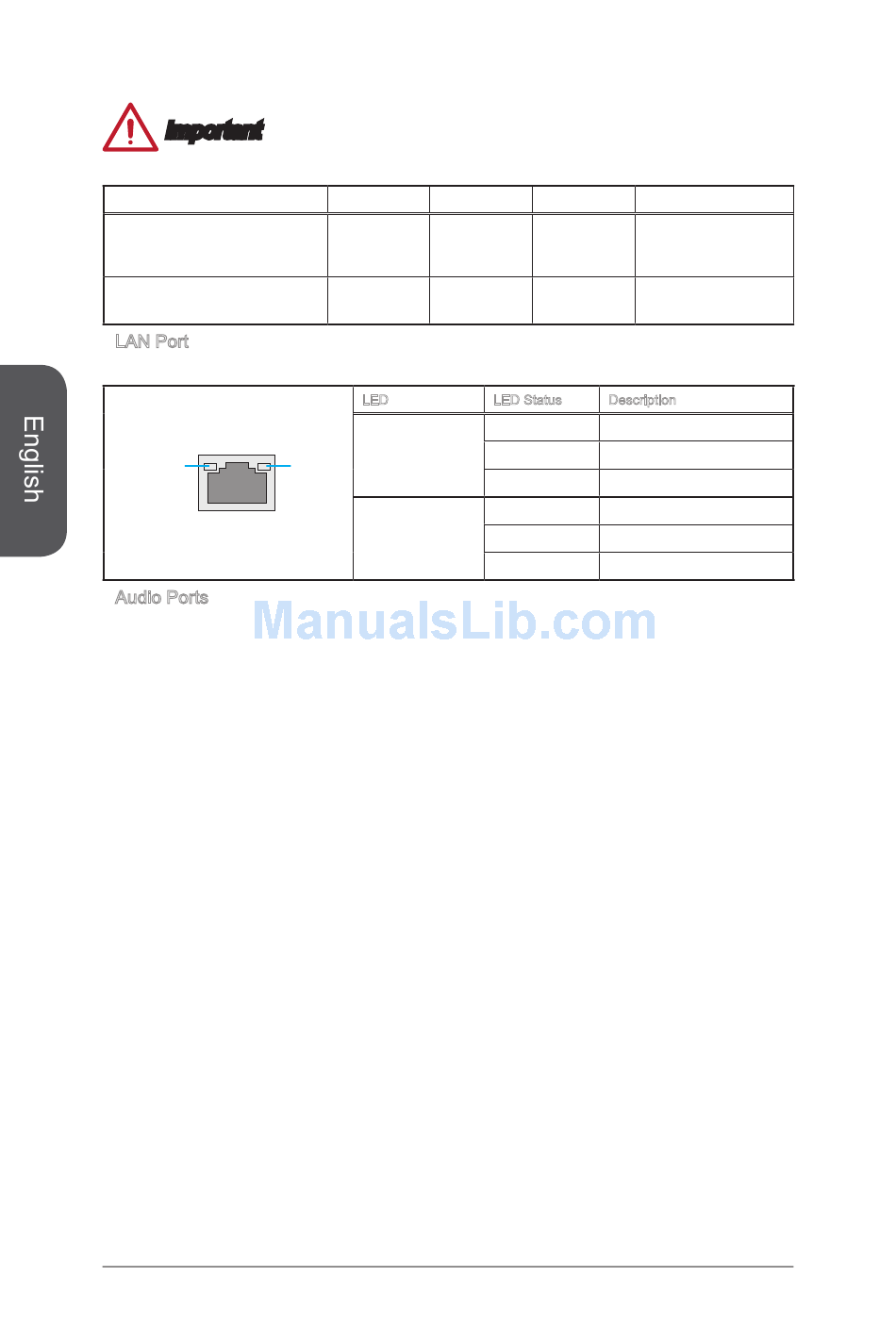

▶ LAN Port
The standard RJ-45 LAN jack is for connecting to a Local Area Network (LAN).
LINK/ACT
LED
▶ Audio Ports
These connectors are used for audio devices. The color of the jack refers to the
function of the connector.
■ Blue-Line in: Used for connecting external audio outputting devices.
■ Green- Line out: Used as a connector for speakers or headphone.
■ Pink- Mic: Used as a connector for a microphone.
HDMI+VGA HDMI+DVI
◯
◯
LED
Link/ Activity LED
SPEED
LED
Speed LED
En-8
VGA+DVI
◯ ◯
◯ ◯
LED Status Description
Off No link
Yellow Linked
Blinking Data activity
Off 10 Mbps connection
Green 100 Mbps connection
Orange 1 Gbps connection
HDMI+VGA+DVI
◯
◯
