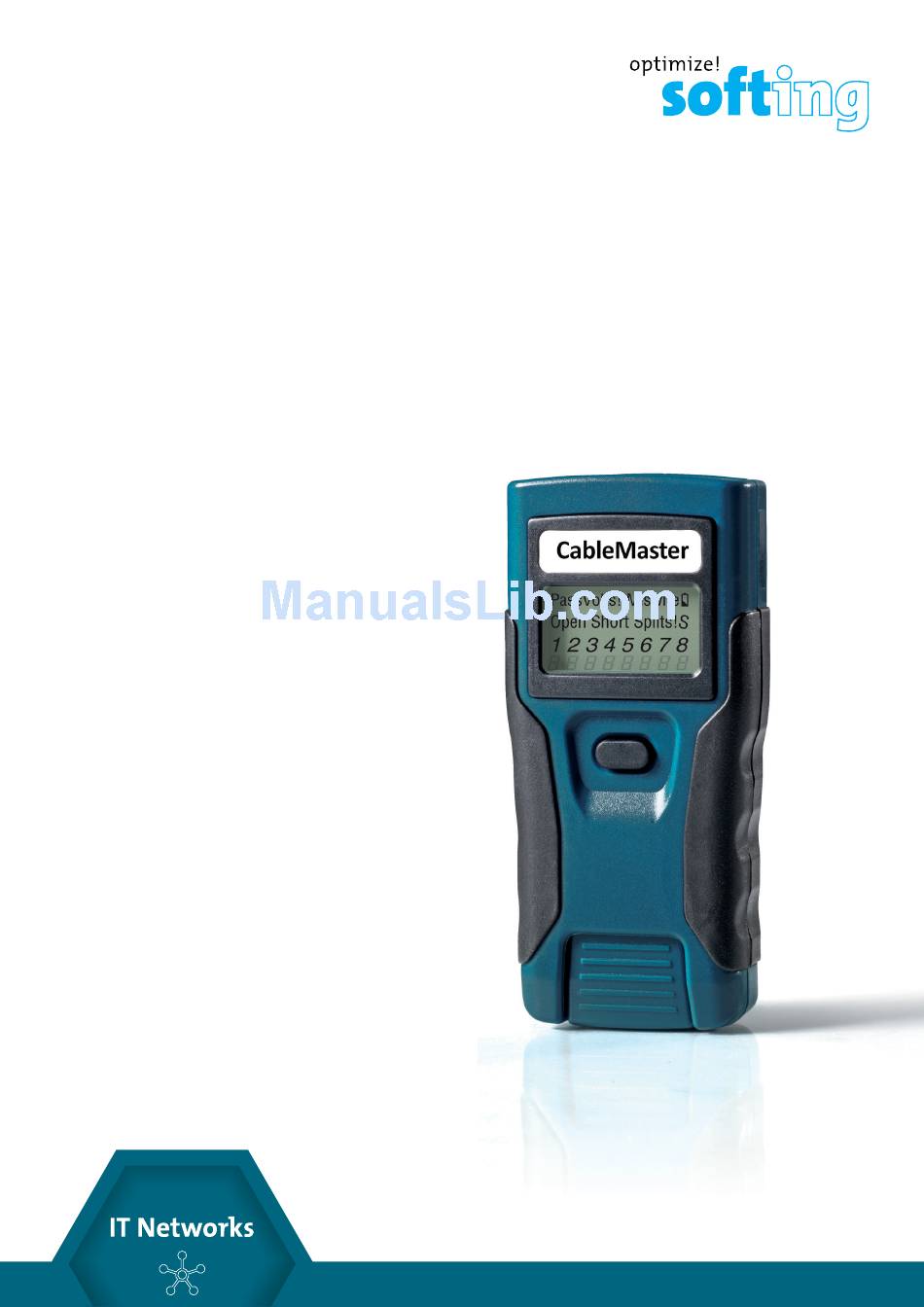

- Page 1 CableMaster CM200 Compact and economic cable tester • Easy to read LCD Screen • Data Cable Testing • Detects shorts, opens, reversals, miswires, and split pairs • Tone generator • Auto power-off USER MANUAL http://itnetworks.softing.com...
-
Page 2: Table Of Contents
T568A Cable with a Short and Open: ............ 7 T568A Cable with a Miswire and Unrecognized Continuity: ....7 MAINTENANCE ..................8 Cleaning ....................8 Storage ....................8 Disposal / Recycle ................. 8 CUSTOMER SERVICE ................8 Contacting Softing IT Networks ............8 Warranty ....................9 http://itnetworks.softing.com... -
Page 3: General Specifications
GENERAL SPECIFICATIONS The CableMaster 200 is a portable data cable tester. It tests and troubleshoots RJ45 terminated cables and provides built-in tone generation for cable tracing. Dimensions: 4.6” x 2.3” x 1.1” (11.7 x 5.8 x 2.8 cm) Weight: 4.0 oz. (115 grams) with battery and remote Operating Temperature: 0°C to 50°C / 32°F to 122°F Storage Temperature:... -
Page 4: Operations
7. Voltage Detected Warning: If voltage is detected on any of the tester connectors, the “Voltage!” icon illuminates. A check for voltage is performed before each test and if found, no test is run. The tester should be disconnected immediately from the source of the voltage. http://itnetworks.softing.com... -
Page 5: Control Button
CONTROL BUTTON The CableMaster 200 has a single button to both start a test and select other functions and options. Presses of less than about 1 second (short press) and more than 1 second (long press) are recognized differently. 1. Cable Testing (short press): With the CableMaster 200 off, each short press of the button causes a cable test to be executed and the results displayed for 20 seconds before powering off. -
Page 6: Wiring And Display Examples
7-8. This will produce the correct continuity, but the pairs are designated to be on pins 3-6 and 4-5 in the middle of the connector for compatibility with phone wiring. This wiring error is only detected by the split pair test since the designated pairs are not twisted together. http://itnetworks.softing.com... -
Page 7: T568A Cable With A Short And Open
T568A CABLE WITH A SHORT AND OPEN: CableMaster200 The 1-2 pair pins are shorted together and the 7-8 pair is open. The pins with the errors are flashing. Dash lines (-) on the bottom (remote) display line indicate theshort, while no numbers on the bottom line indicate the open pair. -
Page 8: Maintenance
Klein Tools for proper disposal options. CUSTOMER SERVICE CONTACTING SOFTING IT NETWORKS For technical information and support please contact the Softing Office in your country. Please see the last page of this manual or go to http://itnetworks.softing.com. http://itnetworks.softing.com... -
Page 9: Warranty
©2017 Softing IT Networks. In line with our policy of continuous improvement and feature enhancement, product specifications are subject to change without notice. All rights reserved. Softing and the Softing Logo are trademarks or registered trademarks of Softing AG. All other trademarks, registered or unregistered, are sole property of their respective owners. - Page 10 E-mail: info.france@softing.com Italy Softing Italia Srl. Cesano Boscone, Milano Phone: +39 02 4505171 E-mail: info@softingitalia.it Austria Buxbaum Automation GmbH Eisenstadt Phone: +43 2682 7045 60 E-mail: office@myautomation.at For technical information and support please contact the Softing office in your country. http://itnetworks.softing.com...
