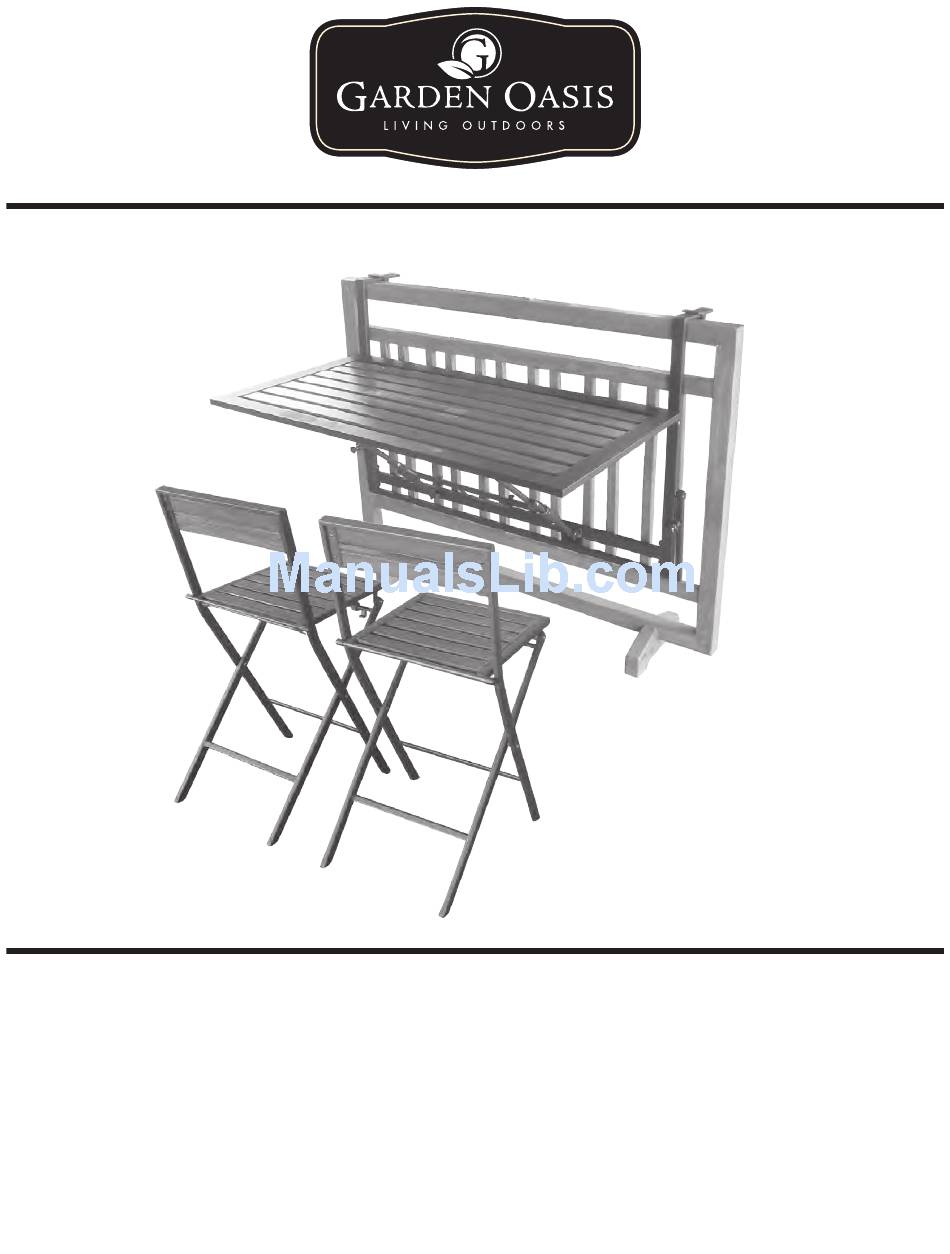

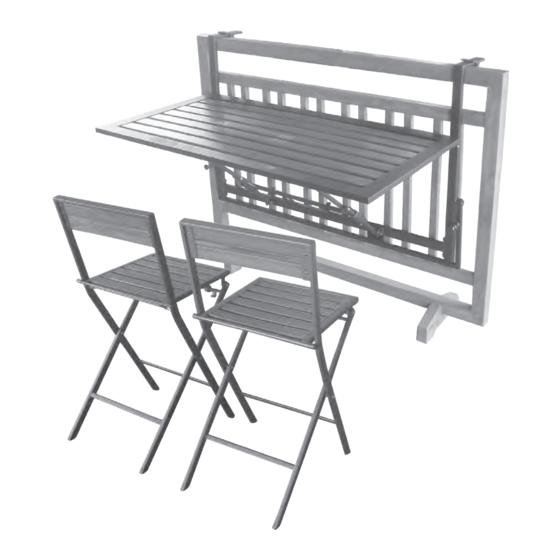

- Page 1 OWNER’S MANUAL Franklin 3pc Endurowood Hang Up Bar Set Product Code: D71 M34618 UPC Code: 667930051818 Date of Purchase: _____/ _____/ _____...
-
Page 2: Parts List
ATTENTION: THIS PRODUCT IS NOT FOR COMMERCIAL USE INTENDED FOR RESIDENTIAL USE ONLY. TWS40GZ PARTS LIST PART PART MATERIAL CODE PART Q’TY MATERIAL CODE PART Q’TY TGS40GZ-CS01 17C33A0706001Y4 RIGHT VERTICAL SUPPORT BOLT M6*16 TGS40GZ-CS02 17C33A0756001Y4 LEFT VERTICAL SUPPORT BOLT M6*28 TWS40GZ-CS01 17FA05040301-Y4 TABLE TOP... - Page 3 STEP 3 STEP 4 #8 BOLT M6*28 Note: There are 5 adjustable positions on the table supports, which adjust from 95mm to 12mm. See Figure D-3, D-4, D-5, and D-6 for reference. Note: STEP 5 Hook the chairs on the table top. Table Top Hook Use the correct bolts as indicated.
- Page 4 Please refer to part numbers when reordering For questions or comments about product: Email: Service.cci@polywares.com or Call toll-free: 1-877-539-7436 Made in / Hecho en CHINA Distributed by Sears, Roebuck and Co., Ho man Estates, IL 60179 See our extensive assortment of outdoor living products on-line at www.sears.com and www.kmart.com...
