TL-WA7510N
¾

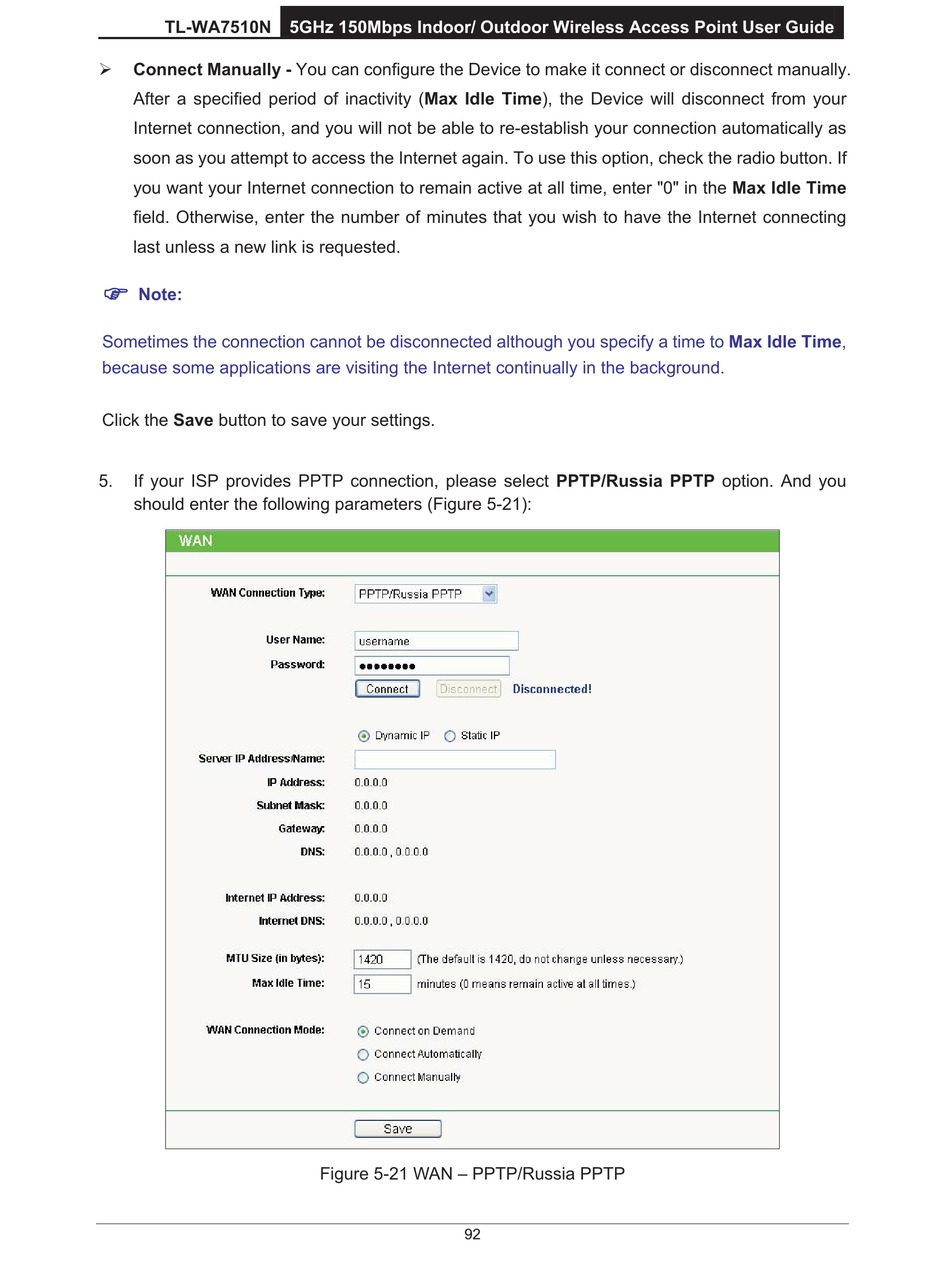

Connect Manually - You can configure the Device to make it connect or disconnect manually.
After a specified period of inactivity (Max Idle Time), the Device will disconnect from your
Internet connection, and you will not be able to re-establish your connection automatically as
soon as you attempt to access the Internet again. To use this option, check the radio button. If
you want your Internet connection to remain active at all time, enter "0" in the Max Idle Time
field. Otherwise, enter the number of minutes that you wish to have the Internet connecting
last unless a new link is requested.
)
Note:
Sometimes the connection cannot be disconnected although you specify a time to Max Idle Time,
because some applications are visiting the Internet continually in the background.
Click the Save button to save your settings.
5.
If your ISP provides PPTP connection, please select PPTP/Russia PPTP option. And you
should enter the following parameters (Figure 5-21):
5GHz 150Mbps Indoor/ Outdoor Wireless Access Point User Guide
Figure 5-21 WAN – PPTP/Russia PPTP
92
