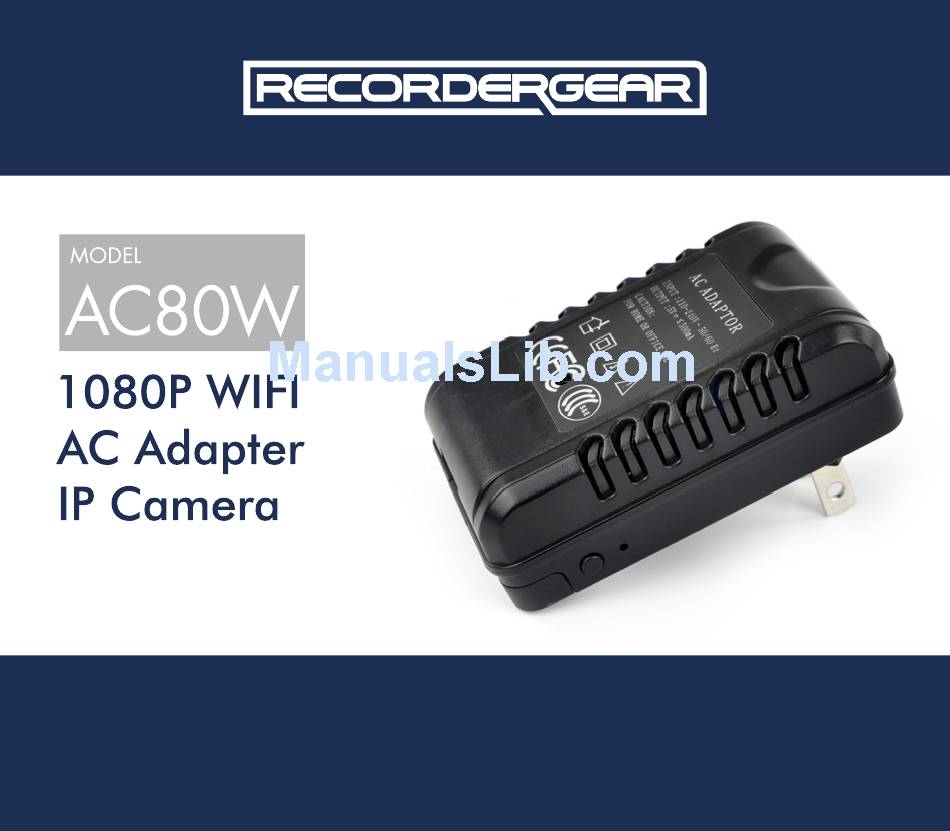

Page 1: User Manual
USER MANUAL www.recordergear.com RecorderGear™ and respective logos are trademarks of Teton Webstores LLC ©2017 ALL RIGHTS RESERVED... - Page 3 In order to comply with 18 U.S. Code § 2512 federal law, the audio recording function is turned off by default on the AC80W. To use this device 100% legally within the USA, you must record video with audio recording turned off . If you are located in a country or a part of a government entity where this law does not apply, you can enable the audio recording function within the settings menu.
-
Page 4: Table Of Contents
3 Power On/Off 4 Video Recording-Continuous/Motion Detection 5 Access Saved Recordings 6 Download “Pro iCam” APP 7 Connect iOS/Android device to AC80W Wi-Fi signal 8 Connect AC80W to Home/Business Wi-Fi 9 Understanding the “Pro iCam” APP 10 AC80W Live Video Mode/ Settings... -
Page 5: Getting Started
B. Search for the APP by typing “Pro iCam” in the search bar. C. Download and install the APP on your iOS/Android device. D. Locate the camera UID on the back sticker of your AC80W. E. Your AC80W camera default password is [8888]. -
Page 6: Insert/Eject Micro Sd Card
Insert/Eject Micro SD Card The AC80W can support up to a 128GB micro SD card. A. Insert Micro SD card: 1. Unplug your AC80W if plugged into a power outlet. 2. Insert Micro SD card and push down until it clicks in. -
Page 7: Power On/Off
1. Insert a micro SD Card. 2. Plug your AC80W into a 110V-240V power outlet. 3. Your first time using the AC80W, please allow 3 minutes for it to power on and set up. NOTE: For approximately 50 seconds, the LED indicator light will flash several times indicating set up after which the LED indicator light flashes blue indicating recording has started. -
Page 8: Video Recording-Continuous/Motion Detection
Video Recording - Continuous / Motion Detection The AC80W can record video continuously or only when motion is detected. A. Start video recording - Continous: 1. Power on your AC80W. (See section 3-A: Power On your AC80W) 2. Wait approximately 50 seconds and video recording will automatically begin in continuous recording mode. -
Page 9: Access Saved Recordings
“OK”. (See section 12-A-1: Motion detection Sensitivity) C. Stop video recording: To stop video recording, unplug your AC80W from the power outlet. Access Saved Recordings A. Using a PC: 1. Eject the micro SD card from your AC80W. -
Page 10: Download "Pro Icam" App
A. Download and install the Pro iCam APP on your iOS/ Android device. (See section-6: Download “Pro iCam” APP) B. Locate the camera UID on the back sticker of your AC80W. C. Power on your AC80W. (See section 3-A: Power On your AC80W) - Page 11 D. Allow 3 minutes for your AC80W to set up and transmit Wi-Fi. E. Open the Wi-Fi menu of your iOS/Android device then select your AC80W camera UID from the Wi-Fi list. If prompted, enter the default password [8888]. F. Open the Pro iCam APP and tap the search icon then tap on “New device”...
- Page 12 Image 1 Image 2...
-
Page 13: Connect Ac80W To Home/Business Wi-Fi
Connect AC80W to Home / Business Wi-Fi By connecting your AC80W Wi-Fi to your home/Business Wi-Fi you will be able to remotely view live video. To link your AC80W Wi-Fi to your Home/Business Wi-Fi: A. Using APP: 1. Complete section 6A to 6G then proceed to the instructions below. - Page 14 5. Your AC80W will reboot. Select “OK” . 6. Completely close out of the Pro iCam APP and wait for 40 seconds. 7. Open Pro iCam APP and view live video remotely from any where. Image 3...
- Page 15 Image 4...
- Page 16 1. Complete section 6A to 6G then proceed to the instructions below . 2. Unplug your AC80W and take out Micro SD card . 3. Insert your SD card into your PC via the SD card slot . 4. Open the removable drive/disk .
-
Page 17: Understanding The "Pro Icam" App
Understanding the “Pro iCam” This section will help you understand the functions of the APP and how they work. Image 5 A. Live Video Page: This page shows all camera and camera status. To change the view from list to box previews, select the four box icon located at the top left corner of this page. - Page 18 APP and SD card. The cell phone icon contains recordings made when you press the record icon on the “live video view”. The micro SD Card icon contains all recordings made if an SD card is inserted in your AC80W. Note all recordings...
-
Page 19: Ac80W Live Video Mode/Settings
H. Alarm page: This page contains motion detection alarms / notifications. AC80W Live Video Mode/ Settings A. Live Video: 1. Enter into the live video page . 2. Tap online camera you would like to view . 3. Your AC80W live video will appear... - Page 20 Pro iCam APP. 3. Infrared: Tap this icon to activate or deactivate the infrared capability of your AC80W. This makes changes to recordings made to the micro SD card as well as recordings made to the Pro iCam APP.
- Page 21 6. Mic: Tap this icon to listen to speak via your AC80W. This feature has been deactivated to adhere to federal regulations. 7. Snapshot: Tap this icon to take a snapshot or picture of the current view. 8. Record: Select this icon to record video to your Pro iCam APP.
-
Page 22: Ac80W Settings Menu
AC80W Settings Menu Select the settings icon to access this menu. (See Image 5 for sections A-D) Image 5... - Page 23 A. Modify device: Select this option to edit the name of your online AC80W. B. Delete device: Select this option to delete an online camera from the live video list of your AC80W. C. Reconnect: If for any reason you need to reconnect the online camera, do by selecting the reconnect option.
-
Page 24: Device Settings
Device settings Select the settings icon to access this menu. Select OK to save any changes made. A. Alarm Config: 1. Motion detection Sensitivity: Select a motion detection sensitivity ranging from 1 being the highest to 7 being the lowest or disable it. 2. - Page 25 B. Wi-Fi Config: This section allows you to link your AC80W to your home/ business Wi-Fi. (See section 7-8) C. SD Card Record Config: 1. Record: Set “On alarm” if you want recording to take plays when motion is detected, “All day” for a continuous recording, “timing record”...
- Page 26 5. Loop Recording: Enable/Disable loop recording. When loop recording is enabled, new files will be recorded over oldest files when the micro SD Card is full. Select OK to save changes. D. IR(Infrared)-LED Config: The IR LED can be set on Auto and brightness adjusted here.
- Page 27 G. FTP Config: Please contact your local server specialist for info and help on File Transfer Protocol. H. Misc Settings: Select this option to access the work LED. You can power Off, set On or set on Flicker here. These changes affects only the blue light.
-
Page 28: Changing Ac Adapter Connector Prongs
Changing AC Adapter Connector Prongs To switch out the connector prongs, push in the release button and slide out the the prong. Slide in a new prong until it clicks. (See Image 6) Image 6... -
Page 29: Troubleshooting
To do this see section 9C. Quitting the APP and restarting it could also help. B. Wi-Fi signal issue: If you can’t find the AC80W Wi-Fi signal or it isn’t connecting try resetting it by pressing and holding the reset button for about 6 seconds. (See diagram). -
Page 30: Specs
This will solve a lot of issues that may rise with the use AC80W. (To reboot see section 12-J) Specs Resolution 1920x1080 30FPS Storage Up to 128GB Card WiFi Built-In Mobile Platforms Supported iOS/Android Recording Modes Continuous/Motion Dtection Video Format... - Page 32 MID: AI-IP008-2 1 Year Warranty included with all RecorderGear™ brand products. See our website at www.recordergear.com for more details.
