- Page 1 Instruction Manual 2in1 LAN Tester & Multimeter Model: 57314...
- Page 2 Contents Introduction..........Features........... Safety Precautions……………………….. Meter Description........Electrical Specification......Operation………………………………….. AutoRanging Multimeter…………………. Multi-Network Modular Cable Tester…… Introduction 2 in 1 LAN Tester & Multimeter is a innovative tester that allows the user to easily measure DC/AC Voltage/Current, Resistance, Continuity, diode and verify the cable continuity, open short, cross-connect.
- Page 3 • Allows for remote testing of installed cables from wall jack or patch panel •auto or manual scanning for LAN tester • Autoranging with auto power off for multimeter functions Safety International Safety Symbols This symbol, adjacent to another symbol or terminal, indicates the user must refer to the manual for further information.
- Page 4 Use great care when making measurements if the voltages are greater than 25VAC rms or 35VDC. These voltages are considered a shock hazard. Always discharge capacitors and remove power from the device under test before performing Diode, Resistance or Continuity tests. Remove the battery from the meter if the meter is to be stored for long periods.

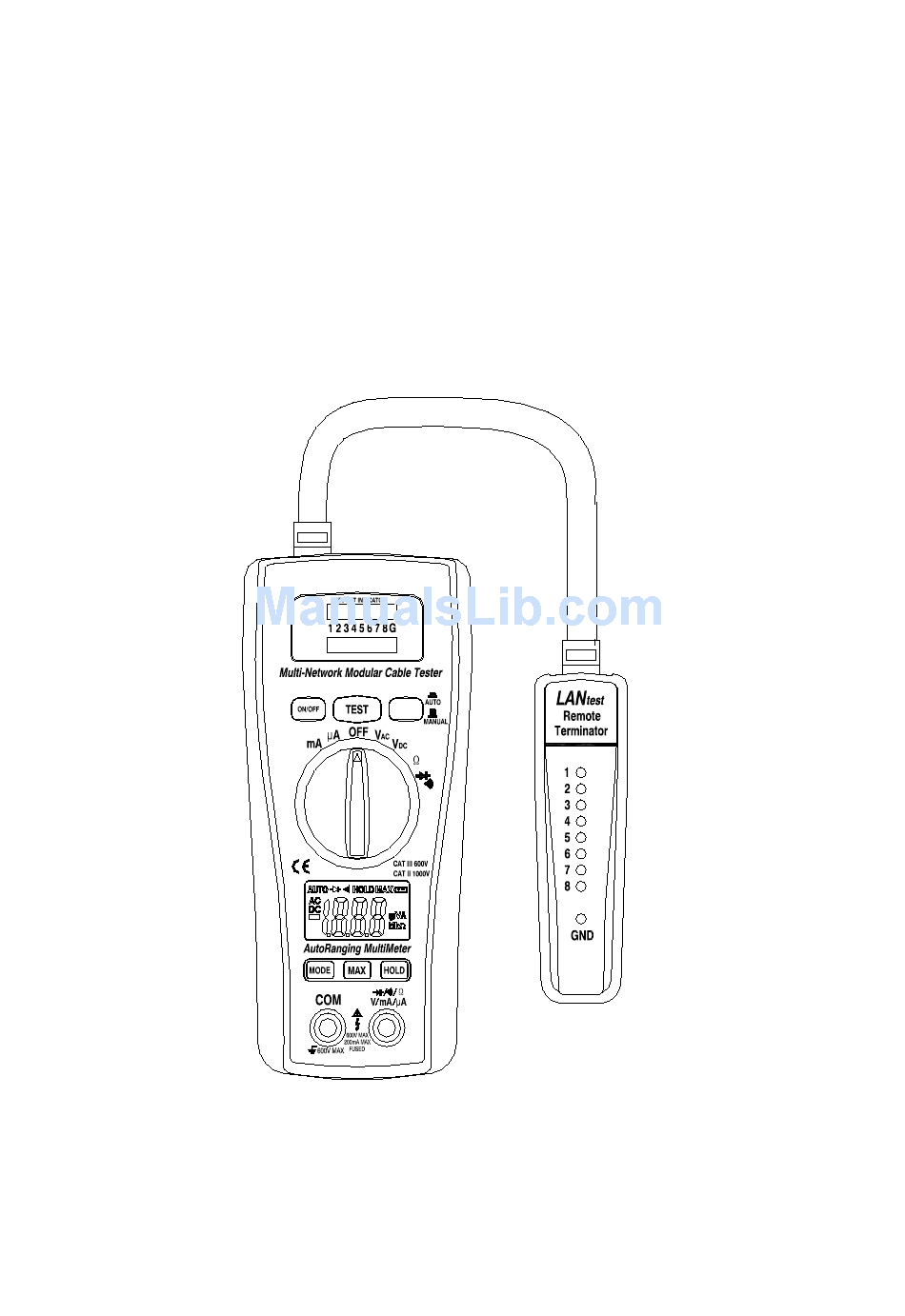

- Page 5 LANtester part Description (1~9) : Remote terminator with LED display for receiving end Jack RJ45 LAN-connector Jack RJ45 Jack RJ45 Led display for sourcing end (Jack 1) & Led display for receiving end (Jack 2) Test switch for auto scan LAN tester Power switch Test switch for manual scan Digital multimeter part Description (10~17) :...
- Page 6 Specifications Electrical Specifications Function Range Accuracy ±(0.5% rdg + 3d) DC Voltage 200mV, 2.000V, 20.00V, ±(1.0% rdg + 3d) ±(1.0% rdg + 3d) 200.0V, 600V ±(1.0% rdg + 5d) AC Voltage 2.000V, 20.00V 50-60Hz ±(1.5% rdg + 10d) 200.0V, 600V ±(1.5% rdg + 3d) DC Current 200.0µA,...
-
Page 7: Ac/Dc Voltage Measurements
Max input voltage 600V AC/DC Diode Test Test current 1mA max., open circuit voltage of 1.5V typical Continuity Check Audible signal if the resistance is <150Ω Display 2000 count 3 -1/2 digit LCD Over range indication LCD displays “OL” Polarity Minus (-) sign for negative polarity. -
Page 8: Ac/Dc Current Measurements
Insert the black test lead into the negative COM terminal and the red test lead into the positive V terminal. Set the function switch to VAC or VDC position. Connect the test leads in parallel to the circuit under test. Read the voltage measurement on the LCD display. -
Page 9: Resistance Measurement
RESISTANCE MEASUREMENT WARNING: To avoid electric shock, disconnect power to the unit under test and discharge all capacitors before taking any resistance measurements. Remove the batteries and unplug the line cords. 1. Set the function switch to the Ω position. 2. -
Page 10: Diode Test
DIODE TEST 1. Set the function switch to the position. 2. Press the MODE button to touch the test probes to the diode to indicate on the display under test. Forward voltage will typically indicate 0.400 to 0.700V. Reverse voltage will indicate “OL”. Shorted devices will indicate near 0V and an open device will indicate “OL”... -
Page 11: Replacing The Battery
REPLACING THE BATTERY 1. Remove the bottom cover and secure the screw. 2. Replace old battery with fresh two 1.5V AAA & 9V type battery. 3. Replace the bottom cover and secure the screw. REPLACING THE FUSES WARNING: To avoid electric shock, disconnect the test leads from any source of voltage before removing the fuse cover. - Page 12 10 Base-T Test 1. Plug one end of the tested cable into the transmitting RJ45 jack on the master unit marked with a '回' and the other end of the cable into the remaining receiving RJ45 jack. 2. Slide power switch on. The upper row of LEDs will start to scan in sequence if the Auto/Manual button is set on "Auto"...
- Page 13 Note: 1. The center pin of BNC should be read on LED 2. 2. As Coaxial cable has only two wires, we suggest you read the result of the LED scan using Manual mode. Remote Test 1. Plug one end of the tested cable to the transmitting RJ45 jack on the master unit marked with a ' ' and plug the other end into the remote terminator.
- Page 14 Caution: 1. Operating the tester in live circuits may damage the tester 2. Leaving the battery in the tester for long periods of time without use could drain power from the battery...
