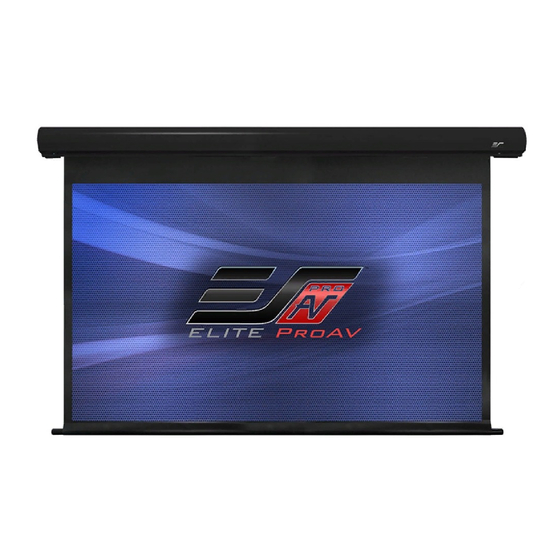

Electric Motorized Projection Screen
Important Safety & Warning Precautions
Make sure to read this user's guide and follow the procedure below.
Caution: The screen's Black Top Drop is already set to its maximum drop distance. There is NO extra Black
Top Drop in the roller. Please be aware of this as it will void your warranty with EliteProAV™. Unapproved
changes or modifications (except for cutting the power cord for hardwire installations) to this unit are
prohibited and will void your warranty. For more information, please contact our Technical Support
Department at (877) 511-1211 Ext. 604.
• Please retain this user's guide for future reference.
• To avoid damaging the unit, do not use with any unauthorized accessories not
recommended by the manufacturer.
• Handle the unit carefully during transportation to avoid any damages.
• To ensure safe and reliable operation, direct connection to a properly grounded power
source is advised.
• The power outlet supplying power to the unit should be close to the unit and easily
accessible.
• Do not install the unit on uneven or inclined surfaces.
• Do not put heavy objects on the power cord and position it properly to avoid creating a
trip obstacle.
• Never overload the power cord to prevent an electric shock or fire due to a loose
contact or a short circuit.
• There are not user serviceable parts in this unit. Do not attempt to disassemble this unit
by yourself. No one except authorized technicians can open and make repairs to this
unit.
• Make sure the power source this unit is connected to has a continuous power flow.
• If there is need to use an extension cord, make sure the cord has an equal rating as the
appliance to avoid overheat.
• Do not handle the power plug when your hands are wet or your feet are in contact with
water.
Rev. 041117 DR
VMAX 2 Series
User's Guide
1
www.eliteproav.com
Advertisement
Table of Contents
Related Manuals for Elite Pro AV VMAX84UWH2
Summary of Contents for Elite Pro AV VMAX84UWH2
- Page 1 Electric Motorized Projection Screen VMAX 2 Series User’s Guide Important Safety & Warning Precautions Make sure to read this user’s guide and follow the procedure below. Caution: The screen’s Black Top Drop is already set to its maximum drop distance. There is NO extra Black Top Drop in the roller.
- Page 2 Do not use this unit under the following circumstances. • Disconnect the power cord under the conditions of heavy rain, wind, thunder or lightning. • Avoid direct Sunshine, rain shower and moisture. • Keep away from fire sources and high temperature to prevent this device from overheating.
- Page 3 Pre-Installation 1. Carefully unpack the screen. 2. Always handle the screen in a leveled position on a clean surface. 3. In order to protect the screen from exposure to stains, keep the screen out of contact with foreign particles such as dust, sawdust, and/or liquids. NOTE: Regardless of the mounting method, the screen should be securely supported so that the vibration or pulling on the viewing surface will not cause the casing to become loose or fall.
- Page 4 Control System for VMAX 2 Series 1. 5-12V Trigger: The built-in 5-12V trigger input allows your screen to synchronize its drop & rise with the projector’s power cycle. The screen deploys when the projector powers up and will retract when the projector powers down. The 5-12 volt adaptor connects to your projector’s trigger 3-prong power cable output via a separate cable that may or may not...
- Page 5 7. Figure 2 will show you an optional installation using chains (not included). Fig. 1 Optional installation method using a chain to hang the screen from the ceiling Fig. 2 Dimensions Table Model Number Unit: Inches VMAX84UWH2 85.4 73.2 76.2 83.2 79.4 55.0 41.2 51.5...
- Page 6 Model Number VMAX84UWH2-E30 85.4 73.2 76.2 83.2 79.4 77.0 41.2 73.5 30.0 0.7 3.1 70.9 VMAX92UWH2 93.1 80.2 84.1 91.0 87.1 56.9 45.1 53.5 0.7 3.1 70.9 VMAX92XWH2 93.1 80.2 84.1 91.0 87.1 56.9 45.1 53.5 0.7 3.1 70.9 VMAX92UWH2-E30 93.1...
- Page 7 121.7 108.5 112.5 119.5 115.6 77.7 67.8 74.2 0.7 3.1 70.9 VMAX128UWX2-E20 121.7 108.5 112.5 119.5 115.6 93.7 67.8 90.2 20.0 0.7 3.1 70.9 Unit: mm VMAX84UWH2 2168 1860 1936 2113 2016 1397 1046 1309 80 1800 VMAX84XWH2 2168 1860...
- Page 8 Model Number VMAX135XWV2 3044 2743 2843 2989 2923 2324 2057 2219 60 105 88 2500 VMAX135XWV2-E24 3044 2743 2843 2989 2923 2832 2057 2727 60 105 88 2500 VMAX150XWV2 3349 3048 3148 3294 3228 2553 2286 2448 60 105 88 2500 VMAX150XWV2-E24 3349 3048...
