MGMT (RJ-45)
Client port for management.
Default IP address 192.168.1.99
Console (RJ-45)
Optional connection to the management computer.
Provides access to the CLI
USB (USB-A)
USB server port for USB key, modem, or
management functions
CONSOLE
FortiGate 240D
STATUS
ALARM
HA
POWER
USB MGMT MGMT USB
Internet
USB MGMT (USB mini-B)
USB client port for management
16
WAN 1 1 3 5 7 9
WAN 2 2 4 6 8 10
WAN 1 & 2 (RJ-45)
Gigabit Ethernet Internet connection
. .
11 13 15 17 19 21 23
12 14 16 18 20 22 24
+12V=@12.5A
DC INPUT FOR REMOTE POWER
SUPPLY SPECIFIED IN MANUAL
RPS
Optional connection to a remote
power supply (FRPS-100).
12V @ 12.5A

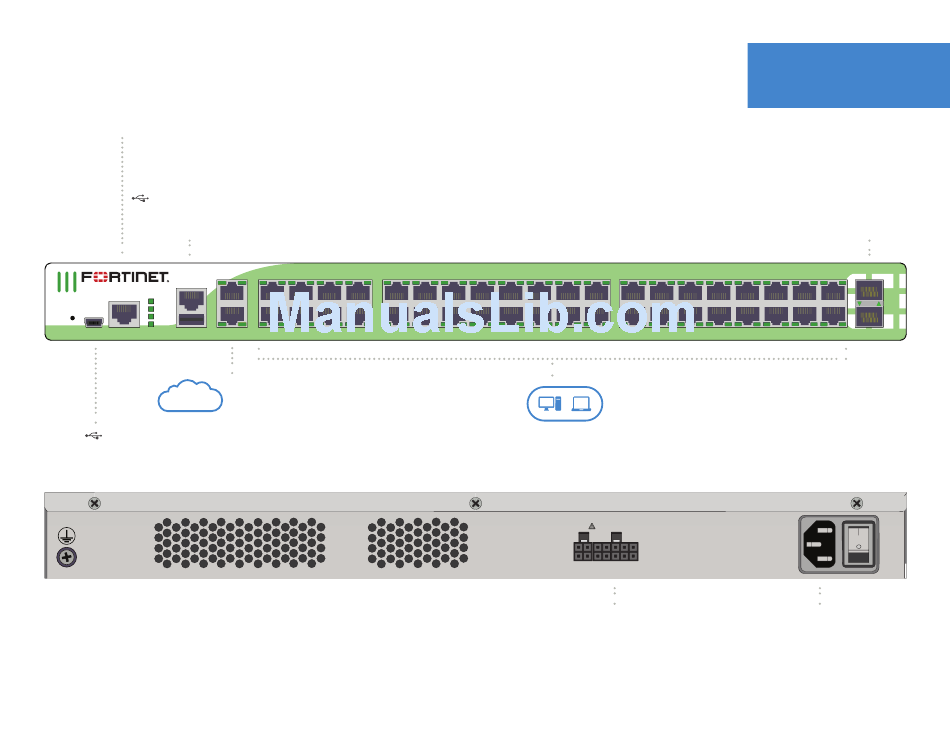

Device Guide
DMZ 1 & 2 (SFP)
1 Gbps/auto small form-factor pluggable transceiver
ports for connection to a DMZ network/device
25 27 29 31 33 35
26 28 30 32 34 36
LAN Ports 1 - 40 (RJ-45)
Switched Gigabit Ethernet ports for connection to your
network and the Internet
AC INPUT
100-240V
50-60Hz
3A MAX
Power
100-240V AC, 50-60Hz, 3A MAX
37 39 DMZ 1
38 40 DMZ 2
