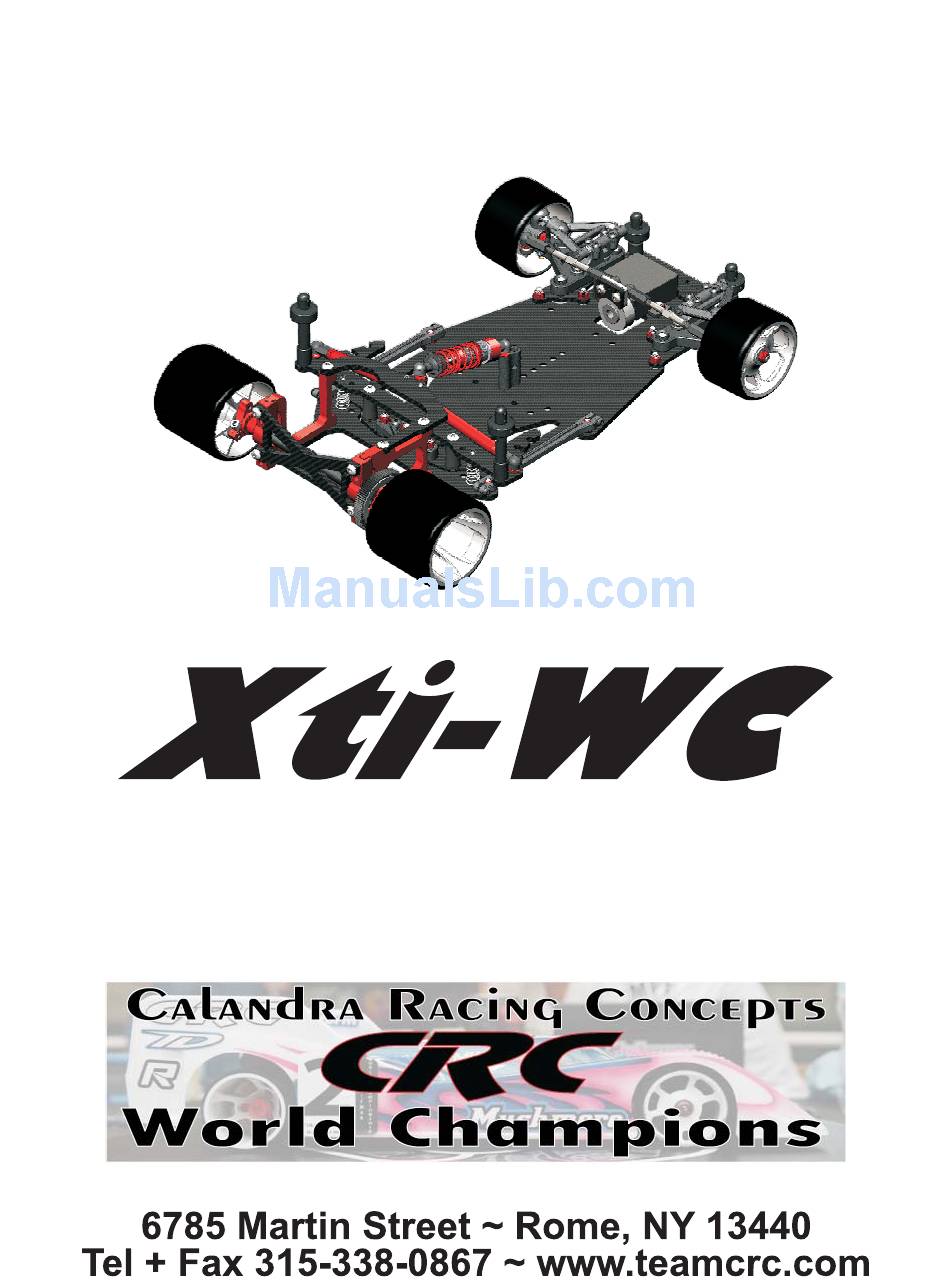

- Page 1 Assembly Manual 1/12th scale road race car kit...
- Page 2 Do not over-tighten the screws too much or you could warp the pivot socket. 3374 Center Pivot 1209 - Washer 1412 - Red Locknut 1430 - 12772 - 3357 - Xti-WC 1/2” x 4-40 4-40 Thin Chassis Plate Bag 1 FH Allen-SS Hex Nut 3357...
- Page 3 1412 - Red Locknut 1426 - 4-40 x 13615 - 1430 - 4-40 x ½” One-Piece 5/16” Flat Head Red Low- 3281 - Flat Head 3254 - 2-56 Button Head Side Links Bag 2 Profile Ball 3224 - Rear Bottom Plate *NOTE - Before installing, inspect the side links 3281 and you will notice that the screw holes on one...
- Page 4 Slider Pod 33401 - Motor Plate 1435 - 4-40 x 7/16” 1424 - 4-40 x 1/4” Button Head Flat Head 33411 - Slider Bearing Carrier Bag 3 33421 - Left Side Pod Plate 3375 - Graphite X-brace 33411 33401 3375 33421 3387 - Molded Plastic Tweak Plate...
-
Page 5: Top Plate
.188 " 4505 4510 4520 5 - Add CRC Tube Lube to each slot on the delrin plunger. 4530 Note : fill only the slots, not the entire aluminum tube. *** ** Adding the Damper Tubes to the Chassis assembly ** Snap the assembled &... -
Page 6: Battery Mount
1261 - Battery Retention O-ring 3373 Center Shock 1409 - Red Alum 1428 - 4-40 x 13783 - 4-40 x 1/8” 3354 - CRC Shock/Ant Mount 3/8” FH 4-40 Ballstud Set Screw Bag 7 1347 - Fiberglass Anti-Roll Antenna 1347... - Page 7 Center Shock CRC Encore Shock 3290 - Bag 7 1 - Thread the spring adjuster nut onto the shock body as shown. *This needs to be installed first or you will not be able to get it on later after the lower end of the shock is assembled!* 2 - Insert only 1 of the small o-rings into the lower end of the shock body.
- Page 8 Be sure NOT to over tighten. Just snug, you are threading a metal screw into the plastic upper A-arm mount. *Note - For fine front ride height adjustments, use the CRC #4260 optional front shim set. This set contains .020 and .030” plastic ride height shims.
- Page 9 1412 - Red Locknut Button Head 3250 - 1382 - 3244 - Upper King Pin E-Clip Pivot Ball CRC Pro-Strut 3234 - Brass Front End - cont. 3221 - Steering Block Set 13615 - Set Screw 3392 - .50mm Red Low-...
- Page 10 Thicker or stacked washers can also be used to allow even larger front tires. The Xti-WC is designed for all out performance on high bite tracks. Typically, the front tire size used in these conditions range from 39 - 42 mm.
- Page 11 NSTALL AND GREASE THE DIFF BALLS ** Balls in outer ring of holes in gear ** Place the spur gear flat on the table in front of you with the side that says “CRC” 64172 facing down. The diff balls will fall into each of the outer ring of holes in the diff 64180 gear, but won’t fall out the other side.
- Page 12 Thank you for choosing Calandra Racing Concepts and the Xti-WC race car. If you have any questions or concerns about any CRC product, feel free to call or e-mail the staff at CRC for assistance. All of our in-house staff at CRC are experts in building, setup, driving and racing R/C model cars. Your new Xti-WC was handled by experienced racers from the moment of design right through the completion of the kit.
