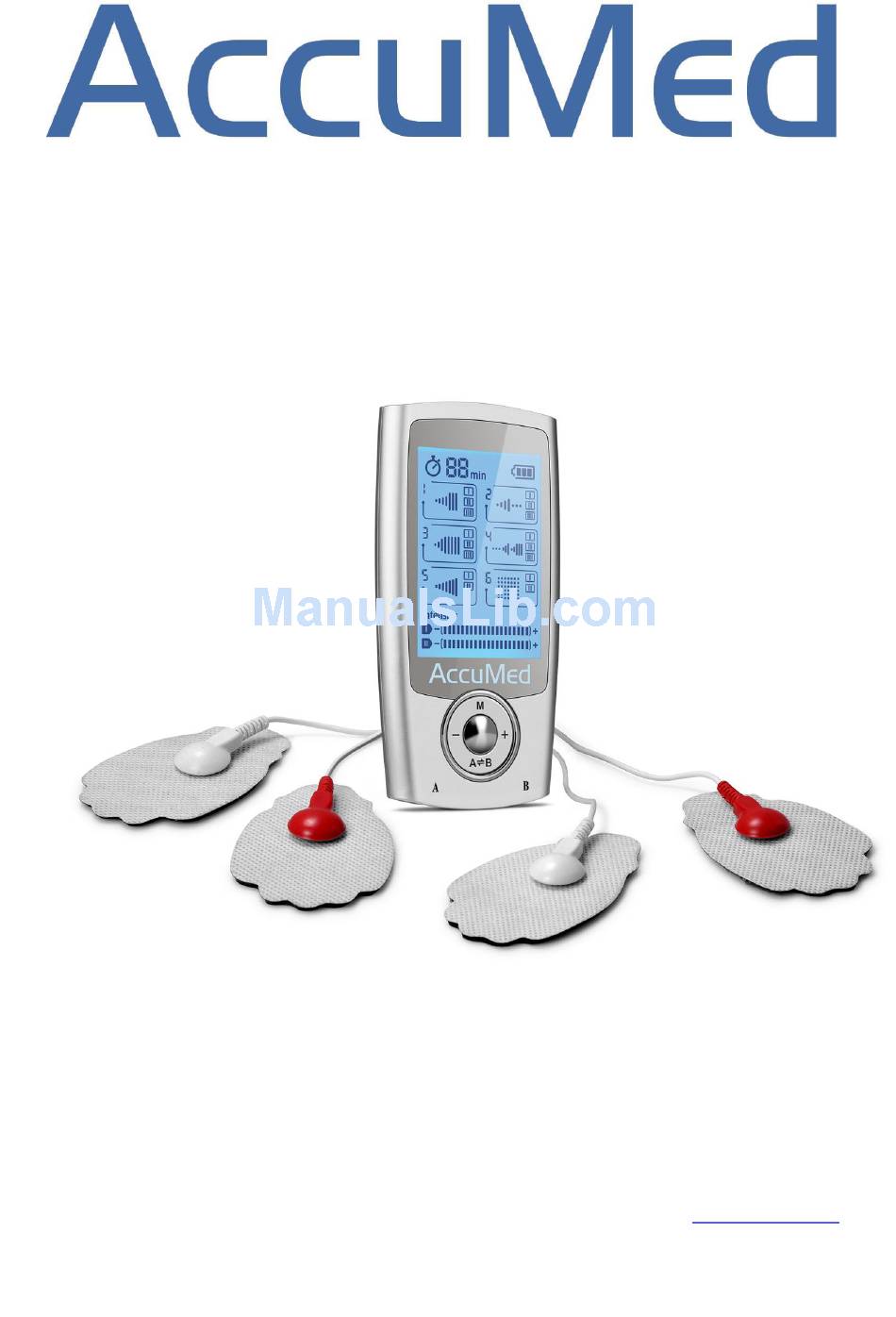

- Page 1 USER MANUAL AccuMed AP212 Mini Electronic Pulse Stimulator AP212 USER MANUAL V2.0.1 Revised: March 10, 2017 www.AccuMed.com...
-
Page 2: Table Of Contents
Before operating device, please read this user’s manual carefully to be clear about instructions! TABLE OF CONTENTS INTRODUCTION: ..............................3 SAFETY WARNINGS ..............................3 SPECIFICATIONS AND ESSENTIAL PERFORMANCE: ..................4 FEATURES: ................................. 5 INTENDED USE: ............................... 5 DEVICE OVERVIEW: ..............................5 TWO KEY POINTS FOR OPERATIONS: ...................... -
Page 3: Introduction
The AccuMed AP212 delivers electric pulses to tired and sore muscles. These pulses are generated by the device and delivered through the connecting wires and electrodes to the target body areas. AP212 is designed to relieve pain in various parts of the body, such as the lower back, shoulders, hands, and feet. -
Page 4: Specifications And Essential Performance
This device is not a substitute for pain medications and other pain management therapies. This device has no curative value. This device is a symptomatic treatment and, as such, suppresses the sensation of pain that would otherwise serve as a protective mechanism. -
Page 5: Features
FEATURES: * A large, easy to read LCD display * Adjustable timer * 12 Modes * Rechargeable lithium battery INTENDED USE: To be used for temporary relief of pain associated with sore and aching muscles in the shoulders, waist, neck, back, arms, and legs due to strain from exercise, or normal household, and work activities. -
Page 6: Two Key Points For Operations
AB Button OPERATE DEVICE: The AP212 unit needs to be charged for up to 10 hours before the initial use. Make sure the power switch of the device is in the OFF position. Connect a pair of electrode pads to one lead wire by snapping them on. -
Page 7: Recommended Practices
NOTE: The AP212 unit is safe. The output intensity is only increased by pushing the + key. Even if the intensity is increased to the maximum, it is within the safe range, but may feel uncomfortable. When the user switches the mode, the intensity will automatically go down to the minimum for safety reasons. -
Page 8: Readjustments, Alterations, And Repairs
The manufacturer is only responsible for the safety and performance of AP212 when readjustments, alterations, and repairs are carried out by authorized individuals and when the AP212 is used in accordance with the user instructions. Qualified technicians who are familiar with the technical features of the device have been provided with circuit diagrams, PCB... -
Page 9: Cleaning And Maintenance
BATTERY: Battery information Capacity: 110mAh Voltage: DC 3.7V Restriction: 4.2V Charging the Battery 1) The Lithium battery can be recharged through both the AC adaptor and a computer USB input. 2) Turn off the unit. 3) Connect the unit and the charger with the USB cable. Plug charger into any power outlet and a red light will show when it is charging. -
Page 10: Troubleshooting
TROUBLESHOOTING: If your device is not operating properly, please check below for common problems and suggested solutions: No power source; no display in LCD: • Check if the battery is low and needs to be recharged. • If the unit was previously used, switch the power to OFF first, then back to ON. Stimulation is weak or nonexistent: •... -
Page 11: Recommended Placement Areas
RECOMMENDED PLACEMENT AREAS: Note: The charts below mere suggestions for where to place the electrodes, what Mode to choose and how long to stimulate, but only after the user has gone through the starting procedure and is familiar with the device. ●... - Page 12 Mode 4 for 10-20 minutes, and Mode 6 for 10-20 minutes; twice or 3 times a day. * Do not use this device directly on the pain area or area of injury. Figure 8: NOTE: The charts below are merely a suggestion for how to place the electrodes, what Mode to choose and how long to stimulate, only after the user has gone through the starting procedure (above) and is familiar with the device.
- Page 13 NOTE: The images below are mere suggestions on where to place the electrodes, but only after the user has gone through the starting procedure, this entire user manual, and is familiar with the device. Targeted muscle...
- Page 15 To contact AccuMed support, please do one of the following: • Visit http://accumed.com/contacts/ and use the email form • Call AccuMed Support at 1(713) 904-1955 • Email AccuMed Customer Support support@accumed.com For more information please visit www.AccuMed.com Manufactured for: AccuMed Biotech...
