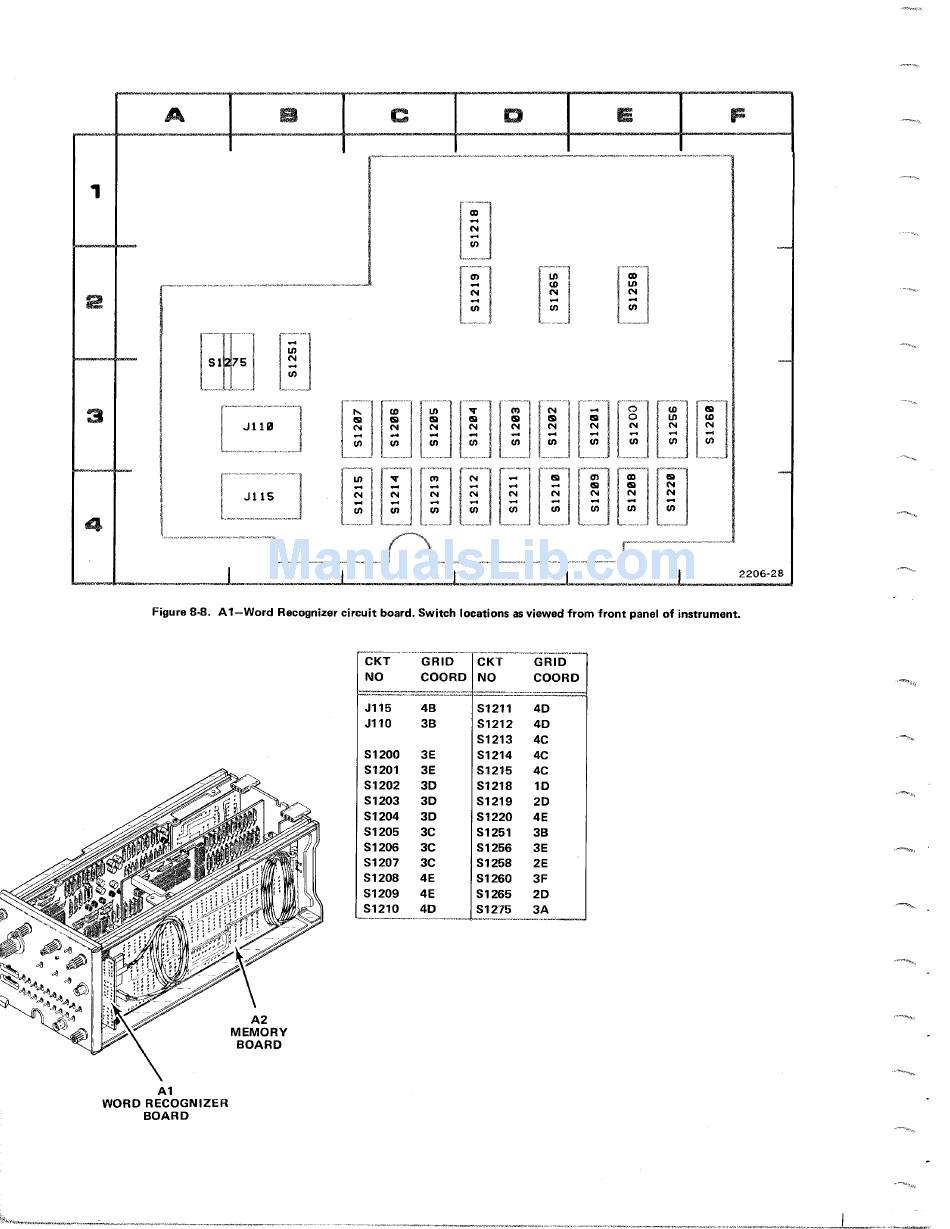

Figure 8a . All-Word RecogrVizer circuit board . Switch locations as viewed from front panel of instrument .
Al
WORD RECOGNIZER
BOARD
CKT
NO
====-
GRID
COORD
- 7z " = j
CKT
NO
GRID
COORD
J115 4B
S1211 4D
J110 3B S1212 4D
S1213 4C
S1200 3E 51214 4C
S1201 3E S1215 4C
S1202 3D S1218 1D
S1203 3D 51219 2D
S1204 3D S1220 4E
S1205 3C 51251 3B
S1206 3C S1256 3E
S1207
3C S1258 2E
51208
4E S1260 3F
S1209 4E S1265 2D
S1210 4D
S1275 3A
