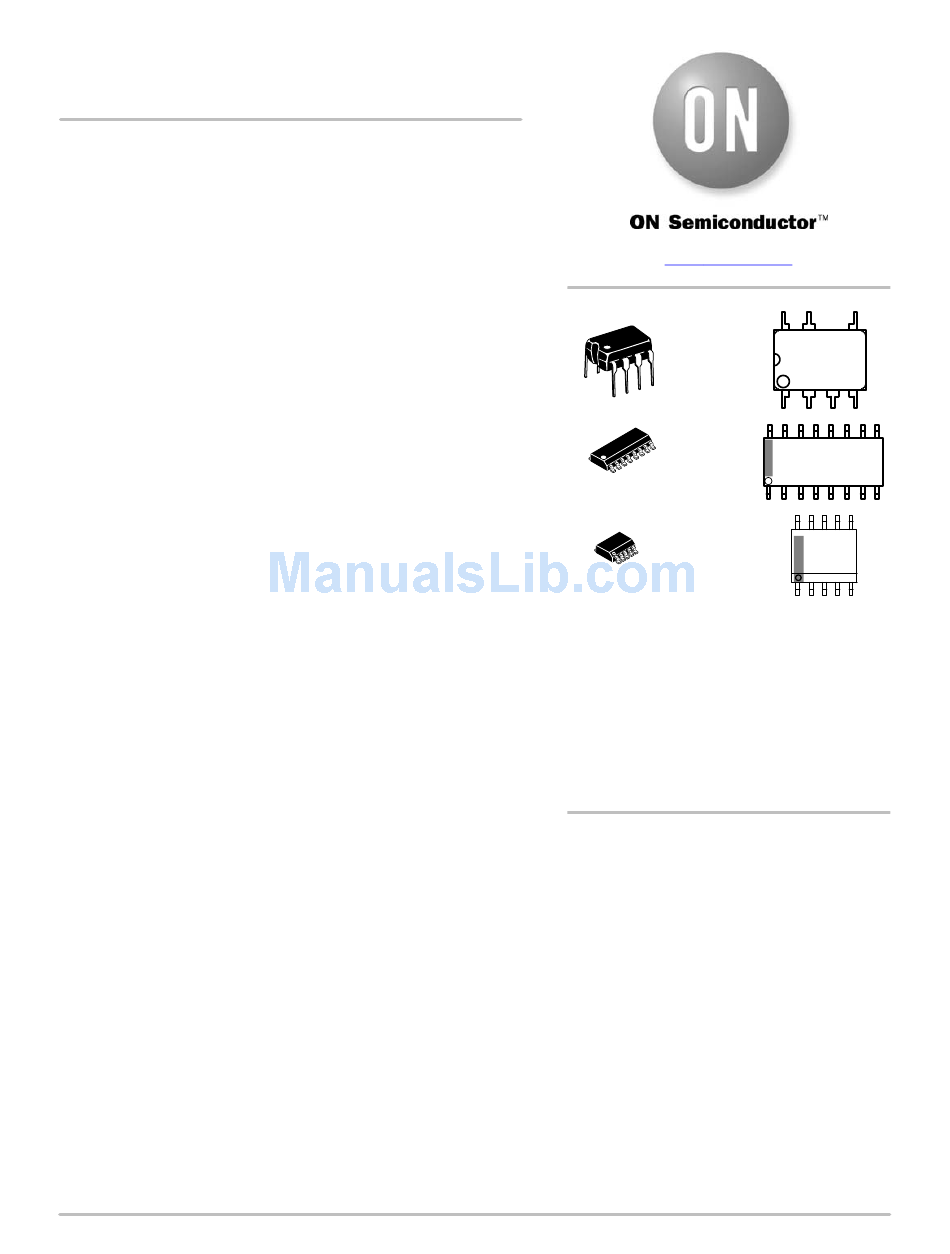

NCP1060, NCV1060,
NCP1063, NCV1063
High-Voltage Switcher for
Low Power Offline SMPS
The NCP106X products integrate a fixed frequency current mode
controller with a 700 V MOSFET. Available in a PDIP−7, SOIC−10 or
SOIC−16 package, the NCP106X offer a high level of integration,
including soft−start, frequency−jittering, short−circuit protection,
skip−cycle, adjustable peak current set point, ramp compensation, and a
Dynamic Self−Supply (eliminating the need for an auxiliary winding).
Unlike other monolithic solutions, the NCP106X is quiet by nature:
during nominal load operation, the part switches at one of the available
frequencies (60 kHz or 100 kHz). When the output power demand
diminishes, the IC automatically enters frequency foldback mode and
provides excellent efficiency at light loads. When the power demand
reduces further, it enters into a skip mode to reduce the standby
consumption down to a no load condition.
Protection features include: a timer to detect an overload or a
short−circuit event, Overvoltage Protection with auto−recovery and
AC input line voltage detection (A version).
The ON proprietary integrated Over Power Protection (OPP) lets
you harness the maximum delivered power without affecting your
standby performance simply via external resistors.
For improved standby performance, the connection of an auxiliary
winding stops the DSS operation and helps to reduce input power
consumption below 50 mW at high line.
NCP106x can be seamlessly used both in non−isolated and in
isolated topologies.
Features
Built−in 700 V MOSFET with R
11.4 W (NCP1063)
Large Creepage Distance Between High−voltage Pins
Current−Mode Fixed Frequency Operation – 60 kHz or 100 kHz
(130 kHz on demand)
Adjustable Peak Current: see below table
Fixed Ramp Compensation
Direct Feedback Connection for Non−isolated Converter
Internal and Adjustable Over Power Protection (OPP)
Circuit
Skip−Cycle Operation at Low Peak Currents Only
Dynamic Self−Supply: No Need for an Auxiliary
Winding
Internal 4 ms Soft−Start
Auto−Recovery Output Short Circuit Protection with
Timer−Based Detection
Auto−Recovery Overvoltage Protection with Auxiliary
Winding Operation
Frequency Jittering for Better EMI Signature
© Semiconductor Components Industries, LLC, 2017
September, 2017 − Rev. 6
of 34 W (NCP1060) and
DS(on)
1
www.onsemi.com
8
1
16
CASE 751B−05
1
D SUFFIX
10
CASE 751BQ
1
AD or BD SUFFIX
x = Power Switch Circuit On−state Resistance
(0 = 34 W, 3 = 11.4 W)
x =
f = Brown In (A = Yes, B = No)
yyy = Oscillator Frequency
yyy =
(060 = 60 kHz, 100 = 100 kHz)
z = P (standard) or V (automotive)
u = blank (standard) or V (automotive)
A
= Assembly Location
L, WL
= Wafer Lot
Y, YY
= Year
W, WW = Work Week
G or G
= Pb−Free Package
ORDERING INFORMATION
See detailed ordering and shipping information in the package
dimensions section on page 28 of this data sheet.
No Load Input Consumption < 50 mW
Frequency Foldback to Improve Efficiency at Light
Load
NCV Prefix for Automotive and Other Applications
Requiring Unique Site and Control Change
Requirements; AEC−Q100 Qualified and PPAP
Capable
These Devices are Pb−Free and are RoHS Compliant
Typical Applications
Auxiliary / Standby Isolated and Non−isolated Power
Supplies
Power Meter SMPS
Wide Vin Low Power Industrial SMPS
MARKING DIAGRAMS
7
PDIP−7
P106xfyyy
CASE 626A
AWL
AP SUFFIX
YYWWG
1
16
SOIC−16
NCz1063fyyyG
AWLYWW
1
10
SOIC−10
u1060fyyy
ALYWX
G
1
Publication Order Number:
NCP1060/D
