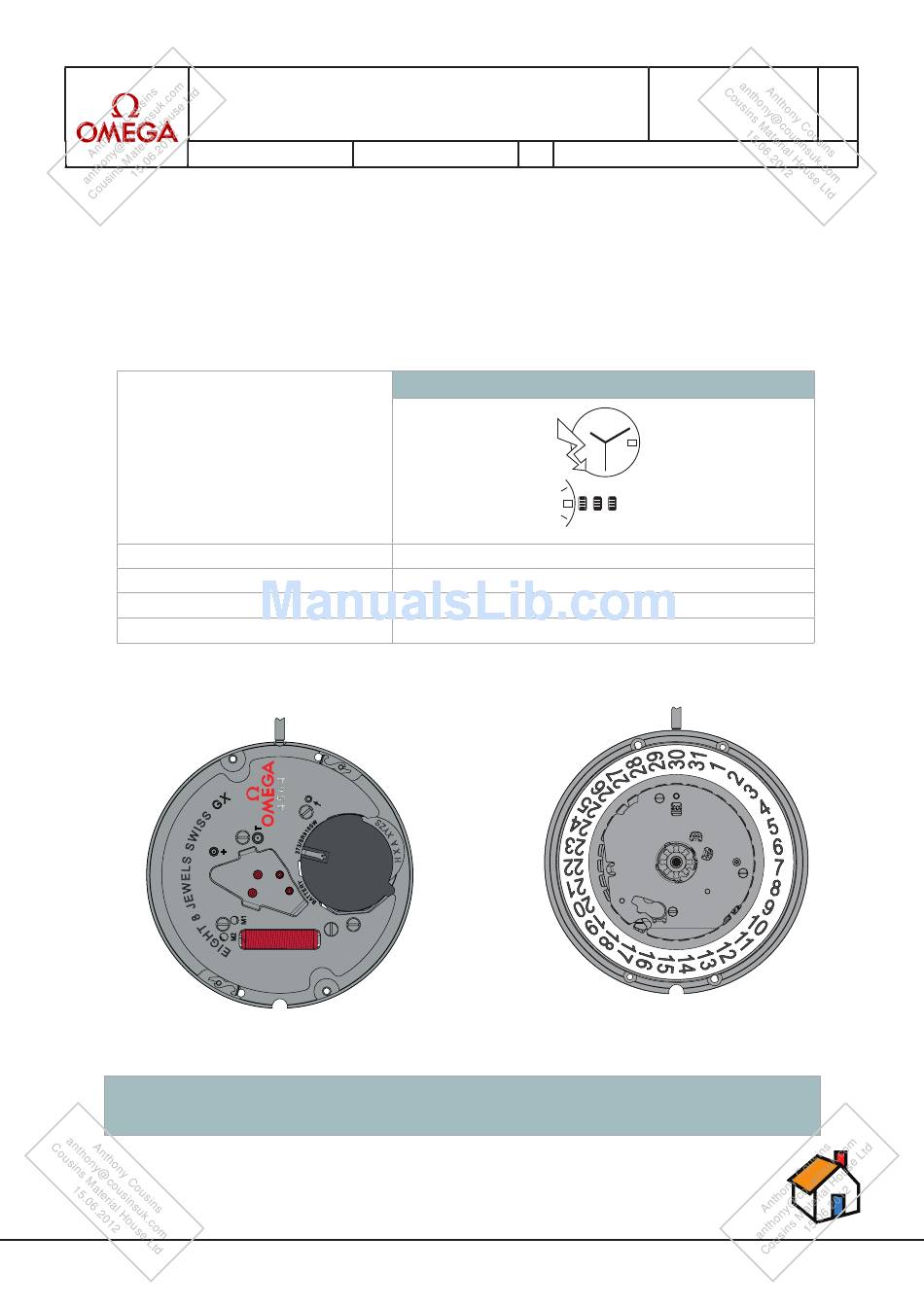

Technical Guide
Made by: selrom
11
Ø 25,60 mm
Height of movement
Height of battery
Number of jewels
Rohs Versions
Omega personalised quartz movement, featuring circular graining, rhodium-plating.
Three-hand display: hours, minutes and seconds with date. Stepping motor with ASS, 60 impulses per
OMEGA SA
Date: 14.11.2011
CALIBRE
4564
1/2'''
minute, inhibition, E.O.L.
WORLD SERVICE ORGANIZATION
TG-19-C-074-E
3
Version A
1 2
3
ASS
10
E.O.L
COR
1.95 mm
2.15 mm
8
yes
GT-19-C-074-E - A - 4564
A
/1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 4564 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Omega 4564

Summary of Contents for Omega 4564

  • Page 1 Height of battery 2.15 mm Number of jewels Rohs Versions Omega personalised quartz movement, featuring circular graining, rhodium-plating. Three-hand display: hours, minutes and seconds with date. Stepping motor with ASS, 60 impulses per minute, inhibition, E.O.L. OMEGA SA WORLD SERVICE ORGANIZATION...
  • Page 2 The policy regarding on-site repairs is as follows Movement exchange / Runners for hand setting and hand setting force Tools Spare parts list for Calibre 4564 Specific information for Calibre 4564 Information on height of hands Runners for hand setting and hand setting force...
  • Page 3 General information for calibre 4564 The policy regarding on-site repairs is as follows: Standard movement exchanges See Working Instruction No 31. Mandatory tools: Hand fitting Ref. Movement holder for hand setting 507 0017 Tweezers Plastic tweezers 502 310 0051 OMEGA SA...
  • Page 4 Spare parts list for Calibre 4564 Battery insulator Version Reference 4564A 7224564A20651 OMEGA SA WORLD SERVICE ORGANIZATION GT-19-C-074-E - A - 4564...
  • Page 5 Specific information for calibre 4564 1.0 Information on height of hands Fig. 1.0 Manufacturing code Calibre version Height of hands Example: H3  Height 3 In case of special height  A  Calibre version 1.1 Runners for hand setting and hand...
  • Page 6 Specific information for calibre 4564 2.0 Electrical tests Fig. 2.0 Pos. Setting of apparatus Measurement Test Remarks 1.55 V Battery voltage The movement is fitted with a «Watchmodule C7». Measured without battery, variable external supply, starting Motor driven with 1 steps/s.

  • Page 7: Fitting The Battery

    Specific information for calibre 4564 4.0 Fitting the battery Slide the battery against the contact strip . Press the battery firmly into position . The bridle keeps the battery in position. Use plastic tweezers (not-conductive). Removing the battery Insert tweezers  between main plate and battery (see drawing) and lift out the battery by gently lifting back .
