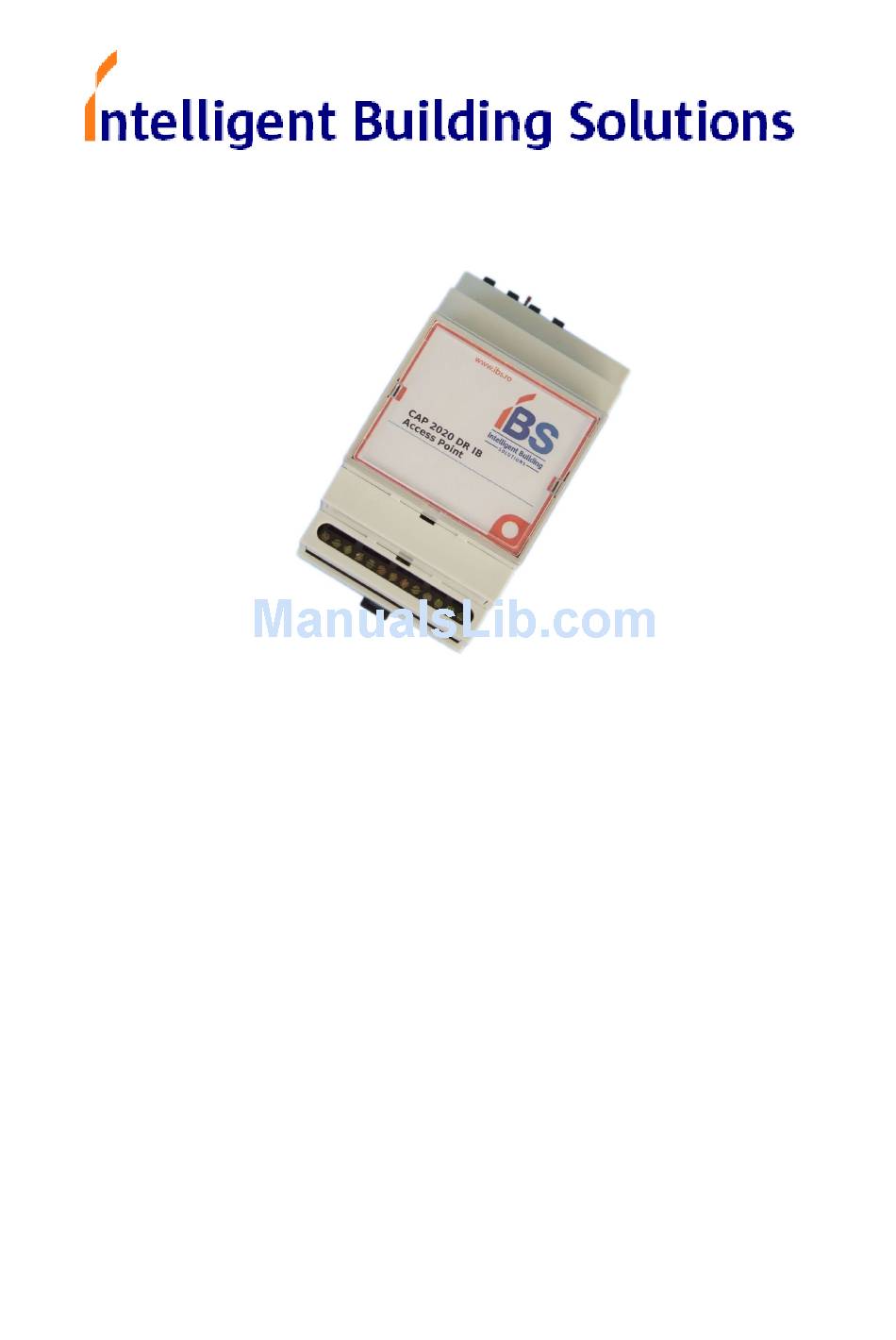

- Page 1 Installation Manual CAP 2020 DR IB ACCESS CONTROL UNIT (with internal bell) Proximity card & pin code ● DIN-rail mounting ● CIB-tech...
-
Page 2: Electrical Characteristics
I n t r o d u c t i o n The CAP 2020 DR IB is a proximity card and/or keypad based access control device with internal bell, part of the CIB-tech automation system. The unit can control bi-directional access through one door. It accepts up to 1024 users and provides entry via the use of proximity cards and/or PIN codes. -
Page 3: Mechanical Characteristics
0 - 5V ■ output current: 15mA ■ Mechanical characteristics The CAP 2020 DR IB has a standard 3-module wide enclosure for M36 type DIN-Rail Dimensions: 96mm W x 52mm L x 60mm D ● Weight: 115g ●... -
Page 4: Part Description
Support for two external LEDs (for reader A and reader B) indicating a valid proximity card or PIN ● code I n s t a l l a t i o n The CAP 2020 DR IB is meant to be installed on a standard M36 type DIN-Rail. Part description Bus connectors: ●... -
Page 5: Wiring Diagrams
Connection to CIB-tech system: Use the CAP 2020 DR IB device's two 4P4C modular jack connectors to connect it to the CIB-tech systems (chain like) bus. Do not forget to remove the EOL jumper if the device is not the last element of the chain... - Page 6 Connecting the input devices Connection example for two proximity card / PIN reader: CAP 2020 DR IB Open door sensor (optional) CAP 2020 DR IB ©2009 - Intelligent Building Solutions...
- Page 7 CAP 2020 DR IB is not connected. Some proximity card / PIN readers have auxiliary inputs and outputs (ex. tamper, auxiliary led). These auxiliary inputs and outputs can not be connected to the CAP 2020 DR IB. CAP 2020 DR IB...
-
Page 8: Dc Power Supply
Connecting the electronic door lock Connection example for AC-type electronic door lock: Line 230V AC 12/24V AC transformer CAP 2020 DR IB Electronic door lock (fail safe or fail secure) type 12/24V AC Connection example for DC-type electronic door lock: DC power... - Page 9 Connection example for DC-type electronic door lock and PS1213D, dedicated power supply : 230V AC PS 1213 D CAP 2020 DR IB Document Version 1.0 Technical Support: http://www.ibs-smarthouse.com/ info@ibs-smarthouse.com All trademarks used in this document are properties of their respective owners.
