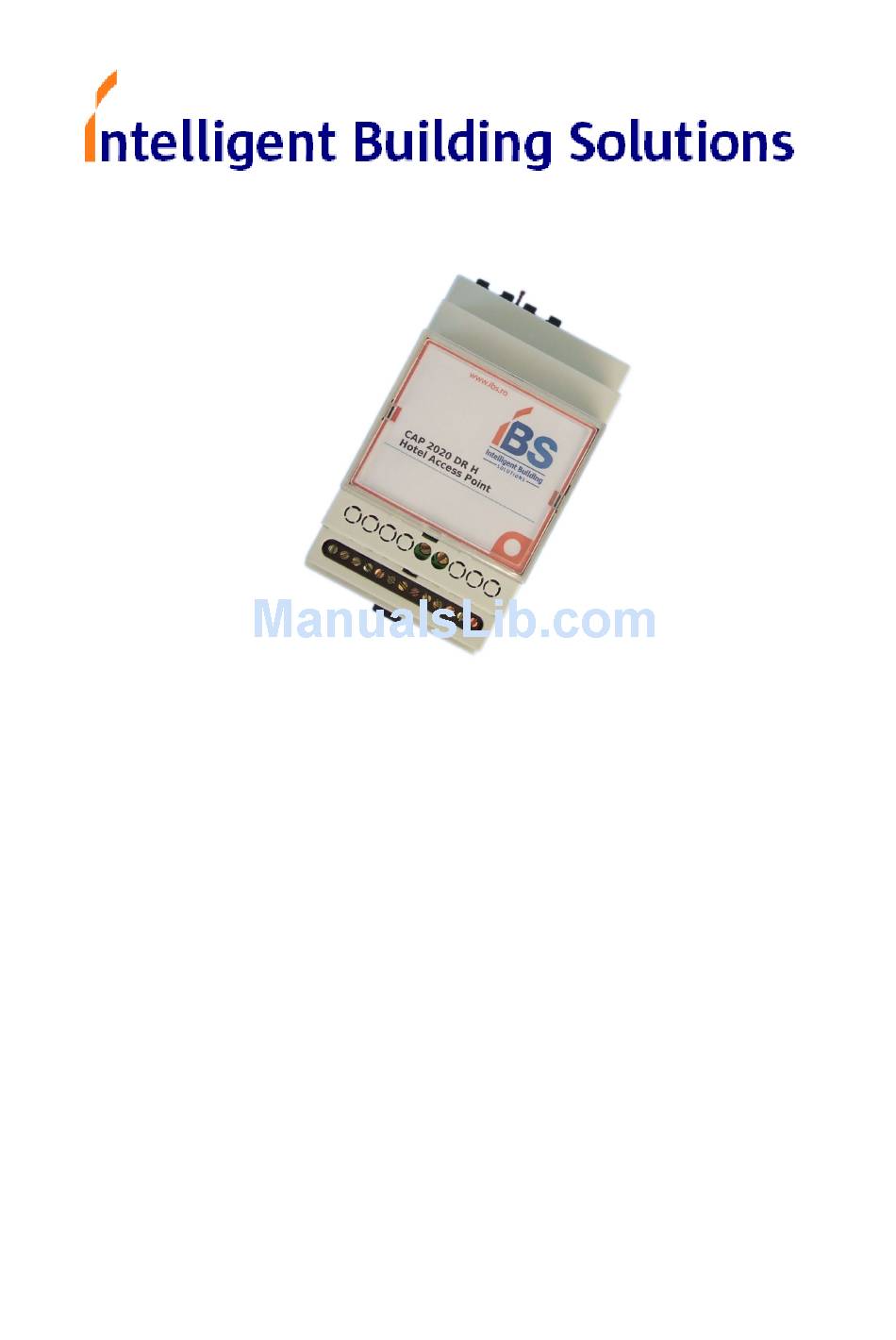

- Page 1 Installation Manual CAP 2020 DR H ACCESS CONTROL UNIT (for hotel management systems) Proximity card based ● DIN-rail mounting ● CIB-tech...
-
Page 2: Circuit Breaker
I n t r o d u c t i o n The CAP 2020 DR H is a proximity card based access control device, with hotel room economizer function, part of the CIB-tech automation system. The unit can control the entry in a hotel room. It accepts up to 1024 users and provides entry via the use of proximity cards. -
Page 3: Mechanical Characteristics
0 - 5V ■ output current: 15mA ■ Mechanical characteristics The CAP 2020 DR H has a standard 3-module wide enclosure for M36 type DIN-Rail Dimensions: 96mm W x 52mm L x 60mm D ● Weight: 130g ●... - Page 4 Support for two external LEDs (for reader A and and card holder) indicating a valid proximity card; ● I n s t a l l a t i o n The CAP 2020 DR H is meant to be installed on a standard M36 type DIN-Rail. Part description Bus connectors: ●...
-
Page 5: Wiring Diagrams
Connection to CIB-tech system: Use the CAP 2020 DR H device's two 4P4C modular jack connectors to connect it to the CIB-tech systems (chain like) bus. Do not forget to remove the EOL jumper if the device is not the last element of the chain... - Page 6 Connecting the input devices Connection example for proximity card reader and Smart card holder: CAP 2020 DR H Open door sensor (optional) Smart card holder Connection example for proximity card reader and Simple card holder: CAP 2020 DR H Open door sensor...
-
Page 7: Dc Power Supply
CAP 2020 DR H is not connected. Some proximity card readers have auxiliary inputs and outputs (ex. tamper, auxiliary led). These auxiliary inputs and outputs can not be connected to the CAP 2020 DR H. Connecting the electronic door lock... - Page 8 Connection example for DC-type electronic door lock and PS1213D, dedicated power supply : 230V AC PS 1213 D CAP 2020 DR H CAP 2020 DR H ©2009 - Intelligent Building Solutions...
- Page 9 Room equipment CAP 2020 DR H and connectors NOTE: A max. 16A Miniature Circuit Breaker (MCB) or max. 16A fuse must be connected in series with the CAP 2020 DR H's room power relay. Document Version 1.0 Technical Support: http://www.ibs-smarthouse.com/ info@ibs-smarthouse.com...
