3.1. Control elements

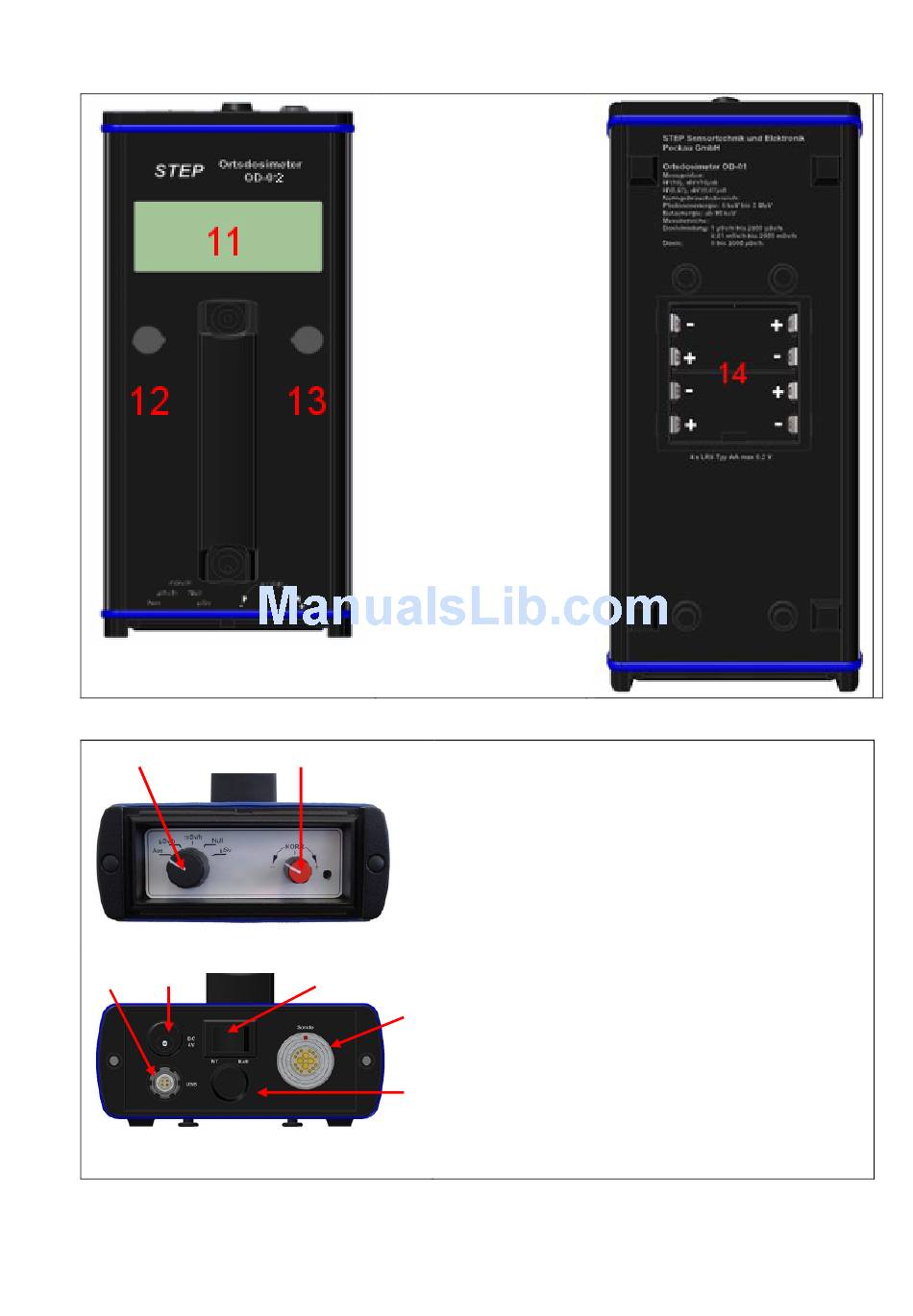

Fig. 3) Control elements front and rear side
15
17
18
Fig. 4) Control elements and connections device front side
Technical description and operating instructions
Survey meter OD-02
Rev 7 from 27 July 2016
11 LCD display
12 "Light / Reset dose /
Reset Max dose rate"-
button
13 T-button
Table / switch dose,
max dose rate"
14 Battery compartment
16
15 On/off and meter switch
16 Zero adjuster
19
21
17 Connection for external power supply (optional)
18 USB connection
19 Switch for internal and external power supply
20
20 Safety fuse (optional)
21 Probe connection
History
„
(optional)
