STEP OD-02 Technical Description And Operating Instructions page 16

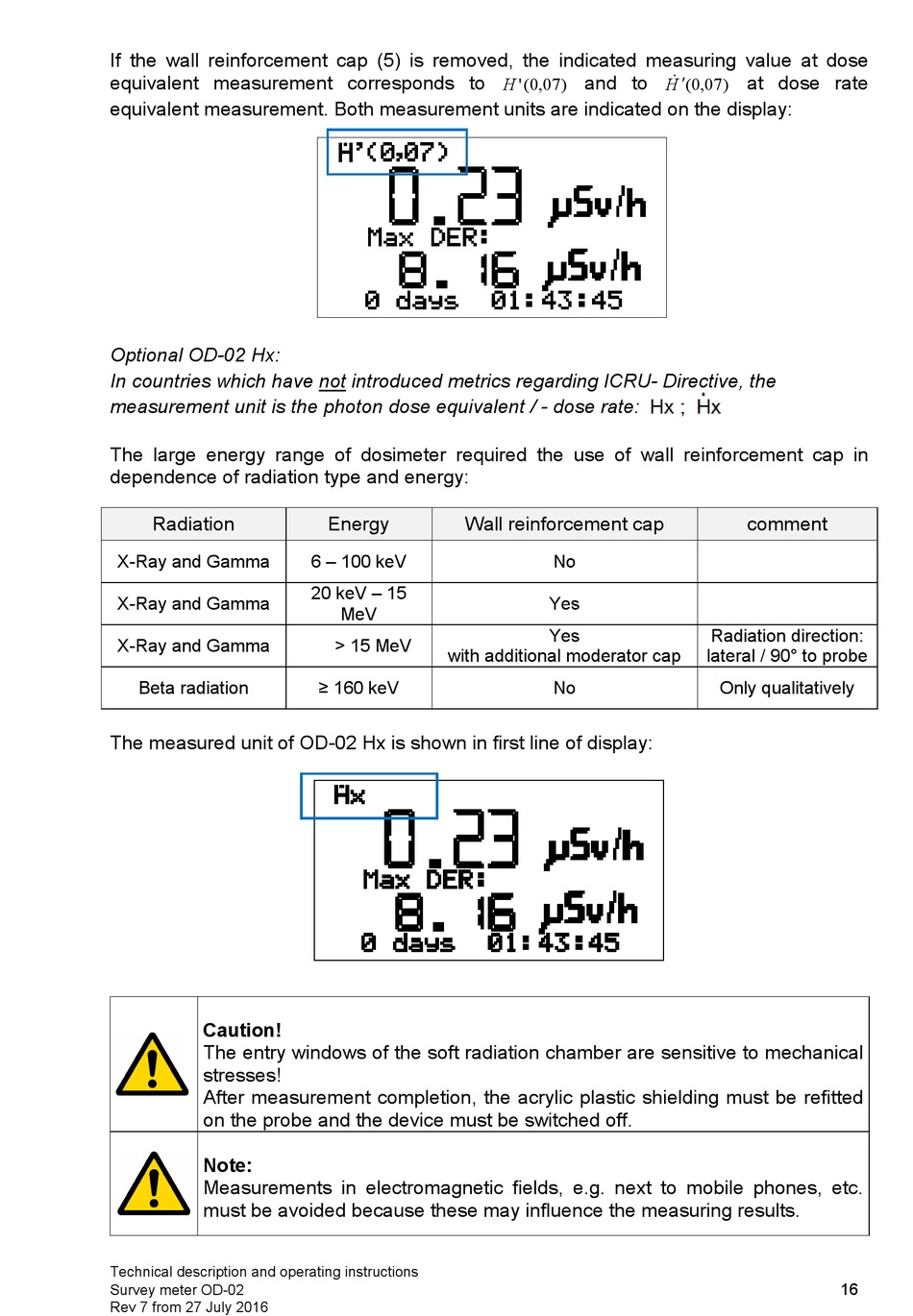

If the wall reinforcement cap (5) is removed, the indicated measuring value at dose
equivalent measurement corresponds to
equivalent measurement. Both measurement units are indicated on the display:
Optional OD-02 Hx:
In countries which have not introduced metrics regarding ICRU- Directive, the
measurement unit is the photon dose equivalent / - dose rate:
The large energy range of dosimeter required the use of wall reinforcement cap in
dependence of radiation type and energy:
Radiation
X-Ray and Gamma
X-Ray and Gamma
X-Ray and Gamma
Beta radiation
The measured unit of OD-02 Hx is shown in first line of display:
Caution!
The entry windows of the soft radiation chamber are sensitive to mechanical
stresses!
After measurement completion, the acrylic plastic shielding must be refitted
on the probe and the device must be switched off.
Note:
Measurements in electromagnetic fields, e.g. next to mobile phones, etc.
must be avoided because these may influence the measuring results.
Technical description and operating instructions
Survey meter OD-02
Rev 7 from 27 July 2016
Energy Wall reinforcement cap
6 – 100 keV
20 keV – 15
MeV
> 15 MeV
with additional moderator cap
≥ 160 keV
H ' &
and to
H ( ' , 0 07 )
No
Yes
Yes
No
at dose rate
( , 0 07 )
comment
Radiation direction:
lateral / 90° to probe
Only qualitatively
16
