GS2200M Low Power Wi-Fi Module
Hardware User Guide
1VV0301396 Rev. 0 – 2017-07-03

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GS2200M and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Telit Wireless Solutions GS2200M

Summary of Contents for Telit Wireless Solutions GS2200M

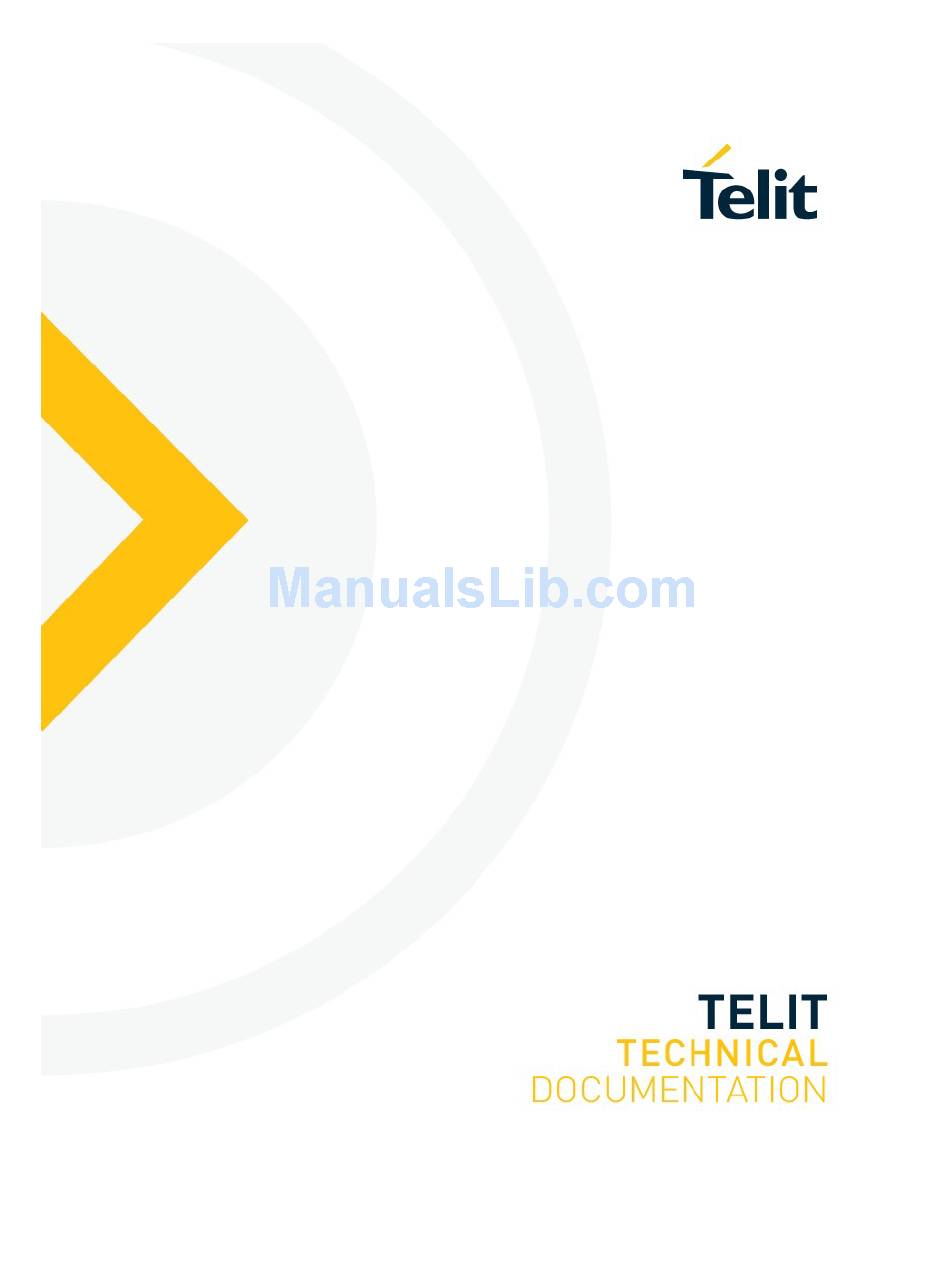

  • Page 1 GS2200M Low Power Wi-Fi Module Hardware User Guide 1VV0301396 Rev. 0 – 2017-07-03...
  • Page 2 TELIT MAKE CHANGES SPECIFICATIONS PRODUCT DESCRIPTIONS AT ANY TIME, WITHOUT NOTICE NOTICE While reasonable efforts have been made to assure the accuracy of this document, Telit assumes no liability resulting from any inaccuracies or omissions in this document, or from use of the information obtained herein. The information in this document has been carefully checked and is believed to be reliable.
  • Page 3 USAGE AND DISCLOSURE RESTRICTIONS I. License Agreements The software described in this document is the property of Telit and its licensors. It is furnished by express license agreement only and may be used only in accordance with the terms of such an agreement. II.
  • Page 4 TELIT HEREBY DISCLAIMS ANY AND ALL WARRANTIES EXPRESS OR IMPLIED FROM ANY THIRD PARTIES REGARDING ANY SEPARATE FILES, ANY THIRD PARTY MATERIALS INCLUDED IN THE SOFTWARE, ANY THIRD PARTY MATERIALS FROM WHICH THE SOFTWARE IS DERIVED (COLLECTIVELY “OTHER CODE”), AND THE USE OF ANY OR ALL THE OTHER CODE IN CONNECTION WITH THE SOFTWARE, INCLUDING (WITHOUT LIMITATION) ANY WARRANTIES OF SATISFACTORY QUALITY OR FITNESS FOR A PARTICULAR PURPOSE.

  • Page 5: Table Of Contents

    3.1 GS2200M Device Pin-out ......................37 3.1.1 GS2200M Module Pins Description ................38 Table 8 Errata ........................41 3.1.2 GS2200M Pin MUX Function ..................42 3.1.3 GS2200M Program and Code Restore Options ............44 Chapter 4 Electrical Characteristics ....................45 4.1 Absolute Maximum Ratings ....................45 4.2 Operating Conditions ......................46 4.3 I/O DC Specifications ......................47...
  • Page 6 4.5 802.11 Radio Parameters ......................51 4.6 SAR_ADC Parameters ......................52 4.7 Sigma Delta ADC Parameters ....................54 Chapter 5 Package and Layout Guidelines ..................55 5.1 GS2200M Recommended PCB Footprint and Dimensions ...........55 5.1.1 Surface Mount Assembly .....................59 Confidential 1VV0301396, Release 1.0...
  • Page 7 About This Manual This manual describes the GS2200M Low Power module hardware specification. Refer to the following sections: • Revision History, page 4 • Audience, page 5 • Standards, page 5 • Certifications, page 5 • Documentation Conventions, page 5 •...

  • Page 8: Revision History

    GS2200M Low Power WiFi Module Data Sheet Revision History This version of the GainSpan GS2200M Low Power WiFi Module Hardware user Guide contains the following new information listed in Table 1, page Table 1 Revision History Version Date Remarks 0.95...

  • Page 9: Audience

    WiFi connectivity for embedded device applications using the GainSpan GS2200M based module. Standards The standards supported by the GainSpan module are IEEE 802.11 b/g/n. Certifications GainSpan GS2200M Low Power WiFi Module has Certification Compliance for the following: Table 2 Certification Compliance Category Certification...
  • Page 10 GS2200M Low Power WiFi Module Data Sheet Table 3, page 6, describes the text conventions used in this manual for software procedures that are explained using the AT command line interface. Table 3 Document Text Conventions Convention Type Description This monospaced font represents command strings entered on a command syntax command line and sample source code.
  • Page 11 GS2200M Low Power WiFi Module Data Sheet Table 3 Document Text Conventions (Continued) Convention Type Description Allows the repetition of the element that immediately follows it multiple times. Do not enter as part of the command. dot (period) .AA:NN can be expanded to 1:01 1:02 1:03.
  • Page 12 GS2200M Low Power WiFi Module Data Sheet Table 4, page 8, describes the symbol conventions used in this manual for notification and important instructions Table 4 Symbol Conventions Icon Type Description Provides helpful suggestions needed in understanding Note a feature or references to material not available in the manual.

  • Page 13: Documentation

    GS2200M Low Power WiFi Module Data Sheet Documentation The GainSpan documentation suite listed in Table 5, page 9 includes the part number, documentation name, and a description of the document. The documents are available from the GainSpan Portal. Refer to Accessing the GainSpan Portal, page 12 for details.

  • Page 14: Contacting Gainspan Technical Support

    GS2200M Low Power WiFi Module Data Sheet Documentation Feedback We encourage you to provide feedback, comments, and suggestions so that we can improve the documentation. You can send your comments by logging into GainSpan Support Portal. If you are using e-mail, be sure to include the following information with your comments: –...

  • Page 15: Returning Products To Gainspan

    GS2200M Low Power WiFi Module Data Sheet • Links to PDFs of support policies Returning Products to GainSpan If a problem cannot be resolved by GainSpan technical support, a Return Material Authorization (RMA) is issued. This number is used to track the returned material at the factory and to return repaired or new components to the customer as needed.

  • Page 16: Accessing The Gainspan Portal

    7. Click the Account History tab to view customer account history. 8. Click the Legal Documents tab to view GainSpan Non-Disclosure Agreement (NDA). Ordering Information To order GainSpan’s GS2200M low power module contact a GainSpan Sales/Distributor Representative. Table 7, page 12 lists the GainSpan device information.

  • Page 17: Chapter 1 Gs2200M Overview

    GS2200M Module Product Features, page 13 1.1 Product Overview The GS2200M low power based module provides cost effective, low power, compact, and flexible platform to add WiFi connectivity for embedded devices for a variety of applications, such as wireless sensors and thermostats. It uses GS2000 SoC, which combines ARM Cortex M3-based processors with a 802.11b/g/n Radio, MAC, security,...
  • Page 18 GS2200M Overview GS2200M Low Power WiFi Module Data Sheet GS2200M Module Product Features – EAP-TTLS/MSCHAPv2, PEAPv0/EAP-MSCHAPv2, PEAPv1/EAP-GTC, EAP-FAST, EAP-TLS • Hardware-accelerated high-throughput AES and RC4 encryption/decryption engines for WEP, WPA/WPA2 (AES-CCMP and TKIP). • Additional dedicated encryption HW engine to support higher layer encryption such as IPSEC (IPv4 and IPv6), SSL/TLS, HTTPs, PKI, digital certificates, RNG, etc.
  • Page 19 GS2200M Low Power WiFi Module Data Sheet GS2200M Overview GS2200M Module Product Features • Interfaces: • SDIO: – Compliant to SDIO v2.0 specification – Interface clock frequency up to 40 MHz NOTE: Tested with current test platform up to 33 MHz.
  • Page 20 GS2200M Overview GS2200M Low Power WiFi Module Data Sheet GS2200M Module Product Features – One or two DC_DC_CNTL pins to turn off external power during Standby mode. • Embedded RTC (Real Time Clock) can run directly from battery. • Power supply monitoring capability.

  • Page 21: Chapter 2 Gs2200M Architecture

    GPIO’s, and LED Drivers/GPIO with 16mA capabilities. • GS2200M has a VRTC pin that is generally connected to always available power source such as battery or line power. This provides power to the Real Time Clock (RTC) block on the SoC. The module can be used with an external 1.8V switching regulator that is turned on/off when going into the lowest power mode, i.e.,...
  • Page 22 GS2200M Architecture GS2200M Low Power WiFi Module Data Sheet Architecture Description Figure 1 GS2200M Block Diagram Confidential 1VV0301396, Release 1.0...

  • Page 23: Wireless Lan And System Control Subsystem

    APP subsystem through a set of mailboxes and shared dual–port memories. The CPUs provide debug access through a JTAG/serial port. For the GS2200M module, the complete JTAG port is brought out for both CPUs. The CPUs also include code and data trace and watch point logic to assist in-system debugging of SW.

  • Page 24: 802.11 Phy

    GS2200M Architecture GS2200M Low Power WiFi Module Data Sheet Wireless LAN and System Control Subsystem • Client and AP modes support • Encryption support including: AES-CCMP, legacy WPA-TKIP, legacy WEP ciphers and key management • WiFi Protected Setup 2.0 (WPS2.0) including both PIN and push button options •...

  • Page 25: Rf/Analog

    GS2200M Low Power WiFi Module Data Sheet GS2200M Architecture Wireless LAN and System Control Subsystem 2.2.1.3 RF/Analog The RF/Analog is a single RF transceiver for IEEE 802.11b/g/n (WLAN). The RF Interface block provides the access to the RF and analog control and status to the CPU. This block is accessible only from the WLAN CPU.

  • Page 26: Rom

    Flash memory on the SoC. Any ROM patch code and new application code must reside in the on-module Flash device of the GS2200M module. Flash access from the two CPUs are independent. The APP CPU is considered the system Master and the code running on this CPU is required to initialize the overall chip and common interfaces.

  • Page 27: Real Time Clock (Rtc) Overview

    2.2.5 Real Time Clock (RTC) Overview To provide global time (and date) to the system, the GS2200M module is equipped with a low-power Real Time Clock (RTC). The RTC is the always on block that manages the Standby state.
  • Page 28 GS2200M Architecture GS2200M Low Power WiFi Module Data Sheet Wireless LAN and System Control Subsystem An overview of RTC block diagram is shown in Figure 2, page 24. The RTC contains a low-power 32.768KHz RC oscillator which provides fast startup at first application of RTC power.

  • Page 29: Real Time Clock Counter

    GS2200M Low Power WiFi Module Data Sheet GS2200M Architecture Wireless LAN and System Control Subsystem 2.2.5.2 Real Time Clock Counter The Real Time Counter features: – 48-bit length (with absolute duration of 272 years). – Low-power design. This counter is automatically reset by power-on-reset.

  • Page 30: Spi Interface

    GS2200M Architecture GS2200M Low Power WiFi Module Data Sheet Wireless LAN and System Control Subsystem • Conforms to AHB specification • Host clock rate variable between 0 and 40 MHz NOTE: Tested with current test platform up to 33 MHz.

  • Page 31: I2C Interface

    GS2200M Low Power WiFi Module Data Sheet GS2200M Architecture Wireless LAN and System Control Subsystem communication baud rate. It supports DMA working in conjunction with the uDMA engine. 2.2.6.4 I2C Interface The I C interface block implements the standard based two wire serial I C protocol.

  • Page 32: Pwm

    GS2200M Architecture GS2200M Low Power WiFi Module Data Sheet Wireless LAN and System Control Subsystem 2.2.6.8 PWM The PWM consists of three identical PWM function blocks. The PWM function blocks can be used in two modes of operations: • Independent PWM function blocks providing output signal with programmable frequency and duty cycle •...

  • Page 33: System States

    The system states of the GS2200M system are as follows: Power OFF: No power source connected to the system. Standby: In the standby state, only the RTC portion of the GS2200M is powered from the VRTC pin. The other power supplies are turned off by the DC_DC_CNTL pin being low.
  • Page 34 GS2200M Architecture GS2200M Low Power WiFi Module Data Sheet Wireless LAN and System Control Subsystem In standby state, the 32.768KHz oscillator keeps running and only the RTC RAM retains the state (how many banks retain their state is SW configurable). SRAM, CPUs and I/Os are all in OFF state, as there is no VREG and no VDDIO being supplied to the GS2200M device.
  • Page 35 The following are not system states, but are related design notes: Power Control: The GS2200M was designed with the intent that power to the non-RTC portions of the chip be controlled from the DC_DC_CNTL signal. In applications where it is preferred that an external host control the power, this is OK if ALL power, including VRTC power, is turned on and off by the external host.

  • Page 36: Power Supply

    GS2200M in regulator powered with optimized standby mode only, Figure 6, page 34 shows GS2200M in regulator powered with optimized standby and radio power mode, and Figure 7, page 35 shows the GS2200M in battery powered with optimized standby mode.
  • Page 37 Figure 5 GS2200M Regulator Powered with Optimized Standby Only Notes: 1. This connection applies for designs starting from regulated power, using GS2200M module and want optimized standby (lowest current consumption) state of the module. In this connection it is important to note the following: 2.
  • Page 38 Figure 6 GS2200M Regulator Powered with Optimized Standby and Radio Power Notes: 1. This connection applies for designs starting from regulated power, using GS2200M module and want optimized standby (lowest current consumption) state of the module. In this connection it is important to note the following: 2.
  • Page 39 Figure 7 GS2200M Battery Powered with Optimized Standby Support Notes: 1. This connection applies for designs (typically battery operated) using GS2200M module and want to optimized standby (lowest current consumption) state of the module. In this connection it is important to note the following: 2.
  • Page 40 GS2200M Architecture GS2200M Low Power WiFi Module Data Sheet Wireless LAN and System Control Subsystem Confidential 1VV0301396, Release 1.0...

  • Page 41: Chapter 3 Pin-Out And Signal Description

    This chapter describes the GainSpan GS2200M Low Power module architecture. ® • GS2200M Device Pin-out, page 37 3.1 GS2200M Device Pin-out Figure 8, page 37 shows the GS2200M device pin-out diagram. Figure 8 GS2200M Device Pin-out Diagram (Module Top View) 1VV0301396, Release 1.0 Confidential...

  • Page 42: Gs2200M Module Pins Description

    Pin-out and Signal Description GS2200M Low Power WiFi Module Data Sheet GS2200M Device Pin-out 3.1.1 GS2200M Module Pins Description Table 8, page 38 describes the GS2200M module pin signal description. Table 8 GS2200M Module Pin Signal Description Pins Name Voltage...
  • Page 43 GS2200M Low Power WiFi Module Data Sheet Pin-out and Signal Description GS2200M Device Pin-out Table 8 GS2200M Module Pin Signal Description (Continued) Pins Name Voltage Internal Bias Drive Signal State Description Domain after Strength Hardware (mA) Reset GPIO/SDIO GPIO35/SDIO_CLK_SPI0 Digital...
  • Page 44 3. This pin enables programming of the module. If UART1_RTS (GPIO27) is high during reset or power on then the GS2200M will wait for Flash download via UART0 or SPI0 interface. Route this pin on the base board so it can be pulled up to VDDIO for programming the module.
  • Page 45 GS2200M Low Power WiFi Module Data Sheet Pin-out and Signal Description GS2200M Device Pin-out 6. EXT_RTC_RESET_n is an active low reset input, referenced to the VRTC voltage. It resets the whole module, including the RTC section. It may be left unconnected. If driven externally, GainSpan recommends a 5.1K pull-up resistor to VRTC.

  • Page 46: Gs2200M Pin Mux Function

    GS2200M Low Power WiFi Module Data Sheet GS2200M Device Pin-out 3.1.2 GS2200M Pin MUX Function The GS2200M pins have multiple functions that can be selected using MUX function by software. Each pin has an independent MUX select register. Table 9, page 42 shows the various MUX functions for each pin.
  • Page 47 GS2200M Low Power WiFi Module Data Sheet Pin-out and Signal Description GS2200M Device Pin-out Table 9 GS2200M Pin MUX Description (Continued) Pin# Pin Name Mux3 Mux4 Mux5 Mux6 Mux7 Comments ext_rtc_reset_n dc_dc_cntl_n/rtc_io_4 rtc_io_2 vrtc adc_sd_0n Sigma-delta ADC0 negative input or DAC output...

  • Page 48: Gs2200M Program And Code Restore Options

    The respective GPIO pins are sampled at reset by device and depending on the values seen on these pins goes into the appropriate mode. Code for the GS2200M resides on the internal flash of the module and up to two back-up copies could be stored in flash.

  • Page 49: Chapter 4 Electrical Characteristics

    Conditions beyond those cited in Table 11, page 45 may cause permanent damage to the GS2200M, and must be avoided. Sustained operation, beyond the normal operating conditions, may affect the long term reliability of the module. Table 11 Absolute Maximum Ratings...

  • Page 50: Operating Conditions

    Electrical Characteristics GS2200M Low Power WiFi Module Data Sheet Operating Conditions 4.2 Operating Conditions Table 12, page 46 lists the operating conditions of the GS2200M module. Table 12 Operating Conditions Parameter Symbol Minimum Typical Maximum Unit Extended Temperature Range RTC Power Supply VRTC...

  • Page 51: I/O Dc Specifications

    GS2200M Low Power WiFi Module Data Sheet Electrical Characteristics I/O DC Specifications 4.3 I/O DC Specifications 4.3.1 I/O Digital Specifications (Tri-State) Pin Types 4mA, 12mA, and 16mA The specifications for these I/O’s are given for voltage ranges: 2.7V to 3.6V.

  • Page 52: I/O Digital Specifications For Vddio=1.7V To 1.98V

    Electrical Characteristics GS2200M Low Power WiFi Module Data Sheet I/O DC Specifications 4.3.1.2 I/O Digital Specifications for VDDIO=1.7V to 1.98V Table 14, page 48 lists the parameters for I/O digital specification for VDDIO 1.7V to 1.98V for Pin Types 4mA, 12mA, and 16mA.

  • Page 53: Rtc I/O Specifications

    GS2200M Low Power WiFi Module Data Sheet Electrical Characteristics I/O DC Specifications 4.3.2 RTC I/O Specifications Table 15, page 49 lists the RTC I/O parameters. Table 15 RTC I/O Parameters Parameter Symbol Minimum Typical Maximum Unit Note Supply Voltage VRTC Input Low -.03...

  • Page 54: Power Consumption

    GS2200M Low Power WiFi Module Data Sheet Power Consumption 4.4 Power Consumption Table 16, page 50 lists the power consumption for the GS2200M. Typical conditions are: VIN_3V3=VDDIO=VRTC=3.3V, VREG=1.8V, Temp=25 Table 16 Typical Power Consumption in Different States System State Typical...

  • Page 55: 802.11 Radio Parameters

    GS2200M Low Power WiFi Module Data Sheet Electrical Characteristics 802.11 Radio Parameters 4.5 802.11 Radio Parameters Table 17, page 51 lists the 802.11 Radio parameters. Test conditions are: VIN_3V3=VDDIO=VRTC=3.3V Temp=25 Table 17 802.11 Radio Parameters - (Typical - Nominal Conditions)

  • Page 56: Sar_Adc Parameters

    Electrical Characteristics GS2200M Low Power WiFi Module Data Sheet SAR_ADC Parameters 4.6 SAR_ADC Parameters Table 18, page 52 lists the SAR_ADC parameters. Test conditions are: VIN_3V3=VDDIO=VRTC=3.3V Temp=25 Table 18 SAR_ADC Parameters Parameter Minimum Typical Maximum Unit Notes ADC Resolution Bits Conversion Speed (F ) 0.01...
  • Page 57 GS2200M Low Power WiFi Module Data Sheet Electrical Characteristics SAR_ADC Parameters Table 18 SAR_ADC Parameters (Continued) Parameter Minimum Typical Maximum Unit Notes ADC Gain Error see Note 2 Error in Internal Reference Voltage without Trim Error in Internal Reference Voltage with -2.5...

  • Page 58: Sigma Delta Adc Parameters

    Electrical Characteristics GS2200M Low Power WiFi Module Data Sheet Sigma Delta ADC Parameters 4.7 Sigma Delta ADC Parameters Table 18, page 52 lists the Sigma Delta ADC parameters. Test conditions are: VIN_3V3=VRTC=3.3V Temp=25 Table 19 ADC Parameters Parameter Minimum Typical...

  • Page 59: Chapter 5 Package And Layout Guidelines

    Chapter 5 Package and Layout Guidelines This chapter describes the GainSpan GS2200M package and layout guidelines. ® • GS2200M Recommended PCB Footprint and Dimensions, page 55 5.1 GS2200M Recommended PCB Footprint and Dimensions Figure 9, page 56 Figure 10, page 57 shows the module dimensions.
  • Page 60 Package and Layout Guidelines GS2200M Low Power WiFi Module Data Sheet GS2200M Recommended PCB Footprint and Dimensions Figure 9 GS2200M Module Dimensions (in millimeters) Confidential 1VV0301396, Release 1.0...
  • Page 61 GS2200M Low Power WiFi Module Data Sheet Package and Layout Guidelines GS2200M Recommended PCB Footprint and Dimensions Figure 10 GS2200M Module Dimensions (in millimeters) - (Continued) 1VV0301396, Release 1.0 Confidential...
  • Page 62 GS2200M Low Power WiFi Module Data Sheet GS2200M Recommended PCB Footprint and Dimensions Figure 11 GS2200M Module Recommended PCB Footprint (in millimeters) Notes: 1. GainSpan recommends that the antenna area have only air on BOTH sides. It can be either: Hung over the edge of the base board.

  • Page 63: Surface Mount Assembly

    5. Isolate PWR/GND from high frequency or high current parts. For example, use a notch in the GND plane between a host uC and the GS2200M. 6. Provide a 4.7uF or greater capacitor at the VIN_3V3 pin. 3 vias on BOTH sides of the capacitor.
  • Page 64 Package and Layout Guidelines GS2200M Low Power WiFi Module Data Sheet GS2200M Recommended PCB Footprint and Dimensions Table 20 Recommended Reflow Parameters (Continued) Preheat Pre-heat ending temperature (C2) 180 to 200 Heating Peak Temperature range (D) 240 to 250 Melting time...
  • Page 65 GS2200M Low Power WiFi Module Data Sheet Package and Layout Guidelines GS2200M Recommended PCB Footprint and Dimensions Figure 13 Thermocouple Locations 1VV0301396, Release 1.0 Confidential...
  • Page 66 Package and Layout Guidelines GS2200M Low Power WiFi Module Data Sheet GS2200M Recommended PCB Footprint and Dimensions Figure 14 Module Moisture Conditions Confidential 1VV0301396, Release 1.0...
